Aurora on night  2016-09-27 /  2016-09-28

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
- Aurora display between 22:15 and 00:30h UT (23:15-01:30h BST), peaking around 23:00h UT (00:00 BST).  Auroral rays reaching to 20 deg altitude.
Display hidden by clouds towards end.
 - Second aurora display between 02:00 and 03:20h UT (03:00-04:20h BST), peaking around 02:50h UT (03:50 BST), partly hidden by cloud.

Pictures

Panoramic View - Northern Sky

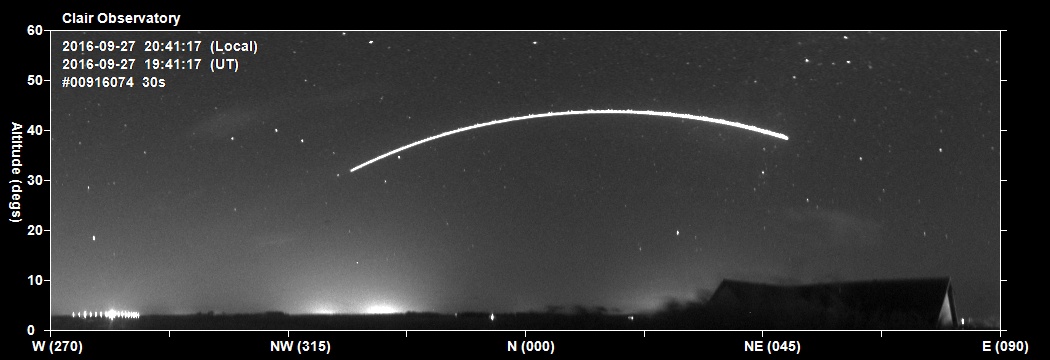

Plane - 2016-09-27 19:41h UT (20:41h BST). Image #916074

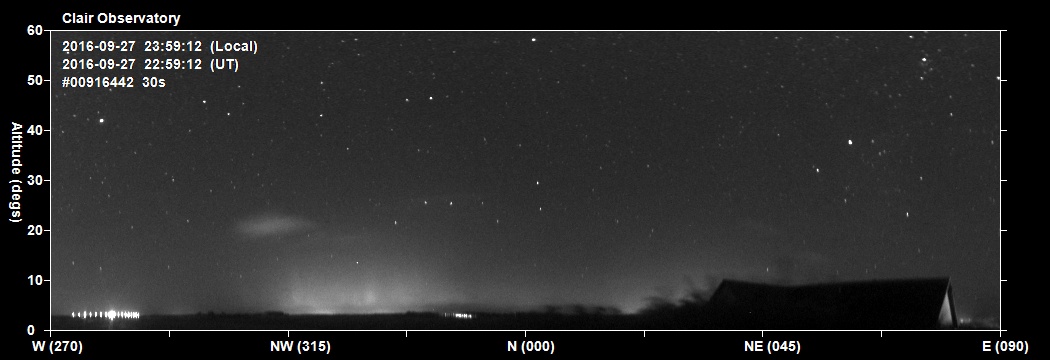

Aurora - 2016-09-27 22:59h UT (23:59h BST). Image #916442

Aurora - 2016-09-27 23:01h UT (2016-09-28 00:01h BST). Image #916447

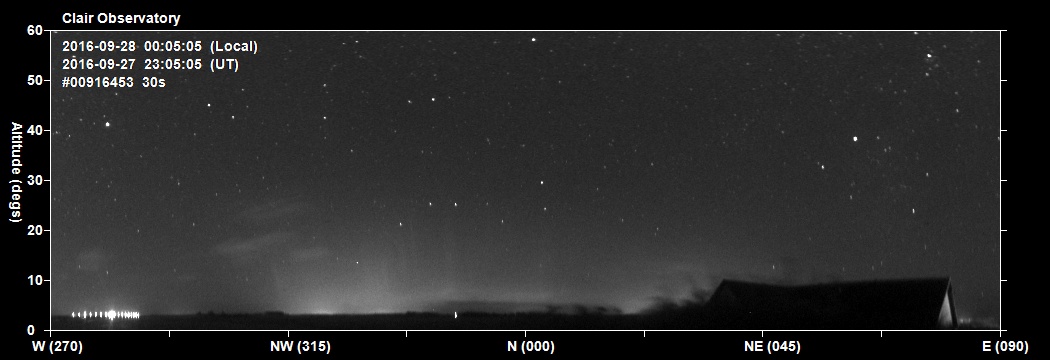

Aurora - 2016-09-27 23:05h UT (2016-09-28 00:05h BST). Image #916453

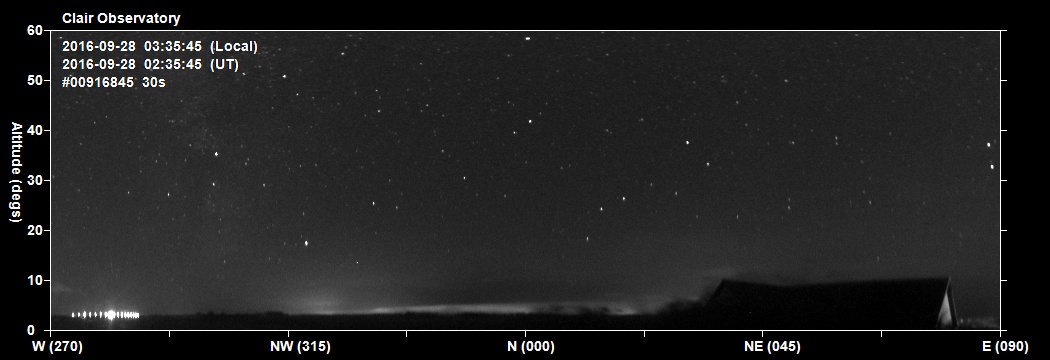

Aurora - 2016-09-28 02:35h UT (03:35h BST). Image #916845

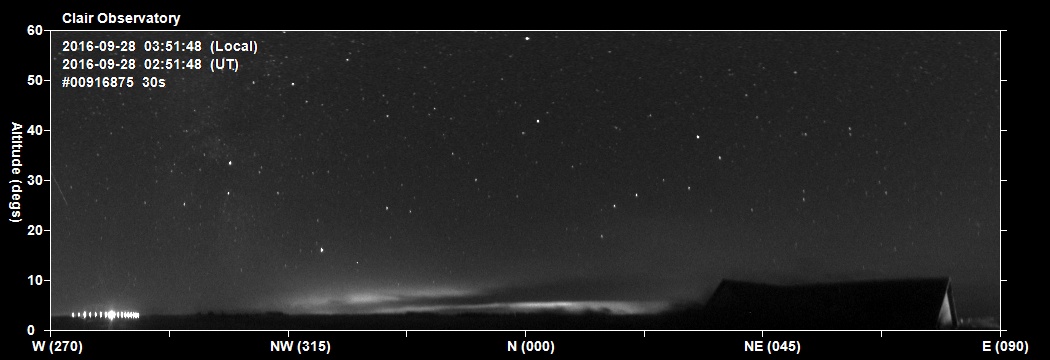

Aurora - 2016-09-28 02:51h UT (03:51h BST). Image #916875

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 6.0 hour period
2016-09-27 22:00h to 2016-09-28 04:00h UT (23:00-05:00h BST), Frames 916333-917002.
Link to .mp4 video file (7.0 MB)
0.0s / 0.0s

Back to Top

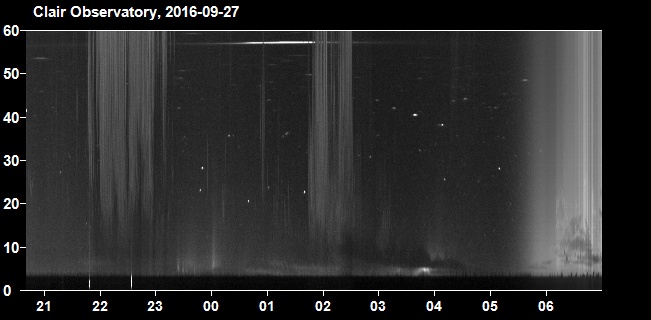

Night Summary Plot

Night Summary Plot - North Sky (2016-09-27 / 2016-09-28)
Times on plot are local GMT times (= UT time)

Back to Top

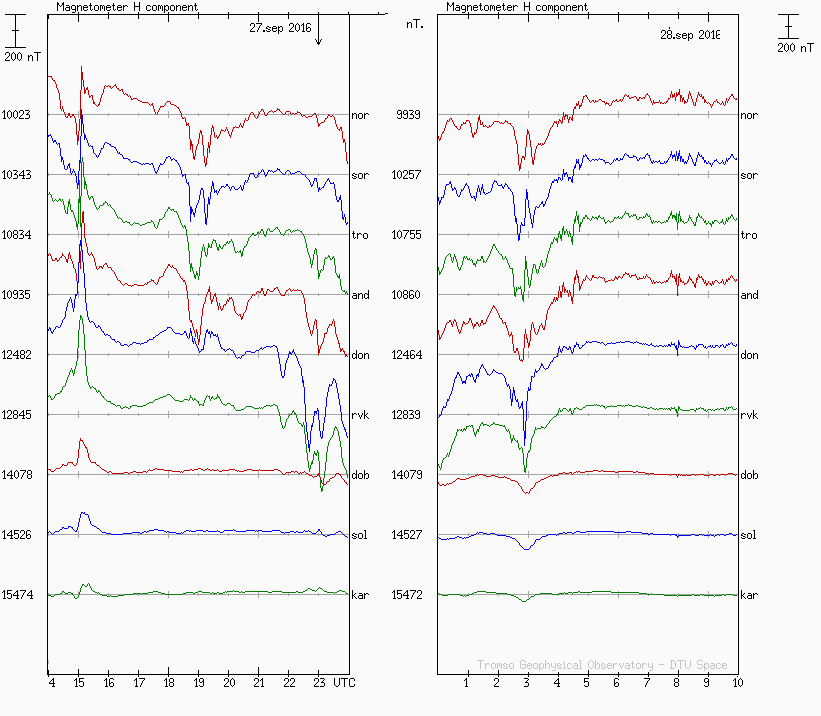

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-09-27 / 2016-09-28
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
