Aurora 2016-10-02

Aurora	Notes
Pictures Videos Summary Plot Magnetometer Stack Plots (for reference)	- Very weak aurora display close to northern horizon  appearing to peak around 22:30-23:00h UT (23:30-00:00h BST).  - Display affected by passing clouds,  and clouds in NW Sky lit up by reflection from light pollution in nearby town.

Pictures

Panoramic View - Northern Sky

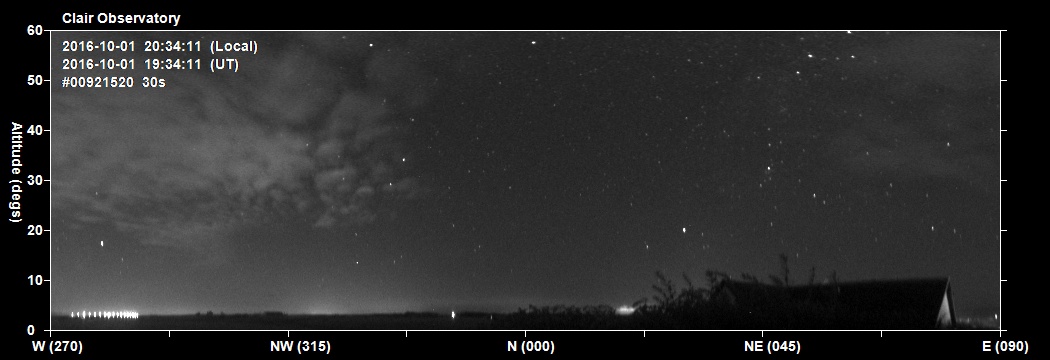

Aurora - 2016-10-01 19:34h UT (20:34h BST). Image #921520

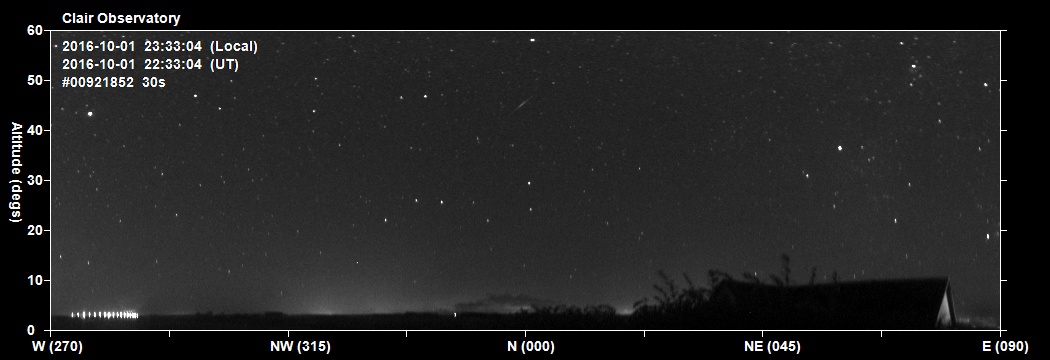

Aurora - 2016-10-01 22:33h UT (23:33h BST). Image #921852

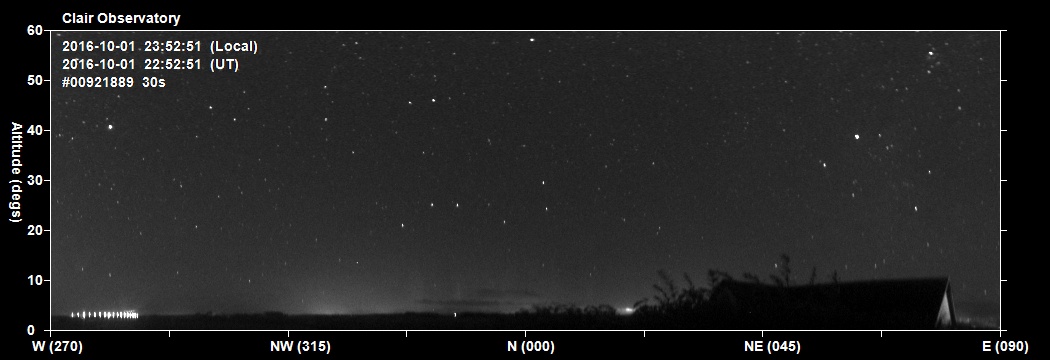

Aurora - 2016-10-01 22:52h UT (23:52h BST). Image #921889

Panorama views of northern sky converted from original fish eye images 30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Night Summary Plot

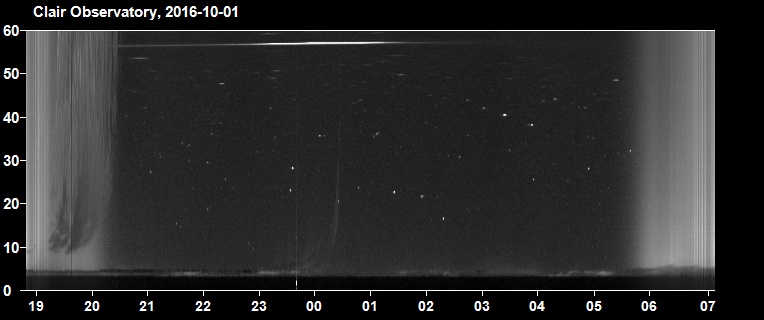

Night Summary Plot - North Sky (2016-10-01 / 2016-10-02) Times on plot are local BST times (= UT time + 1 hour)

Back to Top

Magnetometer Stack Plots (for reference)

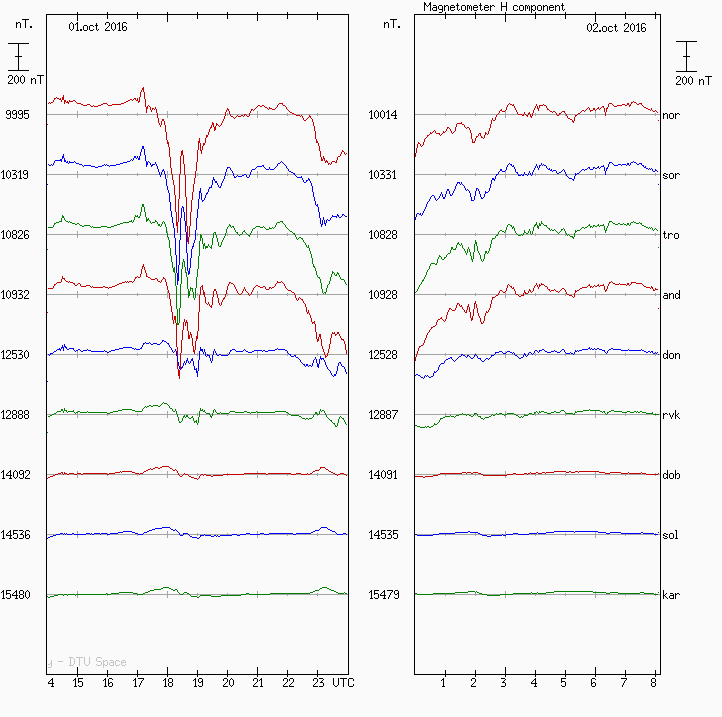

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2016-10-01 / 2016-10-02 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
