David's Astronomy Pages (All Sky Camera)
Aurora on night  2016-10-24 /  2016-10-25

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
- Nice aurora display close to northern horizon starting around 20:30h UT (21:30h BST) and appearing to peak around 23:30h UT (00:30h BST) with vertical rays reaching to 15-20 deg altitude. Display gradually covered by cloud at 23:45h UT (00:45h BST) and the probable true peak of auroral activity at around 02:00h UT (03:00h BST) was largely missed.  Weaker activity seen through to around 04:30h UT (05:30h BST)
 -

Pictures

Panoramic View - Northern Sky

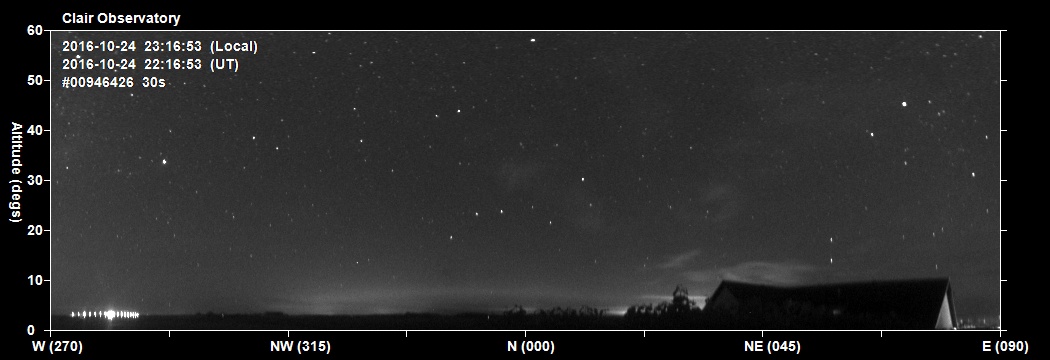

Aurora - 2016-10-24 22:16h UT (23:16h BST). Image #946426

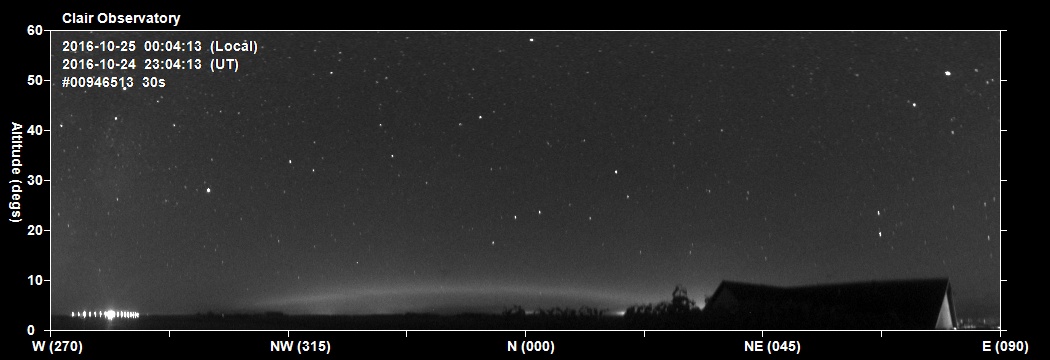

Aurora - 2016-10-24 23:04h UT (2016-10-25 00:04h BST). Image #946513

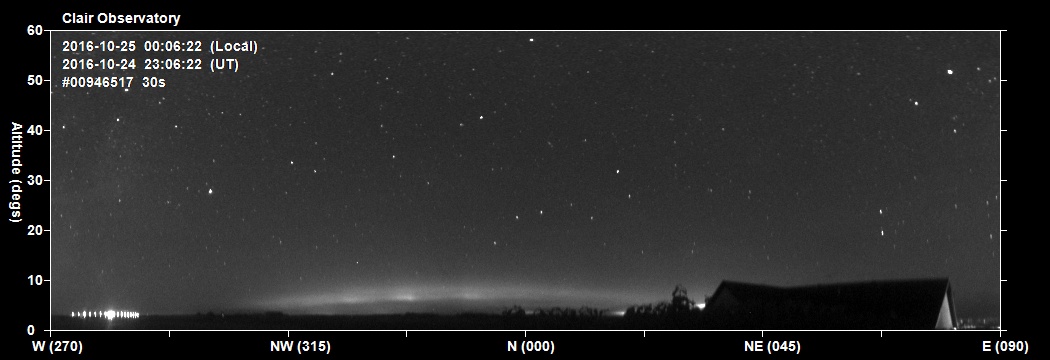

Aurora - 2016-10-24 23:06h UT (2016-10-25 00:06h BST). Image #946517

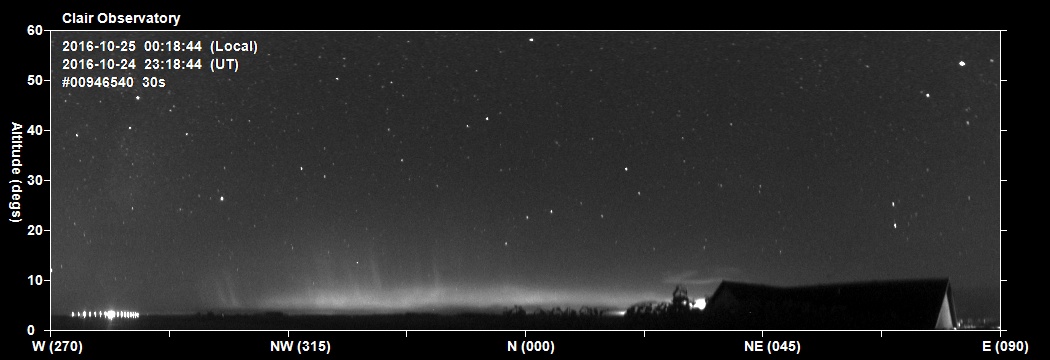

Aurora - 2016-10-24 23:18h UT (2016-10-25 00:18h BST). Image #946540

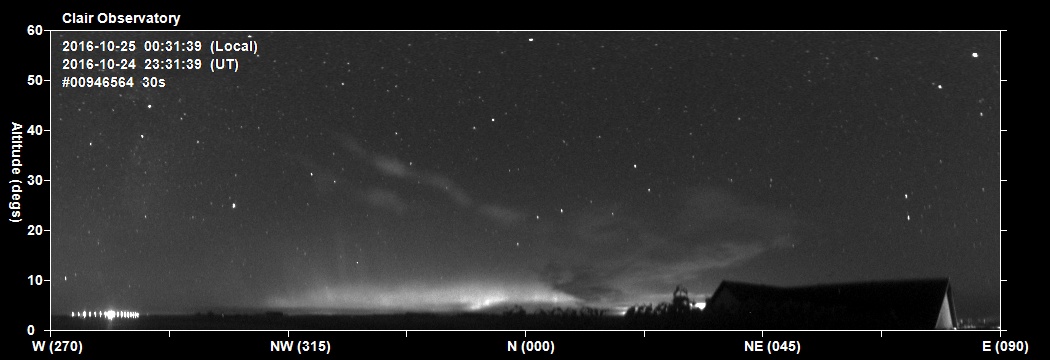

Aurora - 2016-10-24 23:31h UT (2016-10-25 00:31h BST). Image #946564

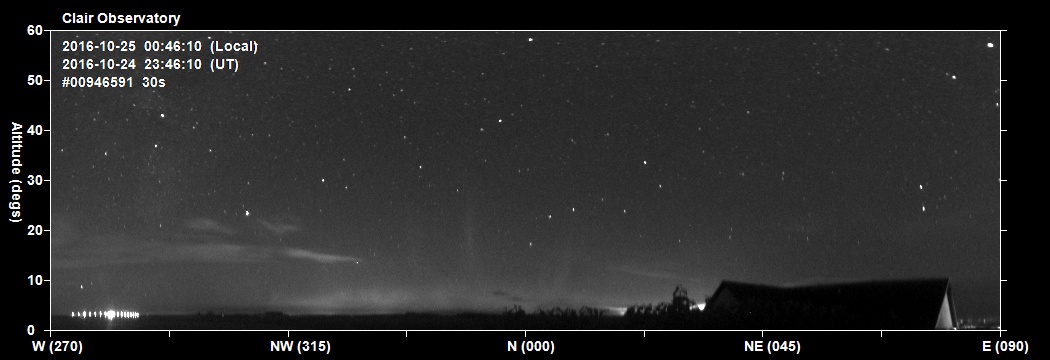

Aurora - 2016-10-24 23:46h UT (2016-10-25 00:46h BST). Image #946591

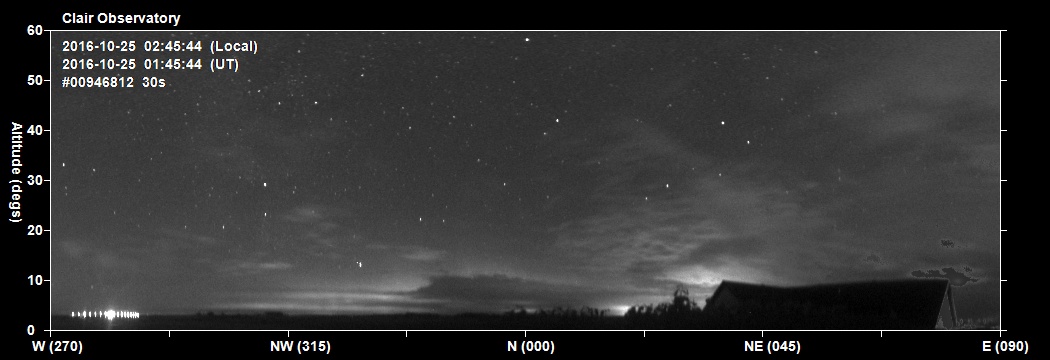

Aurora & Cloud - 2016-10-25 01:45h UT (02:45h BST). Image #946812

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 8.25 hour period
2016-10-24 20:30h to 2016-10-25 04:45h UT (21:30h to 05:45h BST), Frames 946229-947032.
Link to .mp4 video file (5.4 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

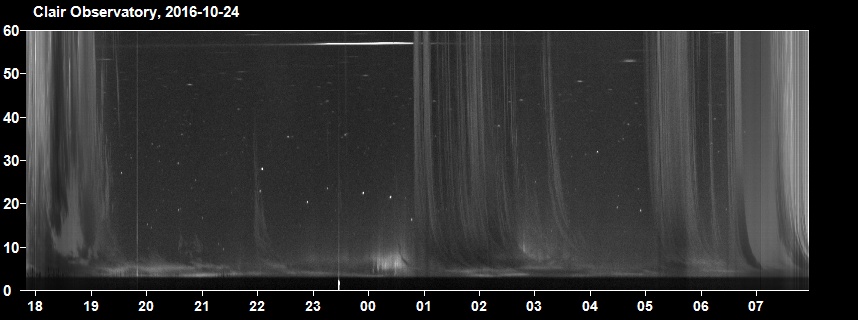

Night Summary Plot - North Sky (2016-10-24 / 2016-10-25)
Times on plot are local BST times (= UT time + 1 hour)

Back to Top


Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-10-24 / 2016-10-25
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
