David's Astronomy Pages (All Sky Camera)
Aurora on night  2016-10-28 /  2016-10-29

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
- Relatively weak display close to northern horizon starting around 21:00h UT (22:00h BST) and appearing to peak around 23:00-23:45h UT (00:00-00:45h BST). Display gradually covered by cloud and weakening by 00:00h UT  (01:00h BST)
 -

Pictures

Panoramic View - Northern Sky

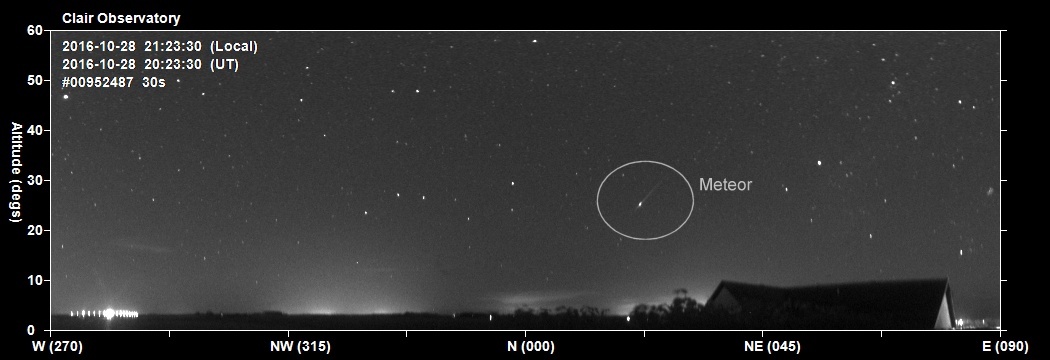

Meteor - 2016-10-28 20:23h UT (21:23h BST). Image #952487

Aurora developing - 2016-10-28 21:19h UT (22:19h BST). Image #952592

Aurora - 2016-10-28 23:19h UT (2016-10-29 00:09h BST). Image #952798

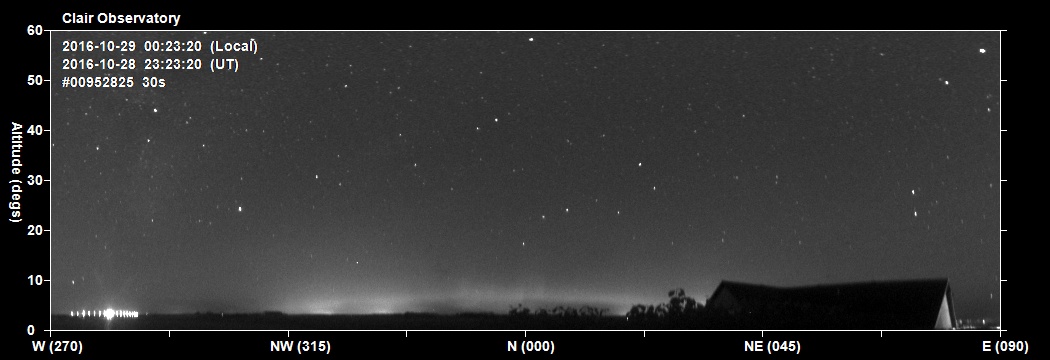

Aurora - 2016-10-28 23:23h UT (2016-10-29 00:23h BST). Image #952825

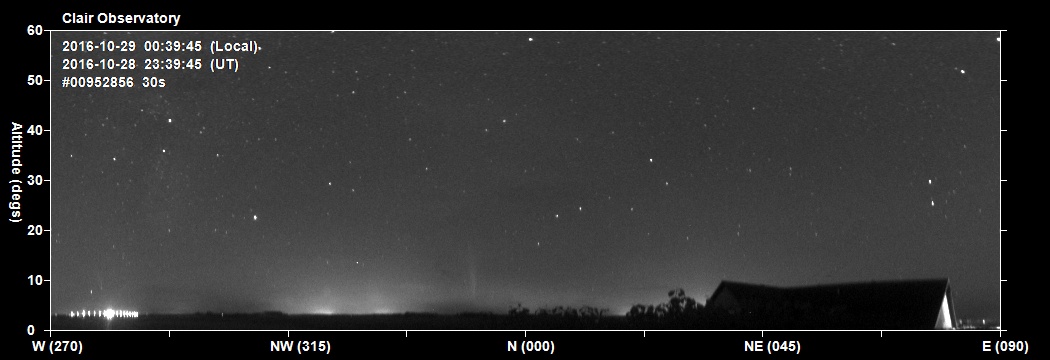

Aurora - 2016-10-28 23:39h UT (2016-10-29 00:39h BST). Image #952856

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 4.5 hour period
2016-10-28 20:30h to 2016-10-29 01:00h UT (21:30h to 02:00h BST), Frames 952487-953007.
Link to .mp4 video file (3.2 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

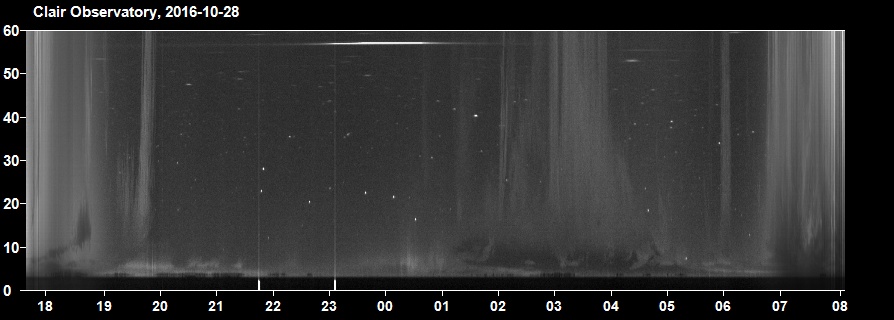

Night Summary Plot - North Sky (2016-10-28 / 2016-10-29)
Times on plot are local BST times (= UT time + 1 hour)

Back to Top


Magnetometer Stack Plots (for reference)

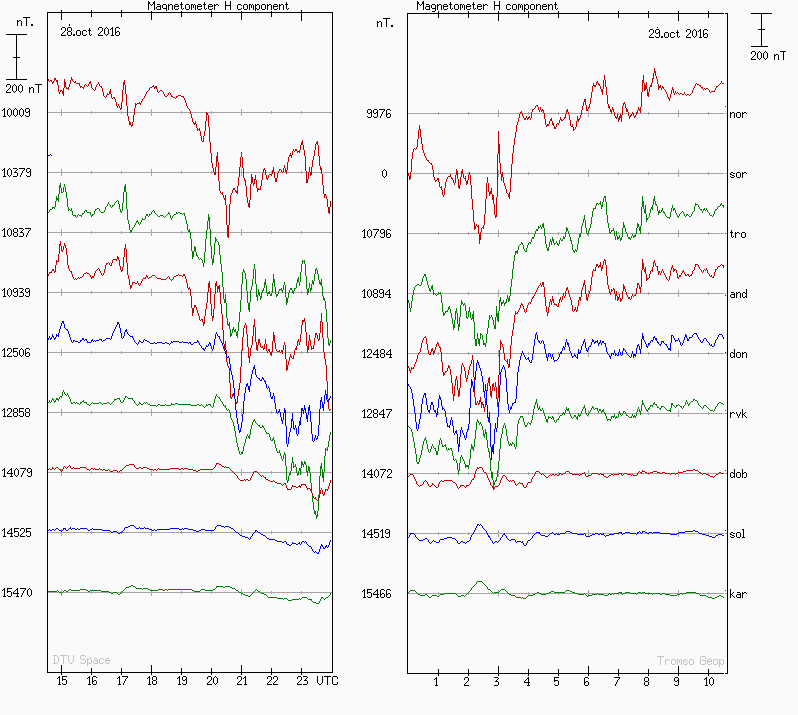

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-10-28 / 2016-10-29
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
