David's Astronomy Pages (All Sky Camera) Aurora on night  2016-12-25 /  2016-12-26

Aurora 2016-12-22

All Sky Images

Home Page

Aurora 2016-12-31

Aurora	Notes
Pictures Videos Summary Plot Magnetometer Stack Plots (for reference) Planetary K-Index Plot (for reference)	- Aurora display between 17:56 and 18:14h UT (GMT)(~ Kp3/4 event) with a further short display around 01:46 UT (GMT) (KP5 event) Possible lightning or other shortlived flash event at 06:11h UT (GMT)

Pictures

Panoramic View - Northern Sky

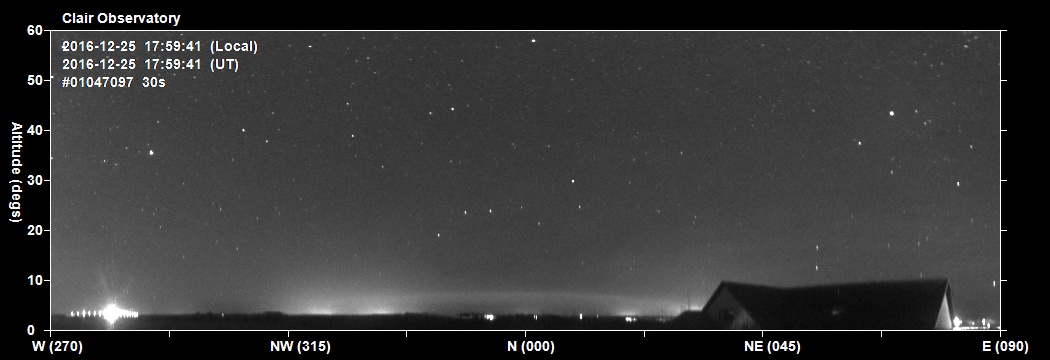

Aurora - 2016-12-25 17:59h UT (GMT). Image #1047097

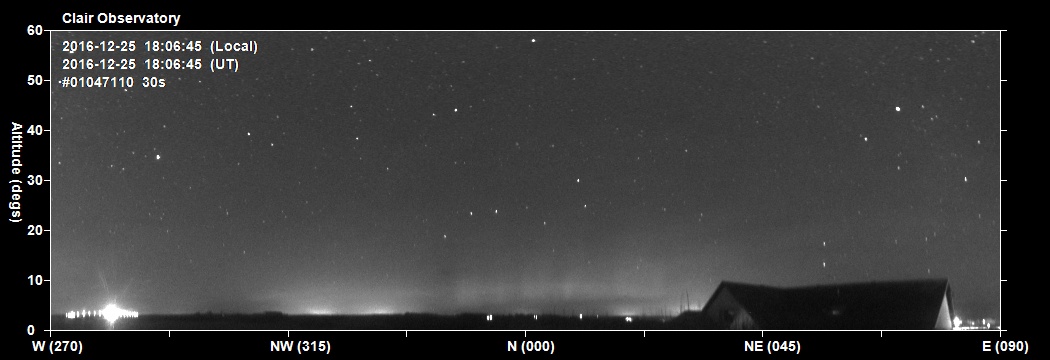

Aurora - 2016-12-25 18:06h UT (GMT). Image #1047110

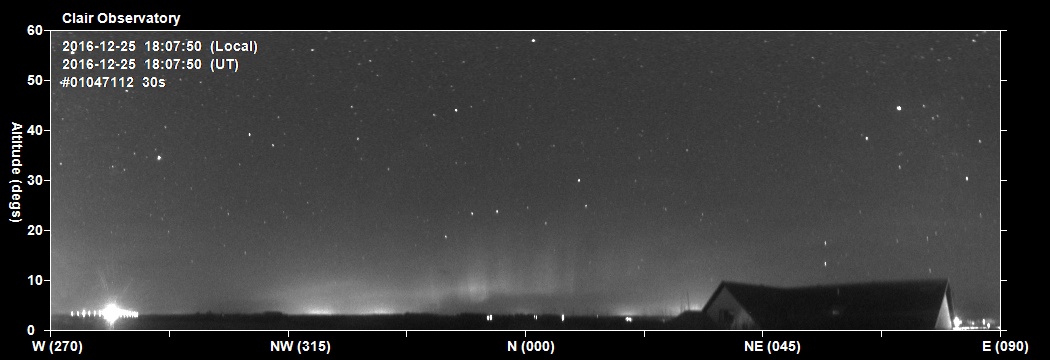

Aurora - 2016-12-25 18:07h UT (GMT). Image #1047112

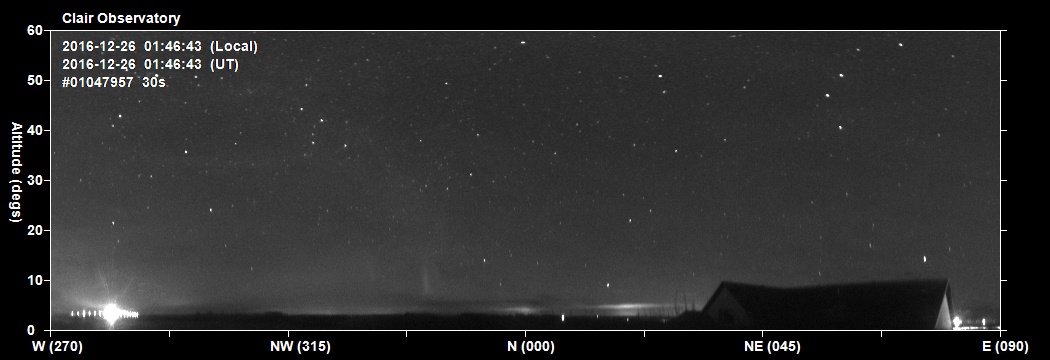

Later Aurora - 2016-12-26 01:46h UT (GMT). Image #1047957

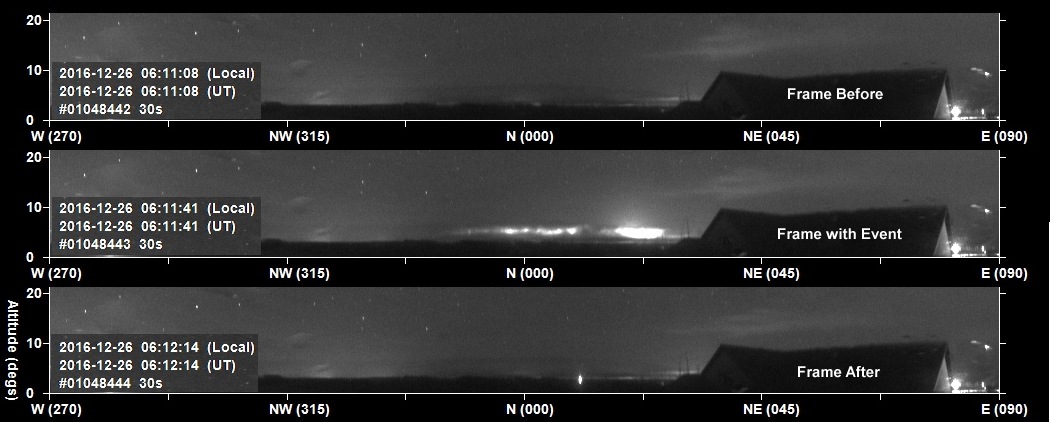

Lightning or other flash event - 2016-12-26 06:11h UT (GMT). Image #1048443

Panorama views of northern sky converted from original fish eye images 30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Night Summary Plot

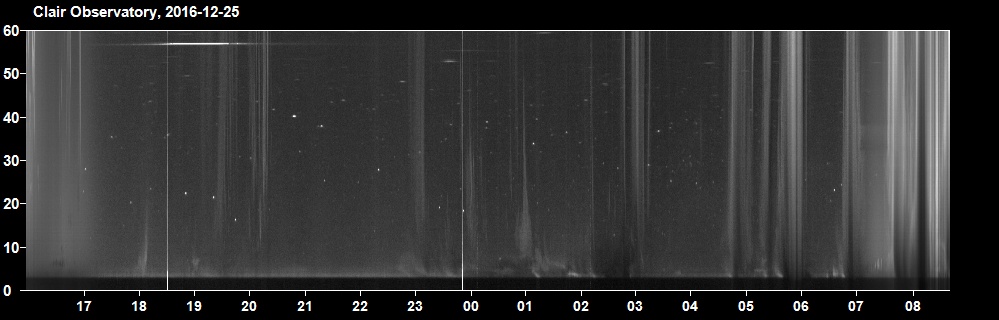

Night Summary Plot - North Sky (2016-12-25 / 2016-12-26) Times on plot are local GMT times (= UT time)

Back to Top

Magnetometer Stack Plots (for reference)

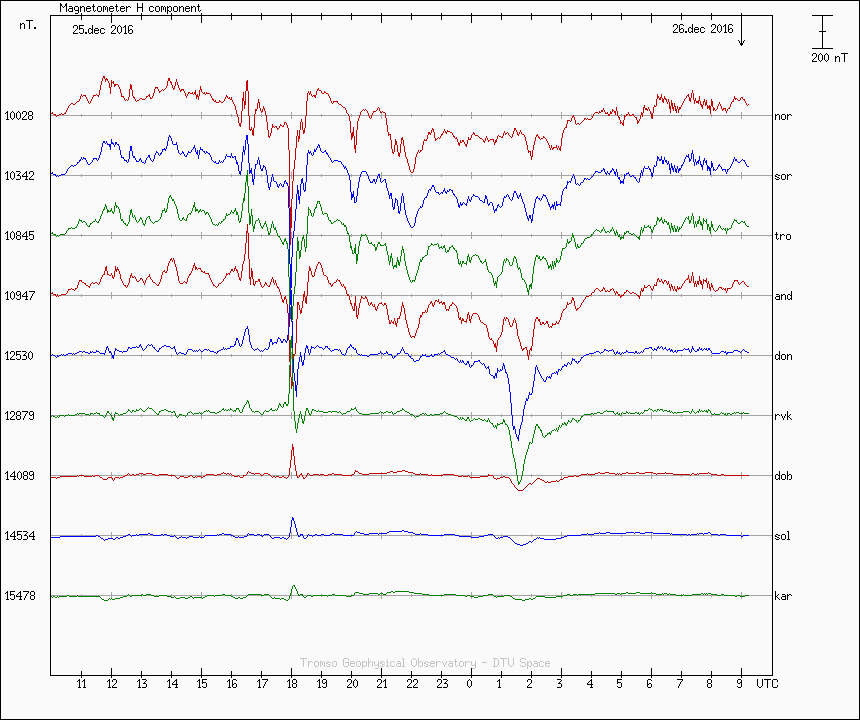

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2016-12-25 / 2016-12-26 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

Planetary K-Index Plot (for reference)

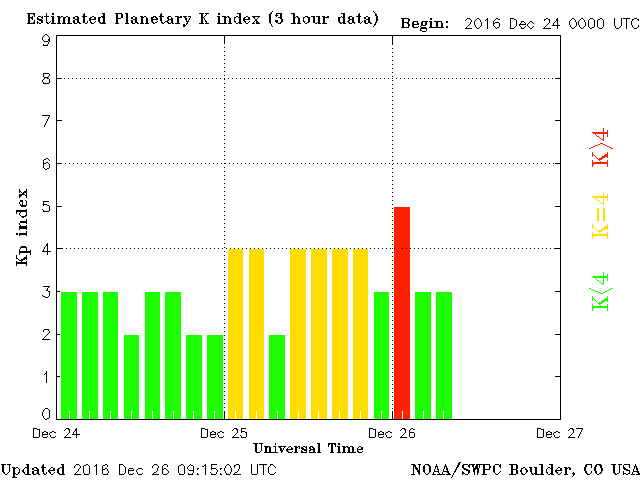

Estimated 3 hour Planetary K-Index (NOAA) (K indices of 5 or greater indicate storm-level geomagnetic activity around earth)  (from http://services.swpc.noaa.gov)

Back to Top
