Globular Clusters

Being compact and relatively bright,  globular clusters make good telescope subjects.
This page shows range of

M13 Globular cluster (Hercules)
Hand-Drawing (1999)    CCD Colour Image (2005)
Image   Image
Inverted from Original Sketches,
F10/8" LX200 26mm, x77, 41' FOV
1999-08-28
Luminance 3x20s (average), Blue 3x30s (average) with  x1.8 weighting
Green 3x30s (average), Red 3x30s (average)
2005-06-06  23:19 h UT (#88004-15)
8" LX200 Classic + ST-7E

M92 Globular cluster (Hercules)
Hand-Drawing (1999)     CCD Colour Image (2005)
Image   Image
Inverted from Original Sketches,
F10/8" LX200 26mm, x77, 41' FOV
1999-08-28
CCD Colour Image (LRGB)
Luminance 3x20s (average), Blue 3x30s (average) with  x1.15 weighting
Green 3x20s (average), Red 3x20s (average)
2005-06-06  23:38 h UT (#88023-34)
8" LX200 Classic + ST-7E



Back to Top


M2 - Globular Cluster

M2 (Aquarius)
CCD Image (Logarithmic Scaling)
5 x 20 sec exposure (average), clear filter
2005-08-14  21:59 h UT (#92080-84)
8" LX200 classic + ST-7e

CCD Image (Logarithmic Scaling, 75% size, cropped)
4 x 15s exposure (average combine), 3x3 binning, C Filter
2017-11-02 21:55h UT (#603271-74)
12" LX200R  (at f/10.4) + ST-10XME
[ 100% size ]

Back to Top


M3 - Globular Cluster

M3 (Canes Venatici)


CCD Image (50% size reduction, log scaling cropped)
15s sec exposure (single frame), 3x3 binning, C Filter
2009-05-51 00:08 h UT (#371125)
12" LX200R  (at f/5.7) + ST-10XME
[Larger Image - detail ]

Back to Top


M4 - Globular Cluster

M4 (Scorpius)


CCD Image (cropped to central area & 60% size reduction)
4 x 20s sec exposure (average combine), 3x3 binning, C Filter
2009-05-26 23:21 h UT (#369078-82)
12" LX200R  (at f/5.7) + ST-10XME
[ Wider View ]
Image at 5 deg above southern horizon

Back to Top


M5 - Globular Cluster

M5 (Serpens Caput)
CCD Colour Image (LRGB)
Luminance 3x20s (average), Blue 5x30s (average) with  x1.8 weighting
Green 3x30s (average), Red 3x30s (average)
2005-06-10  00:46 h UT (#89034-47)
8" LX200 Classic + ST-7E

Back to Top


M9 - Globular Cluster

M9 (Ophiuchus)


CCD Image (50% size reduction)
2 x 30s sec exposure (average combine), 3x3 binning, C Filter
2009-05-26 23:26 h UT (#369086-88)
12" LX200R  (at f/5.7) + ST-10XME
Image at 11 deg above SSE horizon

M9 - detail


CCD Image (cropped)
Image details as above

Back to Top


M10 - Globular Cluster

M10  (Ophiuchus)
CCD Image
4 x 20 sec exposure (average), clear filter
2005-08-14  21:40 h UT (#92063-67)
8" LX200 Classic + ST-7E

Back to Top


M12 - Globular Cluster

M12  (Ophiuchus)
CCD Image
5 x 20 sec exposure (average), clear filter
2005-08-14  21:51 h UT (#92072-76)
8" LX200 Classic + ST-7E

Back to Top




M13 - Globular Cluster

M13 (Hercules)
CCD Colour Image (LRGB,
Luminance 3x20s (average), Blue 3x30s (average) with  x1.8 weighting
Green 3x30s (average), Red 3x30s (average)
2005-06-06  23:19 h UT (#88004-15)
8" LX200 Classic + ST-7E

M13 (Hercules)
CCD Image
120s Clear Filter
2005-06-06  23:26 h UT (#88020)
8" LX200 Classic + ST-7E

Back to Top


M14 - Globular Cluster

M14  (Ophiuchus)
CCD Image
5 x 20 sec exposure (average), clear filter
2005-08-14  21:31 h UT (#92054-58)
8" LX200 Classic + ST-7E

Back to Top


M15 - Globular Cluster

M15 (Pegasus)
CCD Image (Log Scaling, 50% size)
3 x 15s exposure (average combine), 3x3 binning, C Filter
2017-11-02 22:02h UT (#603281-86)
12" LX200R  (at f/10.4) + ST-10XME
[ 100% size ]


Pease I in M15
Pease I - a planetary nebula in the globular cluster M15 - is the
small 'red' object whose position is indicated by the white cross-hairs
This false colour image uses Ha filter frame for red,
and V filter frame for blue and green.
The Pl. Neb. is highlighted due to its high excess of light at Ha wavelengths,
and appears 'red' compared to normal stars which appear whitish.

False Colour CCD Image (cropped)
Blue & Green : 3 x 45s exposure (average combine), 2x2 binning, V Filter
Red : 6 x 60s exposure (average combine), 2x2 binning, Ha Filter
2010-09-11 00:53hUT (#427158-66)
12" LX200R  (at f/9.7) + ST-10XME
[wider view]

Back to Top


M19 - Globular Cluster

M19 (Ophiuchus)


CCD Image (35% size reduction)
5 x 15s sec exposure (average combine), 2x2 binning, C Filter
2009-06-25 23:36 h UT (#373045-49)
12" LX200R  (at f/5.7) + ST-10XME



M19 - detail


CCD Image (70% size reduction, cropped)
Image details as above

Back to Top


M22 - Globular Cluster

M22 (Sagittarus)


CCD Image (75% size reduction, cropped)
5 x 20s sec exposure (average combine), 3x3 binning, C Filter
2009-07-02 23:16 h UT (#374033-37)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


M28 - Globular Cluster

M28 (Sagittarus)


CCD Image (35% size reduction)
5 x 20s sec exposure (average combine), 2x2 binning, C Filter
2009-07-02 23:34 h UT (#374056-60)
12" LX200R  (at f/5.7) + ST-10XME



M28 - detail


CCD Image (100% size, cropped)
Image details as above

Back to Top


M30 - Globular Cluster

M30 (Capricornus)


CCD Image (50% size reduction)
5 x 30s sec exposure (average combine), 3x3 binning, C Filter
2009-07-28 00:26 h UT (#378204-08)
12" LX200R  (at f/5.7) + ST-10XME



M30 - detail


CCD Image (Normal size, cropped to central area
Image details as above

Back to Top


M53 - Globular Cluster

M53 (Coma Berenices)
CCD Image
5 x 20 sec (average combine),  C Filter
2004-12-11 06:53 h UT (#79058-62)
8" LX200 Classic + ST-7E


M53 - Mosaic

 CCD Image Mosaic (50% scaling)
60 sec exposure (3x3 frames), 2x2 binning, C Filter
2006-02-03 02:40h UT (#113098-106)
8" LX200 Classic + ST-7E
(Full Size Mosaic)



  M53 - detail
 CCD Image, square root brightness scaling
2 x 60 sec exposure (average combine), 2x2 binning, C Filter
2006-12-02 06:23h UT (#156075,77)
8" LX200 Classic + ST-7E

Back to Top


M56 - Globular Cluster

M56 Globular Cluster (Lyra)
CCD  Image
60s exposure, C filter
2005-10-02 21:35h UT (#96080)
8" LX200 Classic + ST-7E



M56 - detail


CCD Image (100% size, square root scale, cropped)
5 x 15s sec exposure (average combine), 2x2 binning, C Filter
2009-06-26 00:16 h UT (#373104-08)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top

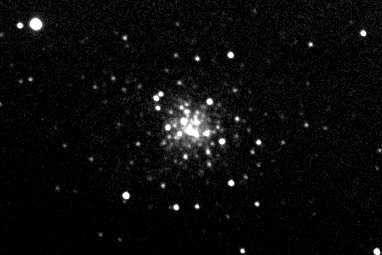

M68 - Globular Cluster

M68 (Hydra)

Taken when lying at altitude of only 5.7 degrees
(about the highest altitude this Declination -26d 44m object
reaches at my NE Scotland site)


CCD Image (cropped to central area)
5 x 30s sec exposure (average combine), 3x3 binning, C Filter
2009-05-11 21:54 h UT (#368017-21)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


M71 - Globular Cluster

M71 (Sagitta)
CCD Image,
3 x 60 sec exposure (average combine),
2x2 binning C, Filter, Linear Scale
2007-08-23  00:03 h UT (#206167-69)
8" LX200 Classic + ST-7E

Back to Top


M72 - Globular Cluster

M72 (Aquarius)
CCD Image
3 x 60 sec exposure (average), clear filter
2005-08-14  22:21 h UT (#92105-07)
8" LX200 Classic + ST-7E

Back to Top


M75 - Globular Cluster

M75 (Sagittarus)


CCD Image (66% size reduction, square root scaling, cropped)
10 x 20s sec exposure (average combine), 2x2 binning, C Filter
2009-07-02 23:39 h UT (#374063-72)
12" LX200R  (at f/5.7) + ST-10XME



M75 - detail


CCD Image (100% size, log scale scaling, cropped)
Image details as above

Back to Top


M80 - Globular Cluster

M80 (Scorpius)

CCD Image (logscale, 50% size scaling)
5 x 30 sec exposure (median combine), 3x3 binning, C Filter
2009-04-22 00:57 h UT  (#364264-68)
12" LX200R  (at f/5.7) + ST-10XME



M80 - detail

CCD Image (logscale, cropped)
Image details as above

Back to Top


M92 - Globular Cluster

M92 (Hercules)
CCD Colour Image (LRGB)
Luminance 3x20s (average), Blue 3x30s (average) with  x1.15 weighting
Green 3x20s (average), Red 3x20s (average)
2005-06-06  23:38 h UT (#88023-34)
8" LX200 Classic + ST-7E

Back to Top

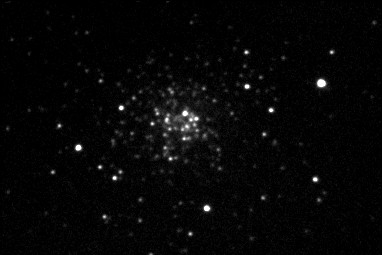

M107 - Globular Cluster

M107 (Ophiuchus)
CCD Image
7 x 1 min (median combine), clear filter
2005-05-13  23:31 h UT (#86169-75)
8" LX200 Classic + ST-7E

Back to Top


NGC 288 - Globular Cluster

NGC 288 / Herschel VI-20 (Sculptor)
Declination -26 deg. Taken whilst at altitude of 6 deg
CCD Image (Linear scale, 75% size, cropped)
8 x 30 sec exposure,  3x3 binning, C Filter
2009-09-20 00:51 h UT  (#389377-81, 38900-02)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


NGC 2419 - Globular Cluster  ("Intergalactic Wanderer")

NGC 2419 (Lynx)
(adjacent bright star is mag +7.2 star SAO 60232)

  CCD Image (cropped)
5 x 30s sec exposure (average combine), 3x3 binning, C Filter
2011-01-29 21:14 h UT (#451119-23)
12" LX200R  (at f/9.7) + ST-10XME



 NGC 2419 - detail

CCD Image (100% size, cropped)
Image details as above

Back to Top


NGC 5053 - Globular Cluster

NGC 5053 (Coma Berenices)

 CCD Image
5 x 3 min exposure (average combine), 2x2 binning, C Filter
2006-12-02 06:23h UT (#156060-64)
8" LX200 Classic + ST-7E

Back to Top


NGC 5466 - Globular Cluster (H VI-9)

NGC 5466 / Herschel VI-9 (Bootes)


CCD Image
3 x 90s sec exposure (average combine), 2x2 binning, C Filter
2008-12-23 06:03 h UT (#336437-39)

Back to Top

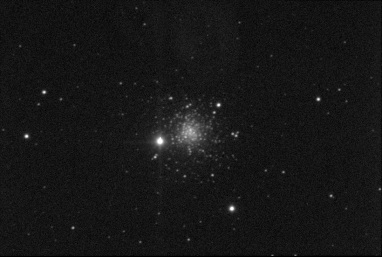

NGC 5634 - Globular Cluster

NGC 5634 (Virgo)
CCD Image (Log Scale, 35% size)
2 x 45s exposure (average combine), 2x2 binning, C Filter
2015-05-14 23:06 h UT (#589060-64)
12" LX200R  (at f/10.4) + ST-10XME

NGC 5634 - detail
CCD Image (Log Scale, cropped)
3 x 30s exposure (average combine), 3x3 binning, C Filter
2015-05-14 23:06 h UT (#589055-58)
12" LX200R  (at f/10.4) + ST-10XME
[non-cropped image]

Back to Top


NGC 5897 - Globular Cluster

NGC 5897 (Libra)

CCD Image (50% size scaling)
7 x 30 sec exposure (average combine), 3x3 binning, C Filter
2009-04-2200;48h UT  (#364255-61)
12" LX200R  (at f/5.7) + ST-10XME



NGC 5897   - detail

CCD Image (cropped)
Image details as above

Back to Top

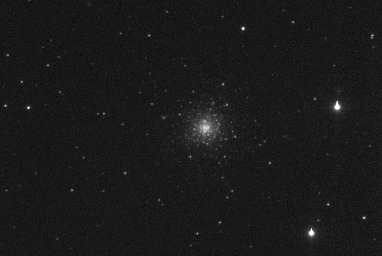

NGC 6229 - Globular Cluster

NGC 6229 (Hercules)

CCD Image (35% size, square root scaling)
3 x 60s exposure (average combine), 2x2 binning, C Filter
2012-10-21 20:09 hUT (#517052-55)
12" LX200R  (at f/9.7) + ST-10XME



NGC 6229 - detail

CCD Image (100% size, cropped)
Square root scaling, gamma modified
Image details as above

Back to Top


NGC 6342 - Globular Cluster

NGC 6342 (Ophiuchus)


CCD Image (cropped)
3 x 20s sec exposure (average combine), 3x3 binning, C Filter
2009-05-26 23:31 h UT (#369092-96)
12" LX200R  (at f/5.7) + ST-10XME
Image at 10 deg above SSE horizon

Back to Top


NGC 6356 - Globular Cluster

NGC 6356 / Herschel I-48 (Ophiuchus)


CCD Image (cropped)
4 x 20s sec exposure (average combine), 3x3 binning, C Filter
2009-05-26 23:43 h UT (#369111-15)
12" LX200R  (at f/5.7) + ST-10XME
Image at 12 deg above SSE horizon

Back to Top


NGC 6440 - Globular Cluster

NGC 6440 (Sagittarus)


CCD Image (66% size reduction, cropped)
5 x 20s sec exposure (average combine), 2x2 binning, C Filter
2009-07-02 23:04 h UT (#374014-18)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


NGC 6517 - Globular Cluster

NGC 6517 / Herschell 199-2 (Ophiuchus)
CCD Image
3 x 60 sec exposure (average combine), 2x2 binning, C Filter
2008-09-03 21:30 UT (#299026-28)
8" LX200 Classic + ST-7E

Back to Top


NGC 6535 - Globular Cluster

NGC 6535 (Serpens Cauda)
CCD Image (50% size)
4 x 30s exposure (average combine), 3x3 binning, C Filter
2017-11-02 18:34h UT (#603012-17)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


NGC 6712 - Globular Cluster

NGC 6712 (Scutum)


CCD Image (50% size reduction)
4 x 30s sec exposure (average combine), 3x3 binning, C Filter
2009-08-10 23:01 h UT (#383100-03)
12" LX200R  (at f/5.7) + ST-10XME

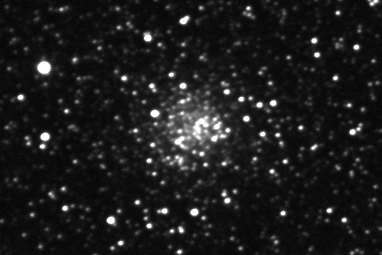

NGC 6712 - detail


CCD Image ( 100% size, cropped )
Image details as above

Back to Top


NGC 6934 - Globular Cluster

NGC 6934 / Caldwell 47  (Delphinus)
CCD Image
3 x 60 sec exposure (average), 2x2 binning, clear filter
2006-08-06  02:25 h UT (#132339-41)
8" LX200 Classic + ST-7E

CCD Image (100% size, cropped)
3 x 20s exposure (average combine), 3x3 binning, C Filter
2017-11-02 21:31h UT (#603225-32)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


NGC 7006 - Globular Cluster

NGC 7006  (Delphinus)
CCD Image (50% size)
3 x 20s exposure (average combine), 3x3 binning, C Filter
2017-11-02 21:42h UT (#603248-50)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


NGC 7492 - Globular Cluster

NGC 7492 (Aquarius)

CCD Image (cropped)
10 x 30 sec exposure (average combine), 3x3 binning, C Filter
2009-12-04 18:43 h UT  (#402103-07_and_402221-25)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


IC 1276 - Globular Cluster

IC 1276 (Serpens Cauda)

CCD Image (75% size, cropped)
12  x 10s exposure (average combine), 3x3 binning, C Filter
2012-10-21 19:55 hUT (#517025-42)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


Palomar 2 - Globular Cluster

Palomar 2 (Auriga)
CCD Image (cropped)
4 x 60 sec exposure (average combine), 3x3 binning, C Filter
2013-04-05 21:22hUT (#545069-72)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


Palomar 3 - Globular Cluster

Palomar 3 (Sextans)

CCD Image (cropped)
5 x 90s exposure (average combine), 3x3 binning, C Filter
2013-04-01 21:45 hUT (#544083-87)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


Palomar 4 - Globular Cluster

Palomar 4 (Ursa Major)
Situated at almost 1/8 distance to the Andromeda Galaxy,
it is second most distant globular in Milky Way
CCD Image (50% size)
4 x 90 sec exposure (average combine), 3x3 binning, C Filter
2013-04-01 21:35hUT (#544076-80)
12" LX200R  (at f/9.7) + ST-10XME

Pal 4 - detail
Annotated CCD Image (100% size, cropped)
(image details as above)

Back to Top


Palomar 5 - Globular Cluster

Palomar Globular 5 (Serpens Caput)
Extremely Faint, Catalog diameter 6.7 arc mins
(I call it "The Emperor's Clothes Cluster")

 CCD Image
5 x 60 sec exposure (average combine),
2x2 binning, C Filter,
2007-05-20 01:15h UT (#200078-82
8" LX200 Classic + ST-7E

Back to Top


Globular Clusters in M31

Mayall II  (Andromeda)

Annotated CCD Image (cropped)
4 x 10s exposure (average combine), 1x1 binning, C Filter
2010-09-11 01:09hUT (#427178-81)
12" LX200R  (at f/9.7) + ST-10XME


Mayall II  - Hubble Image

HST Hubble Image (from Wikipedia, rotated)


Mayall II  - earlier image
Globular Cluster indicated by white cross hairs

Annotated CCD Image (cropped)
2 x 60s exposure (average combine), 3x3 binning, C Filter
2010-08-30 22:28hUT (#426108-09)
12" LX200R  (at f/9.7) + ST-10XME


Globular Clusters in M31 (Andromeda) - Field 1
023-078 (catalog mag +14.2), 019-072 (catalog mag +14.9),
012-064 (catalog mag +15.1), 010-062 (catalog mag +16.8),
008-060 (catalog mag + 16.9), 004-050 (catalog mag +16.9),
038-098 (catalog mag + 16.5), 032-093 (catalog mag +17.6),
016-066 (catalog mag +17.6)


CCD Image
5 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-09-09 21:14 h UT (#146153-57)
8" LX200 Classic + ST-7E

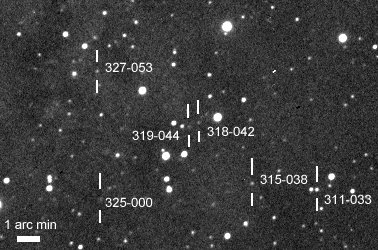

Globular Clusters in M31 (Andromeda) - Field 2
311-033 (catalog mag +15.5), 315-038 (catalog mag +16.3),
318-042 (catalog mag +16.9), 319-044 (catalog mag +17.5),
325-000 (catalog mag + ???), 327-053 (catalog mag +16.6)


CCD Image
3 x 3 min exposure, 2x2 binning (average combine), C Filter
2006-09-09 21:26 h UT (#146160-62)
8" LX200 Classic + ST-7E


Globular Clusters in M31 (Andromeda)
16 globular clusters visible in image marked by white markers
,together with nova M31 2006-14
165-218 (catalog mag +16.5), 182-233 (catalog mag +15.4),
180-231 (catalog mag +16.0), 158-213 (catalog mag +14.7),
177-228 (catalog mag + 18.0), 155-210 (catalog mag +17.9),
160-214 (catalog mag + 18.0), 156-211 (catalog mag +16.8),
108-167 (catalog mag + 17.5), 101-164 (catalog mag +16.9),
092-152 (catalog mag + 16.9), 125-183 (catalog mag +16.5),
110-172 (catalog mag + 15.2), 095-157 (catalog mag +15.8),
VB 234 (catalog mag  ??), 082-144 (catalog mag +15.5),


Annotated CCD Image
5 x 3 min exposure (median combine), 2x2 binning, C Filter
2006-11-26 20:11h UT (#155108-12)
8" LX200 Classic + ST-7E

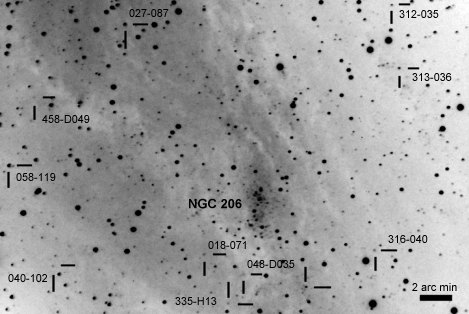

W part of M31
location of globular clusters shown by cross hairs


Negative CCD Image (65% size reduction)
CCD Image (65% size reduction)
7 x 60s sec exposure (average combine), 3x3 binning, C Filter
2009-07-28 00:41 h UT (#378223-29)
12" LX200R  (at f/5.7) + ST-10XME
[Full size image]



Back to Top
