Objects Session Notes
- Marathon Session (14.3hr), very cold conditions, with thick frost covering the observatory walls and the telescopes dew shield by the morning. - First part of the session was monitored remotely whilst the second half was run under fully automated software control. A total of 793 individual image frames were acquired, with observations on a total of 59 target objects. - CCD operation of -25 degC (at 57% average cooling). - main objectives were a) to acquire images of certain selected stars of ongoing photometric and astrometric analysis, in particular Z And, and b) record images of a number of deep sky objects including images of selected ARP and images of galaxies in which supernovae where previously collected in 2005-2007 and - opportunity was taken to acquire further images of comet 17P/Holmes & a passing NEA (2005 WJ56). opportunity was also taken to acquire a gallery images of Caldwell 52. - before the observing session was begun, a polar alignment refinement was attempted based on polar misalignment values collected during a previous TPoint mapping run.
(analysis of subsequent images would suggest that polar alignment has actually worsened, rather than improved. This can be seen by a slight amount of star trailing in subs of 2-3 mins exposure. This needs to be investigated and corrected in the next session or two).More Notes from Session 252
Including Polar Alignment and Period Error Checks
|
NGC 191 & IC 1563 / ARP 127 (Cetus ) |
||
 |
 |
|
| CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter, 2008-01-11 19:43 hUT (#252100-04) |
CCD Image (negative) Image details as left |
|
| ARP 127 - detail | ARP 127 - negative | |
 |
 |
|
| Annotated CCD Image (250% size) (Image details as above) |
CCD Image (250% size) (Image details as above left) |
Back to Top
2005 WJ56 is a 1.2km diameter asteroid passed by the earth on 2008-01-10 at a distance of 10.9 lunar distance (LD). A sequence of images of 2005 WJ56 were recorded as it passed by.
| 2005 WJ56 passing through star
field in Eridanus Showing motion over an 18 minute period |
|
|
Annotated CCD Image 30 x 30 sec, 2x2 binning, C Filter 2008-01-11 20:33 to 20:51hUT (#252176-205) |
| 2005 WJ56 |
|
|
CCD Image (Image details as above) |
Back to Top
|
NGC 105 (Pisces) |
Previous Image of NGC 105 |
|
 |
 |
|
| CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter, 2008-01-11 20:59 hUT (#252209-13) |
CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter 2007-01-20 18:01 hUT (#171041-45) |
|

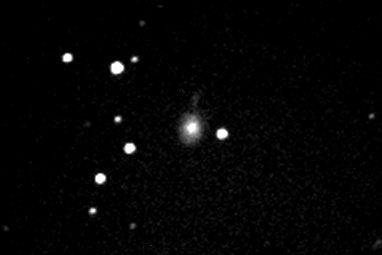

| NGC 105 - detail (Jan 2008) | NGC 105 with SN 2007a - detail (Jan 2007) | |
 |
 |
|
| CCD Image (Image details as above) |
Annotated CCD Image (Image details as above) |
Back to Top
|
UGC 155 (Pisces) |
Previous Image of UGC 155 |
|
 |
 |
|
| CCD Image 4 x 120s exposure (average combine), 2x2 binning, C Filter, 2008-01-11 21:37 hUT (#252242-46 |
CCD Image 5 x 2 min (median combine), clear filter (2x2 binning) 2006-01-03 21:08h UT (#109120-24) |
|
| UGC 155 - detail (Jan 2008) | UGC 155 with SN 2005mg - detail (Jan 2005) |
|
 |
 |
|
| CCD Image (Image details as above) |
Annotated CCD Image (Image details as above) |
Back to Top
|

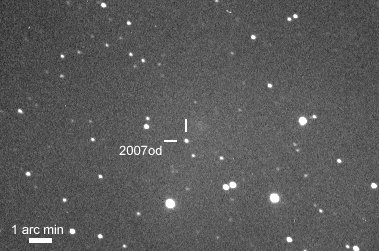

UGC 12846 with Supernova 2007od
(Pegasus) |
 |
| Annotated CCD Image 3 x 180s exposure (average combine), 2x2 binning, C Filter, 2008-01-11 22:09 hUT (#252266-68) |
Back to Top
|
UGC 14 (Pegasus) |
Earlier Image of UGC 14 |
|
 |
 |
|
| CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter 2008-01-11 22:21 hUT (#252272-76) |
Annotated CCD Image 3 x 180s exposure (average combine), 2x2 binning, C Filter 2006-12-18 21:17 hUT (#166082-84) |
|
|
UGC 14 - detail (Jan 2008) |
UGC 14 with SN 2006sr - detail (Dec 2006) |
|
 |
 |
|
| CCD Image (250% size) Image details as above |
Annotated CCD Image (250% size) Image details as above |
Back to Top
| UGC 717 / ARP 11 (Pisces) | ||
 |
 |
|
| Annotated CCD Image 5 x 3 min exposure (average combine), 2x2 binning, C Filter Linear Brightness Scaling 2008-01-11 23:47 h UT (#252296-300) |
CCD Image (Negative, 200% size) Image details as left |
Back to Top
|
AE And in M31 (Andromeda) |
|
|
|
Annotated CCD Image 3 x 3 min exposure (average combine), 2x2 binning, C Filter 2008-01-11 23:17 h UT (#252303-05) |
|
M31 Globular Clusters in area
adjacent to AE And |
 |
|
Annotated CCD Image (Image details as above) |
Back to Top
|
AF And in M31 (Andromeda) |
|
|
|
Annotated CCD Image 2 x 3 min exposure (average combine), 2x2 binning, C Filter 2008-01-11 23:28 h UT (#252310-11) |
|
M31 Globular Clusters in area
adjacent to AF And |
|
Annotated CCD Image (Image details as above) |
Back to Top
| IC 167 / ARP 31 (Aries) | ||
 |
 |
|
| Annotated CCD Image 5 x 3 min exposure (average combine), 2x2 binning, C Filter Linear Brightness Scaling 2008-01-11 23:47 h UT (#252326-30) |
CCD Image (Negative) Image details as left |
Back to Top

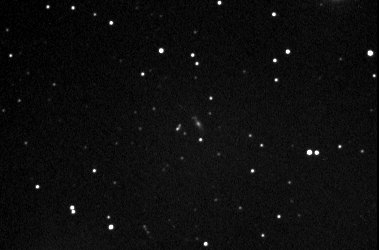

| UGC 1990 (Aries) (Jan 2008) |

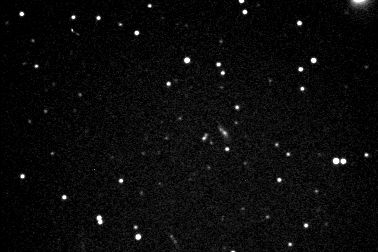

Earlier Image UGC 1990 with SN 2005ev (Oct 2005) |
|
|
|
|
|
CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter 2008-01-11 22:21 hUT (#252272-76) |
CCD Image (negative) 3 x 60 sec exposure (average), C filter 2005-10-09 03:30 h UT (#99111-13 {S98} ) |
|
|

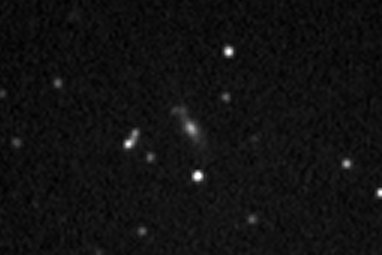

Enlargement of UGC 1990 (Jan 2008) |
Enlargement of UGC 1990 (Oct 2005) The object indicated by the cross-hairs lies at the position of the reported supernova 2005ev |
|
|
|
|
|
CCD Image (300% size) (details as above) |
CCD Image (300% size) (details as above) |
|
|
DSS Reference Image showing same field of view An object appears at the northern end of UGC 1990, but in a slightly different position (was this an earlier supernova ?) |
||
|
||
| [ DSS Image, converted to grey scale & cropped ] |
Back to Top
|

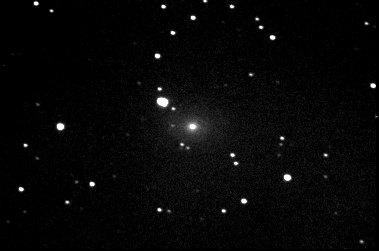

NGC 691 (Aries) |
 |
| CCD Image 6 x 120s exposure (average combine), 2x2 binning, C Filter 2008-01-12 00:17 hUT (#252341-46) |
Back to Top
|
Comet 17P/Holmes - passing
through starfield in Perseus |
 |
| CCD Image (50% size)
5 x 60s exposure (av. combine), 1x1 binning, C Filter 2008-01-11 00:58h UT (#252361-65) |
|
|
|
Earlier Image of Comet 17P/Holmes (Nov
2007) |
|
| CCD Image (50% size),
Linear Scale 7 x 60s exposure (av. combine), 1x1 binning, C Filter, 2007-11-28 20:57h UT (#237051-57) |
Back to Top
|

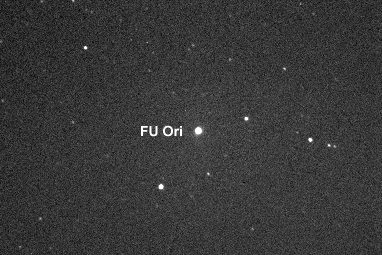

FU Ori (Orion) |
|
Baseline image of FU Ori recorded in
CVR filters |
|
|
|
Annotated CCD Image |
|
|
Back to Top
|
NGC 2770 (Lynx) with SN 2007uy |
 |
| Annotated CCD Image 3 x 180s exposure (average combine), 2x2 binning, C Filter 2008-01-12 02:39 hUT (#252431-35) |
|
NGC 2770 with SN 2007uy 2008D (Type 1c) was discovered
2008/01/11.42 |
 |
| Annotated CCD Image (200% size) Image details as above |
Back to Top
|
UGC 4614 (Lynx) |
UGC 4614 with supernova 2005mc |
|
 |
 |
|
| CCD Image 5 x 120s exposure (av. combine), 2x2 binning, C Filter 2008-01-12 03:04 hUT (#252444-48) |
Earlier CCD Image 5 x 2 min (median combine), clear filter 2006-01-03 20:56h UT (#109114-18) |
|
| UGC 4614 - detail Jan 2008 |
UGC 4614 with 2005mc - detail,
Jan 2006 Supernova 2005mc is indicated by cross-hairs. |
|
 |
 |
|
| Enlarged CCD Image (250% size) (details as above) |
Enlarged CCD Image (250% size) (details as above) | 2005mc Discovery Image | Reference Image) |
Back to Top
| NGC 2444 and NGC 2445 / ARP 143 (Lynx) | ||
 |
 |
|
| Annotated CCD Image 6 x 2 min exposure (av. combine), 2x2 binning, C Filter Linear Brightness Scaling 2008-01-12 03:19 h UT (#252453-58) |
CCD Image (Negative) Image details as left |
|
| NGC 2444 and NGC 2445 / ARP 143 - detail | ||
 |
 |
|
| Enlarged CCD Image (250%
size) Image details as above |
Enlarged CCD Image (Negative, 250% size) Image details as above left |
Back to Top
| UGC 4653 / ARP 195 (Lynx) | ||
 |
||
| CCD Image 7 x 2 min exposure (av. combine), 2x2 binning, C Filter Linear Brightness Scaling 2008-01-12 03:35 h UT (#252461-67) |
||
| UGC 4653 / ARP 195 - detail | ||
 |
 |
|
| Enlarged CCD Image (250%
size) Image details as above |
Enlarged
CCD Image (Negative, 250% size) Image details as above left |
Back to Top
|
NGC 5829 with Supernova 2008B (Bootes) |
 |
| Annotated CCD Image 5 x 120s exposure (average combine), 2x2 binning, C Filter, 2008-01-12 04:45 hUT (#252525-29) |
| NGC 5829 / SN 2008b - detail |
 |
| Annotated CCD Image (250% size, cropped) Image details as above |
Back to Top
|
AD Leo (Leo) |
|
Sequence of images of AD Leo acquired
over a 50 minute period |
|
|
|
CCD Image |
|
|
|

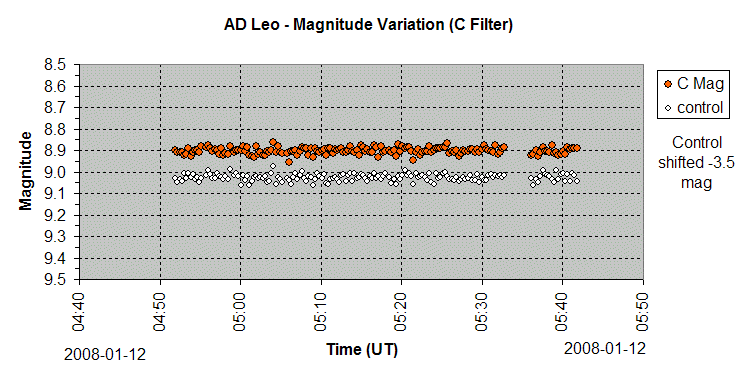

AD Leo - Magnitude variation over 50
minute period |
|
|
|
|
|
AD Leo - Reference Stars |
|
|
|
Annotated CCD Image |
Back to Top
|
SS Her (Hercules) |
||||||||||||
|
Baseline image of SS Her recorded in
CBVRI filters |
||||||||||||
|
|
||||||||||||
|
Annotated CCD Image |
||||||||||||
|
|
||||||||||||
|
SS Her - Reference Stars |
||||||||||||
|
|
||||||||||||
|
Annotated CCD Image |
||||||||||||
|
|
||||||||||||
|
||||||||||||
|
|
Back to Top
| UGC 9561 / ARP 173 (Bootes) (MCG+2-38-19 / MCG+2-38-20) |
||
 |
 |
|
| Annotated CCD Image 6 x 2 min exposure (av. combine), 2x2 binning, C Filter Linear Brightness Scaling 2008-01-12 06:51 h UT (#252757-63) |
CCD Image (Negative) Image details as left |
|
|
UGC 9561 / ARP 173 - detail showing faint trace of plume to south |
||
 |
||
|
Enlarged CCD Image (Negative, 250% size) Image details as above left |
Back to Top
|

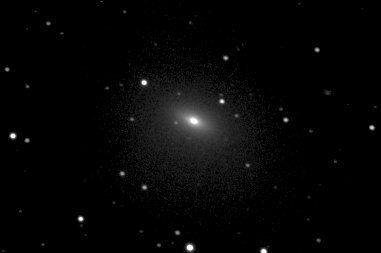

NGC 4697 / Caldwell 52 (Virgo) |
|
|
|
CCD Image |
|
|
|
NGC 4697 / Caldwell 52 - detail |
|
|
|
CCD Image |
|
|
|
|
|
False Colour CCD Image |
Back to Top
Images collected for Astrometric Monitoring
of Nearby Stars Project
Images collected for Photometric Monitoring
of Variable Stars
