David's Astronomy Pages
CCD Images - Session 571 (2014-11-23)

Objects Session Notes
Bullet UV Per - Variable Star
Bullet NGC 6842 - Planetary Nebula
Bullet UGC 11919 - Spiral Galaxy
Bullet Hickson 8 - Galaxy Cluster (PGC 2886 et al)
Bullet Hickson 5 - Galaxy Cluster (NGC 190)
Bullet Hickson 45 - Galaxy Cluster (PGC 30153 et al)
Bullet NGC 2771 - Spiral Galaxy with Supernova ASASSN-14iu
Bullet NGC 5229 - Spiral Galaxy (M51 Group)

Bullet Photometric Monitoring - Variables
- RX And, U And, W And, Z And,  TT Ari, CI Cyg, S Cyg, SS Cyg, U Gem, CZ Ori, RU Peg, DY Per, GK Per, UV Per, FG Sge, V S
Bullet Astrometric Monitoring - Nearby Stars
- Ross 248 (HH And), Groombridge 34, Teegradens Star
- Evening session (4.7 hrs duration).
- Session operated under semi-automated control, with remote monitoring from indoors computer.
- Ambient Temperature:  Temperature fell to minimum of 1 degC before climbing to 3.5 degC at mid-night
- CCD operation -25 degC (at 61% average cooling).
- main objectives of the session was to monitor selected variable stars & nearby stars and to take gallery images of a range of deep sky objects.
-
-

UV Per - Variable Star (SS Cygni-type)

UV Per (Perseus)
CVnet reports that this star is in outburst
GCVS Catalog :  Type UGSS, Mag Range +11.0 to +17.5

My original interpretation of the image below was
"The approximate magnitude in the image below is
 +9.9 (C) which confirms an outburst".
This assumed however that the catalog position for UV Per
was correct in TheSky !.
Annotated CCD Image (100% size, cropped)
3 x 15 sec exposure (average combine), 3x3 binning, C Filter
2014-11-23 19:46hUT (#571023-29)
12" LX200R  (at f/10.4) + ST-10XME

UV Per - Later Re-Assessment
After seeing a recent 2018 image the earlier 2014 image is considered
to indeed show UV Per at outburst but at the position marked by the white indicator,
rather than at the catalog position indicated by TheSky6
[ Detailed AAVSO Star Chart for UV Per confirms this correct position]
Annotated CCD Image (100% size, cropped)
3 x 15 sec exposure (average combine), 3x3 binning, C Filter
2014-11-23 19:46hUT (#571023-29)
12" LX200R  (at f/10.4) + ST-10XME

UV Per - Later Image (2018)
UV Per believed to be in its normal dim (non-outburst) state (mag +17 or so)
CCD Image (100% size, cropped)
3 x 15 sec exposure (single frame), 3x3 binning, C Filter
2018-07-26 01:05 UT (#616144-50)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


NGC 6842 - Planetary Nebula

NGC 6842  (Vulpecula)
Annotated CCD Image (cropped)
3 x 120s exposure (average combine), 3x3 binning, C Filter
2014-11-23 20:10hUT (#571048-52)
12" LX200R  (at f/10.4) + ST-10XME

NGC 6842 - detail
Negative CCD Image (cropped)
Image details as above

NGC 6842 - wider view
CCD Image (50% size)
Image details as above

Back to Top

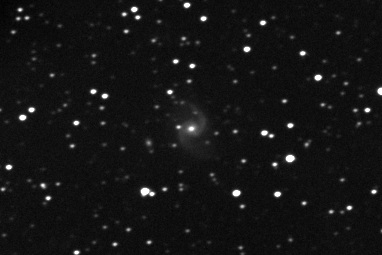

UGC 11919 - Spiral Galaxy

UGC 11919 with supernova PSN J22081243+4110503 (Lacerta)
PSN J22081243+4110503 (Type Ic, z=0.018) was discovered 2014/09/28.800 by Massimo Caimmi
at magnitude ~ +19
(Rochester Supernova site | Discovery Image / RGB Image )

The image below was taken 40.0 days after discovery
The supernova, barely visible, is indicated by black markers.
CCD Image (100% size, cropped)
5 x 90 sec exposure (average combine), 3x3 binning, C Filter
2014-11-23  20:57hUT (#571096-101)
12" LX200R  (at f/10.4) + ST-10XME

UGC 11919 - Earlier Image (2014-11-07)
CCD Image (100% size, cropped)
5 x 45 sec exposure (average combine), 3x3 binning, C Filter
2014-11-07 21:06hUT (#569076-80)
12" LX200R  (at f/10.4) + ST-10XME

UGC 11919 - Earlier Image (2014-11-05)
Supernova PSN J22081243+4110503  is not visible in this image
CCD Image (cropped)
5 x 45 sec exposure (average combine), 3x3 binning, C Filter
2014-11-05 19:50hUT (#568082-86)
12" LX200R  (at f/10.4) + ST-10XME

UGC 11919 - Earlier Image (2014-10-28)
CCD Image (cropped)
4 x 45 sec exposure (average combine), 3x3 binning, C Filter
2014-10-28 19:55hUT (#566110-14)
12" LX200R  (at f/10.4) + ST-10XME

UGC 11919 with supernova PSN J22081243+4110503 (Lacerta)
PSN J22081243+4110503 (Type Ic, z=0.018) was discovered 2014/09/28.800 by Massimo Caimmi
at magnitude ~ +19
(Rochester Supernova site | Discovery Image / RGB Image )

The image below was taken 40.0 days after discovery
The supernova, barely visible, is indicated by black markers.
Annotated Negative CCD Image (200% size, cropped)
5 x 45 sec exposure (average combine), 3x3 binning, C Filter
2014-11-07 21:06hUT (#569076-80)
12" LX200R  (at f/10.4) + ST-10XME

UGC 11919 with supernova PSN J22081243+4110503 - Earlier Image (2014-10-28)
PSN J22081243+4110503 (Type Ic, z=0.018) was discovered 2014/09/28.800 by Massimo Caimmi
at magnitude ~ +19
(Rochester Supernova site | Discovery Image / RGB Image )

The image below was taken 30.0 days after discovery
The supernova is indicated by white markers.
Annotated CCD Image (200% size, cropped)
4 x 45 sec exposure (average combine), 3x3 binning, C Filter
2014-10-28 19:55hUT (#566110-14)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


Hickson 8 - Galaxy Cluster (PGC 2886 et al)

Hickson 8  (Andromeda)
PGC 2886(catalog mag +15.1), PGC 2890(catalog mag +16.1)
PGC 2892 (catalog mag +16.2), PGC 2888 (catalog mag +16.3)

also PGC 1689970 (catalog mag +17.0), PGC 1690311 (catalog mag  +17.5)
Annotated CCD Image (cropped)
4 x 30s exposure (average combine), 3x3 binning, C Filter
2014-11-23 22:58hUT (#571230-35)
12" LX200R  (at f/10.4) + ST-10XME

Hickson 8 - detail
Negative CCD Image (cropped)
Image details as above

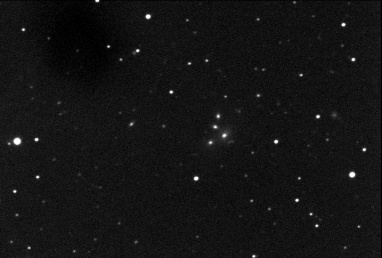

Hickson 8 - wider view
CCD Image (50% size)
Image details as above

Back to Top


Hickson 5 - Galaxy Cluster (NGC 190)

Hickson 5  (Pisces)
PGC 2324 (catalog mag +14.9), PGC 2325 (catalog mag +15.7)
PGC 2322 (catalog mag +16.5), PGC 2326(+17.3)
Annotated CCD Image (cropped)
4 x 90s exposure (average combine), 3x3 binning, C Filter
2014-11-23 23:13hUT (#571244-48)
12" LX200R  (at f/10.4) + ST-10XME

Hickson 5 - wider view
CCD Image (50% size)
Image details as above

Back to Top


Hickson 45 - Galaxy Cluster (PGC 30153 et al)

Hickson 45  (Ursa Major)
PGC 30153 (catalog mag +15.8),  PGC 30137 (catalog mag +17.1),
PGC 30156(catalog mag +17.7),   PGC 30143 (catalog mag +18.2),
PGC 2586035 (catalog mag +17.2), PGC 2587240 (catalog mag +17.6),
Annotated CCD Image (cropped)
4 x 90s exposure (average combine), 3x3 binning, C Filter
2014-11-23 23:32hUT (#571259-63)
12" LX200R  (at f/10.4) + ST-10XME

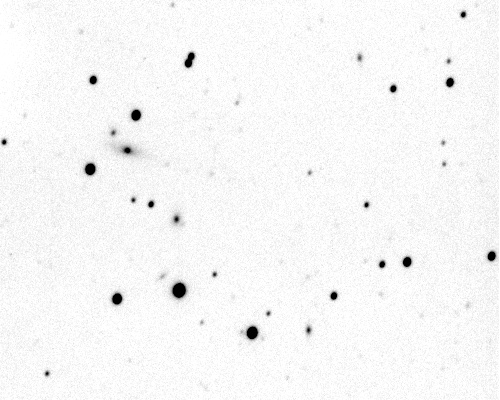

Hickson 45 - detail
Negative CCD Image (cropped)
Image details as above

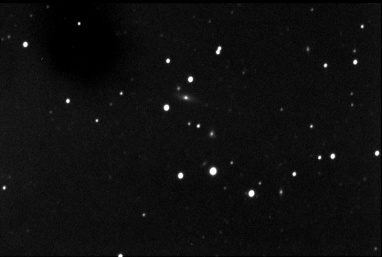

Hickson 45  (Ursa Major) - wider view
CCD Image (50% size)
Image details as above

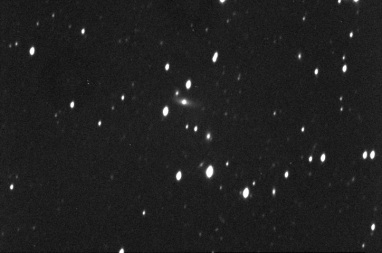

Hickson 45 - earlier image (2013-03-11)
Images badly affected by wind shake.
CCD Image (50% size)
5 x 90s exposure (average combine), 3x3 binning, C Filter
2013-03-11 23:24hUT (#541373-77)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top

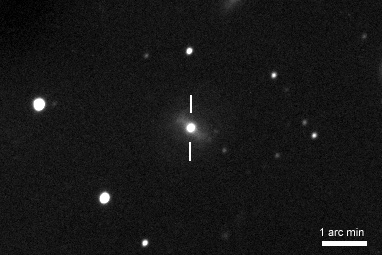

NGC 2771 - Spiral Galaxy with Supernova ASASSN-14iu

NGC 2771 with supernova ASASSN-14iu (Ursa Major)
ASASSN-14iu (Type Ia,  z=0.016855) was discovered 2014/10/12.610
by All Sky Automated Survey for SuperNovae (ASAS-SN)
at magnitude +15.8
Located 1.3" west and 0.8" north of the center of NGC 2771
(Rochester Supernova site | Discovery Image )

The image below was taken 42 days after discovery
The supernova position is indicated by white markers.
The image is unable to resolve the Supernova separately to the galaxy centre.
The combined measured brightness of supernova + galaxy center is +13.0
Annotated CCD Image (cropped)
3 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-11-23 23:41hUT (#571266-70)
12" LX200R  (at f/10.4) + ST-10XME

NGC 2771 with supernova ASASSN-14iu - earlier image (2014-11-07)
Taken 26.4 days after discovery ,
combined measured brightness of supernova + galaxy center is +13.1
Annotated CCD Image (cropped)
3 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-11-07 22:59hUT (#569183-86)
12" LX200R  (at f/10.4) + ST-10XME

NGC 2771 with supernova ASASSN-14iu - earlier image (2014-11-05)
Taken 24.3 days after discovery ,
combined measured brightness of supernova + galaxy center is +13.0
Annotated CCD Image (cropped)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-11-05 21:31hUT (#568187-91)
12" LX200R  (at f/10.4) + ST-10XME

NGC 2771 with supernova ASASSN-14iu - earlier image (2014-10-28)
Taken 21.3 days after discovery ,
combined measured brightness of supernova + galaxy center is +13.0
Annotated CCD Image (cropped)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-11-02 21:47hUT (#567194-98)
12" LX200R  (at f/10.4) + ST-10XME

NGC 2771 with supernova ASASSN-14iu - earlier image (2014-10-28)
Taken 16.3 days after discovery ,
combined measured brightness of supernova + galaxy center is +12.8
Annotated CCD Image (cropped)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-10-28 22:11hUT (#566241-45)
12" LX200R  (at f/10.4) + ST-10XME

NGC 2771 & adjacent galaxies (2014-10-28)
Annotated CCD Image (cropped)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-10-28 22:11hUT (#566241-45)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top

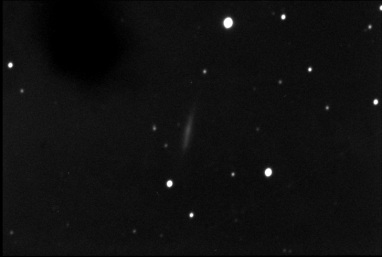

NGC 5229 - Spiral Galaxy (M51 Group)

NGC 5229 (Canes Venatici)
CCD Image (50% size)
5 x 90 sec exposure (average combine), 3x3 binning, C Filter
2014-11-23 23:58hUT (#571290-94)
12" LX200R  (at f/10.4) + ST-10XME

NGC 5229 - detail
CCD Image (100% size, cropped)
Image details as above

NGC 5229 - Earlier Image (2014-11-02)
CCD Image (100% size, cropped)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2014-11-02 23:17hUT (#567326-30)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


Variable Stars
