CCD Images - Session 604 (2017-11-14)

Objects Session Notes
Bullet M1 - Supernova Remnant ("Crab Nebula")
Bullet M110 - Elliptical Galaxy
Bullet C/2015 ER61 (PANSTARRS) - Comet
Bullet M52 - Open Cluster
Bullet M38 - Open Cluster
Bullet Hickson 46 - Galaxy Cluster

Bullet Photometric Monitoring - Variables
  None

Bullet Astrometric Monitoring - Nearby Stars
  None
- Evening session (4 hrs duration).
Generally clear skies, but cloud developing on occasions and towards end
- Session operated under semi-automated control, with remote monitoring from indoors computer.
- Main aim of the session were to test dual scope/dual camera operation with autoguiding
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding
- POTH Hub
- PHD2 Guiding
- Full Automated Operation  (i.e. integrated imaging &
  guiding using CCDApp2 & PHD2 automation)
- Secondary aim was to acquire some deep sky images
(including images of M1)
- Ambient Temperature:  ~ 0 degC (minimum)
- Notes from 2017-11-14 >>


M1 - Supernova Remnant ("Crab Nebula")

M1 (Taurus)

Exposure under Good Sky
(3 mins, Single Frame, Guided)
  Exposure under Poor Sky
(3 mins, Single Frame, Guided)
Image   Image
CCD Image (50% size)
180s exposure, 3x3 binning, C Filter
2017-11-15 01:14h UT (#604022)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

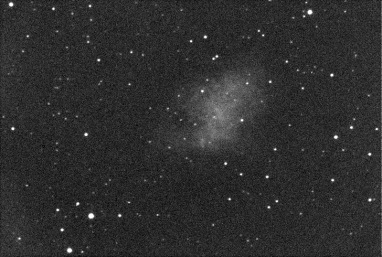

  CCD Image (50% size)
180s exposure, 3x3 binning, C Filter
2017-11-15 01:20h UT (#604024)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

Guided Exposure
 (10 mins, Single Frame)
  Unguided Exposure
(10 mins, Single Frame)
 Image    Image

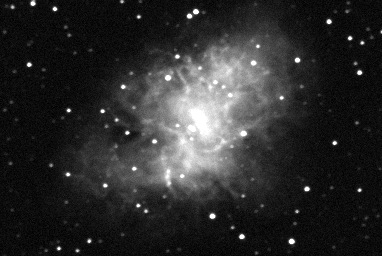

CCD Image (50% size)
600s exposure, 3x3 binning, C Filter
2017-11-15 02:11h UT (#604029)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

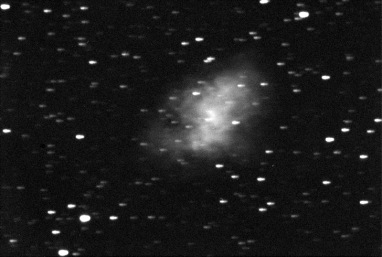

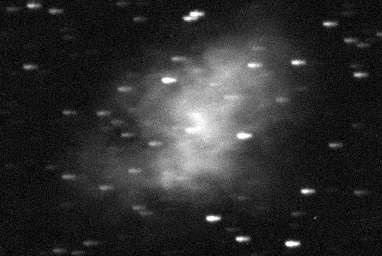

  CCD Image (50% size)
600s exposure, 3x3 binning, C Filter
2017-11-15 02:49h UT (#604034)
12" LX200R  (at f/10.4) + ST-10XME

Image    Image
CCD Image (100% size, cropped)
Image details as above
  CCD Image (100% size, cropped)
Image details as above

Stacked  Frames - Average Combine
(15 x 1 min subs, guided)
  Stacked Frame - Average of Medians Combine
(15 x 1 min subs, guided)
Image    Image

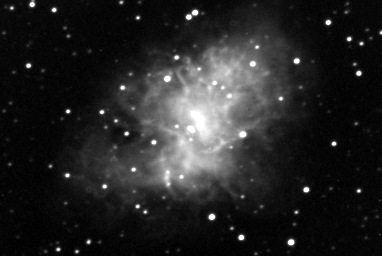

CCD Image (100% size, cropped)
15 x 60s exposure (average combine), 3x3 binning, C Filter
2017-11-15 01:00h UT (#604006-20)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

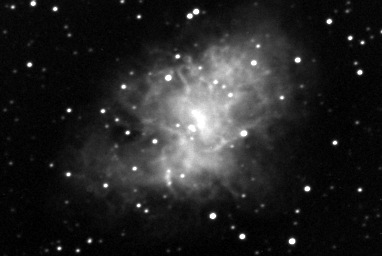

  CCD Image (100% size, cropped)
 (average median combine)
Image details as left

Wider View - Linear Scale
(15 min total exposure, 15 x 1 minute subs, guided)
  Wider View - Linear Scale
(30 min total exposure, 3 x 10 minute subs, guided)
Image    Image
CCD Image (50% size)
15 x 60s exposure (average combine), 3x3 binning, C Filter
2017-11-15 01:00h UT (#604006-20)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)
  CCD Image (100% size, cropped)
Image details as left

M1 Detail - Linear Scale
(15 min total exposure, 3 x 5 minute subs, autoguided)
  M1 Detail - Linear Scale
(30 min total exposure, 3 x 10 min subs, autoguided)
Image   Image
CCD Image (100% size, cropped)
3 x 300s exposure (average combine), 3x3 binning, C Filter
2017-11-15 01:56h UT (#604026-28)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

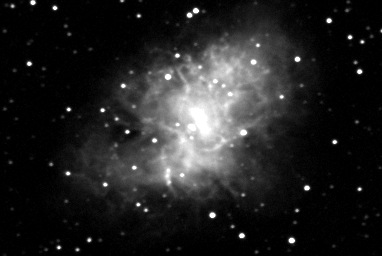

  CCD Image (100% size, cropped)

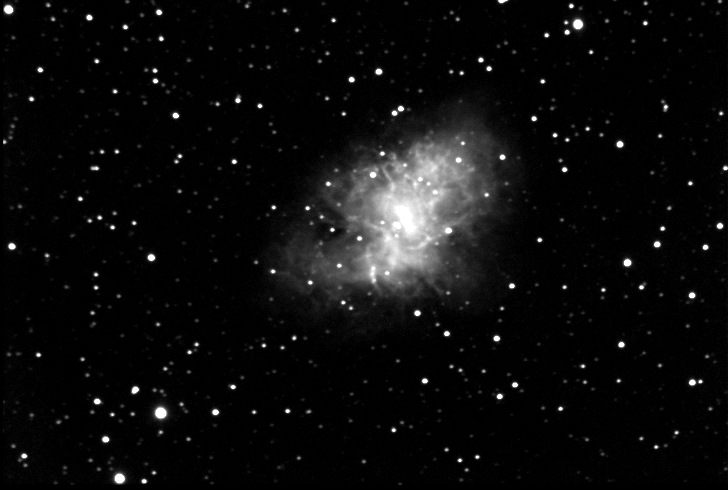

3 x 600s exposure (average combine), 3x3 binning, C Filter
2017-11-15 02:17h UT (#604029-31)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)
[ Full Size ]

M1 Detail - False Colour (Hot)
(15 min total exposure, 15 x 1 min subs, guided)
  M1 - False Colour (Spectrum)
(15 min total exposure, 15 x 1 min subs, guided)

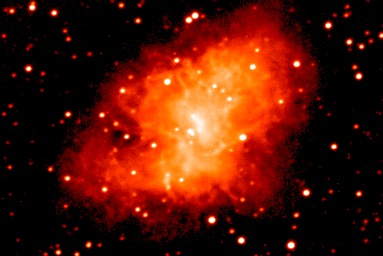

 Image   Image
False Colour CCD Image (Linear Scale, 100% size, cropped)
15 x 60s exposure (average median combine), 3x3 binning, C Filter
2017-11-15 01:00h UT (#604006-20)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)
[ Full Size ]

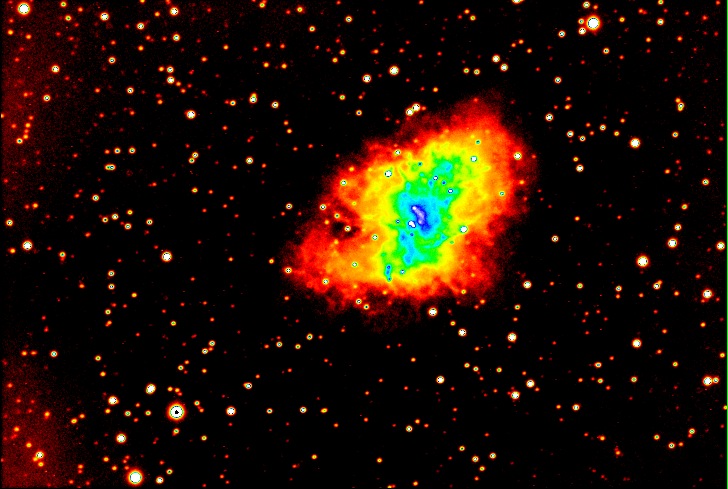

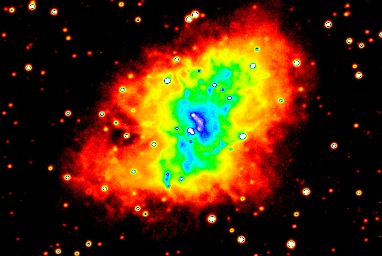

  False Colour CCD Image (Linear Scale, 100% size, cropped)
Image details as left
[ Full Size]

(False Colour  & Square Root Scaled Images
created using FV 5.3)

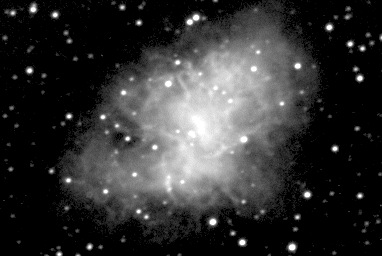

M1 Detail - Square Root Scale
(15 min total exposure, 15 x 1 min subs, guided)
  Wider View - Square Root Scale
(15 min total exposure, 15 x 1 min subs, guided)
Image     Image

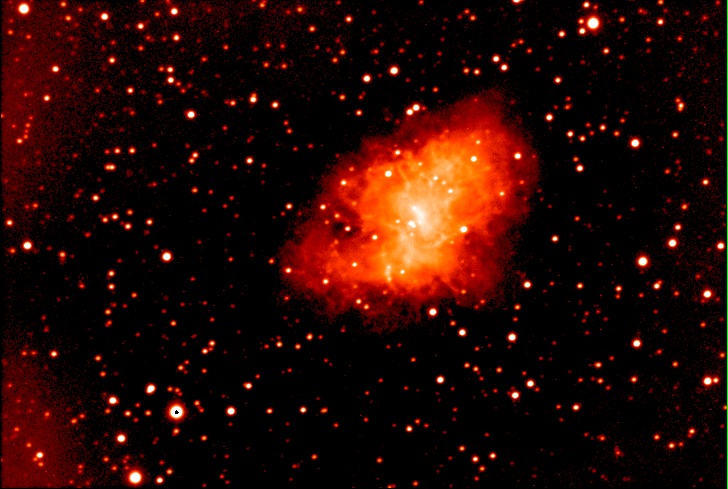

CCD Image (Square Root scaling, 100% size, cropped)
Image details as above

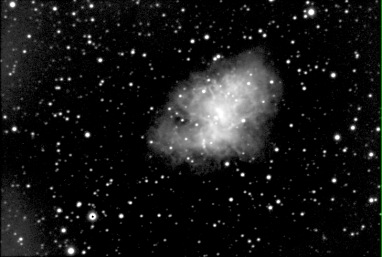

  CCD Image (Square Root scaling, 50% size)
Image details as upper-left


Back to Top


 M110 - Elliptical Galaxy

M110 (Andromeda)

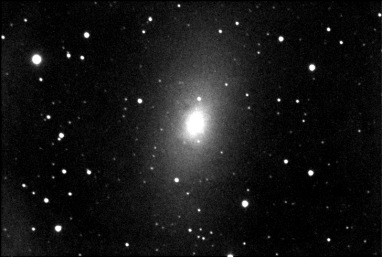

CCD Image (Linear Scale, 50% size)
6 x 180s exposure (average combine), 3x3 binning, C Filter
2017-11-15 03:31h UT (#604056-61)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

M110 - detail

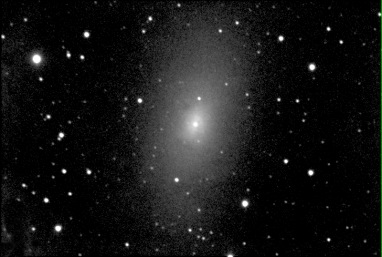

CCD Image (Square Root Scale, 50% size)
Image details as above

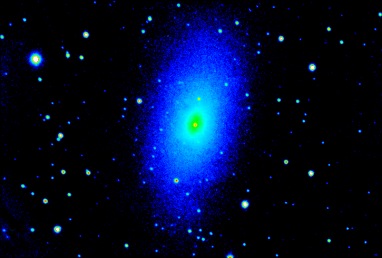

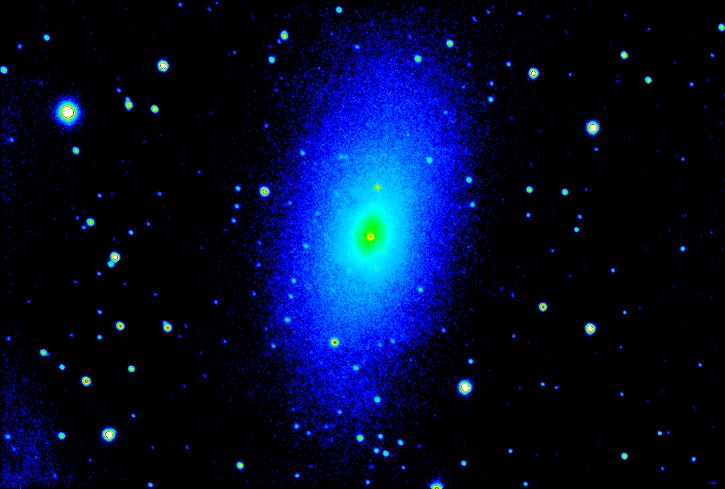

False Colour CCD Image (Square Root Scale, 50% size)
Inverse Specturm
Image details as above
[ 100% size ]

Back to Top


C/2015 ER61 (PANSTARRS) - Comet

C/2015 ER61 (PANSTARRS)
(passing through Aries)
Sun distance 2.93 AU
Annotated CCD Image (50% size)
4 x 30s exposure (average combine), 3x3 binning, C Filter
2017-11-15 03:49h UT (#604064-68)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

C/2015 ER61 (PANSTARRS) - Detail
Negative CCD Image (75% size, cropped)
Image details as above

Back to Top


M52 - Open Cluster

M52 (Cassiopeia)
CCD Image (75% size)
3 x 60s exposure (average combine), 3x3 binning, C Filter
2017-11-15 04:00h UT (#604071-75)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

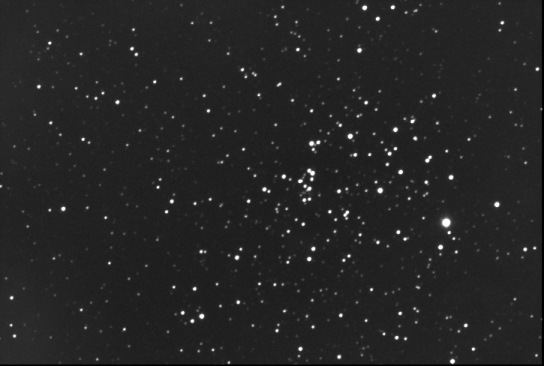

M52 - Earlier Image (2017-11-02)
CCD Image (50% size)
7 x 15s exposure (average combine), 3x3 binning, C Filter
2017-11-02 23:20h UT (#603429-37)
12" LX200R  (at f/10.4) + ST-10XME
(Unguided)

Back to Top


M38 - Open Cluster

M38 (Cassiopeia)
Central part of cluster
CCD Image (75% size)
5 x 60s exposure (average combine), 3x3 binning, C Filter
2017-11-15 04:08h UT (#604079-83)
12" LX200R  (at f/10.4) + ST-10XME
(Autoguided using TS 80mm APO + ZWO ASI178MC)

M38 - Earlier Image (2006)
CCD Image Mosaic (50% size)
60 sec exposure (3x3 frames), 2x2 binning, C Filter
2006-01-31 23:00h UT (#112179-87)
8" LX200 Classic + ST-7E
[ Full Size ]

Back to Top


Hickson 46 - Galaxy Cluster

Hickson 46 (Leo)

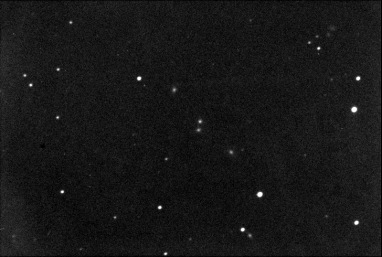

CCD Image (50% size)
