Objects Session Notes
Solar Observing Equipment (including Herschel Wedge) Sun & sunspot group AR 12689 SharpCap Files (S606)
- Daytime session (1.5 hrs duration).
Clear skies, but windy (17-20 mph)- Session operated from within observatory - Main aim of this daytime session was to conduct a first light test of an Altair Herschel Wedge, recently acquired for the task of making observations and images of the sun.
- TS 80mm APO + Altair Herschel Wedge +
ZWO ASI178MC + SharpCap 3.0 for imaging
- 12" LX200 GPS for goto & tracking
- CCDApp2 and TheSky6 for overall control of LX200
(operated from within Observatory)- Secondary aim was to test overall stability of Computer and of CCDApp2 (VS2010 version) - Quality of Solar images acquired are negatively impacted by strong winds and gusts which caused the telescope to shake - Ambient Temperature: 4 degC (minimum) - Notes from 2017-11-26 >>
Photos illustrating the Solar Observing Setup for Session S606
| Solar Observing Setup Photo shows TS 80mm APO Telescope, Altair Herschel Wedge + ZWO ASI178MC Camera, mounted on 12" LX200R/GPS (itself mounted on an Equatorial Wedge & pier) |
TS 80mm APO Telescope pointing at Sun The photos shows the glowing ball of Sun on the viewfinder/ heat disperser at the back of Altair Herschel Wedge, with attached ZWO ASI178MC camera (see more photos) |
|
 |
 |
|
Back to Top
| Sun | Sunspot Group AR 12689 | |
 |
 |
|

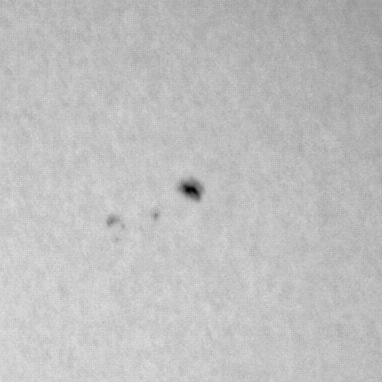

| CMOS Monochrome Image (27% size scaling, cropped) 2017-11-26 13:53h UT (13_53_41Z / 0001) 0.42ms, 3x3 binning, Mono8 Gain 51, ROI 3096x2080 (Full) TS 80mm f/6 APO + ASI178MC mounted on 12" LX200R (image acquired using SharpCap) [ larger image - cropped, 50% size ] |

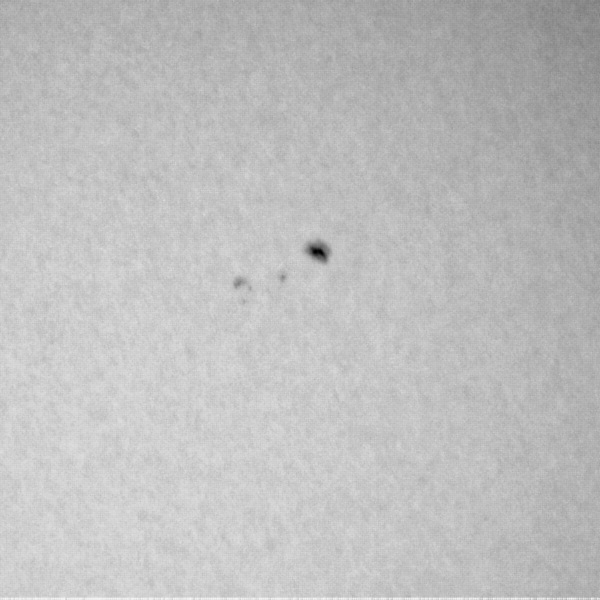

CMOS Monochrome Image (100% size scaling, cropped) 2017-11-26 14:00h UT (14_00_24Z / 0001) 0.70ms, 1x1 binning, Mono8 Gain 51, ROI 800x600 (Sub-region) TS 80mm f/6 APO + ASI178MC mounted on 12" LX200R (image acquired using SharpCap) |
|

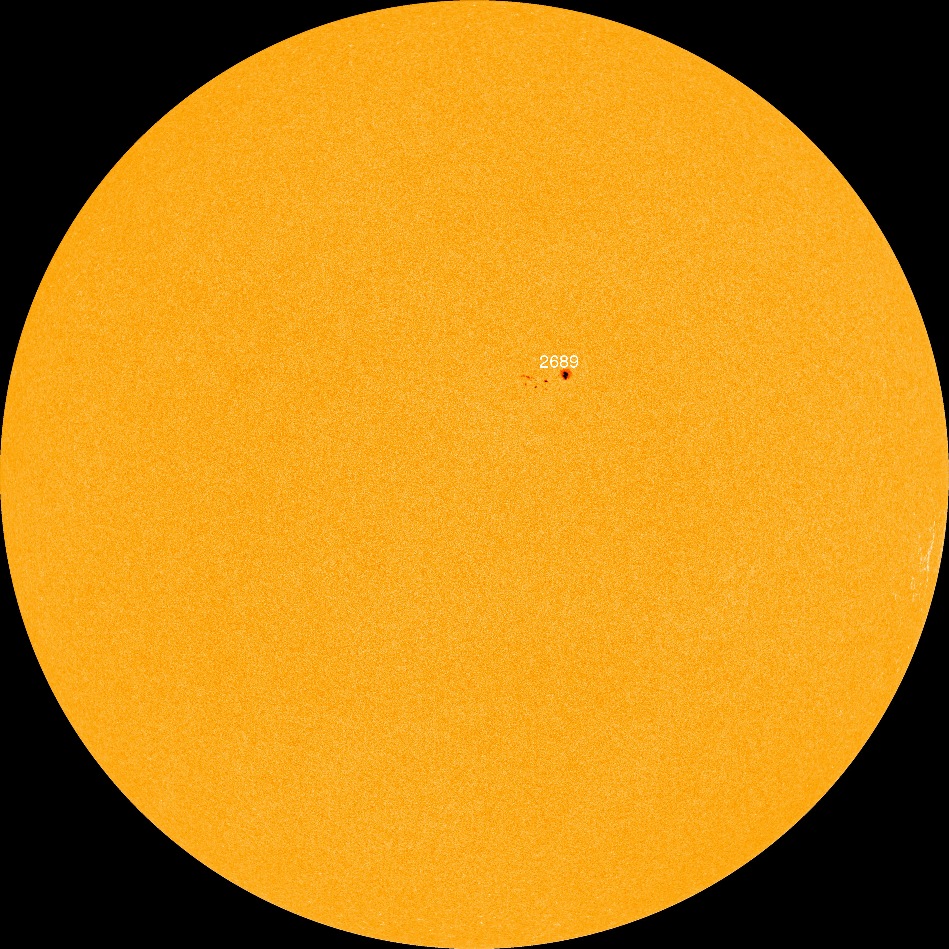

| Daily Sun (2017-11-26) Credit: SDO/HMI (www.spaceweather.com) (larger picture) |

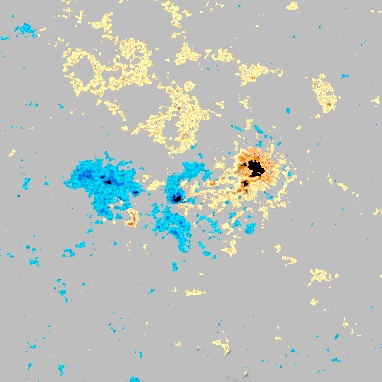

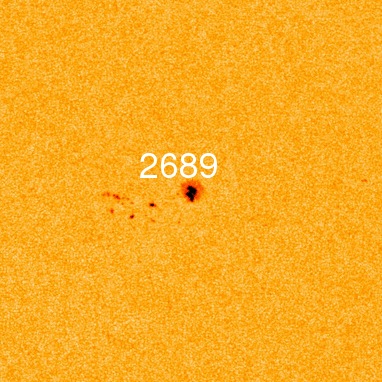

Sunspot Group AR 12689 Credit: SDO/HMI |
|
 |
 |
|
| [ Larger View ] | ||

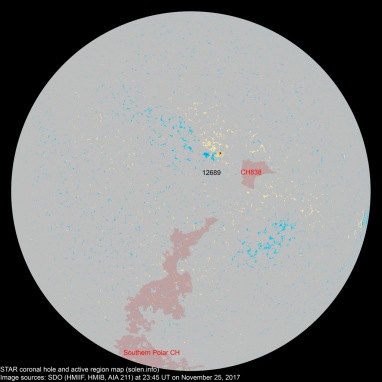

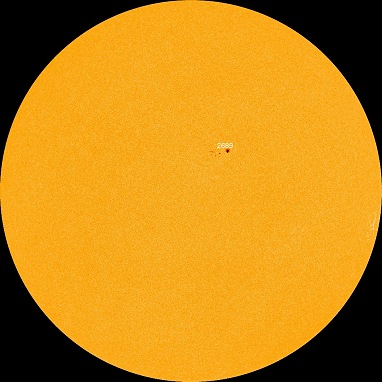

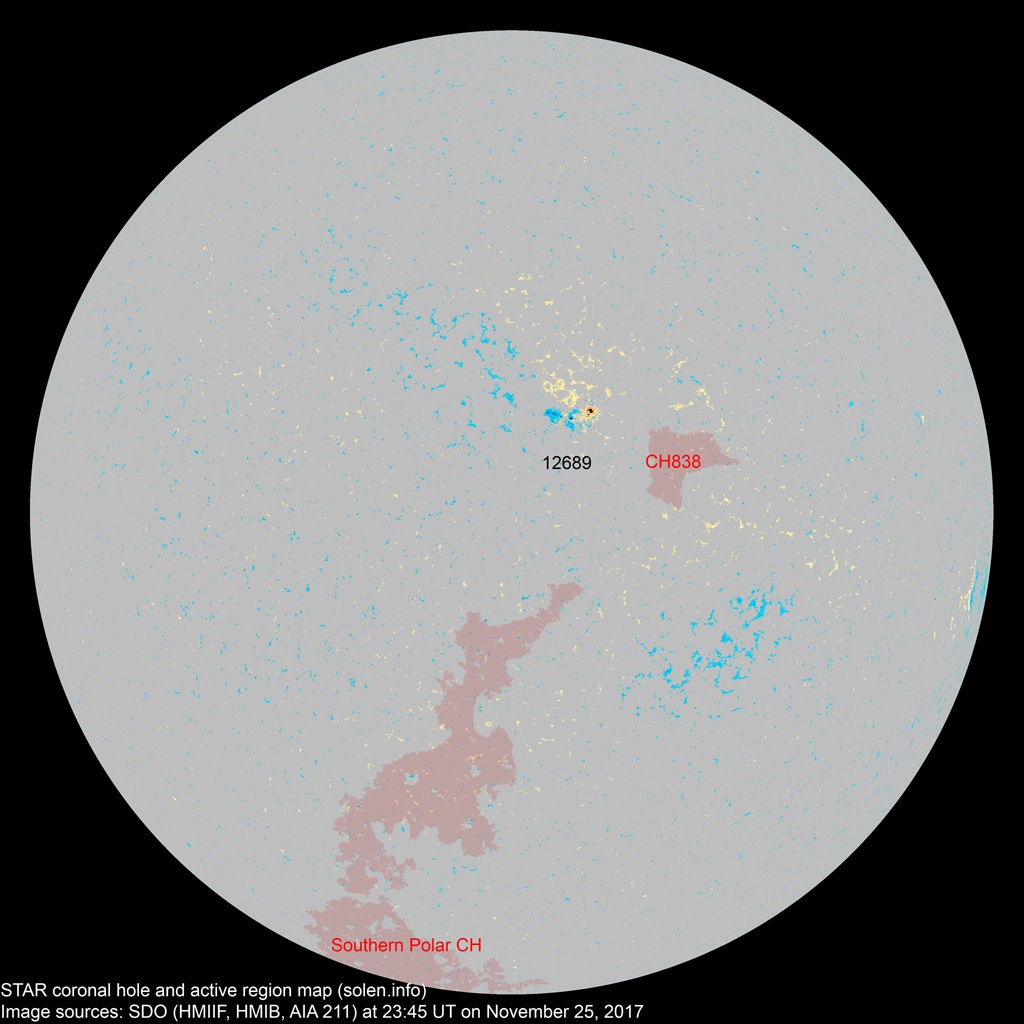

| Daily Sun (2017-11-26) Credit: SDO/HMI (www.solen.info/solar) |
Sunspot Group AR 12689 Credit: SDO/HMI |
|
 |
 |
|
| [ Larger View ] |
