| 29P/Schwassmann-Wachmann (passing through Taurus) Sun Distance 5.96 AU (receeding) Earth Distance 5.59 AU (835.9 million km) Uneven background due to bright moonlit sky |
29P/Schwassmann-Wachmann - 2022-02-08, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 3.74 arcsec/hr, Dec -3.91 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 5 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-08 23:06 UT (#967059-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of 29P/Schwassmann-Wachmann on Comets 2022 Page >> | ||
| Earlier images of 29P/Schwassmann-Wachmann on Comets 2020 Page >> |
Back to Top
| 67P/Churyumov-Gerasimenko (passing through Cancer) Sun Distance 1.69 AU (receeding) Earth Distance 0.73 AU (109.1 million km) |
67P/Churyumov-Gerasimenko - 2022-02-08, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -18.55 arcsec/hr, Dec -10.10 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 3 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 21:50 UT (#967011-13) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log scale, cropped) 15 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 21:55 UT (#967011-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 67P/Churyumov-Gerasimenko on Comets 2022 Page >> |
| 67P/Churyumov-Gerasimenko - False Colour Image(s) Inverse Spectrum |
| 67P/Churyumov-Gerasimenko - 2022-02-08 |
 |
| False Colour CCD Image (70% size, log scale) 5 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 21:55 UT (#967011-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| 80P/Peters-Hartley (passing through Puppis) Sun Distance 3.16 AU Earth Distance 2.32 AU (346.4 million km) Expected position of comet (not visible) is shown by white circle |
80P/Peters-Hartley - 2022-02-08, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -34.85 arcsec/hr, Dec 1.89 arcsec/hr) Expected position of comet (not visible) is shown by white circle |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 5 x 90s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:39 UT (#967042-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of 80P/Peters-Hartley on Comets 2022 Page >> |
Back to Top
| 104P/Kowal (passing through Cetus) Sun Distance 1.14 AU Earth Distance 0.65 AU (97.3 million km) |
104P/Kowal - 2022-02-08, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 193.80 arcsec/hr, Dec 49.95 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:27 UT (#967035-36) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:28 UT (#967035-39) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 104P/Kowal on Comets 2022 Page >> |
Back to Top
| C/2017 K2 (PANSTARRS) (passing through Hercules) Sun Distance 4.04 AU (approaching) Earth Distance 4.57 AU (684.0 million km) |
C/2017 K2 (PANSTARRS) - 2022-02-09, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 26.95 arcsec/hr, Dec -2.96 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 3 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-09 05:33 UT (#967210-12) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
CCD Image (100% size, square root scale, cropped) 8 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-09 05:36 UT (#967210-18) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C2017 K2 (PANSTARRS) on Comets 2021 Page >> | ||
| Images of C2017 K2 (PANSTARRS) on Comets 2022 Page >> |
Back to Top
| C/2019 L3 (ATLAS) (passing through Gemini) Sun Distance 3.57 AU (turning) Earth Distance 2.76 AU (413.0 million km) |
C/2019 L3 (ATLAS) - 2022-02-08, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -18.47 arcsec/hr, Dec -29.94 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 3 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:52 UT (#967048-50) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
CCD Image (100% size, log scale, cropped) 9 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:55 UT (#967048-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2019 L3 (ATLAS) on Comets 2021 Page >> |
| C/2019 L3 (ATLAS) Inverse Spectrum |
| C/2019 L3 (ATLAS) - 2022-02-08 |
 |
| False Colour CCD Image (70% size, log scale) 9 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:55 UT (#967048-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| Hickson 81 (Hercules) Alias: UGC 10319 et al [ Hickson Galaxy Groups ] Hickson 81 and adjacent galaxies PGC 57775 (catalog mag +16.4), PGC 1417993 (catalog mag +17.1), PGC 1414609 (catalog mag +17.5), PGC 1417990 (catalog mag +18.1) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 06:07 UT (#967229-33) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Hickson 81 - Detail PGC 57773 / UGC 10319 (catalog mag +17.1), PGC 57777 (catalog mag +17.0), PGC 57779 (catalog mag +17.7), PGC 57774 (catalog mag +16.9) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (150% size, square root scale, cropped) Image details as above |
 |

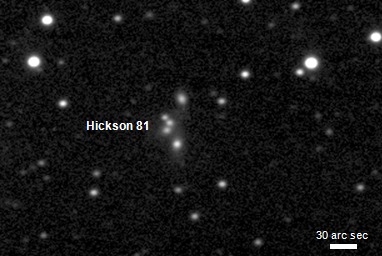

| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
| Hickson 81 - Earlier Image (2022-02-08 am) |
|
|
| Annotated CCD Image (125% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, C Filter 2022-02-08 03:48 UT (#966103) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Hickson 81 - Earlier Image (Dec 2021) |
|
| CCD Image (100% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, C Filter 2021-12-30 06:29 UT (#946171-74) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Hickson 81 - Eariler Image (Sep 2018) NB. Image suffers from star trailing due to poor/absent guiding |
|
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2018-09-09 00:10 UT (#627133-37) 12" LX200R (at f/10.4) + ST-10XME |
Back to Top
| KUG 1206+328 with SN 2020aeps (Coma Berenices) SN 2020aeps (Type: Ia) discovered 2020/12/29.904 UT by XOSS Alias: XM25HT, ZTF20adagenq, Gaia21adn (Rochester Supernova site | Discovery Image ) |
| KUG 1206+328 with SN2020aeps - 2022-02-09 (T+406.2d) Image below (2022-02-09.099) was taken 406.2 days after discovery of 2020aeps Position of earlier SN (no longer visible) is shown by white cross hairs. |
 |
| CCD Image (150% size, square root scale, cropped) 5 x 120s exposure (average combine), 3x3 binning, C Filter 2022-02-09 02:29 UT (#967142-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2020aeps (KUG 1206+328) on Supernovae 2020 Page >> |
Back to Top
| NGC 2955 (Leo Minor) SN 2021jtt (Type: SN) discovered 2021/04/15.199 UT by ZTF Alias: ZTF21aavoqpl ( Rochester Supernova site | Manfred Mrotzek image w/SN 2021jtt ) |
 |

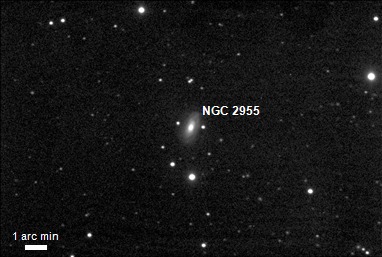

| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 23:52 UT (#967081-83) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 2955 - Detail |
 |

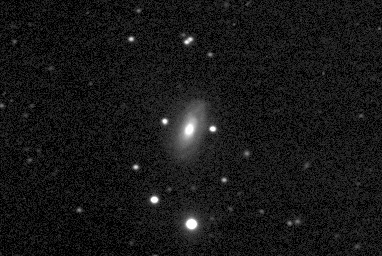

| CCD Image (100% size, square root scale, cropped) Image details as above |
| SN 2021jtt in NGC 2955 (Leo Minor) SN 2021jtt (Type: SN) discovered 2021/04/15.199 UT by ZTF Alias: ZTF21aavoqpl ( Rochester Supernova site | Manfred Mrotzek image w/SN 2021jtt ) |
| NGC 2955 - 2022-02-08 (2021jtt disc.T+299.8d) Image below (2022-02-08.990) was taken 299.8 days after discovery of 2021jtt Position of earlier SN (not visible) is shown by white cross-hairs Earlier SN is presumed to have faded and is no longer visible |
 |

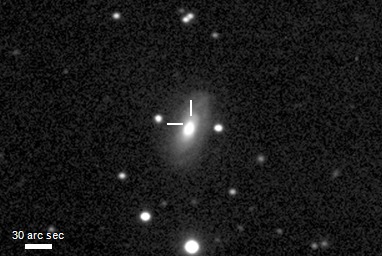

| CCD Image (125% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 23:52 UT (#967081-83) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 2955 - Earlier Image, 2021-12-17 (2021jtt disc.T+245.9d) Image below (2021-12-17.056) was taken 245.9 days after discovery of SN 2021jtt Position of earlier SN (not visible) is shown by white cross-hairs Earlier SN is presumed to have faded and is no longer visible |
 |
| CCD Image (125% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, C Filter 2021-12-17 01:23 UT (#942227) 12" LX200R (at f/10.4) + ST-10XME Non-guided |
Back to Top
| NGC 3758 with AT2021abnf (Leo) AT2021abnf (Type: AGN) discovered 2021-10-14.529 UT by ZTF Alias: ZTF19aciggdd |
| NGC 3758 - Spiral Galaxy NGC 3758 / PGC 35905 (catalog mag +14.7) with adjacent galaxies PGC 169871 (catalog mag +15.6), PGC 169865 (catalog mag +17.6), PGC 169867 (catalog mag +17.7), PGC 1651487 (catalog mag +17.8), PGC 1654400 (catalog mag +17.9), PGC 1651741 (catalog mag +17.9) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 02:12 UT (#967135-39) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 3758 with AGN AT2021abnf - 2022-02-09 (T+117.6d) Image below (2022-02-09.085) was taken 117.6 days after discovery of 2021abnf Position of AGN is indicated by white cross-hairs Measured magnitude +14.35 |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| NGC 4227 with SN2021biz (Canes Venatici) SN 2021biz (Type: Ia) discovered 2021/01/29.543 UT by ATLAS Alias: ATLAS21dfz (Rochester Supernova site | Gianluca Masi image | Jean-Claude Merlin image ) |
| NGC 4227 with SN2021biz - 2022-02-09 (T+375.6d) Image below (2022-02-09.113) was taken 375.6 days after discovery of 2021biz Position of earlier SN (no longer visible) is shown by white cross hairs. |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 02:52 UT (#967149-53) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4227 with SN2021biz - Earlier Image, 2021-04-03 (T+64.4d) Image below (2021-04-03.908) was taken 64.4 days after discovery of 2021biz SN shown by white cross hairs. Measured magnitude +17.3 |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-04-03 21:57 UT (#881040-44) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2021biz (NGC 4227) on Supernovae 2021 Page >> |
Back to Top
| NGC 4348 with SN2022fw (Virgo) SN 2022fw (Type: Ia) discovered 2022-01-09.490 UT by ASAS-SN Alias: ASASSN-22am (Rochester Supernova site | TNS 2022fw ) |
| NGC 4348 with SN2022fw - 2022-02-09 (T+30.5d) Image below (2022-02-09.032) was taken 30.5 days after discovery of 2022fw Position of reported SN (bright) is shown by white cross-hairs Measured magnitude +14.1 |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 00:57 UT (#967097-100) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022fw (NGC 4348) on Supernovae 2022 Page >> |
Back to Top
| NGC 5117 with SN2022abq (Canes Venatici) SN 2022abq (Type: II) discovered 2022-01-21.050 UT by F. Cappiello, S. Massaro Alias: Ric7-2022abqGBObs, ATLAS22cks (Rochester Supernova site | TNS 2022abq ) |
| NGC 5117 with SN2022abq - 2022-02-09 (T+19.1d) Image below (2022-02-09.126) was taken 19.1 days after discovery of 2022abq Position of SN is shown by white cross-hairs Measured magnitude +15.75 |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 03:12 UT (#967156-60) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022abq (NGC 5117) on Supernovae 2022 Page |
Back to Top
| NGC 5732 with SN2021agpf (Bootes) SN 2021agpf (Type: Ia) discovered 2021-12-26.624 UT by ATLAS Alias: ATLAS21bnoc ( Rochester Supernova site | TNS 2021agpf ) |
| NGC 5732 with SN2021agpf (T+44.5d) NGC 5732 / PGC 52438 (catalog mag +14.3) with adjacent galaxies PGC 3088227 (catalog mag +16.3), PGC 2134772 (catalog mag +17.4), PGC 2134580 (catalog mag +17.6) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 03:35 UT (#967163-67) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 5732 with SN2021agpf - 2022-02-09 (T+44.5d) Image below (2022-02-09.143) was taken 44.5 days after discovery of 2021agpf Position of SN (bright) is shown by white cross-hairs Measured magnitude +15.67 |
 |
| CCD Image (125% size,square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 03:35 UT (#967163-67) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
| Images of SN 2021agpf (NGC 5732) on Supernovae 2021 Page |
Back to Top
| NGC 5945 (Bootes) NGC 5945 / PGC 55243 (catalog mag +14.7) with adjacent galaxies PGC 2207818 (catalog mag +18.1), PGC 2210143 (catalog mag +18.3) [ Ring Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 03:56 UT (#967171-75) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 5945 - Detail |
 |
| Annotated CCD Image (125% size,square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
| NGC 5945 with AT2021abqm (Bootes) AT2021abqm (Type: unk) discovered 2021-10-16.816 UT by F. Cappiello, S. Massaro Alias: Ric7-2021abqmGBObs ( Rochester Supernova site | TNS 2021abqm ) |
| NGC 5945 with AT2021abqm - 2022-02-09 (T+115.3d) Image below (2022-02-09.157) was taken 115.3 days after discovery of 2021abqm Position of reported transient (not visible) is shown by white cross-hairs |
 |
| Annotated CCD Image (125% size,square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 03:56 UT (#967171-75) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| PKS0735+17 with AT2021agfn (Gemini) AT2021agfn (Type: Blazer) discovered 2021-12-12.159 UT by GSNST Alias: GSNST-21cx ( Rochester Supernova site ) |
| PKS0735+17 with AT2021agfn - 2022-02-08 (T+58.7d) Image below (2022-02-08.892) was taken 58.7 days after discovery of 2021agfn Reported transient object is shown by white cross-hairs Measured magnitude +15.75 |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 21:34 UT (#967004-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT2021agfn (PKS0735+17) on Transients 2021 Page |
Back to Top
| AT 2022bnf (Ursa Major) SN 2022bnf (Type: Ia) discovered 2022-02-05.837 UT by XOSS Alias: XM99HT Discovery magnitude +15.79. Potential host galaxy: WISEA J084058.13+484413.2 (Host redshift: 0.05736) Later determined to be a Type Ia Supernova (SN 2022bnf) ( Rochester Supernova site, TNS 2022bnf ) |
| AT2022bnf - 2022-02-08 (T+3.1d) Image below (2022-02-08.920) was taken 3.1 days after discovery of 2022bnf Position of reported SN is shown by white cross-hairs. Measured magnitude +15.4 (SN + Galaxy) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 22:15 UT (#967028-32) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022bnf on Supernovae 2022 Page >> |
Back to Top
| UGC 4671 with SN2021afsj (Ursa Major) SN 2021afsj (Type: Ia) discovered 2021-11-29.718 UT by Shuji Tokuoka Alias: Gaia21flf, ZTF21acqstfo ( Rochester Supernova site | Gaia21flf ) |
| UGC 4671 with SN2021afsj - 2022-02-08 (T+71.3d) Image below (2022-02-08.976) was taken 71.3 days after discovery of 2021afsj Position of SN is shown by white cross-hairs Measured magnitude ?? (unable to resolve object in Sextractor)) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 23:36 UT (#967074-78) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2021afsj (UGC 4671) on Supernovae 2021 Page >> |
Back to Top
| UGC 5528 with SN2022B (Sextans) SN 2022B (Type: Ia) discovered 2022-01-01.494 UT by ATLAS Alias: ATLAS22aab Mag +17.63 at discovery (Rochester Supernova site | TNS 2022B ) |
| UGC 5528 with SN2022B - 2022-02-09 (T+38.6d) Image below (2022-02-09.046) was taken 38.6 days after discovery of 2022B Position of earlier SN (no longer visible) is shown by white cross-hairs |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 01:15 UT (#967104-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022B (UGC 5528) on Supernovae 2022 Page >> |
Back to Top
| UGC 6014 with AT2022bil (Leo) AT2022bil (Type: MP) discovered 2022-02-02.029 UT by MASTER Alias: MASTER OT J105342.41+094343.9, MP 1642 Hill (Rochester Supernova site, TNS 2022bil ) |
| UGC 6014 with AT2022bil - 2022-02-09 (T+7.0d) Image below (2022-02-09.061) was taken 7.0 days after discovery of 2022bil Position of reported transient (not visible) is shown by white cross-hairs. |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 01:37 UT (#967111-15) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT2022bil (UGC 6014) on Transients 2022 Page >> |
Back to Top
| UGC 10566 with SN2022aab (Hercules) SN 2022aab (Type: Ia) discovered 2022-01-19.633 UT by ATLAS Alias: ATLAS22ccn ( Rochester Supernova site | TNS 2022aab ) |
| UGC 10566 - Spiral Galaxy UGC 10566 / PGC 59040 (catalog mag +15.2 with adjacent galaxies PGC 59052 (catalog mag +15.3), PGC 3088439 (catalog mag +16.3) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 05:19 UT (#967203-07) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGC 10566 with SN2022aab - 2022-02-09 (T+20.6d) Image below (2022-02-09.215) was taken 20.6 days after discovery of 2022aab Position or reported SN (indistinguishable from nucleus) is shown by white cross-hairs Measured magnitude (Nucleus + SN) +15.7 |
 |
| Annotated CCD Image (125% size,square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 05:19 UT (#967203-07) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
| Images of SN 2022aab (UGC 10566) on Supernovae 2022 Page |
Back to Top
| VV 807 (Hercules) Alias: PGC 58359 (catalog mag +16.0) [ Vorontsov-Velyaminov Galaxies ] |
 |

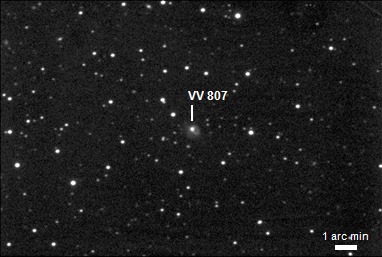

| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 04:56 UT (#967196-200) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| VV 807 - Detail |
 |

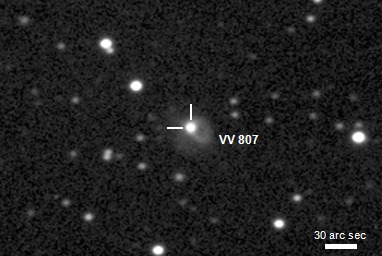

| Annotated CCD Image (150% size,square root scale, cropped) Image details as above |
 |

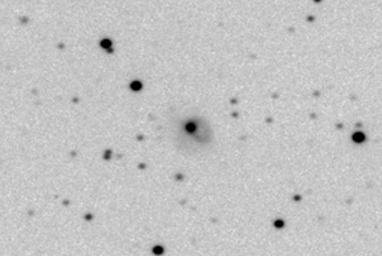

| Negative CCD Image (150% size, square root scale, cropped) Image details as above |
| VV 807 with AT2021fbu (Hercules) AT2021fbu (Type: AGN) discovered 2021/03/06.861 UT by Gaia Alias: Gaia21bgd ( Rochester Supernova site | TNS 2021fbu | Gaia21bgd ) |
| VV 807 with AT2021fbu - 2022-02-09 (T+339.3d) Image below (2022-02-09.200) was taken 339.3 days after discovery of 2021fbu Position of reported transient (very probably faded) is shown by white cross-hairs |
 |
| CCD Image (150% size,square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-09 04:56 UT (#967196-200) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
