29P/Schwassmann-Wachmann - Comet C/2019 L3 (ATLAS) - Comet     HD 84406 - Star ("JWST mirror alignment star")     AT 2022bpl - CV Type Transient (Attempt) AT 2022bqs - CV Type Transient AT 2022cml - Transient     LEDA 1614458 - Galaxy with Transient AT 2022ed     NGC 5117 - Spiral Galaxy with Type II Supernova 2022abq     SN 2021abzf - Type Ia Supernova in LEDA 1606285 (Attempt)     UGC 3457 - Spiral Galaxy with Type Ia Supernova 2022blm      Variable Stars (photometric monitoring) - GK Per      Nearby Stars (astrometric monitoring) - CN Leo

- Late evening session 6.5 hours - Session start delayed due to cloud & snow shower - -     - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: -4°C (min) - CCD Temperature:  -25°C - Notes from 2022-02-14 >>    [ Local Files >> ]

29P/Schwassmann-Wachmann - Comet

29P/Schwassmann-Wachmann (passing through Taurus) Sun Distance 5.96 AU (receeding) Earth Distance 5.68 AU (850.1 million km)		29P/Schwassmann-Wachmann - 2022-02-14, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 6.59 arcsec/hr, Dec -3.43 arcsec/hr)
Annotated CCD Image (50% size, square root scale) 5 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:34 UT (#971041-45) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2		Annotated CCD Image (100% size, square root scale, cropped) Image details as left
Images of 29P/Schwassmann-Wachmann on Comets 2022 Page >>
Earlier images of 29P/Schwassmann-Wachmann on Comets 2020 Page >>

Back to Top

C/2019 L3 (ATLAS) - Comet

C/2019 L3 (ATLAS) (passing through Gemini) Sun Distance 3.57 AU (turning) Earth Distance 2.83 AU (423.0 million km)		C/2019 L3 (ATLAS)  - 2022-02-14, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -13.22 arcsec/hr, Dec -28.96 arcsec/hr)
Annotated CCD Image (50% size, square root scale) 2 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:07 UT (#971057-58) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2		CCD Image (100% size, log scale, cropped) 9 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:08 UT (#971055-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
Images of C/2019 L3 (ATLAS) on Comets 2022 Page >>

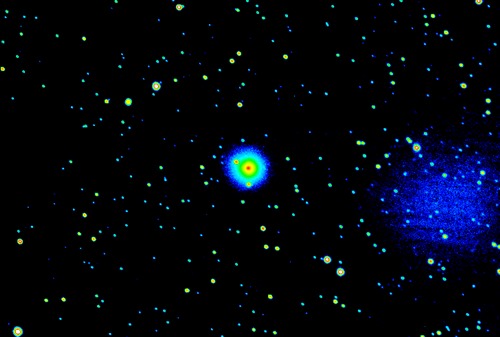

C/2019 L3 (ATLAS) - False Colour Image Inverse Spectrum

C/2019 L3 (ATLAS)  -  2022-02-14 Effected by uneven moonlit sky background

False Colour CCD Image (70% size, log scale) 9 x 45s exposure (average combine), 3x3 binning, C Filter 2022-02-11 02:24 UT (#969089-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top

HD 84406 - Star (JWST mirror alignment star)

HD 84406 (Ursa Major) Image taken of the star being used for the alignment and focusing of mirrors on the James Webb Space Telescope. For a few brief moments my backyard telescope was in perfect alignment with the JWST !   HD84406 was picked for JWST mirror alignment as it has no nearby stars that could confuse the operation.  The image below shows the absence of nearby stars very well.

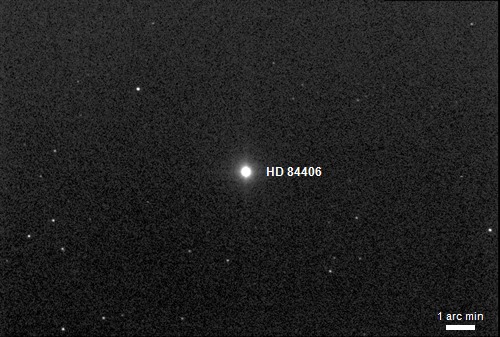

Annotated CCD Image (70% size, square root scale, cropped) 4 x 3s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:12 UT (#971021-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

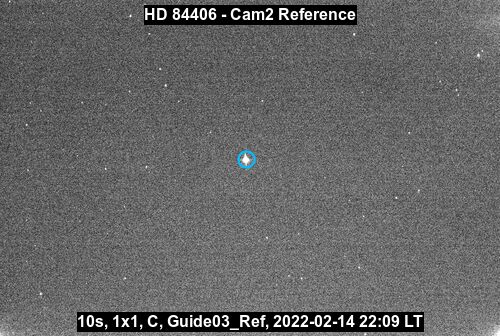

HD 84406 - Wider View

Annotated Realtime CMOS Image (  Linear Scale), Single 10s exposure,  1x1 binning, No Filter 2022-02-14 22:09 80mm APO + ASI ZWO178MC

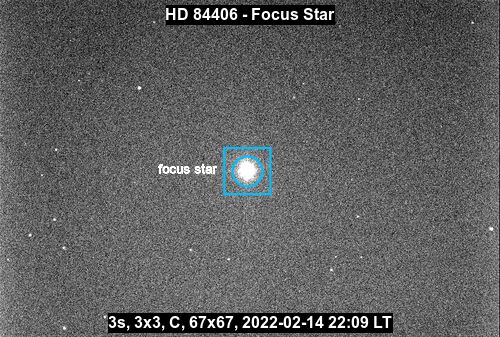

HD 84406 - Focus Box for Main Scope/Camera

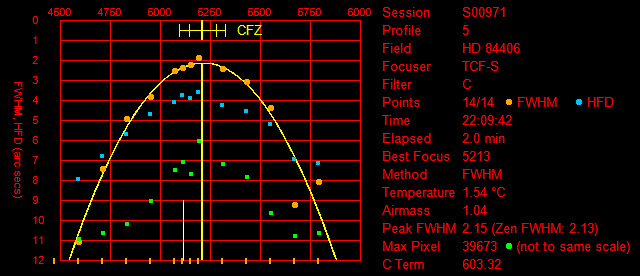

HD 84406 - Focus Profile

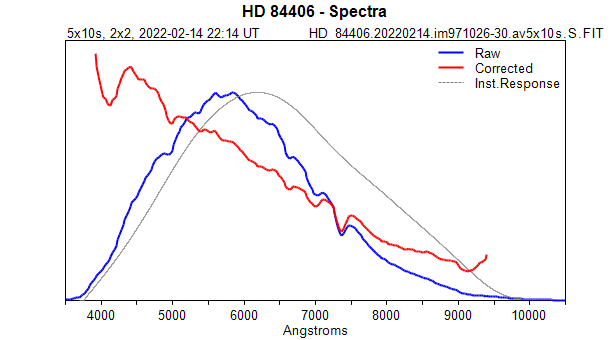

HD 84406 Spectra  Catalog Type : G5 (from catalog/TheSky6)

Spectra produced in AstroMain using Image taken with Star Analyser 200 5 x 10s exposure (average combine), 2x2 binning, S Filter 2022-02-14 22:14 UT (#971026-30) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top

AT 2022bpl - CV Type Transient (attempted observation)

AT 2022bpl (Cancer) AT 2022bpl (Type: CV) discovered 2022-02-06.784 UT by XOSS Alias: XM100HT Discovery magnitude   ( Rochester Supernova site | TNS 2022bpl ) Transient position (not visible) is indicated by white cross-hairs No evidence of any object at reported position.

Annotated CCD Image  (50% size, linear scale) 5 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:22 UT (#971066-70) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022bpl - 2022-02-14 (T+8.2d) Image below (2022-02-14.972) was taken 8.2 days after discovery of 2022bpl Transient position (not visible) is indicated by white cross-hairs No evidence of any object at the reported position.

CCD Image  (125% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:22 UT (#971066-70) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022bpl  - Reference Image (DSS2 Color) Position of reported transient is shown by purple cross hairs.   Simbad shows CataclyV star SDSS J080934.78+121942.9 at the position of the reported transient

DSS2 Image, screen captured via Aladin

Images of AT 2022bpl on Type CV Transients Page >>

Back to Top

AT 2022bqs - CV Type Transient

AT 2022bqs (Canis Major) AT 2022bqs (Type: CV) discovered 2022-02-08.290 UT by ASAS-SN Alias: ASASSN-22bs Bright CV candidate, could also be a Galactic Nova Discovery magnitude +12.2  ( Rochester Supernova site | TNS 2022bqs )

Annotated CCD Image  (50% size, linear scale) 4 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:03 UT (#971013-17) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022bqs - 2022-02-14 (T+6.6d) Image below (2022-02-14.916) was taken 6.6 days after discovery of 2022bqs Transient is indicated by white cross-hairs Measured magnitude +13.85

CCD Image  (100% size, linear scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:03 UT (#971013-17) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022bqs  - Reference Image (DSS2 Color) Position of reported transient is shown by purple cross hairs.   No object evident at transient position in this historic image.

DSS2 Image, screen captured via Aladin

Images of AT 022bqs on Type CV Transients Page >>

Back to Top

AT 2022cml - Transient

AT 2022cml (Leo) AT 2022cml (Type: HPM) discovered 2022-02-12.444 UT by ZTF Alias: ZTF22aaajkdl Discovery magnitude  12.39  ( Rochester Supernova site | TNS 2022cml ) Transient position (not visible) is indicated by white cross-hairs

Annotated CCD Image  (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:41 UT (#971074-78) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022cml - 2022-02-14 (T+2.5d) Image below (2022-02-14.981) was taken 2.5 days after discovery of 2022cml Position of Transient (bright) is indicated by white cross-hairs Measured Mag +12.1

CCD Image  (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-14 23:41 UT (#971074-78) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022cml  - Reference Image (DSS2 Color) Position of reported transient is shown by purple cross hairs.   No object is evident in DSS2 image or in Smbad at reported position

DSS2 Image, screen captured via Aladin

Images of AT 2022cml on Transients 2022 Page

Back to Top

LEDA 1614458 - Galaxy with Transient AT 2022ed

LEDA 1614458 with AT2 022ed (Bootes) AT2022ed (Type: unk) discovered 2022-01-08.224 UT by MASTER Alias: MASTER OT J142413.34+200245.1 [ Supernovae ]  (Rochester Supernova site |  )

LEDA 1614458 with AT 2022ed - 2022-02-15 (T+37.8d) Image below (2022-02-15.024) was taken 37.8 days after discovery of 2022ed Position of transient (very faint or not visible) is shown by white cross-hairs

Annotated CCD Image  (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-15 00:45 UT (#971098-102) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2022ed (LEDA 1614458) on Transients 2022 Page >>

Back to Top

NGC 5117 - Spiral Galaxy with Type II Supernova 2022abq

NGC 5117 with SN2022abq (Canes Venatici) SN 2022abq (Type: II) discovered 2022-01-21.050 UT by F. Cappiello, S. Massaro Alias: Ric7-2022abqGBObs, ATLAS22cks  (Rochester Supernova site | TNS 2022abq )

NGC 5117 with SN2022abq - 2022-02-15 (T+25.0d) Image below (2022-02-15.008) was taken 25.0 days after discovery of 2022abq Position of SN is shown by white cross-hairs Measured magnitude +15.81

Annotated CCD Image  (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-15 00:21 UT (#971089-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2022abq (NGC 5117) on Supernovae 2022 Page

Back to Top

SN 2021abzf - Type Ia Supernova in LEDA 1606285 (attempted observation)

SN 2021abzf (Leo) Alias: In WISEA J114854.88+194833.5 SN 2021abzf (Type: Ia) discovered 2021-10-22.533 UT by ZTF Alias: ZTF21aciqcge, Gaia21eye In In WISEA J114854.88+194833.5 / LEDA 1606285  ( Rochester Supernova site | TNS 2021abzf | Gaia21eye | ) Transient position (not visible) is indicated by white cross-hairs

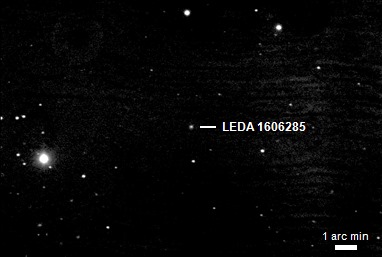

Annotated CCD Image  (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-15 01:08 UT (#971106-10) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

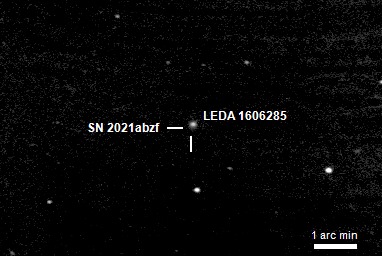

SN 2021abzf - 2022-02-15 (T+115.5d) Image below (2022-02-15.040) was taken 115.5 days after discovery of 2021abzf Position of SN (faded/not visible) is indicated by white cross-hairs

CCD Image  (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-15 01:08 UT (#971106-10) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

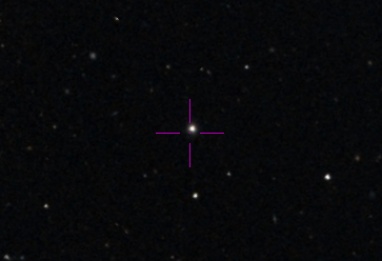

AT2022cml  - Reference Image (DSS2 Color) Position of reported transient is shown by purple cross hairs.   No object is evident in DSS2 image or in Simbad at reported position The adjacent (presumed host) galaxy is LEDA 1606285.

DSS2 Image, screen captured via Aladin

Back to Top

UGC 3457 - Spiral Galaxy with Type Ia Supernova 2022blm

UGC 3457 with SN2022blm (Monoceros) SN 2022blm (Type: Ia) discovered 2022-02-05.301 UT by LOSS Alias: KAIT-22A Discovery magnitude +16  ( Rochester Supernova site | TNS 2022blm )

UGC 3457 - Spiral Galaxy

Annotated CCD Image  (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:51 UT (#971048-52) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 3457 with SN2022blm - 2022-02-14 (T+9.6d) Image below (2022-02-14.946) was taken 9.6 days after discovery of 2022blm Position of SN (faint) is indicated by white cross-hairs

CCD Image  (150% size, log scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-14 22:51 UT (#971048-52) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2022blm (UGC 3457) on Supernovae 2022 Page
