| 12P/Pons-Brooks - 2023-11-15 (passing through Hercules) Sun Distance 2.57 AU (approaching) Earth Distance 2.75 AU (411.8 million km) |
12P/Pons-Brooks - 2023-11-15 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 54.70 arcsec/hr, Dec -15.99 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, log scale) 2 x 90s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 19:29 UT (#1167071-72) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log scale, cropped) 7 x 90s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 19:34 UT (#1167071-77) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| 12P/Pons-Brooks - 2023-11-15 Detail | 12P/Pons-Brooks - 2023-11-15 Detail | |
 |
 |
|
| Annotated CCD Image (150% size, log scale, cropped) 7 x 90s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 19:34 UT (#1167071-77) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated false-colour CCD Image (50% size, log scale, cropped)) Image details as left |
|
| Images of 12P/Pons-Brooks on Comets 2023 Page >> |
Back to Top
| C/2022 A2 (PANSTARRS) - 2023-11-15 (passing through Aquarius) Sun Distance 3.66 AU (receeding) Earth Distance 3.30 AU (494.3 million km) |
C/2022 A2 (PANSTARRS) - 2023-11-15 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -1.97 arcsec/hr, Dec -22.91 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 20:43 UT (#1167132-36) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of C/2022 A2 (PANSTARRS) on Comets 2023 Page >> |
Back to Top
| C/2023 H2 (Lemmon) - 2023-11-15 (passing through Capricornus) Sun Distance 0.95 AU (receeding) Earth Distance 0.26 AU (38.8 million km) |
C/2023 H2 (Lemmon) - 2023-11-15 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 594.39 arcsec/hr, Dec -684.46 arcsec/hr) Fast moving Comet : 15.1 arc min/hr |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 45s exposure (single frame), 3x3 binning, Clear Filter 2023-11-15 18:41 UT (#1167038) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 15 x 45s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 18:48 UT (#1167038-52) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2023 H2 (Lemmon) on Comets 2023 Page >> |
Back to Top
| Nova Cas 2021 (Cassiopeia) Nova in Cassiopeia discovered 2021-03-18.4236, by Yuji Nakamura (Japan) Magnitude at discovery +9.6 (unfiltered CCD) AT2021hkn (Type: Nova) reported by 2021/03/30.055 UT by Gaia Alias: Gaia21bpe, AT2021hkn, V1405 Cas |
| Nova Cas 2021 - 2023-11-15 (T+972.5d) Image below (2023-11-15.933) was taken 972.5 days after discovery of nova Nova is shown by white cross hairs. Measured magnitude +12.06 |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 30s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 22:25 UT (#1167183-87) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Nova Cas 2021 (V1405 Cas) Spectra - 2023-11-15 (T+972.5d) |
 |
| Spectra produced in AstroMain using Image taken with Star Analyser
200 5 x 90s exposure (average combine), 2x2 binning, S Filter 2023-11-15 22:31 UT (#1167188-92) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of Nova Cas 2021 on Novae Page >> |
Back to Top
| AT 2022adzf (Lacerta) AT 2022adzf (Type: CV) discovered 2022-12-24.528 UT by XOSS Alias: PSP22al, Gaia23afh Discovery magnitude 15.48 (Clear Filter) Gaia: Hostless blue transient, Alerting Mag 18.37 Gaia, 2023-01-10 22:34, mag 18.37 ( TNS 2022adzf | Gaia23afh) |
| AT 2022adzf - 2023-11-15 (T+326.4d) Image below (2023-11-15.925) was taken 326.4 days after discovery of 2022adzf Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +18.5 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-12 20:56 UT (#1166024-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2022adzf on Transients 2022 Page >> |
Back to Top
| AT 2023ev (Aries) AT 2023ev (Type: CV) discovered 2023-01-09.657 UT by Gaia Alias: Gaia23aey, ASASSN-17ki Discovery magnitude 16.13 (G-Gaia Filter) vs Historic Mag 18.67 +/- 0.89 SD 3.5 mag outburst in known candidate CV ASASSN-17ki Gaia, 2022-08-25 08:41, mag 18.86 Gaia, 2023-01-09 15:47, mag 16.13 Gaia, 2023-02-05 23:13, mag 18.89 Gaia, 2023-09-04 09:49, mag 19.11 ( TNS 2023ev | Gaia23aey ) |
| AT 2023ev - 2023-11-15 (T+310.2d) Image below (2023-11-15.886) was taken 310.2 days after discovery of 2023ev Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection ?, Limiting Magnitude +18.5 (Clear Filter) CV Transient has most likely faded to around Historic Levels (~18.67) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 21:19 UT (#1167146-50) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| AT 2023ev - Detail, 2023-11-15 (T+310.2d) Square root scale / Negative Image Position of earlier transient (source faded but just detectable) is shown by black cross-hairs Estimated Magnitude +18.4 (Clear Filter) |
 |
| Annotated negative CCD Image (100% size, square root scale, cropped) Image details as above |
| Images of AT 2023ev on Transients 2023 Page >> |
Back to Top
| AT 2023jbs (Andromeda) AT 2023jbs (Type: unk) discovered 2023-05-19.477 UT by ZTF Alias: ZTF23aaknvmk Discovery magnitude 16.77 (r-ZTF Filter) Prior Non-Detection Limiting Mag 19.5 (r-ZTF Filter) (2023-05-18 ) Based on a comparison of coordinates the Transient object appears to have been an outburst of the CV star GCVS PT And ( TNS 2023jbs ) |
| AT 2023jbs (PT And) (T+180.5d) Position of earlier transient (faded & no longer visible) is shown by white cross-hairs M31 Galaxy is towards lower left of image |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 22:49 UT (#1167195-99) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| AT 2023jbs - 2023-11-15 (T+180.5d) Image below (2023-11-15.945) was taken 180.5 days after discovery of 2023jbs Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +18.5 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 22:49 UT (#1167195-99) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023jbs on Transients 2023 Page >> |
Back to Top
| AT 2023rrr (Andromeda) AT 2023rrr (Type: QSO) discovered 2023-09-02.139 UT by Gaia Alias: Gaia23cfc Discovery Magnitude 16.04 (G-Gaia Filter) vs Historic Mag 18.43 +/- 0.778 SD Brightening in known QSO (QSO J0136+4751) Gaia, 2022-02-24 22:20, mag 18.78 Gaia, 2023-08-08 21:24, mag 17.19 Gaia, 2023-09-02 03:20, mag 16.04 Gaia, 2023-12-08 08:00, mag 17.15 Gaia, 2023-12-16 06:19, mag 17.80 ( TNS 2023rrr | Gaia23cfc ) |
| AT 2023rrr - 2023-11-15 (T+74.8d) Image below (2023-11-15.976) was taken 74.8 days after discovery of 2023rrr Position of reported transient (faint but relatively distinct) is shown by white cross-hairs Measured Mag +17.26 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 23:33 UT (#1167209-13) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023rrr on Transients 2023 Page >> |
Back to Top
|
AT 2023tow (Scutum) |
|
AT 2023tow - 2023-11-15 (T+56.0d) Image below (2023-11-15.763) was taken 56.0 days after discovery of 2023tow Position of reported transient (fading) is shown by white cross-hairs Measured Magnitude +14.54 (Clear Filter) |
|
|
| Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 18:26 UT (#1167031-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023tow on Transients 2023 Page >> |
Back to Top
| AT 2023tvi (Cygnus) AT 2023tvi (Type: CV) discovered 2023-09-29.797 UT by Gaia Alias: Gaia23crr Discovery magnitude 12.90 (G-Gaia filter) vs Historic magnitude 13.13 Bright blue gal.plane source rises by 0.2 mag ( TNS 2023tvi | Gaia23crr ) |
| AT 2023tvi - 2023-11-15 (T+47.0d) Image below (2023-11-15.845) was taken 47.0 days after discovery of 2023tvi Position of reported transient (distinct, stable) is shown by white cross-hairs Measured magntitude +12.85 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 20:20 UT (#1167117-21) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023tvi on Transients 2023 Page >> |
Back to Top
| AT 2023txn (Cygnus) AT 2023txn (Type: CV) discovered 2023-09-29.797 UT by Gaia Alias: Gaia23cse Discovery magnitude 11.83 (G-Gaia) vs Historic Mag 13.14 Red Galactic plane source brightens erratically by 2 mag & becomes bluer ( TNS 2023txn | Gaia23cse ) |
| AT 2023txn - 2023-11-15 (T+47.1d) Image below (2023-11-15.853) was taken 47.1 days after discovery of 2023txn Position of reported transient (distinct, fading) is shown by white cross-hairs Measured magntitude +12.52 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 20:31 UT (#1167124-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023txn on Transients 2023 Page >> |
Back to Top
| AT 2023wba (Cassiopeia) AT 2023wba (Type: CV) discovered 2023-10-29.583 UT by XOSS Alias: XM124MZ, TCP J23260001+6143251 Discovery magnitude 16.14 (Clear Filter) ( TNS 2023wba ) |
| AT 2023wba - 2023-11-15 (T+17.3d) Image below (2023-11-15.894) was taken 17.3 days after discovery of 2023wba Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +17.8 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 21:31 UT (#1167153-57) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023wba on Transients 2023 Page >> |
Back to Top
| AT 2023wbv (Perseus) AT 2023wbv (Type: CV) discovered 2023-10-30.032 UT by MASTER Alias: MASTER OT J041624.14+392546.7 Discovery magnitude 11.9 (Clear Filter) ( TNS 2023wbv ) |
| AT 2023wbv - 2023-11-16 (T+17.0d) Image below (2023-11-16.030) was taken 17.0 days after discovery of 2023wbv Position of reported transient (distinct) is shown by white cross-hairs Measured magntitude +11.48 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-16 00:46 UT (#1167237-41) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023wbv on Transients 2023 Page >> |
Back to Top
| AT 2023wvl (Cygnus) AT 2023wvl (Type: CV) discovered 2023-11-06.700 UT by XOSS Alias: KATS23V002, TCP J19582065+5506531 Discovery magnitude 12.9 (Clear Filter) The spectral characteristics and an outburst amplitude of about 8 mag (above a quiescent level of Vmag=21.3) suggest AT 2023wvl is a dwarf nova . ( TNS 2023wvl ) |
| AT 2023wvl - 2023-11-15 (T+9.3d) Image below (2023-11-15.991) was taken 9.3 days after discovery of 2023wvl Position of reported transient (relatively distinct, fading) is shown by white cross-hairs Measured magntitude +13.63 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 23:50 UT (#1167216-20) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023wvl on Transients 2023 Page >> |
Back to Top
| M31 with AT 2023gvz (Andromeda) AT 2023gvz (Type: unk) discovered 2023-04-26.022 UT by MASTER Alias: MASTER OT J004240.02+410334.1 Discovery Mag 16.9 (Clear filter) vs last non-detection, limiting mag 21.3 ( TNS 2023gvz ) |
| M31 with AT 2023gvz - 2023-11-15
(T+203.9d) Image below (2023-11-15.966) was taken 203.9 days after discovery of 2023gvz Position of reported transient (faded/no longer visible) is shown by white cross-hairs |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 23:14 UT (#1167205-06) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023gvz (in M31) on Transients 2023 Page >> |
Back to Top
| M33 with Nova M33 2023-11a? (Triangulum) Nova M33 2023-11a? (Type: unconf) discovered 2023-11-05.969 UT by unknown Alias: PNV J01342140+3023266 Discovery Mag ? ( Rochester, Extragalactic Novae - 2023 ) |
| Nova M33 2023-11a? - 2023-11-15 (T+9.9d) Image below (2023-11-15.910) was taken 9.9 days after discovery of Nova M33 2023-11a? Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.0 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 21:59 UT (#1167169-73) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of Nova M33 2023-11a? (M33) on Transients 2023 Page >> |
Back to Top
| M101 with SN 2023ixf (Ursa Major) SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki Alias: ZTF23aaklqou, AT2023iyi, AT2023jgd, AT2023jfz, PSN J14033858+5418421, PS23dij Discoverer Mag 14.9 (Clear filter) ( Rochester Supernova site | TNS 2023ixf ) SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki at Mag 14.9 is located near M101's prominant star-forming region NGC 5461. The supernova resulted from a exploding red supergiant and lies just 21 million light years away. It's the closest core-collapse supernova to us since SN 1993J which lit up M81 (some 12 million ly away) in Spring 1993. The SN is designated of type II-L (L for 'linear') , which is characterised by a rapid rise to maximum brightness followed by a slow and gradual decrease, that is thought to be brought about by ejection of the dead stars' outer hydrogen shell. (from Article "Summer's Super Supernova", AstNow Magazine, Sep 2023, pp 36-39) |
| M101 with SN 2023ixf - 2023-11-15 (T+180.1d) Image below (2023-11-15.796) was taken 180.1 days after discovery of 2023ixf Position of supernova (distinct) is shown by white cross-hairs Measured Magnitude +14.35 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 19:14 UT (#1167064-68) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023ixf (M101) on Supernova 2023 Page |
Back to Top
| NGC 3893 with AT 2023uhx (Ursa Major) AT 2023uhx (Type: LRN) discovered 2023-10-07.816 UT by Koichi Itagaki Discovery magnitude 17.2 (Clear filter) vs DSS Archival Image Luminous Red Nova based on its peak luminosity, and narrow Balmer and Fe II emission lines. ( TNS 2023uhx) |
| NGC 3893 with AT 2023uhx - 2023-11-16 (T+39.2d) Image below (2023-11-16.039) was taken 39.2 days after discovery of 2023uhx Position of reported transient (faint) is shown by white cross-hairs Measured magnitude +17.42 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-16 01:04 UT (#1167244-48) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023uhx (NGC 3893) on Transients 2023 Page >> |
Back to Top
| NGC 7620 with SN 2022zic (Pegasus) SN 2022zic (Type: unk) discovered 2022-10-27.329 UT by ATLAS Alias: ATLAS22bleu ( TNS 2022zic ) |
| NGC 7620 with SN 2022zic - 2023-11-15 (T+384.5d) Image below (2023-11-15.870) was taken 384.5 days after discovery of 2022zic Position of reported SN (not visible) is shown by white cross-hairs |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 21:02 UT (#1167139-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022zic (NGC 7620) on Supernova 2022 Page >> |
Back to Top
| NGC 7625 with SN 2023vyl (Pegasus) SN 2023vyl (Type: Ia) discovered 2023-10-28.393 UT by ATLAS Alias: ATLAS23urs, ZTF23abnprwj Discovery Magnitude 17.43 (orange-ATLAS Filter) ( TNS 2023vyl ) |
| NGC 7625 with SN 2023vyl - 2023-11-15 (T+18.6d) Image below (2023-11-15.999) was taken 18.6 days after discovery of 2023vyl Position of reported SN (bright, brightening ?) is indicated by white cross-hairs. Measured Mag +14.39 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-16 00:08 UT (#1167223-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
|
| Images of SN 2023vyl (in NGC 7625) on Supernova 2023 Page >> |
Back to Top
| UGC 831 with SN 2023wdd (Andromeda) SN 2023wdd (Type: IIb) discovered 2023-11-01.445 UT by ATLAS Alias: ATLAS23uvt Discovery Magnitude 17.96 (orange-ATLAS Filter) (AT 2023wdd, Candidate Supernova later confirmed as Type IIb Supernova) ( TNS 2023wdd ) |
| UGC 831 with SN 2023wdd - 2023-11-16 (T+14.6d) Image below (2023-11-16.015) was taken 14.6 days after discovery of 2023wdd Position of reported supernova (faint) is shown by white cross-hairs Measured Mag +16.83 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-16 00:30 UT (#1167230-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023wdd (in UGC 831) on Supernova 2023 Page >> |
Back to Top

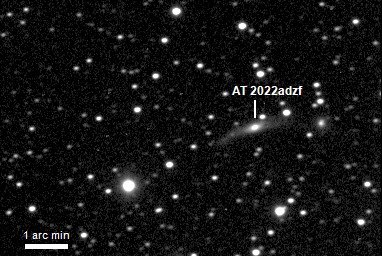

| UGC 12032 (Lacerta) This wasn't a planned target but appeared in FOV for Target AT 2022adzf |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-11-12 20:56 UT (#1166024-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

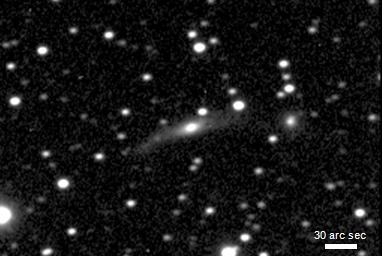

| UGC 12032 - Detail |
 |
| Annotated CCD Image (150% size, square root scale, cropped) Image details as above |

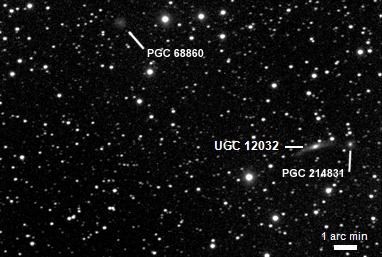

| UGC 12032 - Wider View UGC 12032 / PGC 68817 (catalog mag +14.6) PGC 214831 (catalog mag +16.1) PGC 68860 (catalog mag +16.9) |
 |
| Annotated CCD Image (50% size, square root scale) Image details as above |
Back to Top
| NGC 6745 with SN 2023ucy (Lyra) SN 2023ucy (Type: II) discovered 2023-10-05.151 UT by ZTF Alias: ZTF23abhzxwm Discovery Mag +17.9 (r-ZTF filter) vs last non-detection image with 19.91 limiting mag It is noted that SN 2022prr (19:01:41.897, +40:45:03.67) occurred in Jul 2022 at approximately the same location as this newly reported transient 2023ucy (19:01:41.992, +40:45:05.89) (are they possibly related ?) ( TNS 2023ucy ) ( TNS 2022prr ) |
| NGC 6745 with SN 2023ucy - 2023-11-15 (T+41.6d) Image below (2023-11-15.742) was taken 41.6 days after discovery of 2023ucy Position of SN (bright) is shown by white cross-hairs Measured magnitude +14.71 |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-15 17:57 UT (#1167005-09) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023ucy (NGC 6745) on Supernovae 2023 Page >> |
Back to Top
