CCD Images - Session 1190 (2024-02-23)

Objects Session Notes
Bullet (2) Pallas - Minor Planet
Bullet 12P/Pons-Brooks - Comet
Bullet 62P/Tsuchinshan - Comet
Bullet 103P/Hartley - Comet

Bullet Capella

Bullet AT 2022uao - Type YSO? Transient
Bullet AT 2023em - CV Type Transient
Bullet AT 2023cts - Type YSO? Transient
Bullet AT 2023rao - Transient
Bullet AT 2023tjz - Transient / Carbon Star
Bullet AT 2023tow - Nova Transient
Bullet AT 2023txn - CV Type Transient
Bullet AT 2023vww - CV Type Transient
Bullet AT 2023wbv - CV Type Transient
Bullet AT 2023aanv - CV Type Transient
Bullet AT 2023abtv - CV Type Transient
Bullet AT 2024crd - Type Nova? Transient

Bullet LEDA 83622 - Galaxy (PGC 83622)
Bullet M101 - Spiral Galaxy with Type IIL Supernova 2023ixf
Bullet MCG -1-33-30 - Irregular Galaxy with Type II Supernova 2024byg
Bullet MCG -3-34-59 & MCG -3-34-60 - Galaxies

Bullet NGC 3690 - Spiral Galaxy with Type Ia Supernova 2023wrk
Bullet NGC 4596 - Spiral Galaxy (Herschel I-24)
Bullet NGC 4756 - Elliptical Galaxy
Bullet NGC 5630 - Spiral Galaxy with Type IIP Supernova 2023zdx

Bullet UGC 3174 - Irregular Galaxy with Type IIb Supernova 2023mut
Bullet UGC 9002 - Spiral Galaxy with Type II Supernova 2023pls
Bullet UGC 11858 - Spiral Galaxy with Type Ia Supernova 2023rjj
Bullet UGC 12639 - Spiral Galaxy with Type II Supernova 2023jri

Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- Barnards Star


- All Night Session (10.8 hrs)

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: -3.5°C (min)
- CCD Temperature:   -20°/25°C

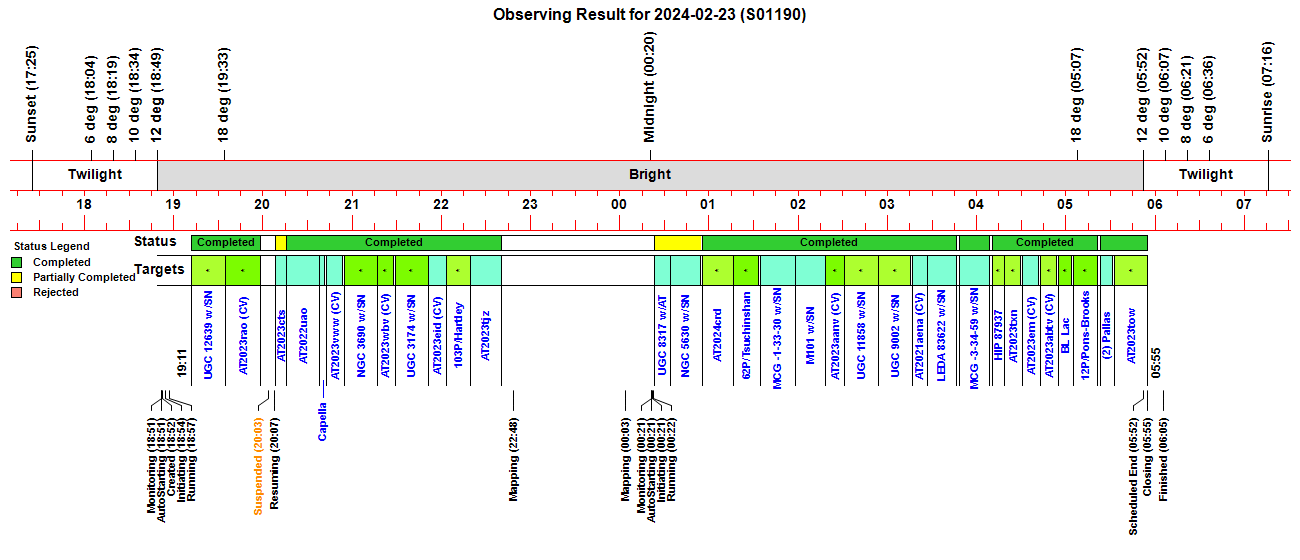

- Notes from 2024-02-23 >>



(2) Pallas - Minor Planet

(2) Pallas - 2024-02-24
(passing through Hercules)
Sun Distance 2.76 AU
Earth Distance 2.57 AU (383.9 million km)
(Ra Rate : 34.37 arcsec/hr, Dec Rate: 29.75 arcsec/hr)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 20s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 05:30 UT (#1190292-96)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


12P/Pons-Brooks - Comet (Outburst)

12P/Pons-Brooks - 2024-02-24 am
(passing through  Andromeda)

Sun Distance 1.29 AU (approaching)
Earth Distance 1.72 AU (257.9 million km)
   12P/Pons-Brooks -  2024-02-24 am Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 187.37 arcsec/hr, Dec -23.30 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-02-24 05:11 UT (#1190284)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log root scale, cropped)
5 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 05:14 UT (#1190283-88)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

12P/Pons-Brooks - 2024-02-24 am Detail    12P/Pons-Brooks - 2024-02-24 am Detail
Image   Image
Annotated false-colour CCD Image (50% size, log scale)
5 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 05:14 UT (#1190283-88)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(100% size, log scale, cropped)
Inverse Spectrum
Image details as left

Images of 12P/Pons-Brooks on Comets 2023 Page >>
Images of 12P/Pons-Brooks on Comets 2024 Page >>

Back to Top


62P/Tsuchinshan - Comet

62P/Tsuchinshan - 2024-02-24
(passing through Virgo)

Sun Distance 1.46 AU (receeding)
Earth Distance 0.52 AU (78.2 million km)
Passing near NGC 4599 (H I-24)
   62P/Tsuchinshan - 2024-02-24 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -15.35 arcsec/hr, Dec 3.32 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 01:25 UT (#1190167-69)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 01:29 UT (#1190167-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 62P/Tsuchinshan on Comets 2023 Page >>
Images of 62P/Tsuchinshan on Comets 2024 Page >>

Back to Top


103P/Hartley - Comet

103P/Hartley - 2024-02-23
(passing through Monoceros)

Sun Distance 1.98 AU AU (receeding)
Earth Distance 1.11 AU (165.8 million km)
   103P/Hartley - 2024-02-23  Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -3.21 arcsec/hr, Dec 35.32 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
9 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 22:14 UT (#1190092-100)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
Image details as above

Images of 103P/Hartley on Comets 2023 Page >>
Images of 103P/Hartley on Comets 2024 Page >>

Back to Top


 Capella - G3iii Star

Capella (Auriga)
Spectral G3iii

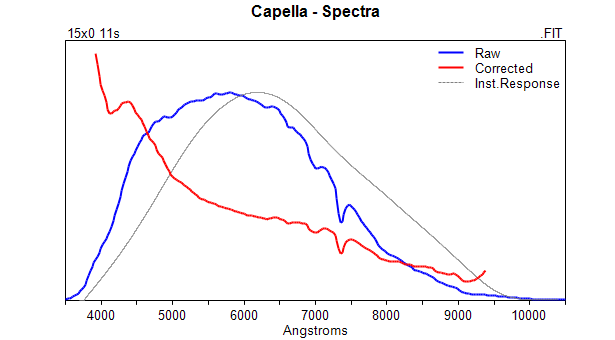

Capella Spectra
Spectra produced in AstroMain using Image taken with Star Analyser 200
15 x 0.11s exposure (average combine), 2x2 binning, S Filter
2024-02-23 20:40 UT (#1190039-53)
12" LX200R (at f/10.4) + ST-10XME


Back to Top


AT 2022uao - Type YSO? Transient

AT 2022uao (Monoceros)
AT 2022uao (Type: YSO?) discovered 2022-09-10.354 UT by Gaia
Alias: Gaia22dvq
Alerting Magnitude 16.94 (G-Gaia Filter)
vs Historic magnitude 18.06 +/- 0.28 SD
Brightening in candidate YSO
 ( TNS 2022uao | Gaia22dvq )


AT 2022uao - 2024-02-23 (T+531.5d)
Image below (2024-02-23.850) was taken 531.5 days after discovery of 2022uao
Position of reported transient (faint) is shown by white cross-hairs
Measured magnitude +17.86


Annotated CCD Image (100% size, linear scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 20:31 UT (#1190033-36)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2022uao on Transients 2022 Page >>

Back to Top


AT 2023em - CV Type Transient

AT 2023em (Cygnus)
AT 2023em (Type: CV) discovered 2023-01-10.208 UT by Gaia
Alias: Gaia23aeo
Alerting Magnitude 15.97 (G-Gaia Filter)
vs Historic magnitude 16.35 +/- 0.10 SD
Erratic brightening in Gaia source
 ( TNS 2023em | Gaia23aeo )


AT 2023em - 2024-02-24 (T+410.0d)
Image below (2024-02-24.192) was taken 410.0 days after discovery of 2023em
Position of reported transient (faint) is shown by white cross-hairs
Measured magnitude, AT 2023em + adjacent star +15.66 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 04:39 UT (#1190263-67)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2023em - Detail (T+410.0d)


Annotated CCD Image (175% size, linear scale, cropped)
Image details as above

Images of AT 2023em on Transients 2023 Page >>

Back to Top


AT 2023cts - Type YSO? Transient

AT 2023cts (Orion)
AT 2023cts (Type: YSO?) discovered 2023-03-04.858 UT by Gaia
Alias: Gaia23azh
Discovery Magnitude 13.19 (G-Gaia Filter)
(vs Historic magnitude 14.58 +/- 0.42 SD)
Brightening in candidate YSO
 ( TNS 2023cts | Gaia23azh)


AT 2023cts - 2024-02-23 (T+356.0d)
Image below (2024-02-23.842) was taken 356.0 days after discovery of 2023cts
Position of reported transient (brightened slightlyl) is shown by white cross-hairs
Measured magnitude +14.02 (Clear Filter)
Poor quality image (poor sky condition / single frame)


Annotated CCD Image (100% size, linear scale, cropped)
120s exposure (single frame), 3x3 binning, Clear Filter
2024-02-23 20:13 UT (#1190029)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023cts on Transients 2023 Page >>

Back to Top


AT 2023eid - CV Type Transient

AT 2023eid (Puppis)
AT 2023eid (Type: CV) discovered 2023-03-28.086 UT by Gaia
Alias: Gaia23bhl
Discovery Magnitude 13.53 (G-Gaia Filter)
vs Historic magnitude 13.83 +/- 0.09 SD
Brightening in Gaia/WISE source
 ( TNS 2023eid | Gaia23bhl)


AT 2023eid - 2024-02-23 (T+332.8d)
Image below (2024-02-23.915) was taken 332.8 days after discovery of 2023eid
Position of reported transient (relatively faint) is shown by white cross-hairs
Measured magnitude +13.31 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 22:00 UT (#1190085-88)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023eid on Transients 2023 Page >>

Back to Top


AT 2023rao - Transient

AT 2023rao (Pegasus)
AT 2023rao (Type: unk) discovered 2023-08-16.381 UT by Gaia
Alias: Gaia23bxu
Alerting Mag +16.92 (G-Gaia Filter)  (vs Historic Magnitude +17.65)
Brightening in Gaia, WISE and UV source
 ( TNS 2023rao | Gaia23bxu )

AT 2023rao - 2024-02-23 (T+191.4d)
Image below (2024-02-23.828) was taken 191.4 days after discovery of 2023rao
Position of transient (faint & stable) is shown by white cross-hairs
Measured magnitude +16.34 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 19:55 UT (#1190019-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023rao on Transients 2023 Page >>

Back to Top


AT 2023tjz - Transient / Carbon Star

AT 2023tjz (Orion)
AT 2023tjz (Type: unk) discovered 2023-09-17.895 UT by Gaia
Alias: Gaia23cnk
Discovery magnitude 12.44 (G-Gaia filter) vs Historic Mag 10.71
Known Carbon star fades by 1.5 mag
 ( TNS 2023tjz | Gaia23cnk )

AT 2023tjz - 2024-02-23 (T+159.0d)
Image below (2024-02-23.934) was taken 159.0 days after discovery of 2023tjz
Position of earlier reported transient (distinct, brightening ?) is shown by white cross-hairs
Measured magnitude +12.21 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
3 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 22:26 UT (#1190103-05)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023tjz on Transients 2023 Page >>

Back to Top


AT 2023tow - Nova Transient

AT 2023tow (Scutum)
AT 2023tow (Type: Nova) discovered 2023-09-20.778 UT by Gaia
Alias: Gaia23coj, ZTF23abceaws
Discovery Magnitude 12.26 (G-Gaia Filter) vs Historic Magnitude - None
Red bright Galactic plane transient
 ( TNS 2023tow | Gaia23coj )


AT 2023tow - 2024-02-24 (T+156.5d)
Image below (2024-02-24.235) was taken 156.5 days after discovery of 2023tow
Position of earlier transient (no longer visible) is shown by white cross-hairs
Non-Detection


Annotated CCD Image (100% size, linear scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 05:48 UT (#1190299-303)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2023tow - Earlier Image, 2023-10-04 (T+14.1d)
Image below (2023-10-04.847) was taken 14.1 days after discovery of 2023tow
Position of reported transient (bright & distinct) is shown by white cross-hairs
Measured Magnitude +12.72 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-10-04 20:28 UT (#1154004-08)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023tow on Transients 2023 Page >>

Back to Top


AT 2023txn - CV Type Transient

AT 2023txn (Cygnus)
AT 2023txn (Type: CV) discovered 2023-09-29.797 UT by Gaia
Alias: Gaia23cse
Discovery magnitude 11.83 (G-Gaia) vs Historic Mag 13.14
Red Galactic plane source brightens erratically by 2 mag & becomes bluer
 ( TNS 2023txn | Gaia23cse )

AT 2023txn - 2024-02-24 (T+147.4d)
Image below (2024-02-24.183) was taken 147.4 days after discovery of 2023txn
Position of reported transient (distinct, fading) is shown by white cross-hairs
Measured magntitude +12.79 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 04:27 UT (#1190255-59)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023txn on Transients 2023 Page >>

Back to Top


AT 2023vww - CV Type Transient

AT 2023vww (Auriga)
AT 2023vww (Type: CV) discovered 2023-10-27.236 UT by GEOTS
Alias: GEOTS-Balaji-2023-020, TCP J05233714+4240570, Gaia23daz
Discovery magnitude 15.9 (Clear Filter)
vs Prior Non-Detection Limiting Mag 18.0
Apparently hostless transient
 ( TNS 2023vww | Gaia23daz )

AT 2023vww - 2024-02-23 (T+119.6d)
Image below (2024-02-23.867) was taken 119.6 days after discovery of 2023vww
Position of earlier transient (not visible) is shown by white cross-hairs
Non-Detection Limiting Magntitude +18.0 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 20:51 UT (#1190056-60)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023vww on Transients 2023 Page >>

Back to Top


AT 2023wbv - CV Type Transient

AT 2023wbv (Perseus)
AT 2023wbv (Type: CV) discovered 2023-10-30.032 UT by MASTER
Alias: MASTER OT J041624.14+392546.7
Discovery magnitude 11.9 (Clear Filter)
 ( TNS 2023wbv )

AT 2023wbv - 2024-02-23 (T+116.9d)
Image below (2024-02-23.891) was taken 116.9 days after discovery of 2023wbv
Position of reported transient (distinct, fading) is shown by white cross-hairs
Measured magntitude +12.24 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 21:26 UT (#1190070-74)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023wbv on Transients 2023 Page >>

Back to Top


AT 2023aanv - CV Type Transient

AT 2023aanv (Cygnus)
AT 2023aanv (Type: CV) discovered 2023-12-19.681 UT by MASTER
Alias: MASTER OT J202117.51+304929.2
Discovery Magnitude 12.20 (Clear Filter)
vs Prior Non-Detection with Limiting Mag 18.9
Mira type variable in max
 ( TNS 2023aanv )


AT 2023aanv - 2024-02-24 (T+66.4d)
Image below (2024-02-24.101) was taken 66.4 days after discovery of 2023aanv
Position of reported transient (distinct, fading) is shown by white cross-hairs
Measured Magnitude +13.17 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 02:28 UT (#1190194-97)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023aanv on Transients 2023 Page >>

Back to Top


AT 2023abtv - CV Type Transient

AT 2023abtv (Pegasus)
AT 2023abtv (Type: CV) discovered 2023-12-26.986 UT by Gaia
Alias: Gaia23duv
Discovery magnitude 12.07 (G-Gaia Filter)
vs Historic Magnitude 13.38 +/- 0.57 (SD)
Gaia and WISE source brightens by 2 mag
 ( TNS 2023abtv | Gaia23duv )

AT 2023abtv - 2024-02-24 (T+59.2d)
Image below (2024-02-24.200) was taken 59.2 days after discovery of 2023abtv
Position of reported transient (bright) is shown by white cross-hairs
Measured Magnitude +11.98 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
3 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 04:50 UT (#1190270-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023abtv on Transients 2023 Page >>

Back to Top


AT 2024crd - Type Nova? Transient

AT 2024crd (Virgo)
AT 2024crd (Type: Nova?) discovered 2024-02-14.750 UT by Tadashi Kojima
Alias: TCP J13530185+0522000, Gaia24apm
Discovery Magnitude 13.2 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 15.2
Transient on faint blue PanSTARRS source
 ( TNS 2024crd | Gaia24apm )

AT 2024crd - 2024-02-24 (T+9.3d)
Image below (2024-02-24.042) was taken 9.3 days after discovery of 2024crd
Position of reported transient (distinct, fading ?) is shown by white cross-hairs
Measured Magnitude +14.02 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 01:03 UT (#1190154-58)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024crd on Transients 2024 Page >>

Back to Top


LEDA 83622 - Galaxy

LEDA 83622 (Corvus)
Alias : PGC 83622 (catalog mag +16.6)
with adjacent nearby larger galaxy NGC 4756 (catalog mag +13.4)


Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 03:39 UT (#1190224-28)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


LEDA 83622 / PGC 83622 - Closer View

with several adjacent galaxies including
PGC 43730 (catalog mag  +15.9),  PGC 43748 (catatlog mag +16.0),
PGC 43736 (catalog mag +16.1),  PGC 43761 (catalog mag +17.0),
 PGC 43724 (catalog mag +17.0)


Annotated CCD Image (100% size, square root scale, cropped)
Image details


LEDA 83622 / PGC 83622 - Detail
Galaxy was host to supernova
SN 2023bpg (Type: Ia) discovered 2023-02-12.354 UT by ATLAS
Alias: ATLAS23byo, ZTF23aadbait, PS23avn
Discovery Magnitude 16.57 (orange-ATLAS Filter)

Image below (2024-02-24.147) was taken 376.8 days after discovery of 2023bpg
Supernova is no longer visible


Annotated CCD Image (100% size, square root scale, cropped)
Image details


Back to Top


M101 - Spiral Galaxy with Type IIL Supernova 2023ixf

M101 with SN 2023ixf (Ursa Major)
SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki
Alias: ZTF23aaklqou, AT2023iyi, AT2023jgd, AT2023jfz, PSN J14033858+5418421, PS23dij
Discoverer Mag 14.9 (Clear filter)
 ( Rochester Supernova site | TNS 2023ixf )

SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki at Mag 14.9 is
located near M101's prominant star-forming region NGC 5461.

The supernova resulted from a exploding red supergiant and lies just 21 million light years away.
 It's the closest core-collapse supernova to us since SN 1993J which lit up M81 (some 12 million ly away) in Spring 1993.
The SN is designated of type II-L (L for 'linear') , which is characterised by a rapid rise to maximum brightness
 followed by a slow and gradual decrease, that is thought to be brought about by ejection of the dead stars' outer hydrogen shell.
(from Article "Summer's Super Supernova", AstNow Magazine, Sep 2023, pp 36-39)
M101 with SN 2023ixf - 2024-02-24 (T+280.4d)
Image below (2024-02-24.085) was taken 280.4 days after discovery of 2023ixf
Position of supernova (faint) is shown by white cross-hairs
Measured Magnitude +15.89 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 02:11 UT (#1190185-89)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023ixf (M101) on Supernova 2023 Page

Back to Top


MCG -1-33-30 - Irregular Galaxy with Type II Supernova 2024byg

MCG -1-33-30 with SN 2024byg (Virgo)
SN 2024byg (Type: II) discovered 2024-02-08.550 UT by ASAS-SN
Alias: ASASSN-24ax
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2024byg )

MCG -1-33-30 with SN 2024byg - 2024-02-24 (T+15.5d)
Image below (2024-02-24.071) was taken 15.5 days after discovery of 2024byg
Position of reported SN (faint but distinct) is indicated by white cross-hairs.
Measured Magnitude +15.93  (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 01:50 UT (#1190177-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024byg (in MCG -1-33-30) on Supernova 2024 Page >>

Back to Top


MCG -3-34-59 & MCG -3-34-60 - Galaxies

MCG -3-34-59 & MCG -3-34-60 (Virgo)
MCG -3-34-59 (alias:  PGC 46660,  catalog mag 16.0)
 MCG -3-34-60 (alias:  PGC 46659,  catalog mag 14.6)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 04:01 UT (#1190231-35)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

MCG -3-34-59 & MCG -3-34-60 - Detail
Annotated CCD Image (150% size, square root scale, cropped)
Image details as above



Back to Top


NGC 3690 - Spiral Galaxy with Type Ia Supernova 2023wrk

NGC 3690 with SN 2023wrk (Ursa Major)
SN 2023wrk (Type: Ia) discovered 2023-11-04.229 UT by GOTO
Alias: GOTO23bdo, ZTF23abpbdfm, ATLAS23vna
Discovery Magnitude 18.11 (L-GOTO filter)
 ( Rochester Supernova site ) ( TNS 2023wrk )
NGC 3690 with SN 2023wrk - 2024-02-23 (T+111.6d)
Image below (2024-02-23.876) was taken 111.6 days after discovery of 2023wrk
Position of SN (fading) is shown by white cross-hairs
Measured Magnitude +16.39 (C Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 21:09 UT (#1190063-67)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023wrk (in NGC 3690) on Supernovae 2023 Page >>

Back to Top


NGC 4596 - Spiral Galaxy (Herschel I-24)

NGC 4596 / H I-24 (Virgo)
[ Herschel 400 Objects ]
Annotated CCD Image (50% size, square root scale)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 01:29 UT (#1190167-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 4596  / H I-24 - Detail
Annotated CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top


NGC 4756 - Elliptical Galaxy

NGC 4756 (Corvus)
NGC 4756 (catalog mag +13.4) was a planned target but happened
to be in the same FOV as the planned target LEDA 83622 with SN 2023bpg (T+376.8d)


Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 03:39 UT (#1190224-28)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 4756 - Detail
Annotated CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top


NGC 5630 - Spiral Galaxy with Type IIP Supernova 2023zdx

NGC 5630 with SN 2023zdx (Bootes)
SN 2023zdx (Type: IIP) discovered 2023-12-05.814 UT by ATLAS
Alias: ATLAS23wwp, ZTF23absjgxb, Gaia24aek
Discovery Magnitude 17.05 (orange-ATLAS filter)
Confirmed SN IIP
( TNS 2023zdx | Gaia24aek )
NGC 5630 - Spiral Galaxy
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 00:49 UT (#1190147-50)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 5630 with SN 2023zdx - 2024-02-24 (T+80.2d)
Image below (2024-02-24.029) was taken 80.2 days after discovery of 2023zdx
Position of SN (faint but distinct) is shown by white cross-hairs
Measured Magnitude +15.09 (C Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 00:49 UT (#1190147-50)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023zdx (in NGC 5630) on Supernovae 2023 Page >>

Back to Top


UGC 3174 - Irregular Galaxy with Type IIb Supernova 2023mut

UGC 3174 with SN 2023mut (Orion)
SN 2023mut (Type: IIb) discovered 2023-07-11.180 UT by ASAS-SN  / GOTO Group
Alias: ASASSN-23fh
Discovery Magnitude 15.2 (g-SLOAN Filter)
 ( TNS 2023mut )

UGC 3174 with SN 2023mut - 2024-02-23 (T+227.7d)
Image below (2024-02-23.899) was taken 227.7 days after discovery of 2023mut
Position of reported SN (fading) is indicated by white cross-hairs.
Measured Magnitude +17.40 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 21:43 UT (#1190077-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023mut (in UGC 3174) on Supernova 2023 Page >>

Back to Top


UGC 9002 - Spiral Galaxy with Type II Supernova 2023pls

UGC 9002 with SN 2023pls (Bootes)
SN 2023pls (Type: II) discovered 2023-08-14.976 UT by ATLAS
Alias: ATLAS23red, Gaia23cbq
Discovery Magnitude 17.54 (cyan-ATLAS)
z (redshift) = 0.0136
 ( TNS 2023pls | Gaia23cbq )

UGC 9002 with SN 2023pls - 2024-02-24 (T+193.1d)
Image below (2024-02-24.125) was taken 193.1 days after discovery of 2023pls
Position of reported SN (very faint & fading) is indicated by white cross-hairs.
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 03:09 UT (#1190209-13)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023pls (in UGC 9002) on Supernova 2023 Page >>


Back to Top


UGC 11858 - Spiral Galaxy with Type Ia Supernova 2023rjj

UGC 11858 with SN 2023rjj (Cygnus)
SN 2023rjj (Type: Ia) discovered 2023-09-05.340 UT by ALeRCE
Alias: ZTF23abaxkwq
Discovery Magnitude 18.17 (g-ZTF Filter)
 ( TNS 2023rjj )

UGC 11858 with SN 2023rjj - 2024-02-24 (T+171.8d)
Image below (2024-02-24.109) was taken 171.8 days after discovery of 2023rjj
Position of earlier supernova (faded & no longer visible) is indicated by white cross-hairs.
Non-Detection Limiting Magnitude +18.0 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-24 02:46 UT (#1190202-06)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023rjj (in UGC 11858) on Supernova 2023 Page >>

Back to Top


UGC 12639 - Spiral Galaxy with Type II Supernova 2023jri

UGC 12639 with SN 2023jri (Pegasus)
SN 2023jri (Type: II) discovered 2023-05-29.577 UT by ATLAS
Alias: ATLAS23lqb
Discovery Magnitude 16.48 (orange-ATLAS Filter)
 ( TNS 2023jri )

UGC 12639 with SN 2023jri - 2024-02-23 (T+270.2d)
Image below (2024-02-23.804) was taken 270.2 days after discovery of 2023jri
Position of reported transient (barely visible) is indicated by white cross-hairs.
Estimated Measured +18.5 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 19:27 UT (#1190007-11)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023jri (in UGC 12639) on Supernova 2023 Page >>

Back to Top
