2009-05-28
Bullet Pec Refinement

>

Goto Images from 2009-05-28


PEC Refinement

A PEC refinement was performed during session S370, based on original PEC training run recorded during session S358 (2009-03-29)

Original Periodic Error Measurement (2009-03-29)
Original data showed periodic error of 32 arc sec (+/- 16 arc sec)


Refinement

Data acquired from 48 min run with PEC On (~2x24 min cycles),
The data show significant residual periodic error of 20 arc sec

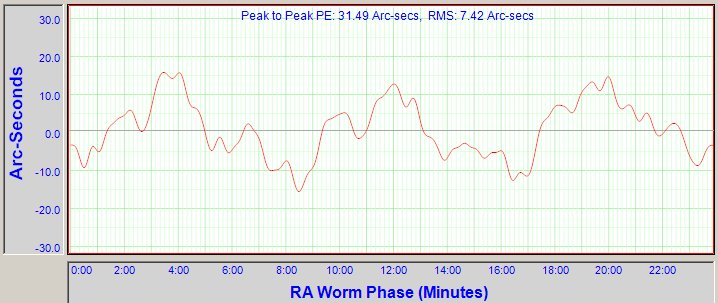

Final Refined PEC curve (PemPro-2009-05-29_S370_RefinedPecCurve_4thOrder.ppc)
(uploaded to LX200R)
