Session Aims & Highlights (2023-10-10)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. Comets. Acquire images of xxx
3. AstroMain. Check new AstroMain version (3.62.17) for recent fixes and improvements.
4. Zigbee Network.  Check stability and any issues with Observatory Zigbee Network following addition of GreenHouse MultiSensor (T,H & P)

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.17, AstroPlan 1.38.5,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.6
  (AstroWeather 1.21.2, AstroAllSky 3.19.4,  AstroObsCam 1.11.4, AstroLaunch 1.11.1

Highlights

• Session. Session was an observing failure. AstroMain lost the correct power status of the SBIG Camera earlier in the dy when deConz software was restarted. AstroMain thought SBIG Camera power was on when it was actually off and then failed to progress beyond the starting stage when Camera Connection was made and CCDSoft stopped responding and Foc1FieldsUpdater & ObsMonitor froze.  ObsOverseer unable to resolve situation and session remained 'stalled' until morning when user intervention made to RestartCCDSoft.
• Targets. No targets were attempted due to failure in CCDSoft/SBIG/AstroMain whilst session starting. A few hours of observing time were lost
• Comet.  'New Comets' entered into database / Must-Include Targets set. but no images were acquired due to major issue with session (see above)
• AstroMain. No issues associated with changes in new AstroMain version (3.62.17), but potential deficiences seen in Zigbee Device Status tracking and ObsOverseer.
•  Zigbee Network. There were no issues with the Zigbee Network 'per se', but a restart to deConz software earlier in day caused AstroMain to hold wrong states for Door Sensor (AstroMain thought door was open when it was closed) and SBIG Camera (AstroMain thought SBIG Camera power was on when it was actually off).
•  AllSky Camera. AllSky Camera Images were clear of dew/condensation following recent reopening of Camera's hemisphere & wiping dry.

Notes:

Summary Plots & Logs

Observing Plan

No picture

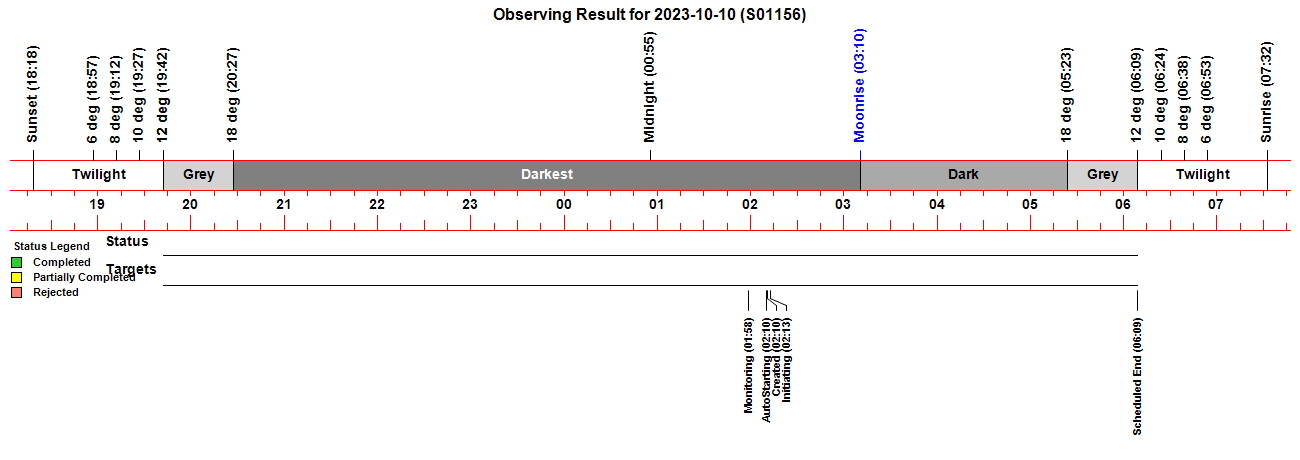

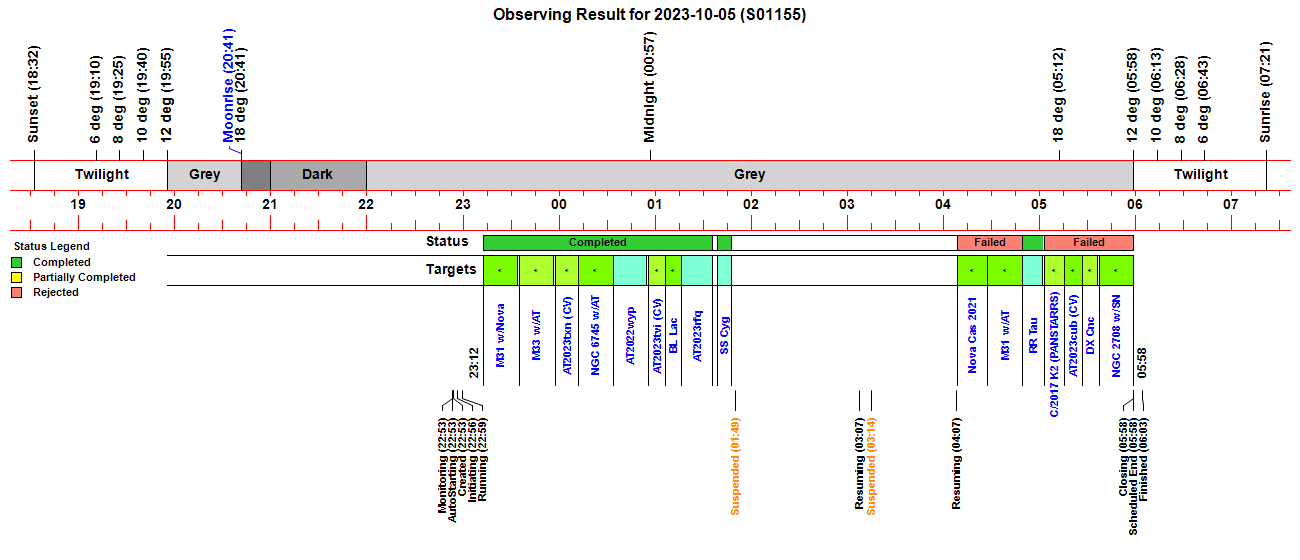

Observing Result

Dome & Scope Slewing Performance

No picture

Slew/Centering Performance

No picture

Guiding Performance

No picture

Sky Conditions (Locate Frames)

No picture

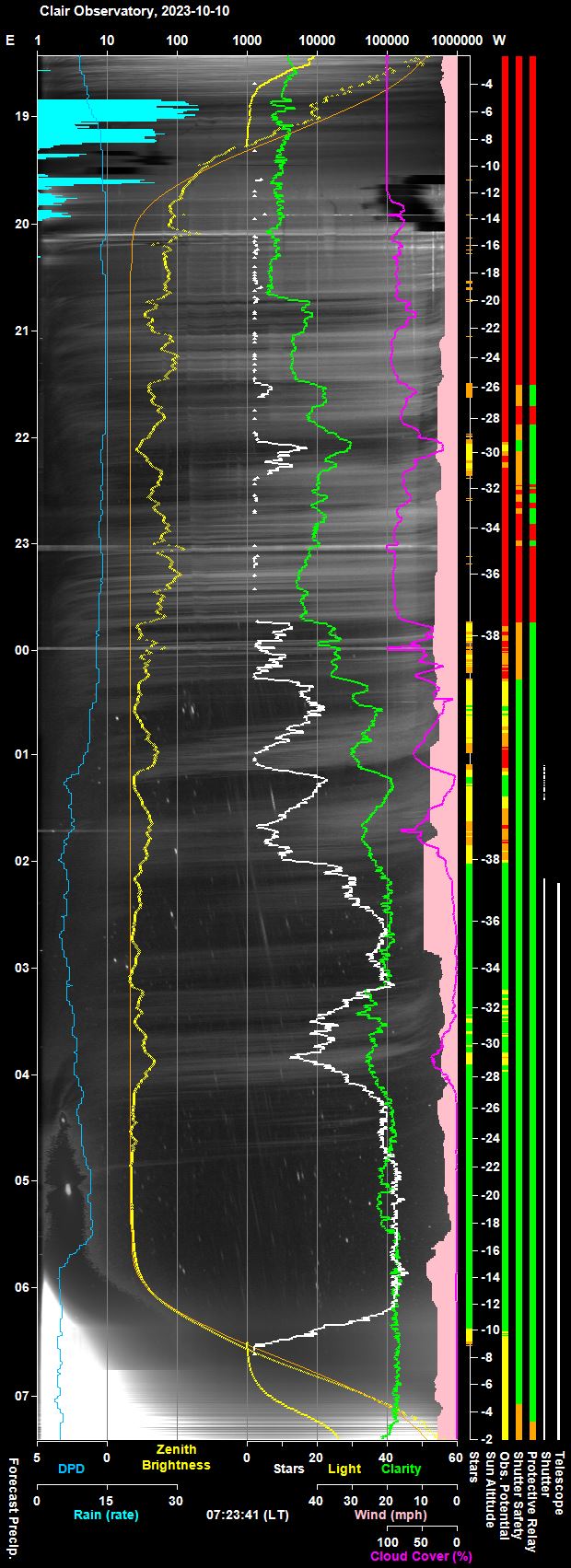

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

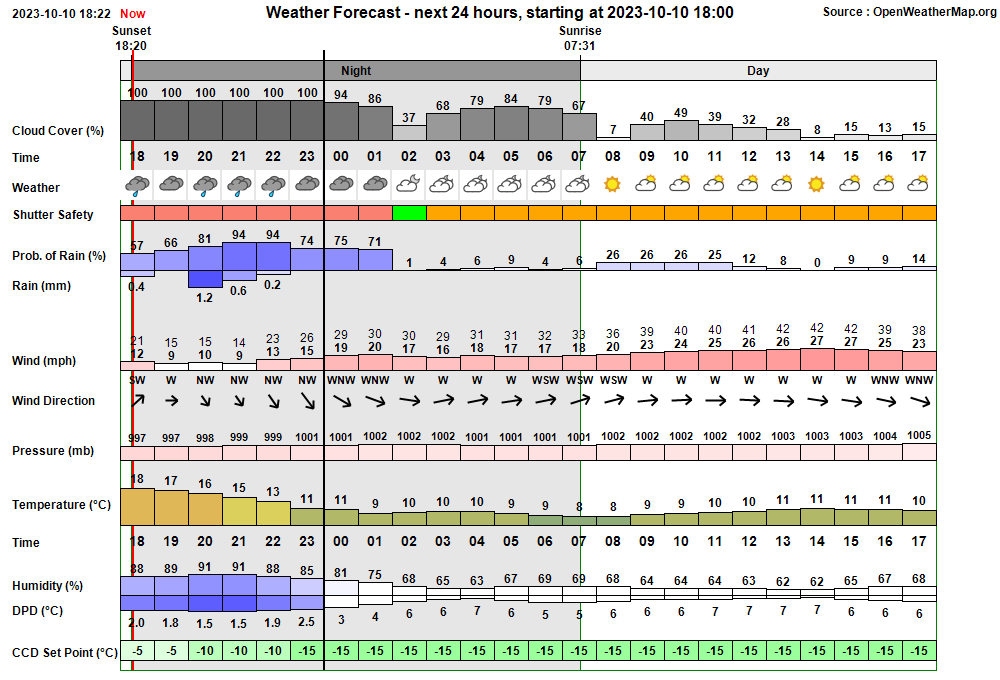

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 01:58:48 Session Monitoring AutoStart monitoring for Live Session opportunity between 01:58 & 05:29 01:58:53   AutoStart Delayed Session delayed due to too few stars 02:10:19 Session AutoStarting Session autostarting (02:10) 02:10:29   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 02:10:54   Camera1 Connected SBIG Camera connected (set point -5°C) 02:10:56 Session Created Session Created (Live, 2023-10-10 S01156, ImageSaveNum: 1156001) 02:11:01   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 02:11:43 Foc1FieldsUpdater Frozen Foc1FieldsUpdater appears to be frozen at around 02:11 in section 'Update Foc1Fields' 02:12:47   Services Started Observatory Services started 02:12:54 Observatory (Auto) Observatory placed in Fully-Automated Mode 02:12:59 Session Pending Session pending (2023-10-10) 02:13:01 Session Initiating Session initiating (2023-10-10) 02:13:03   Plan Requested Observing Plan requested from AstroPlan (1.38.5) 02:13:04 TempMonitor Frozen TempMonitor appears to be frozen at around 02:13 in section 'Get CcdTemp Data' 02:14:26   Plan Loaded Observing Plan loaded to queue (Plan ID: 930) 08:16:39   CCDSoft Restarting CCDSoft being restarted (user action) 08:16:46   SBIG Camera Reset SBIG Camera being power-cycled 08:17:15   Telescope Connected Telescope connected (TheSky6) 08:17:28   Camera1 Connected SBIG Camera connected (set point -15°C) 08:17:39 Session Equilibration Session ready to Open Dome 08:17:41 Session Closing Session closing 08:17:43   Dome Closed Dome already closed 08:17:45 Foc1FieldsUpdater Frozen Foc1FieldsUpdater appears to be frozen at around 08:17 in section 'Update Foc1Fields' 08:17:45   Dome Parked Dome already parked 08:18:40 TempMonitor Frozen TempMonitor appears to be frozen at around 08:18 in section 'Get CcdTemp Data' 08:18:44   Telescope Parked Telescope parked (parking time 62s) 08:18:58   Telescope State Handbox reads 'Scope parked Turn scope off.' 08:19:21   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 08:21:14   CCDSoft Restarting CCDSoft being restarted (user action) 08:21:19   Services Stopped Night Services stopped 08:21:21   SBIG Camera Reset SBIG Camera being power-cycled 08:21:23 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 08:21:27 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 02:12:59 Yellow Alert Disk Space Free Space on C:\ Drive (35.24 GB) is less than 50 GB 02:13:26 Red Alert Foc1Fields Updater Foc1FieldsUpdater appears to be frozen (last cycle at 02:11:43) in section 'Update Foc1Fields' 02:15:36 Red Alert TempMonitor TempMonitor appears to be frozen (last cycle at 02:13:04) in section 'Get CcdTemp Data' 08:16:44 Green Clear Foc1Fields Updater Foc1FieldsUpdater has resumed again (08:16) after 365.0 mins 08:16:46 Green Clear TempMonitor TempMonitor has resumed again (08:16) after 363.6 mins 08:19:29 Red Alert Foc1Fields Updater Foc1FieldsUpdater appears to be frozen (last cycle at 08:17:45) in section 'Update Foc1Fields' 08:21:14 Red Alert TempMonitor TempMonitor appears to be frozen (last cycle at 08:18:40) in section 'Get CcdTemp Data' 08:21:19 Green Clear Foc1Fields Updater Foc1FieldsUpdater has resumed again (08:21) after 3.6 mins 08:21:21 Green Clear TempMonitor TempMonitor has resumed again (08:21) after 2.6 mins 08:21:23 Yellow Alert Disk Space Free Space on C:\ Drive (35.11 GB) is less than 50 GB
