David's Astronomy Pages Notes - Session 793 (2020-07-06)

Notes (S792)

Notes Main

Home Page

Notes (S794)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (5),  Continuous Improvement (1)
	Investigation: Session not completed or shutdown (Job Queue froze whilst closing dome at 02:04)
	Images from 2020-07-06 >>

Session Aims & Highlights (2020-07-06)

Main aims

1. AstroMain 3.25.7. Test out fixes to bugs seen in last session (S782, 3.25.6) and test for any repeat of glitches seen in last session (S782, 2020-07-03)
2. Targets. Aquire variety of targets if conditions allowed including M85 with new Supernova reported in recent (End June) BGS newsletter

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  DeviceHub 4.6.1.10, UPB 1.5
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.8

• AstroMain 3.25.7,  AstroGuard 1.4.2,   AstroPlan 1.15.3,  AstroShCap 1.2.22, AstroVOE 1.3.6
  (AstroWeather 1.10.8, AstroAllSky 3.6)


Highlights

•   None

Lowlights

• Dome Driver Issue. Session not completed or shutdown. Job Queue froze whilst closing dome at 02:04.    Dome Properties frozen and not updating.
• Supernova in M85. Unable to acquire images of Supernova in M85 due to cloud

Summary Plots & Logs

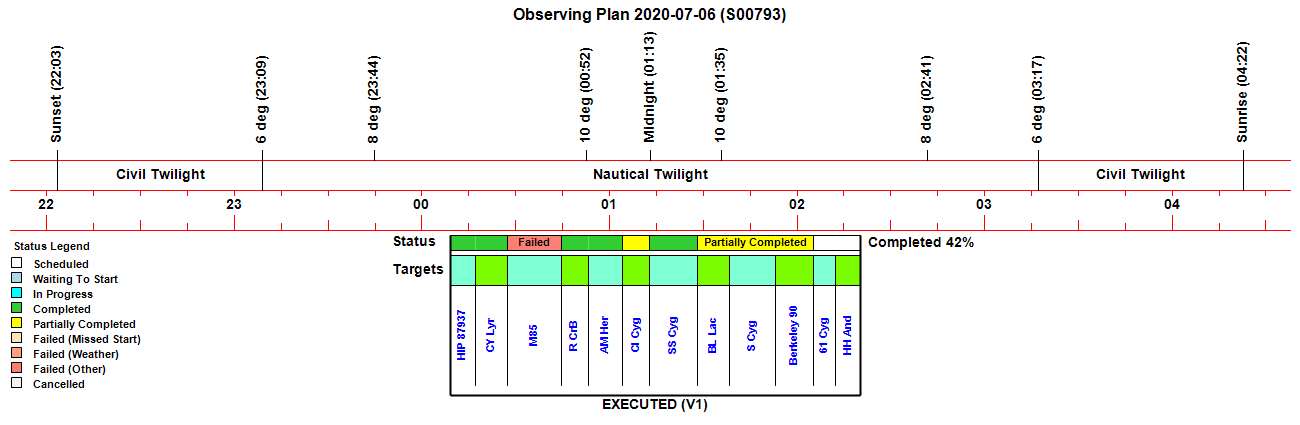

Observing Plan

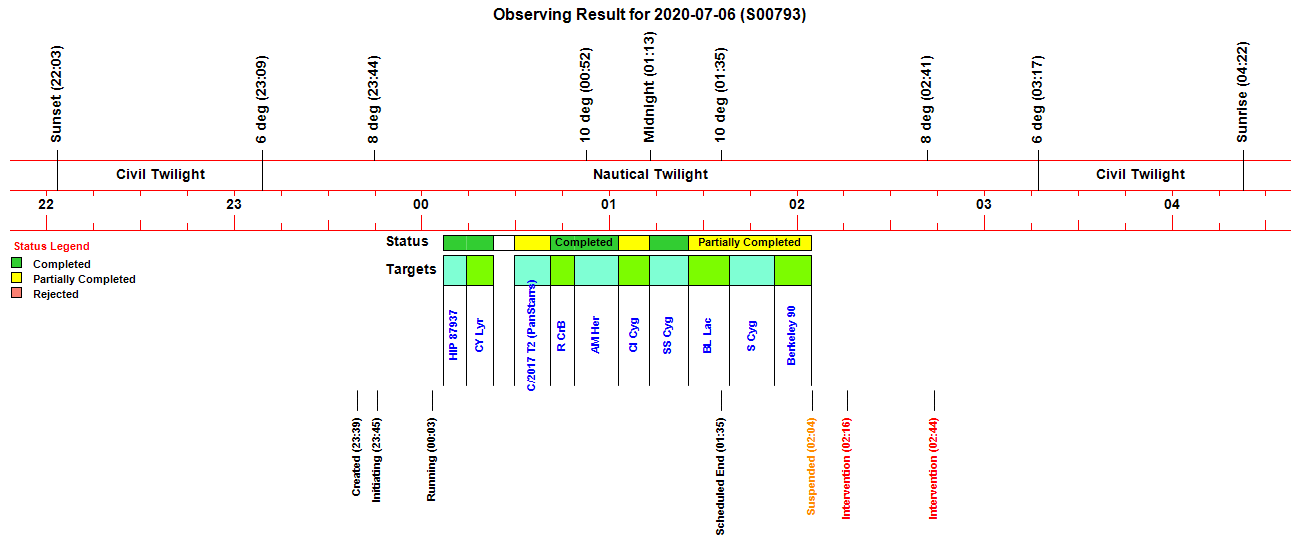

Observing Result (Southern targets added as ToO targets)

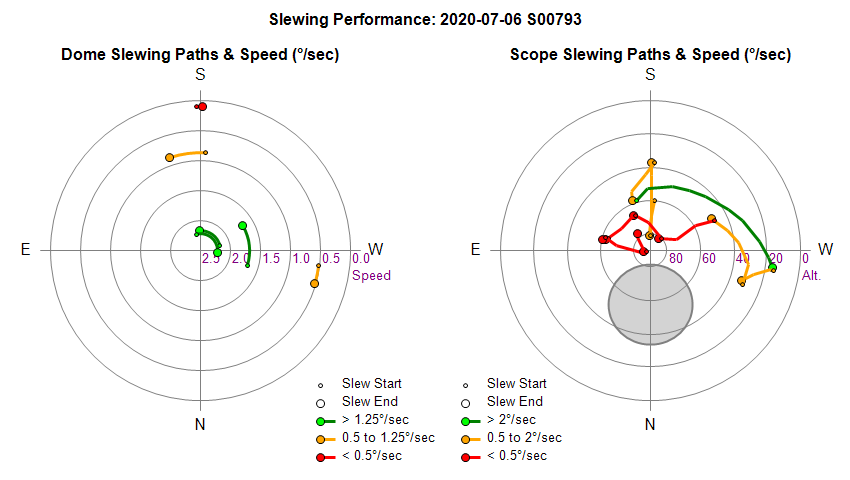

Dome & Scope Slewing Performance

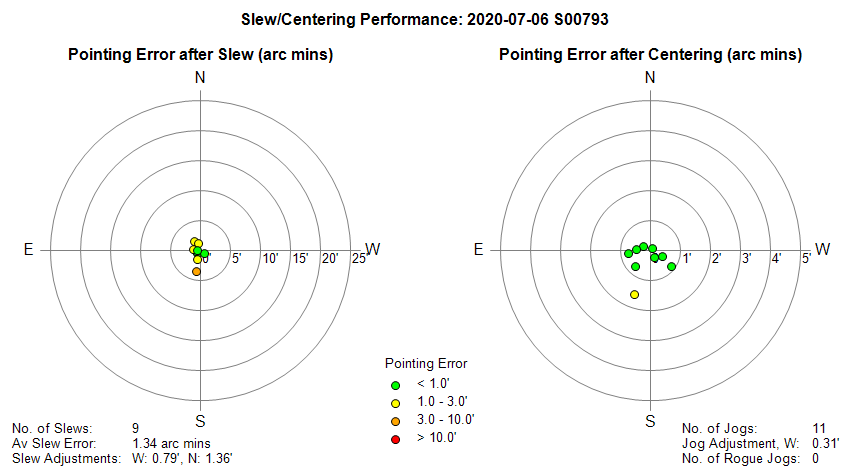

Slew/Centering Performance

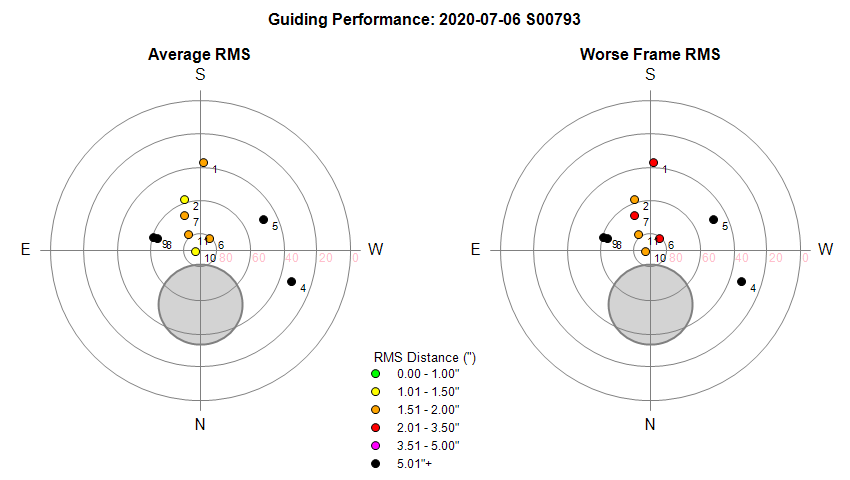

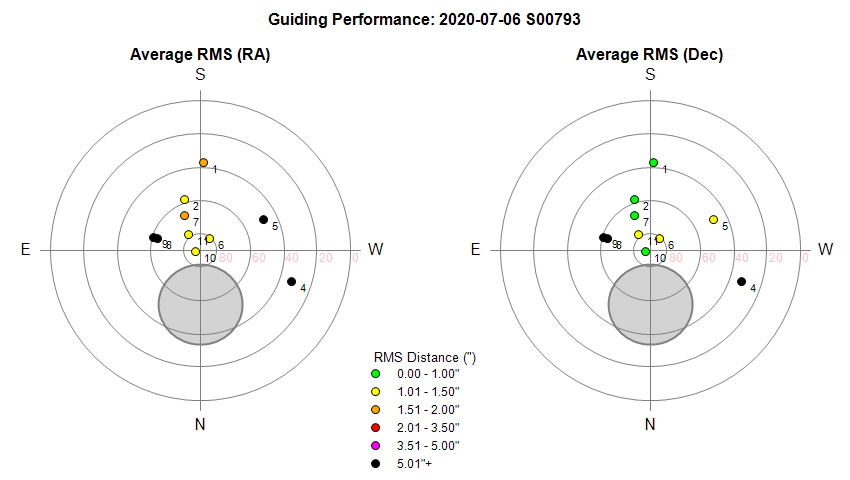

Guiding Performance

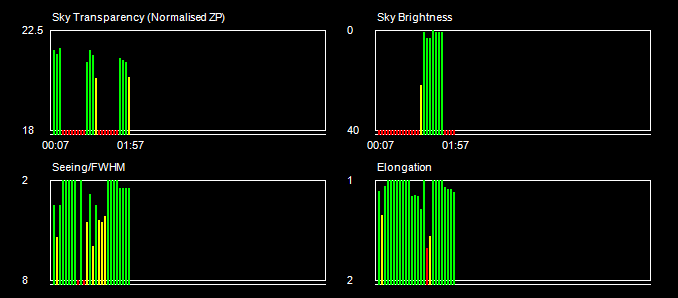

Sky Conditions (Locate Frames)

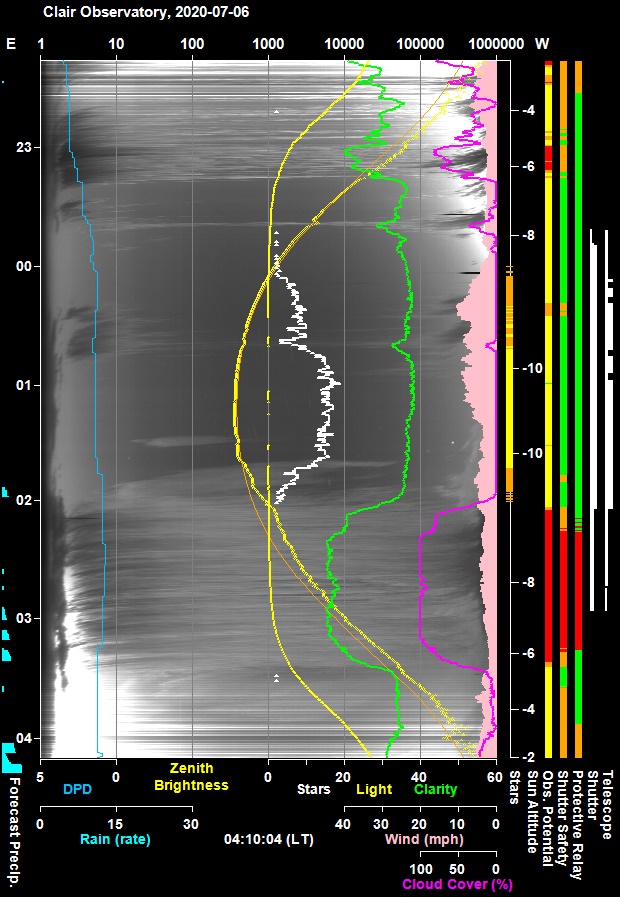

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

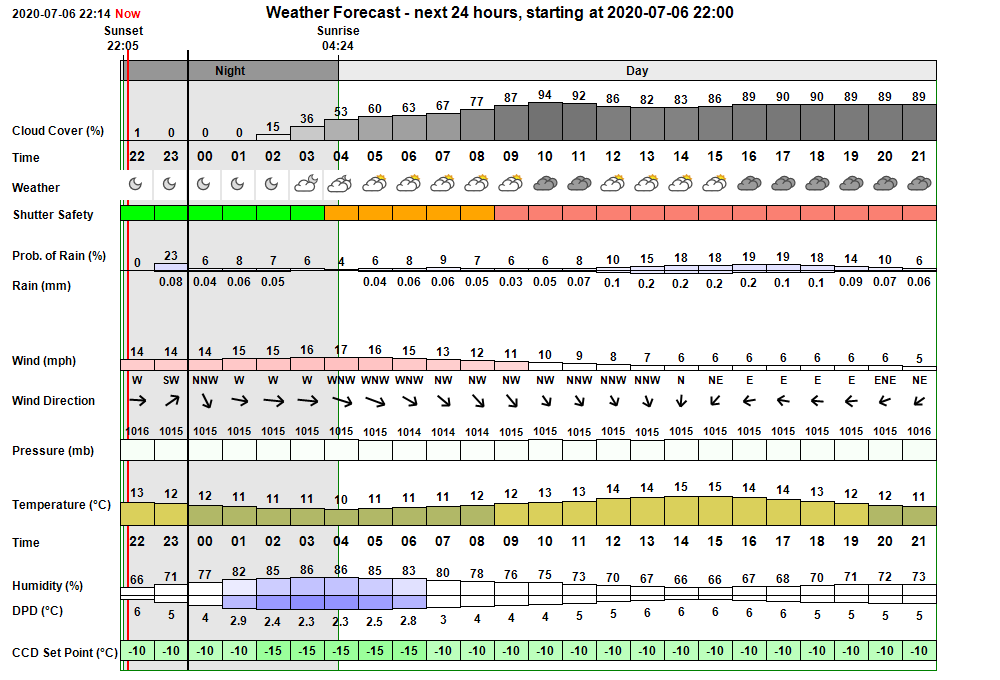

Pre-Session Weather Forecast (API data from darksky.net) Pre-Session Weather forecast showed variable skies range from 5 to 50% cloud cover,  light winds (wind 7mph) and a minimum temperature of 6°C. In the event conditions were clear and calm through the whole night, with a minimum temperature of around 4°C

Session Event Log

Time     Event Detail 23:39:28 Session Created Live Session Created (2020-07-06 S00793, ImageSaveNum: 793001) 23:39:49   Obs.Manager Started Obs.Manager started 23:39:51   Obs.Overseer Started Obs.Overseer started 23:39:55   Services Started Observatory Services started 23:40:08   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 23:41:56   Services Started Observatory Services started 23:44:05   Telescope Connected Telescope Connected (TheSky6) 23:44:24   Camera1 Connected SBIG Camera Connected (set point -15°C) 23:45:49 Observatory (Auto) Observatory placed in Fully-Automated Mode 23:45:52 Session Pending Session pending (2020-07-06) 23:45:54 Session Initiating Session initiating (2020-07-06) 23:45:56   Plan Requested Observing Plan requested from AstroPlan (1.15.3) 23:46:16   Plan Loaded Observing Plan loaded to queue (2020-07-06 V1 BEST PLAN, Plan ID: 522) 23:46:20   Camera1 Connected SBIG Camera Connected (set point -15°C) 23:46:24   Telescope Connected Telescope Connected (TheSky6) 23:46:37 Session Equilibration Session ready for dome & camera equilibration 23:49:57   Dome Opened Dome opened (opening time 44s) 23:50:00   Equilibration Started Dome Equilibration started 00:03:13   Equilibration Ended Dome Equilibration ended (13.3 mins total) 00:03:15 Session Running Session running 00:03:17   Queue Started Observing Queue started (12 targets selected) 00:04:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:06:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 00:06:58     Target Started (1/12) Target started (1/12, HIP 87937) 00:09:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:11:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 00:14:24     Target Completed Target completed (1/12, HIP 87937) 00:14:26     Target Started (2/12) Target started (2/12, GCVS CY Lyr) 00:16:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:19:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 00:22:47     Target Completed Target completed (2/12, GCVS CY Lyr) 00:22:49     Target Started (3/12) Target started (3/12, M85) 00:28:31       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 00:29:46     Target Aborted (3/12) Target aborted (3/12, M85) due to GRB Alert 00:29:48     Target Started (4/13) Target started (4/13, C/2017 T2 (PanStarrs), ToO) 00:41:10     Target Aborted (4/13) Target aborted (4/13, C/2017 T2 (PanStarrs), ToO) due to GRB Alert 00:41:12     Target Started (5/13) Target started (5/13, GCVS R CrB) 00:43:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:45:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 00:48:48     Target Completed Target completed (5/13, GCVS R CrB) 00:48:51     Target Started (6/13) Target started (6/13, GCVS AM Her) 00:54:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:57:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 01:02:48     Target Completed Target completed (6/13, GCVS AM Her) 01:02:50     Target Started (7/13) Target started (7/13, GCVS CI Cyg) 01:12:54     Target Completed Target partially completed (7/13, GCVS CI Cyg) 01:12:57     Target Started (8/13) Target started (8/13, GCVS SS Cyg) 01:25:21     Target Completed Target completed (8/13, GCVS SS Cyg) 01:25:23     Target Started (9/13) Target started (9/13, GCVS BL Lac) 01:38:19     Target Completed Target partially completed (9/13, GCVS BL Lac) 01:38:21     Target Started (10/13) Target started (10/13, GCVS S Cyg) 01:52:56     Target Completed Target partially completed (10/13, GCVS S Cyg) 01:52:58     Target Started (11/13) Target started (11/13, Berkeley 90) 02:03:25   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 02:03:40   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 02:03:45   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 02:04:40 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 02:04:42   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 02:04:45     Target Aborted (11/13) Target aborted (11/13, Berkeley 90) due to cloud 02:04:47   Queue Paused Queue paused for SoftSuspend 02:04:49 Session Suspended Session suspended 02:04:51   Queue Paused Queue pausing for HardSuspend 02:16:00 Overseer Intervention Obs.Overseer Interventation to make Observatory Safe 02:44:00 User Intervention User Interventation to abort Job Queue and switch observatory to manual mode 02:44:02   Queue Aborted Job Queue aborted 02:45:02   Telescope Parked Telescope parked (parking time 43s) 02:45:33   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox. 02:51:46   Services Stopped Observatory Services stopped 02:57:21 Program Closed Program closed by User

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2020-07-06, S793)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (5)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• Session not completed and normal automated observatory shutdown didn't execute (this following an issue with Dome Driver at 02:04 and freezing of Job Queue whilst attempting to close dome shutter). Session was scheduled to finish at 02:17. Upon checking the status of the session via website at 02:30 the session appear to have became frozen whilst waiting for shutter to close for session suspension at 02:04.  Safeguards operated to Close Shutter, Park Dome and Suspend Telescope Tracking (so Observatory was completely safe), however the session operations were spoiled. Investigation carried out which provides some understanding of the problem, but doesn't provide a definitive single cause or clear solution.  See Investigation - Session not completed or shutdown (Job Queue froze whilst closing dome at 02:04). Issue was eventually fixed on 2020-10-15 by the installation of Device Hub 6.5.0.1 which has better exception trapping.   Issue deemed closed on 2020-11-06 after there were no similar incidents during the first 8 sessions using the new DH version.
  Closed 2020-11-06 (Device Hub 6.5.0.1).

Minor Issues

• Y Scale ( 3 to -7 degC) on Focus Temperature Chart  is inappropriate given starting OTA temperature (9.2 degC).  It seems that a temperatue value of 0 degC has been picked up from somewhere and used for defining the Y Scale and drawing initial cure line (outside temp 0.0 to 8.4 degC) and initial UPB Env Temp (vcNull to +9.7degC).  It seems the 0.0degC caused the Initial Focus Position to be wrongly positioned at ~ 3300 rather than ~ 2500. Luckily focus position had been corrected to the actual higher tube temperature of 9.1 degC by time that Focus Profile 1 was acquired.  First line of data in the session's monitor file shows Foc (tube) Temp of 0.0 at 23:39:39. Fix attempted by added an extra condition check so that StartChart is skipped if OtaTemp = 0.0   (won't work if OtaTemp = 0.01 )
    Fix attempted  2020-07-07  (AstroMain 3.25.8)

• A ToO target was inserted into queue for immediate execution during execution of Target 3 but was unexpectedly reported as 'deferred' due to a current ToO.  M85 (a must-include target) was running but due to cloud along western horizon a new target (C/2017 T2 PanStarrs) with better chance of clear sky was inserted into the job queue as a ToO for immediate execution, however it was reported as deferred due to current ToO even though M85 was not a ToO target (though it was a 'must-include' target). To get M85 to stop and to get the comet target to execute immediately in its place a user intervention was made involving using the 'Abort Target' button.   This workaround worked, the M85 target was stopped and the job manager began executing the T2 comet target. However this intervention shouldn't have been necessary - its unclear why the comet ToO was 'deferred' rather executed immediately. Issue eventually investigated 2020-10-04 (see Investigation - ToO Insertion Issues (S793, S794, S804) and found to be due to a bug (if TargetOpportunity = True) in 'HandleToO routine that is causing unexpected messages 'Target ... is deferred due to a current ToO' when trying to insert a Prioroity 1 (Do Now) Target of Opportunity.
  Done 2020-10-05 (AstroMain 3.30)

• Telescope Slews are recorded to be taking a much longer time that the actual telescope slew.   After problem with Dome Driver at 02:04 when Dome Properties became frozen,   telescope slews for 6 targets (AM Her to Berkeley 90) were recorded as taking 205 to 240s when there actual slew times based on last scope movement are much less (16-40s). Slew timed out after 240s (4 minutes).
   Fix attempted  2020-07-07  (AstroMain 3.25.8)

• Dome Slews should have been assumed completed after 10s rather left to timeout.  After problem with Dome Driver at 02:04 when Dome Properties became frozen,   dome slews for 6 targets (AM Her to Berkeley 90) were recorded as taking unknown (vcNull, -99s) time after timing out after 240s (4 minutes). Code in AstroMain 3.25.7 should have set bDomeSlewCompleted to true when slewing hadn't been detected to have started after 10s, however due to an issue with the Dome Driver the objDome.IsSlewing was continuously reported as True, regardless of the Dome's actual slewing state (which was stationary).  Code could be modified to detect that Dome hadn't moved in either 60s or in time that scope had finished slew (whichever is the longest) and set bDomeSlewCompleted to true to enable the overall slew to finish well ahead of other inenvitable timeout after 240s.
    Fix attempted  2020-07-07  (AstroMain 3.25.8)

• Certain Wind Direction indicators on 5d Wind Speed graphs are still being formed from overposted arrows. Although overposting on first directional arrow has been fixed in AstroWeather 1.10.8)  The first window direction indicator will also sometimes show the same problem.
    Fixed 2020-07-07 (AstroWeather 1.10.9)

Continuous Improvement

• Y scale on CCD Temperature chart should probably have been -5 to -30 degC given initial CCD Temp of -15 degC.   The chart came with a -10 to -35degC range. A -5 to -30 deg C range provides more working room should CCD Temp move later to -10degC, but still provide room in case CCD Temp moves to -20degC instead.
    Fixed 2020-07-07  (AstroMain 3.25.8)

[ Prev | Next ]

Back to Top

Investigation: Session not completed or shutdown (Job Queue froze whilst closing dome at 02:04)

Issue : Session became frozen at 02:04 and automated observatory shutdown didn't occur.
Session was scheduled to finish at 02:17. Upon checking the status of the session via website at 02:30 the session appear to have became frozen whilst waiting for shutter to close for session suspension at 02:04

Details : Following a hard suspend at 02:04 the Obs.Manager operated to Suspend the Session and ordered a closure of the Dome's Shutter.  Dome Closure didn't appear to be completed.   At 02:15 the Obs.Overseer recognised that Job Queue appeared to be frozen with it still paused from HardSuspend at 02:04,  and ran the MakeObservatorySafe routine.  Obs.Overseer ran the MakeObservatorySafe routine again at 02:27 and 02:38. In each case the Slew Dome to Park Position (Az 90) was aborted after 3 minutes, with the Dome still at Az 239.8 deg.

After acquiring screen captures of the Obs.Computer display, user intervention was made 02:44 to abort the Job Queue & set the Observatory Mode to Manual.   'ParkTelescope' routine was then run to park telescope / switch off telescope.

Problem was investigated by looking through data from the session

AstroMain Report Logs

AstroMain ObsPics
Obs Pics show the observatory open at 02:04 with Dome at Az 240, Scope at Az 148, sky clarity 24 and running under softsuspend call with camera still taking images of Berkeley 90 .  At 02:05  clarity is still  <= 24, observatory has moved to Suspended state,  and shutter is closing. At 02:12 clarity at +/- 20 (and protective relay activated on/off), dome is still showing as closing, scope is tracking at 155 deg, but dome is still at Az 240 . At 02:16 telescope tracking has become turned off.

Looking further back at earlier ObsPics shows that the Dome had apparently been 'stationary' at Az 240 since slewing to R CrB at 00:42.  Even though Slaving is On the dome remains at 240 Az when scope moves to AM Her around 00:49, to CI Cyg around 01:03,  to SS Cyg  around 01:13 , to BL Lac around 01:25, to  S Cyg around 01:40 and to Berkeley 90 around 01:53.

- Slew Table shows that in each case the slews timeout after 240s (4 mins) whilst waiting for Dome Slews that didn't seem to occur. Dome remains at 239.8 throughout)
- Although Queue Executor reports large discrepencies between Post-Slew Scope Azimuth and Post-Slew Dome Azimuth  (dome remaining at 239.8 in each case), the results from Image Linking , from Autoguiding and from the FITS images themselves indicate that the main and guide telescope are both seeing actual sky with stars, rather than dome roof and therefore the dome shutter must have slewed according to commands from DeviceHub that kept the dome slaved to the telescope movements.

AstroGuard
AstroGuard show a problem at around 02:04 with the dome shutter taking >63s to close.  A close shutter command  is issued at 02:14 after conditions became critical, but doesn't record the dome actually becoming closed.   User intervention at 02:50 to Park Dome.

AstroGuard screen capture at 02:50 still shows dome as 'closing' and with shutter at Az 239.9 deg.
This was after the dome was visually checked and found to be Parked and Closed.

This seems to indicate that ASCOM DeviceHub wasn't giving out live data to AstroGuard, and therefore the problem is not isolated to just AstroMain program.
(below we see that DeviceHub Control tab was also displaying frozen data)

Device Hub
Screen capture of Device Hub main window at 02:42 shows the dome connected, open, non-slaved and at Az 239.8 degs, and with 2 Dome Clients.  whilst Scope is stationary at Alt 78/Az 157 degs and with 4 telescope clients.    Close Shutter and Park Dome buttons on the Dome Control are both greyed-out (not active)

At some point around 02:51 (and definitately at or before 02:53) when Services were stopped DeviceHub put up an error window
"DeviceHub caught a fatal exception during startup. One or more errors occurred".   No information could be gleaned on what the exception or the errors actually were.

After stopping Observatory software and restarting Observatory Software again, the DeviceHub appeared to be funtioning normally again and showed the dome as being closed & parked, which a visual inspection of the observatory indeed confirmed.

Ascom Trace Logs
Up until 00:41:40  the Pulsar ASCOM Trace Log is normal with Dome Reads (Get At Park, Get ShutterStatus Get Azimuth etc) occuring every 5s,  except when slewing was read rate increases to every 1s.  The Trace Log shows SlewToAzimuth ( 239.8) request at 00:41:11 with dome reaching this azimuth at 00:41:34.   The Dome Reads suddenly stop at 00:41:40 (Dome at Az 239.8 deg at this point), and there are just Volatile message lines for the next 90 minutes.

The Trace Log records a CloseShutter request at 02:04:46 (consistent with HardSuspend at this time), and shows the Shutter then closing  (status 3) at 02:04:47 before becoming shut at 02:05:31 (status 1). The closing time (45s) is normal.   Volatile lines at 02:04:45 indicate that Dome is at Az 239.8 but the image data at this time demonstrate that the dome shutter position must be c. Az 147 (allowing Telescope to be able to successfully image Berkeley 90 at Az 147 deg)

Trace Log shows SlewToAzimith 90 request at 02:16:25, and shows dome slewing around to Park Position between 02:16 to 02:17. (This is consistent with MakeObservatorySafe call from ObsOverseer at 02:15). At 02:19:25 there is an AbortSlew request from the ParkScope routine as it hasn't been any read request looking to see that Dome has reached the destination azimuth.

At 02:50 there were requests to Close Shutter and to Park Dome (Dome already closed and at park position by this point)

There are no SlewToAzimuth requests in the Pulsar TraceLog between 00:41:11 (request to Az 239.8) and 02:16:25 (request to Az 90).   It is difficult to see why there were no SlewToAzimuth requests during this time as the dome was clearly being commanded to different azimuth positions during this time (as shown by the imaging results).
This points to a problem with the ASCOM Pulsar Driver / ASCOM Trace Logging rather than the DeviceHub,  but it is unclear if the problem is caused by DeviceHub or is not.

After restarting Observatory Software/reconnecting to Dome the Trace log shows normal behaviour with Dome reads (Get Azimuth, Get At Park etc) occuring every 5s.

Conclusion
A definite issue has surfaced during the last two sessions (S792 and S793) where DeviceHub, after working ok for at least an hour, suddenly stops reading data from the Dome Driver (Pulsar Observatories Dome) leaving Dome Clients and the Device Hub Dome Control tab to be given dome property information that is left frozen at the point of the last successful read.   After this time calls to Dome Control Methods generally work (e.g. the dome physically slews to requested azimuth , or  physically open/closes or physically parks) even though they don't lead to any change in Dome properties.   At first sight this appears to be a problem with Device Hub,   however the absence of any recorded SlewToAzimuth requests in Pulsar Trace Log over a 90 minute period when Dome can be shown to have moved puts suspicion onto the Pulsar Dome Driver.

Device Hub & Pulsar Dome Driver worked successfully together in session S790 & S791, so its unclear what has caused the issue to surface in S792 & S793.

Recommendation
- Reboot computer - DONE
- Reboot Dome Rotation System before next session  - TBA (doesn't appear to be crucial as next session was ok using POTH)
- Run next session using POTH Hub rather than DeviceHub - DONE (no problems encountered)
- Run further session using Device Hub - DONE
- Consider posting note at ASCOM Help Forum - DONE
- Note to Pulsar Observatories 2020-11-17 regarding a number of small issues  - DONE

Update

 Issue was eventually fixed on 2020-10-15 by the installation of Device Hub 6.5.0.1 which has better exception trapping.   Issue deemed closed on 2020-11-06 after there were no similar incidents during the first 8 sessions using the new DH version.
Closed 2020-11-06 (Device Hub 6.5.0.1).
