David's Astronomy Pages (All Sky Camera)
Aurora on night  2015-04-20 /  2015-04-21

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
- Aurora display relatively low in northern sky and generally fairly week. Two main periods of activity  were at  23:38h LT - 00:11h LT  and at 01:53 LT - 03:52h LT
- Frames could benefit from being reprocessed as they are too dark.

Pictures

Panoramic View - Northern Sky

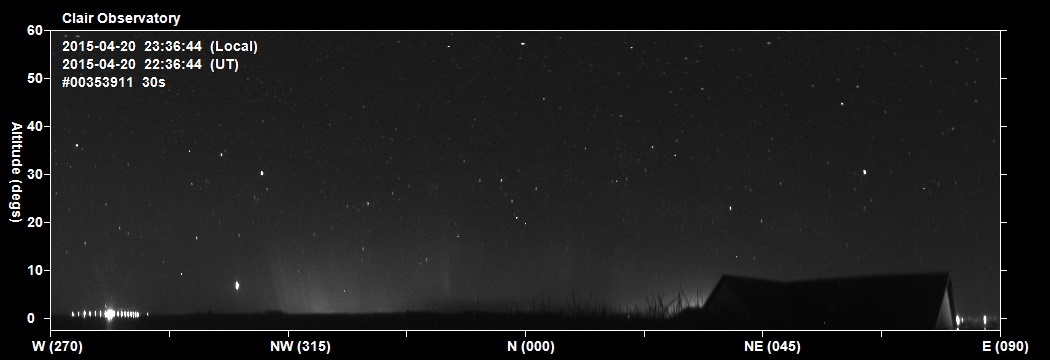

2015-04-20 22:36h UT (22:36h LT (BST). Image #353911

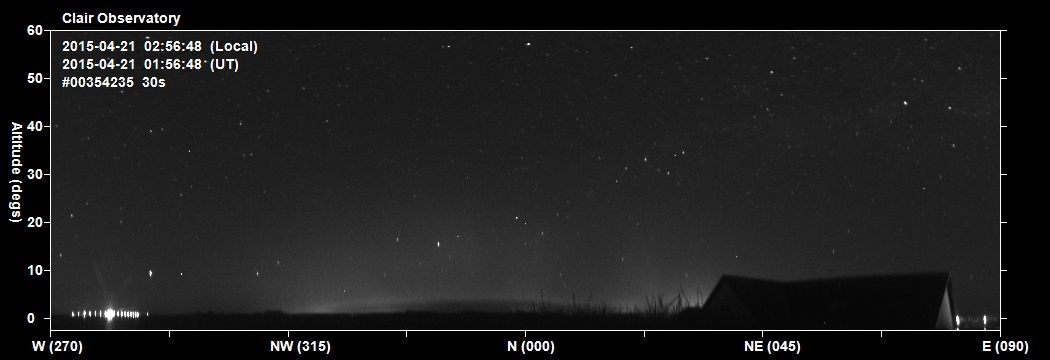

2015-04-21 01:56h UT (02:56h BST, frame #354235)

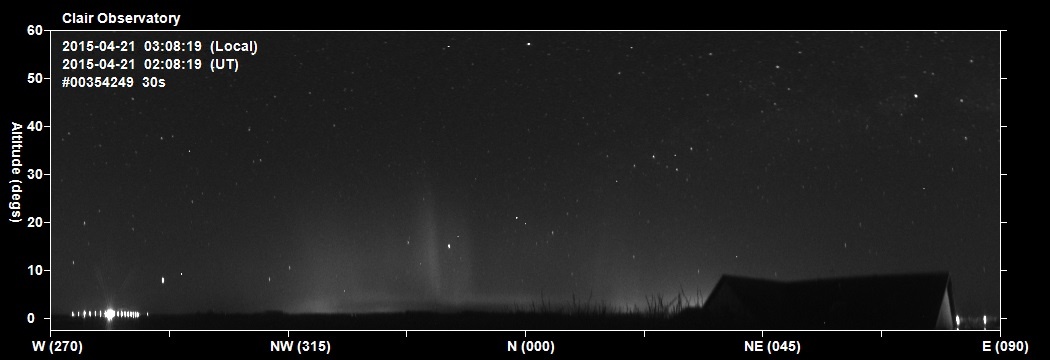

2015-04-21 02:08h UT (03:08h BST, frame #354249)

  Panorama views converted from original fish eye images
30s exposures taken with Oculus All Sky Camera

Back to Top


Videos

Video: North panoramic view, 5.4 hour period
2015-04-20 21:30 to 2015-04-21 02:50h UT (22:30 to 03:50h BST), Frames 353792 - 354319.
Link to .mp4 video file (1.7 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

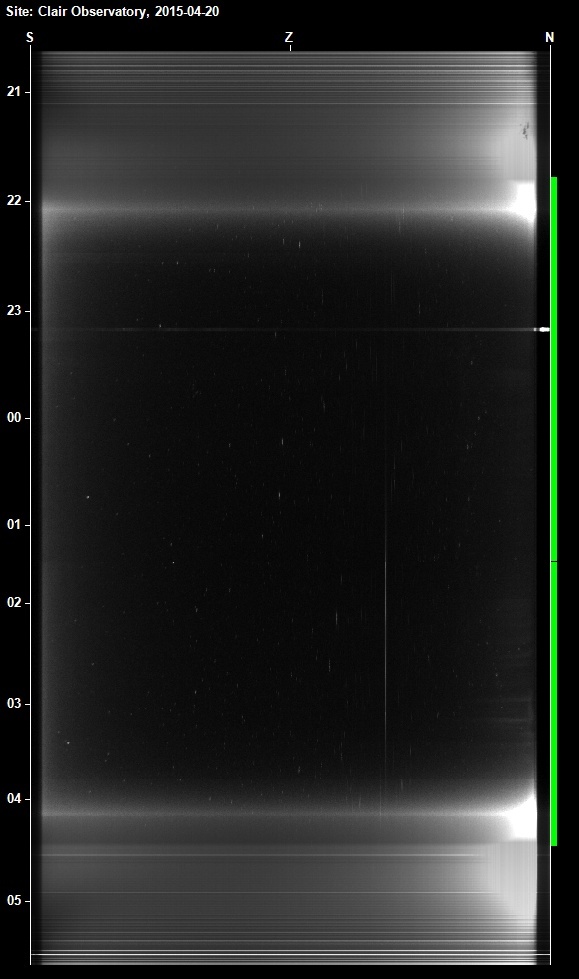

Night Summary Plot (2015-04-20 to 2015-04-21)
Times on plot are local BST times (UT +1 hour)
Two main periods of activity  were at  23:38h LT - 00:11h LT  and at 01:53 LT - 03:52h LT.  These are very faint on Summary Plot- unusually the aurora was weaker to N then to NNW and NNE.

Back to Top


Magnetometer Stack Plots (for reference)

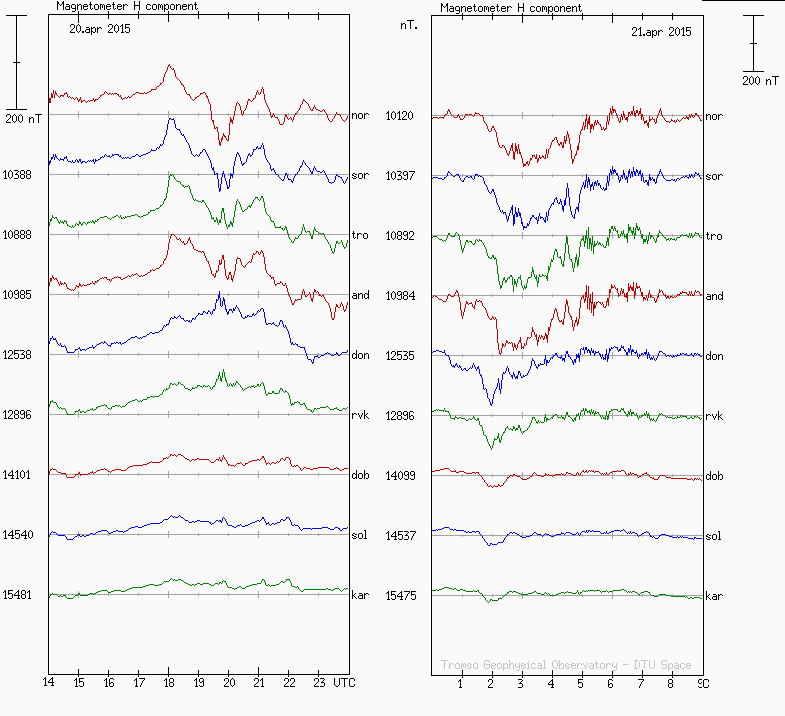

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2015-04-20 / 2015-04-21
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI)
Displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers.

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
