David's Astronomy Pages (All Sky Camera) Aurora on night  2016-08-06 /  2016-08-07

NLC 2016-07-10

All Sky Images

Home Page

Aurora 2016-09-27

Aurora	Notes
Pictures Videos Summary Plot Magnetometer Stack Plots (for reference)	- Weak aurora display close to northern horizon and hidden in part by cloud.  Peak activity around 00:30 - 00:45h UT (01:30-01:45h BST).  -

Pictures

Panoramic View - Northern Sky

Aurora - 2016-08-07 00:38h UT (01:38h BST). Image #864942

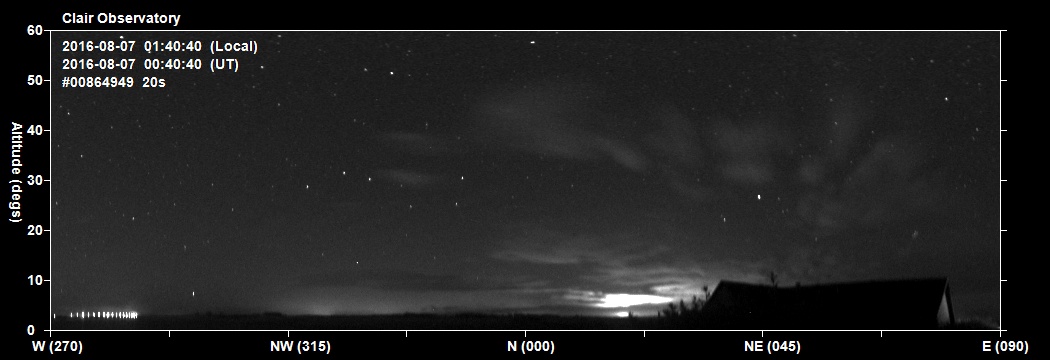

Aurora - 2016-08-07 00:40h UT (01:40h BST). Image #864949

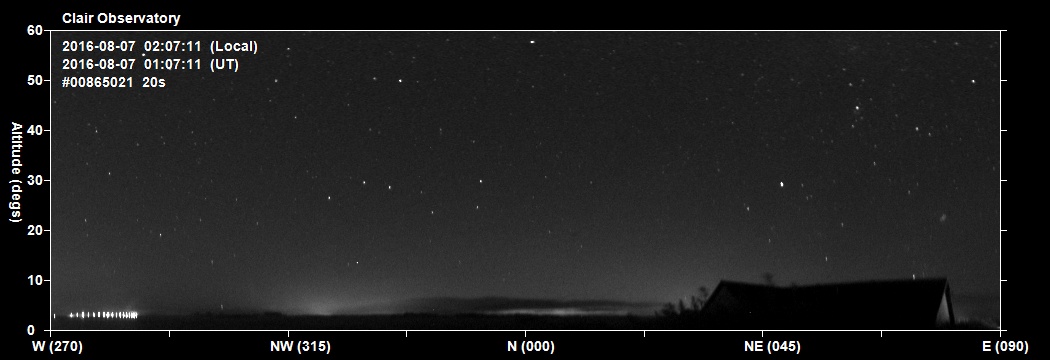

Aurora - 2016-08-07 01:07h UT (02:07h BST). Image #865021

Panorama views of northern sky converted from original fish eye images 30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Night Summary Plot

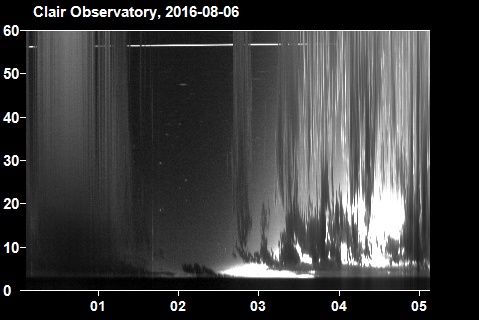

Night Summary Plot - North Sky (2016-08-06 / 2016-08-07) Times on plot are local BST times (= UT time + 1 hour)

Back to Top

Magnetometer Stack Plots (for reference)

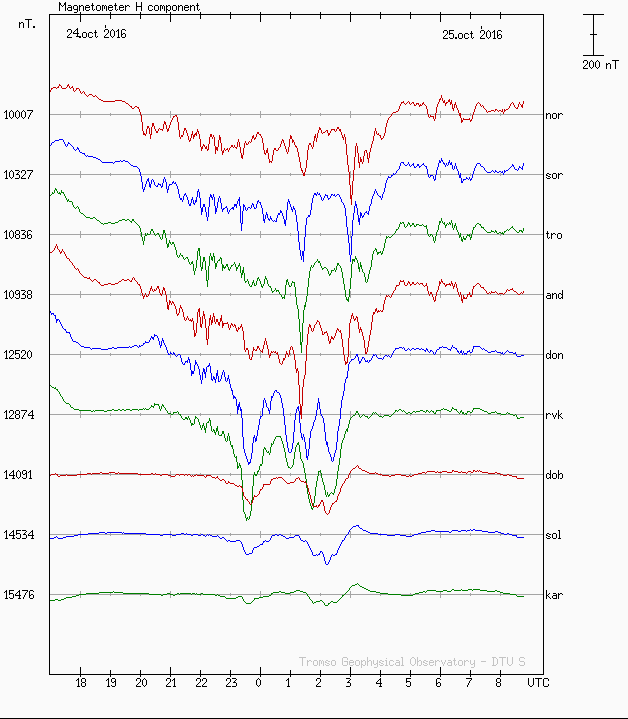

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2016-10-24 / 2016-10-25 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
