David's Astronomy Pages (All Sky Camera)
Aurora on night  2016-11-22 /  2016-11-23

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
- Short aurora display close to northern horizon between 20:55 and 21:45h UT (GMT), peaking at around 21:30-21:37h UT (GMT).
 -

Pictures

Panoramic View - Northern Sky

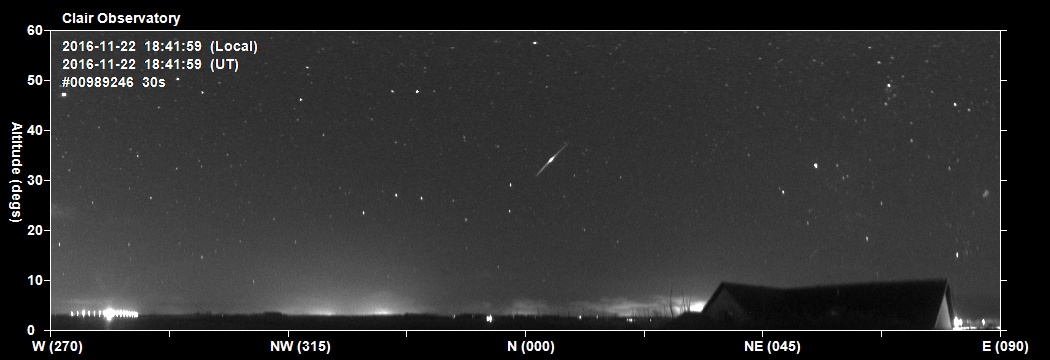

Satellite/Iridium Flare - 2016-11-22 18:41h UT (GMT). Image #989246

Aurora (just starting) - 2016-11-22 21:04h UT (GMT). Image #989513

Aurora - 2016-11-22 21:04h UT (GMT). Image #989513

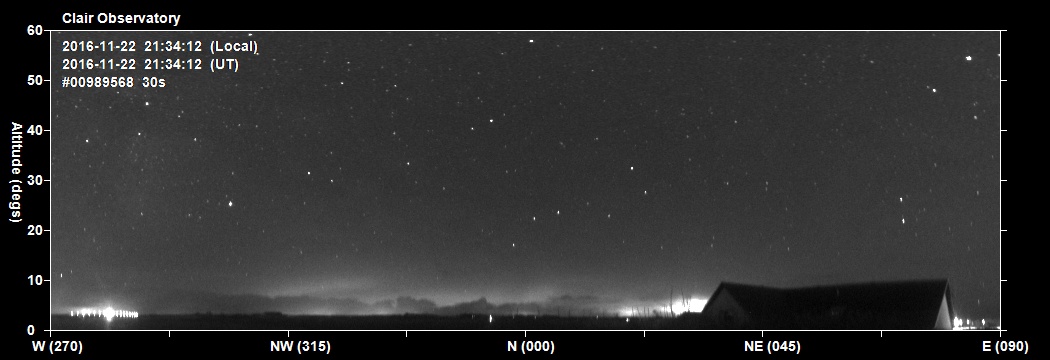

Aurora - 2016-11-22 21:34h UT (GMT). Image #989568

Aurora - 2016-11-22 21:35h UT (GMT). Image #989571

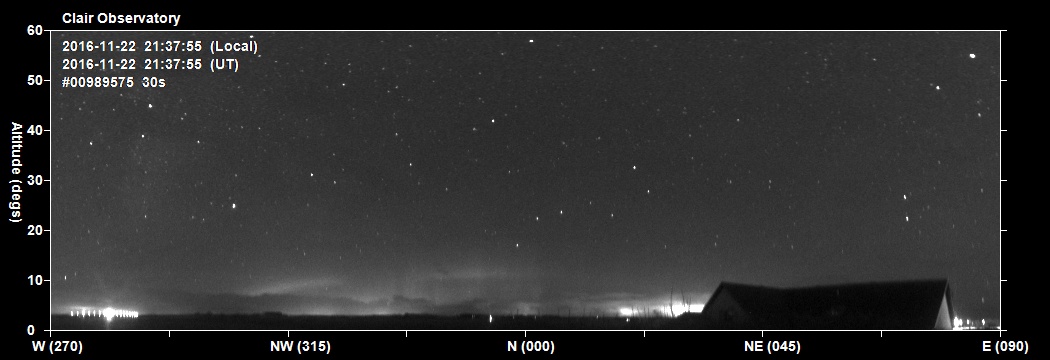

Aurora - 2016-11-22 21:37h UT (GMT). Image #989575

Aurora - 2016-11-22 21:39h UT (GMT). Image #989578

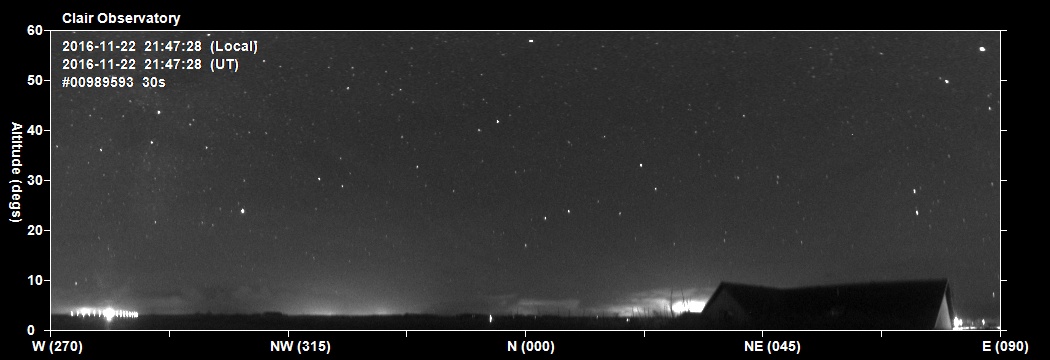

Aurora (finished) - 2016-11-22 21:47h UT (GMT). Image #989593

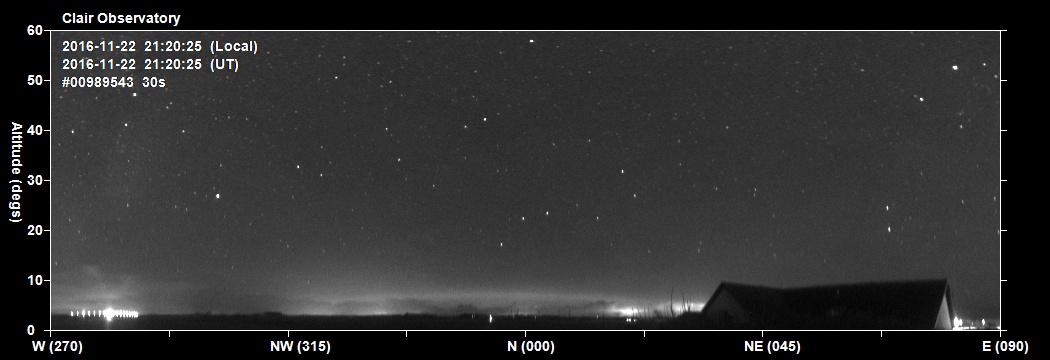

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 1.25 hour period
2016-11-22 20:45h to 2016-11-22 22:00h UT (GMT), Frames 989478-989617.
(Link to .mp4 video file (1.5 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

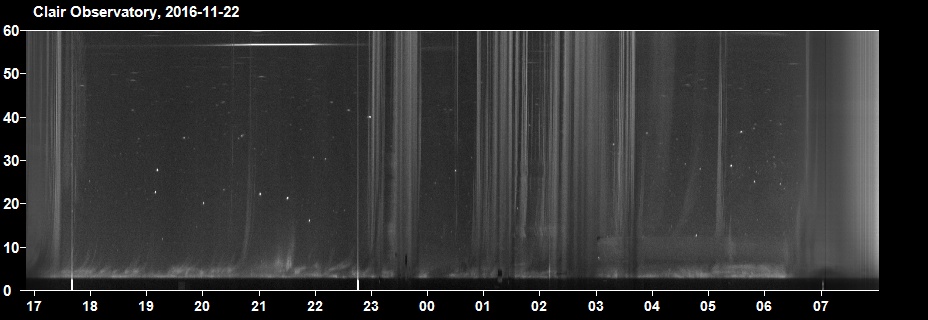

Night Summary Plot - North Sky (2016-11-22 / 2016-11-23)
Times on plot are local GMT times (= UT time)

Back to Top


Magnetometer Stack Plots (for reference)

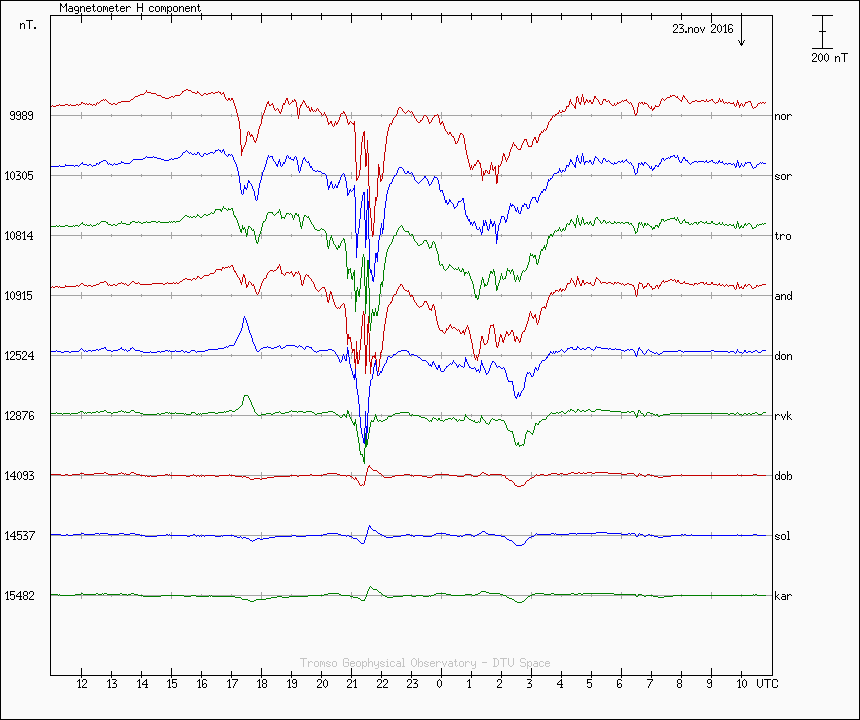

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-11-22 / 2016-11-23
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

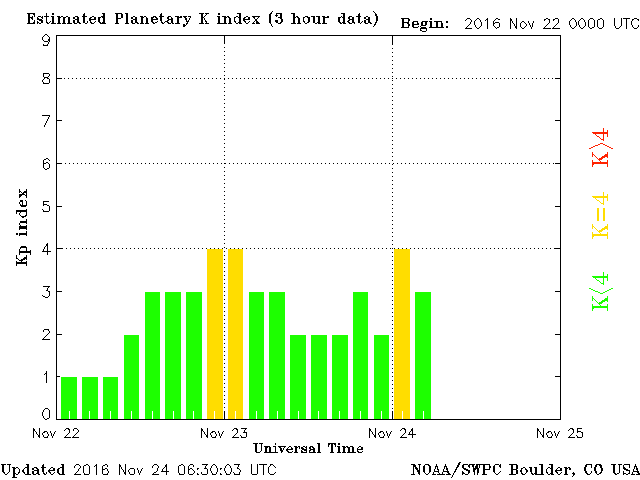

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
