Aurora on night  2016-12-31 /  2017-01-01

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
- Aurora display (KP4 event) either weak at observing latitudeor  largely hidden by cloud accept for a short display between 20:35 and between 21:30 UT (GMT)

Pictures

Panoramic View - Northern Sky

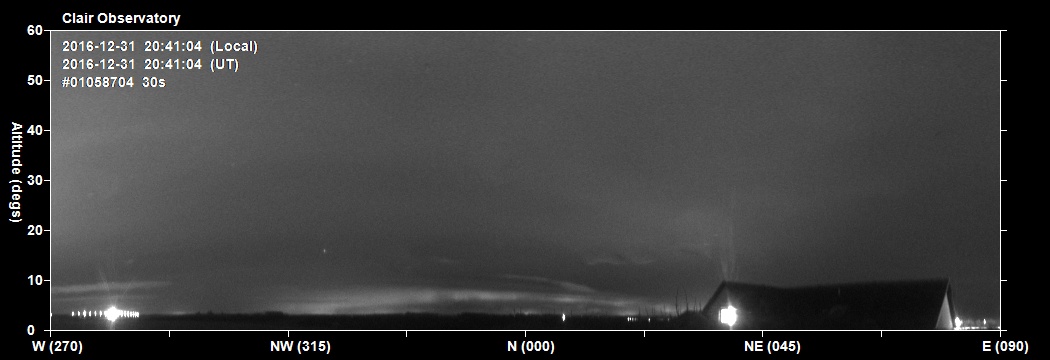

Aurora - 2016-12-31 20:41h UT (GMT). Image #1058704

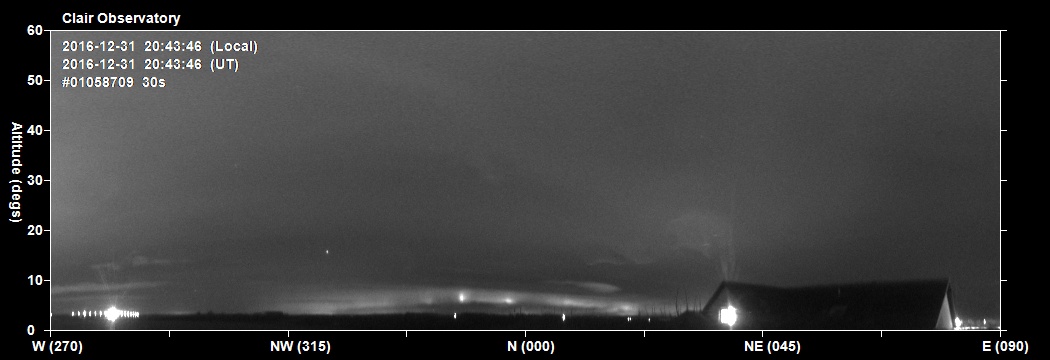

Aurora - 2016-12-31 20:43h UT (GMT). Image #1058709

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 1.5 hour period
2016-12-31 20:30h to 2016-12-31 22:00h UT (GMT), Frames 1058685-8850
Link to .mp4 video file (1.6 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

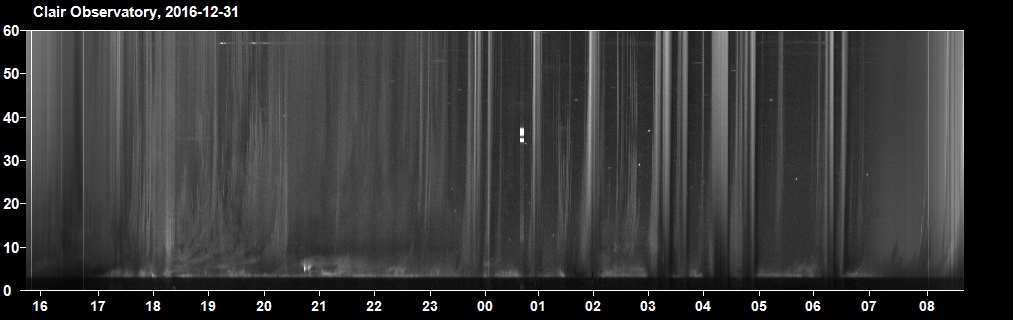

Night Summary Plot - North Sky (2016-12-31 / 2017-01-01)
Times on plot are local GMT times (= UT time)

Back to Top


Magnetometer Stack Plots (for reference)

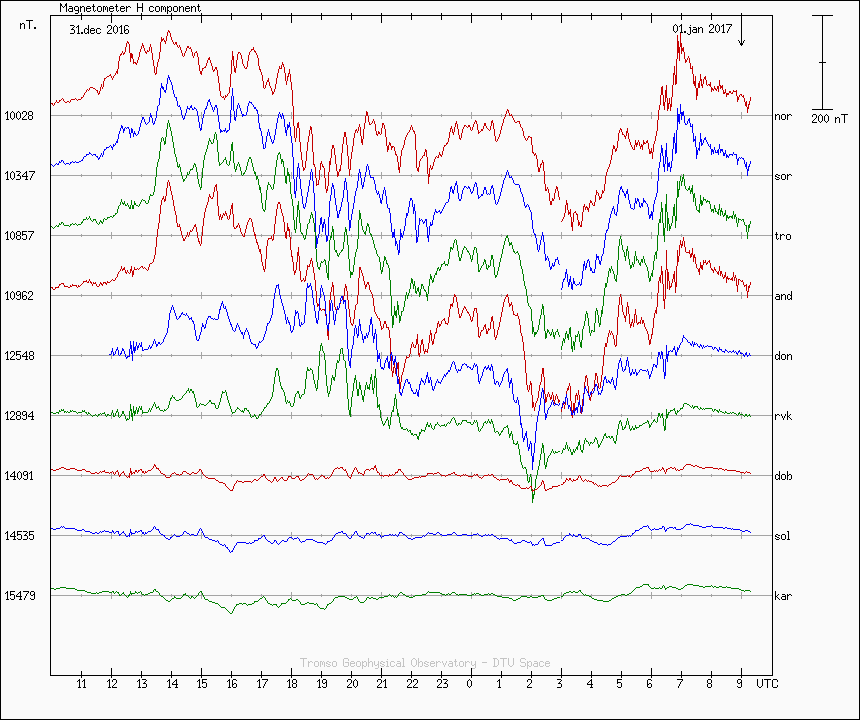

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-12-31 / 2017-01-01
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

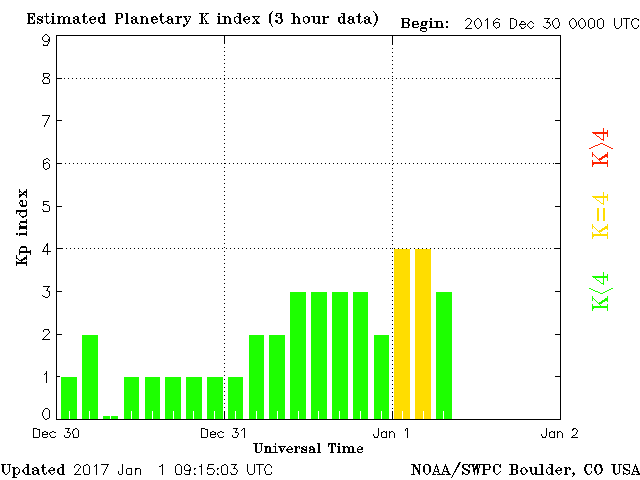

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
