Aurora on night  2018-12-09

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Very weak aurora display in NE Scotland
- Activity observed from 21:20 to 22:00 hUT.
- Peak around 21:35h UT.
-
-

Pictures

Panoramic View - Northern Sky

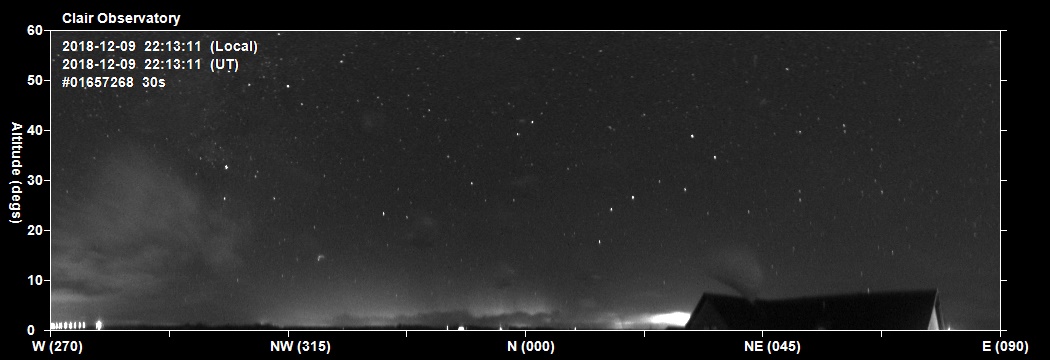

2018-12-09 22:13h UT (GMT)
Auroral activity on N horizon partly hidden by foreground clouds

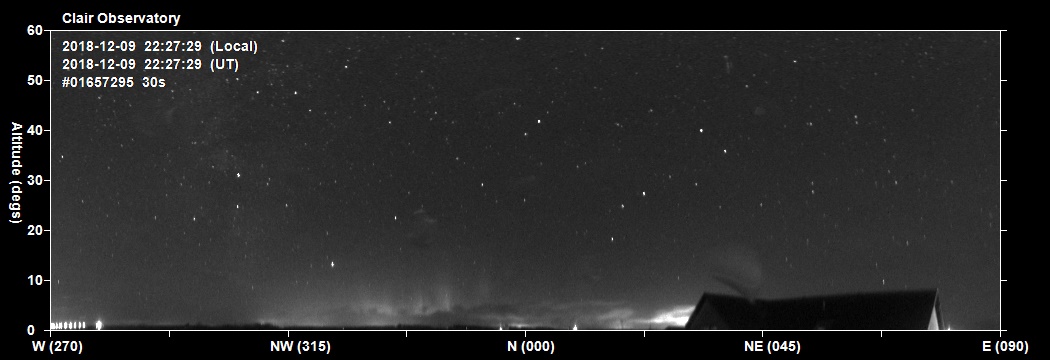

2018-12-09 21:32h UT (GMT)
Auroral activity on N horizon partly hidden by foreground clouds

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 1.25 hour period
2018-12-09 22:00 to 23:15 UT (GMT), Frames 1657245-384
Link to .mp4 video file (1.4 MB)
0.0s / 0.0s

Back to Top

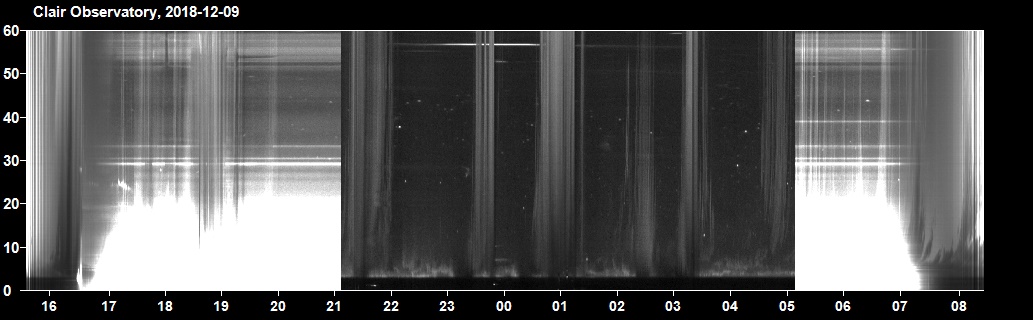

Night Summary Plot

Night Summary Plot - North Sky (2018-12-09 to 2018-12-10)
Times on plot are local GMT times (= UT time)
Whiteouts in image are due a security light at a nearby building site

Back to Top


Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2018-12-09 / 2018-12-10
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)

Image not available



Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2019-02-02 22:00h UT for 23:00hUT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )

Image not available
