Aurora on night  2019-02-01 /  2019-02-02

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak aurora display in NE Scotland
- Activity observed from 21:30 to 22:40 UT  (~ Kp2-3)
- With some further activity at 01:05-01:25 UT
-
- Telescope Images from 2019-02-01 >>

Pictures

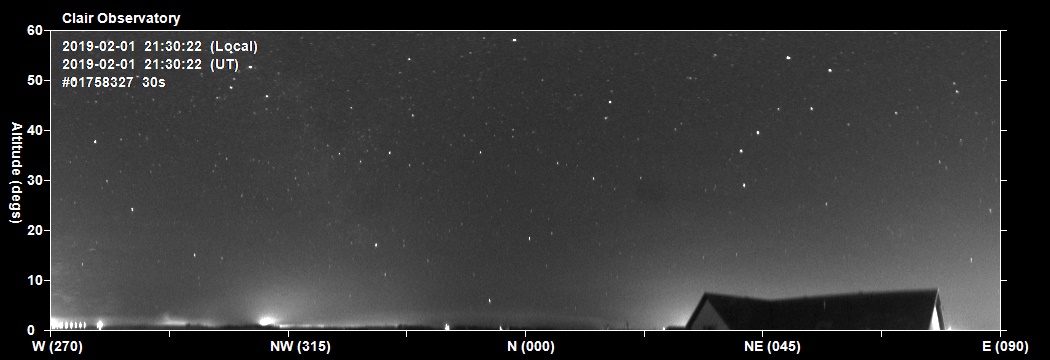

Panoramic View - Northern Sky
2019-02-01 21:30h UT (GMT)
Faint auroral arc on N horizon

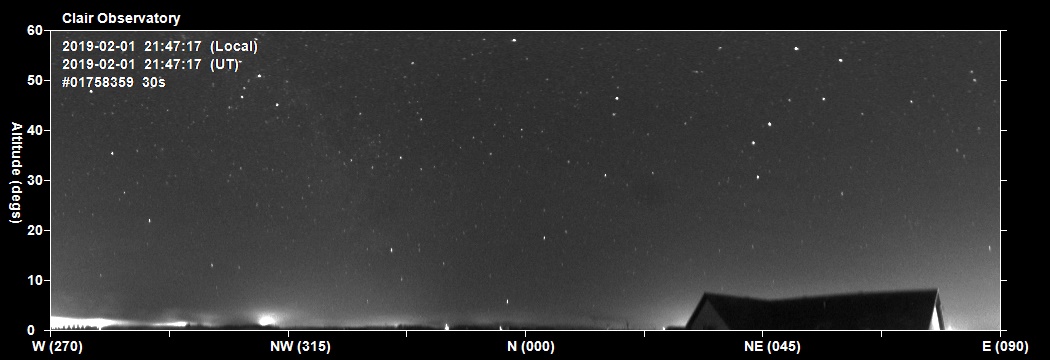

2019-02-01 21:47h UT (GMT)
Faint auroral arc

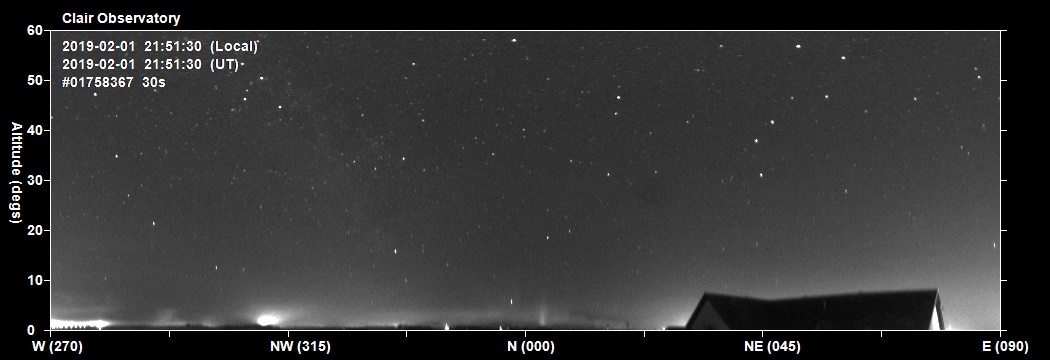

2019-02-01 21:51h UT (GMT)
Auroral arc with faint curtains & rays developing.

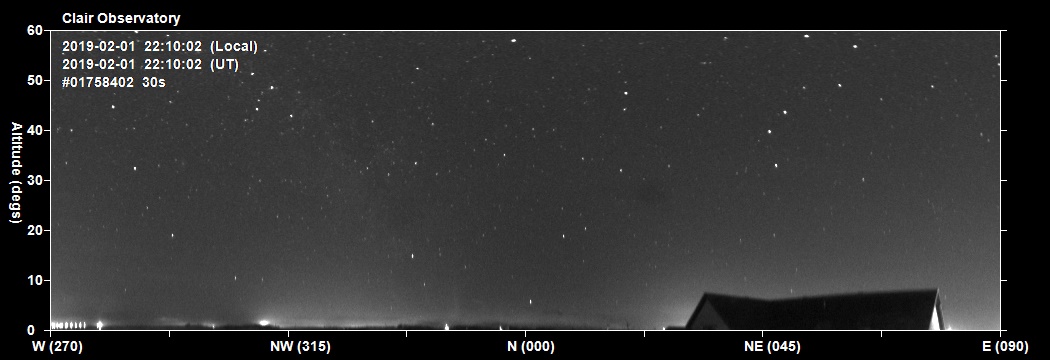

2019-02-01 22:10h UT (GMT)
Arc receeding, faint rays moving westward

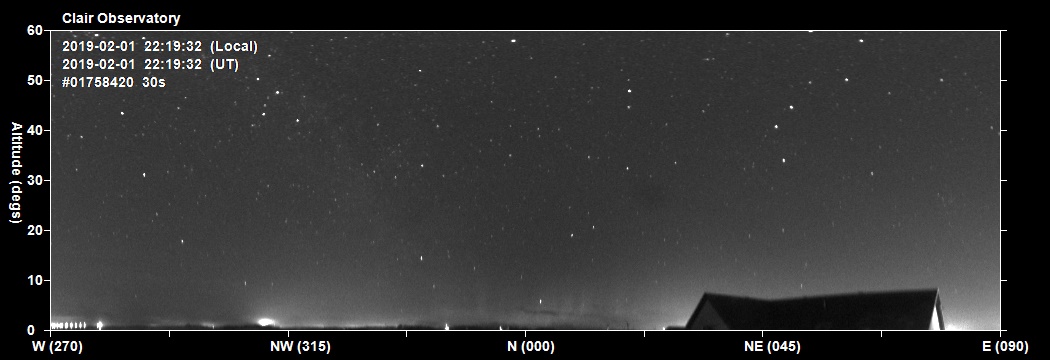

2019-02-01 22:19h UT (GMT)
Rays along N. horizon

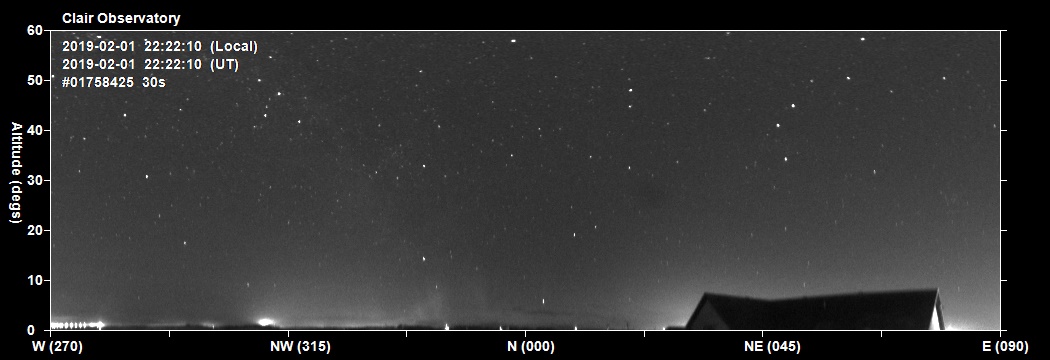

2019-02-01 22:22h UT (GMT)
Rays moving westward

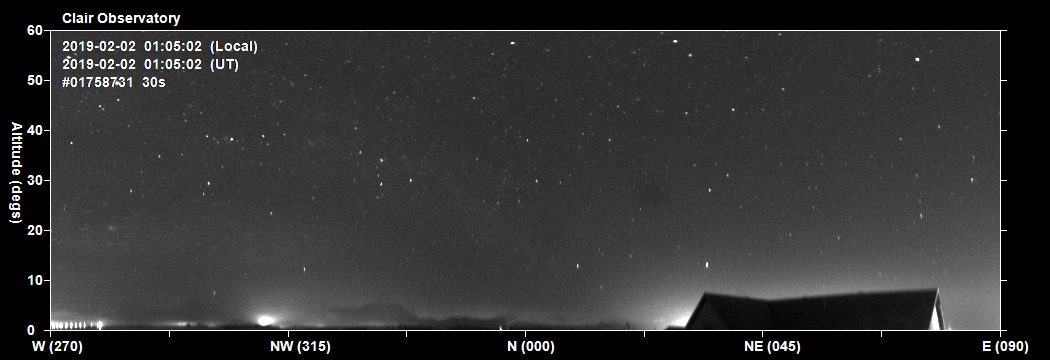

2019-02-02 01:05h UT (GMT)
Arc still visible after clouds cleared

2019-02-01 21:30h UT (GMT)
Weak rays still visible. Arc receeded or hidden by foreground clouds

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 1.25 hour period
2019-02-01 21:30 to 22:45 UT (GMT), Frames 1758271-469
Link to .mp4 video file (1.5 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

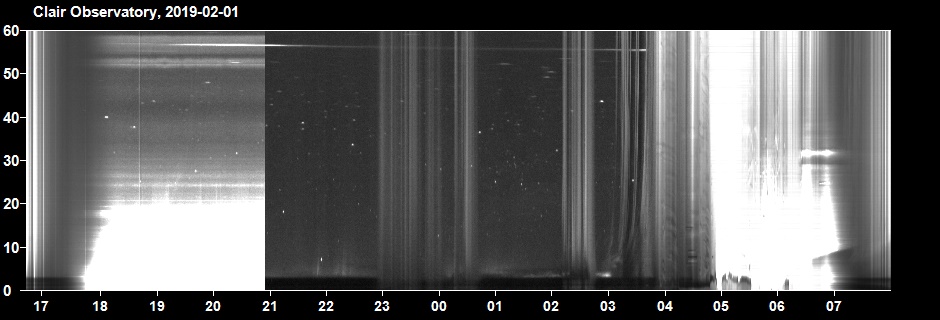

Night Summary Plot - North Sky (2019-02-01 to 2019-02-02)
Times on plot are local GMT times (= UT time)
Whiteouts in image are due a security light at a nearby building site

Back to Top

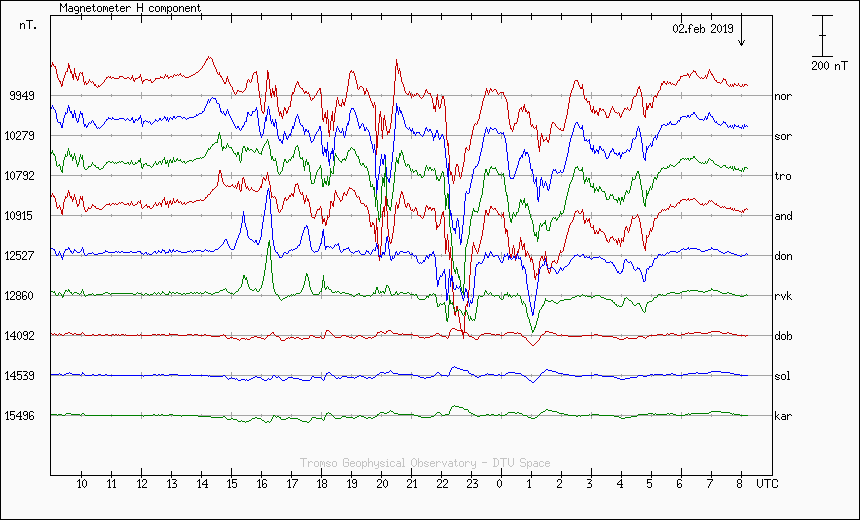

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2019-02-01 / 2019-02-02
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)



Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2019-02-01 24:00h UT for 24:00hUT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )

Image not available
