David's Astronomy Pages (All Sky Camera) Aurora on night  2022-10-14/2022-10-15  (page in progress)

Aurora  2022-09-14

Aurora Page

Home Page

Aurora 2022-10-26

Aurora

Notes

Pictures  (TBA) Videos   (TBA) Summary Plot Magnetometer Stack Plots (for reference) Planetary K-Index Plot (for reference) Aurora Forecast, NOAA/Ovation (for reference) (TBA)

- Aurora activity visible from NE Scotland on night of 2022-09-14.   - Scandinavia magnetometers indicate activity starting from 21:00 UT and peaking between 22:45 and 00:30 UT   - Activity visible 2022-09-14 21:40 to 02:25 UT (22:40 to 03:25 Local),  with peak activity between 23:10 and 23:20 UT (00:10 to 00:20 Local). Aurora arc to 10 deg altitude with rays to 20 deg altitude at peak.          - Telescope Images from 2022-10-14 >>

Pictures

Panoramic View - Northern Sky

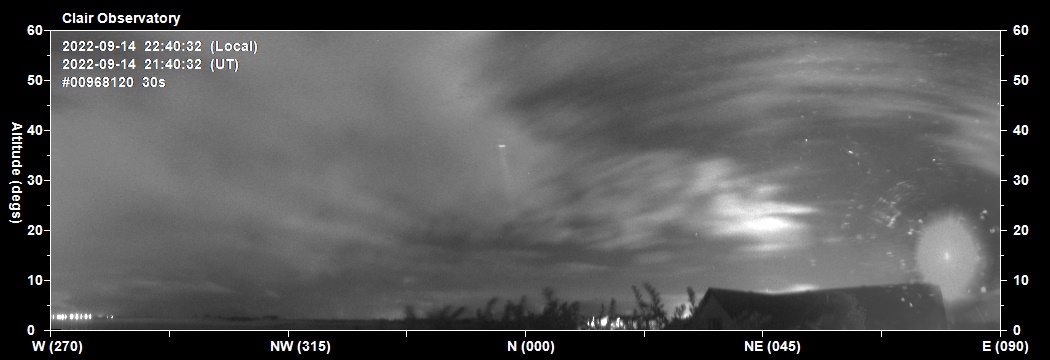

2022-09-14 21:40 UT (22:40 Local) Aurora arc developing. Cloudy moonlit sky. Moon in eastern sky.

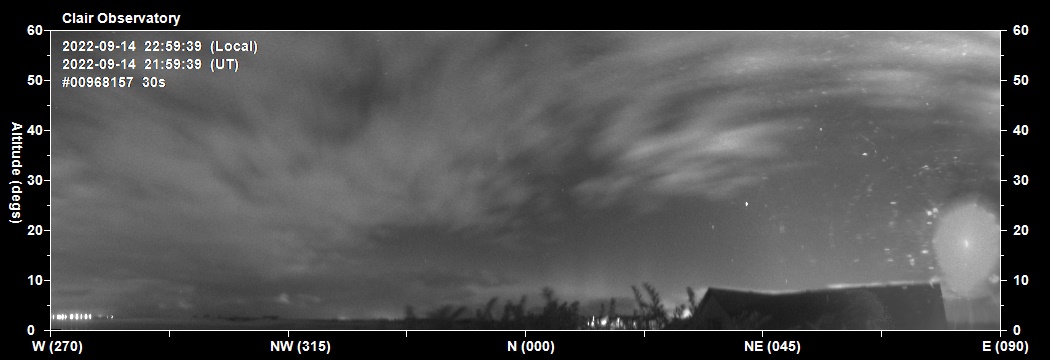

2022-09-14 21:59 UT (22:59 Local) Aurora rays visible to 13 deg (partly obscured by bright moonlit sky background

2022-09-14 21:59 UT (22:59 Local) Aurora arc to 8 deg

2022-09-14 23:01 UT (00:01 Local) Auroral arc to 10 deg, but partly hidden by cloud

2022-09-14 23:10 UT (00:10 Local) Auroral rays to 15 deg altitude. Curtains moving along northern horizon.

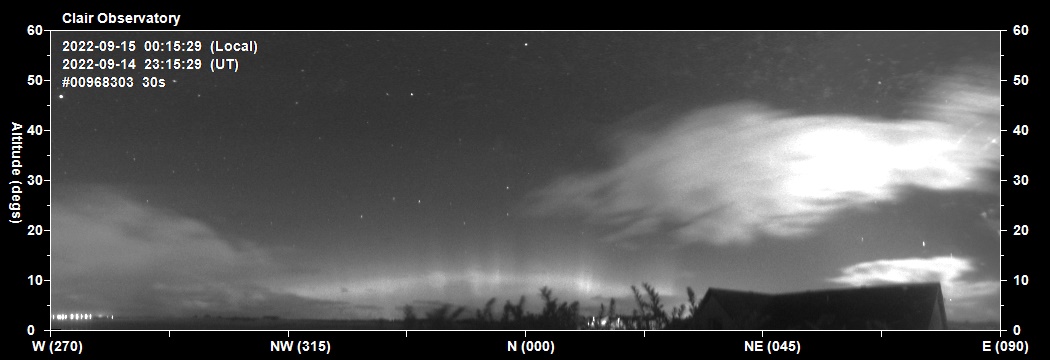

2022-09-14 23:15 UT (00:15 Local) Bright auroral arc and rays (peak activity). Moonlit clouds in NE & ENE sky

2022-09-14  23:18 UT (00:18 Local) Aurora Curtains with rays to 20 deg altitude. Moonlit clouds in ENE sky

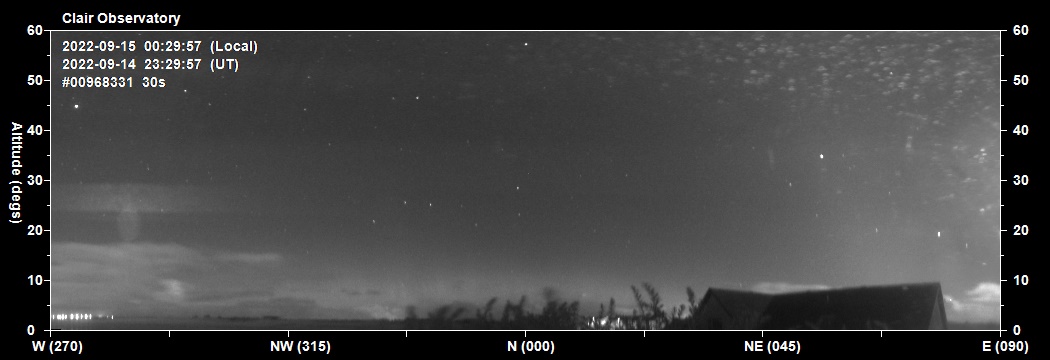

2022-09-14  23:29 UT (00:29 Local) Aurora fading but still visible

2022-09-14  23:47 UT (00:47 Local) Aurora fading, rays still visible to 12 deg

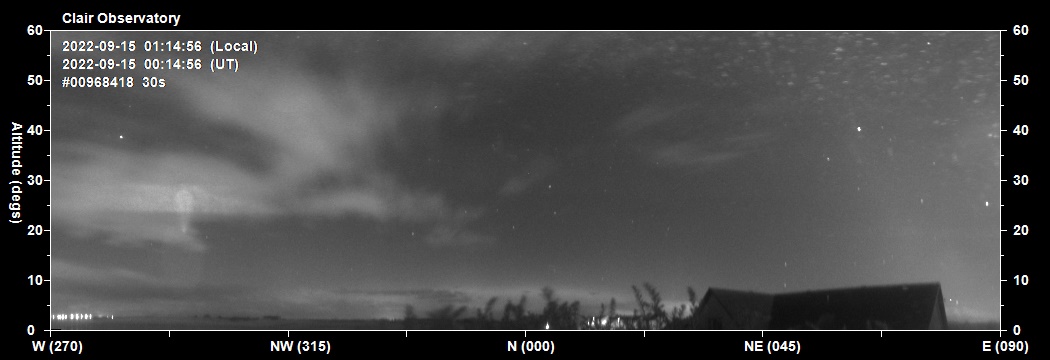

2022-09-15 00:14 UT (01:14 Local) Aurora temporarily brightening again. Arc at 7-8 deg

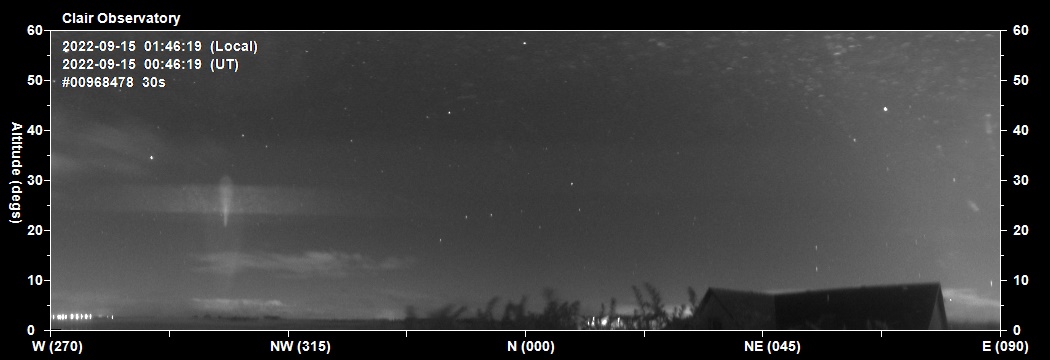

2022-09-15 00:46 UT (01:46 Local) Aurora activity finished

30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Night Summary Plot

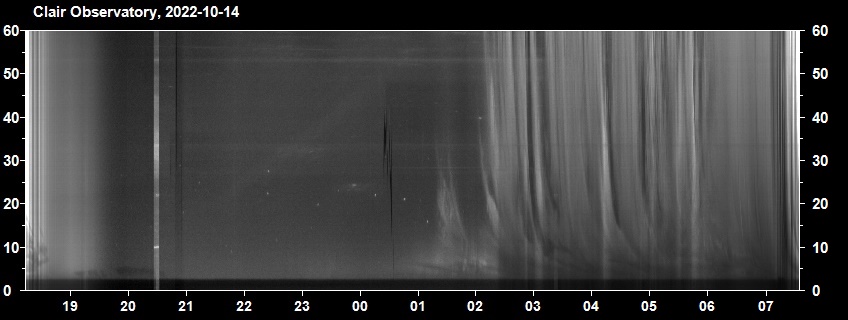

Night Summary Plot - North Sky (2022-10-14 / 2022-10-15) Times on plot are local times (BST = UTC +01h ) Activity visible on keogram from 01:00 to 02:20 BST (00:00 to 01:20 UT)

Back to Top

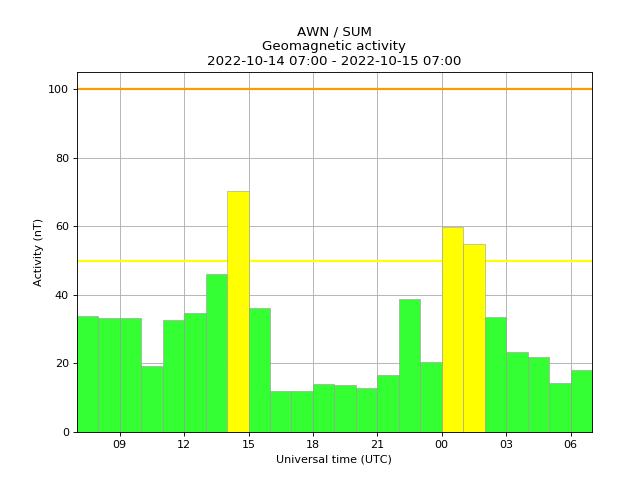

Magnetometer Stack Plots (for reference)

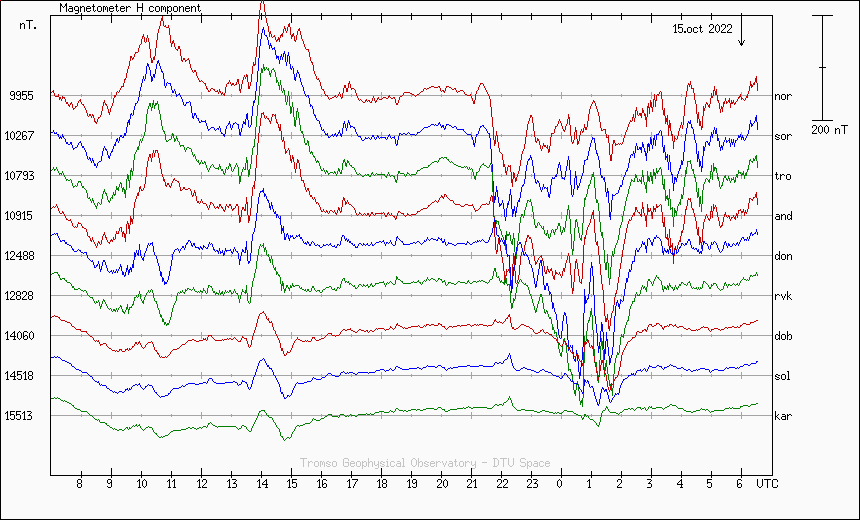

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2022-10-14 / 2022-10-15 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

Planetary K-Index Plot (for reference)

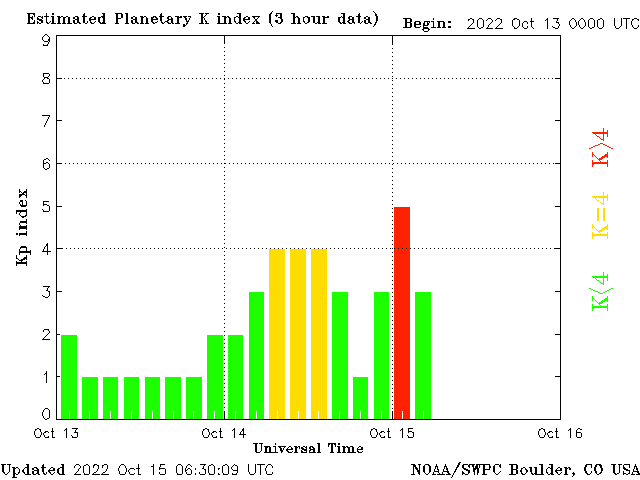

Estimated 3 hour Planetary K-Index (NOAA) (K indices of 5 or greater indicate storm-level geomagnetic activity around earth)  (from http://services.swpc.noaa.gov)

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)
