Aurora on night 2023-09-25 - Under Construction

Aurora Notes
Bullet Night Summary (Keogram) Plot
Bullet Pictures
Bullet Videos
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak auroral activity on the night of 2023-10-22 / 2023-10-23 associated with Kp 3 (G0) geomagnetic conditions.

Skies in NE Scotland were clear the whole night. Activity was visible from the Clair Observatory (+57N)  from 19:40 to 21:00 UT (20:40 to 21:00 LT)

Observed activity comprised a weak auroral arc up to 5 -6 deg altitude,. with faint moving curtains for a brief interval .
Scandinavia magnetometers indicate show a short but very sharp change in readings at 2023-10-22 20:00 to 20:10 UT

- Telescope Images from 2023-10-22 >>


Night Summary (Keogram) Plot

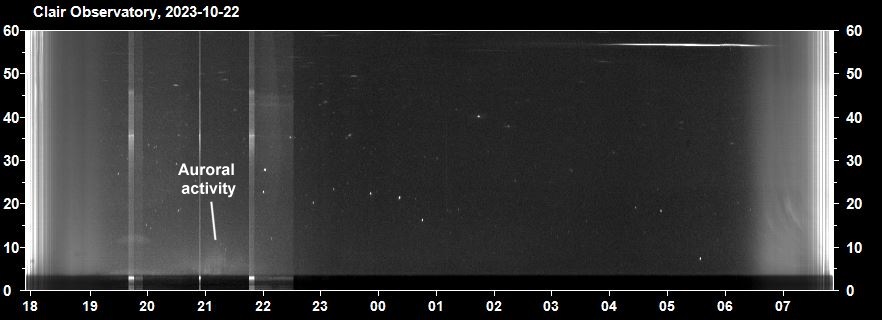

Night Summary Plot - North Sky (2023-10-22 / 2023-10-23 )
Times on plot are local times (BST  = UTC +01h )
Keogram plot affected by neighbours lights until 22:35
Aurora visible from ~ 21:00 to 21:45 LT (20:00 to 20:45 UT)

Back to Top


Pictures

Panoramic View - Northern Sky - Under Construction

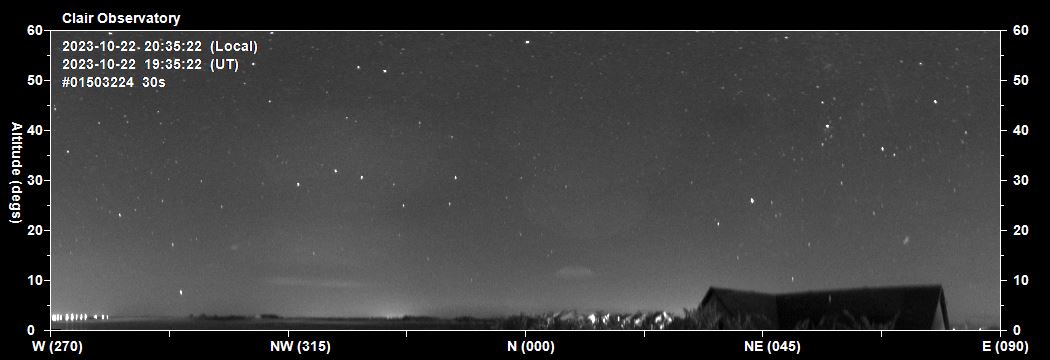

2023-10-22 19:35 UT (20:35 LT)
First signs of auroral activity in form of a weak auroral arc, lying close to the northen horizon

2023-10-22 19:50 UT (20:50 LT)
Continuation of weak auroral arc, lying close to the northen horizon

2023-10-22 20:00 UT (21:00 LT)
Auroral arc brightening

2023-10-22 20:02 UT (21:02 LT)
Auroral arc with faint ray (s) to 10-12 deg altitude between N and NNE

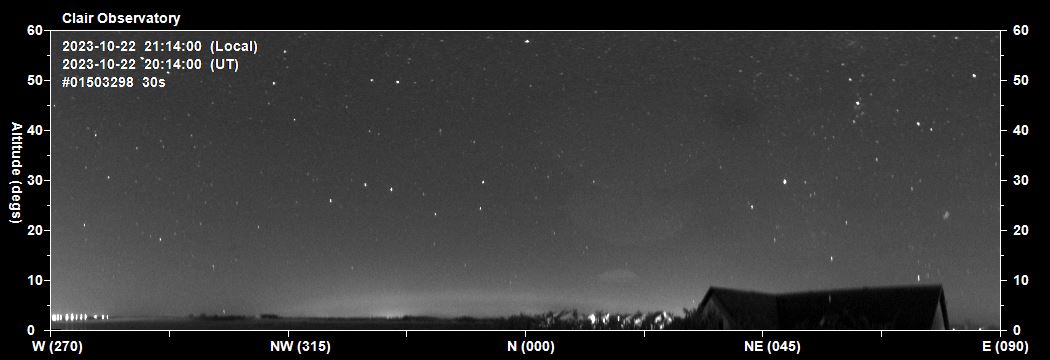

2023-10-22 20:14 UT (21:14 LT)
Auroral arc reach 7 deg altitude

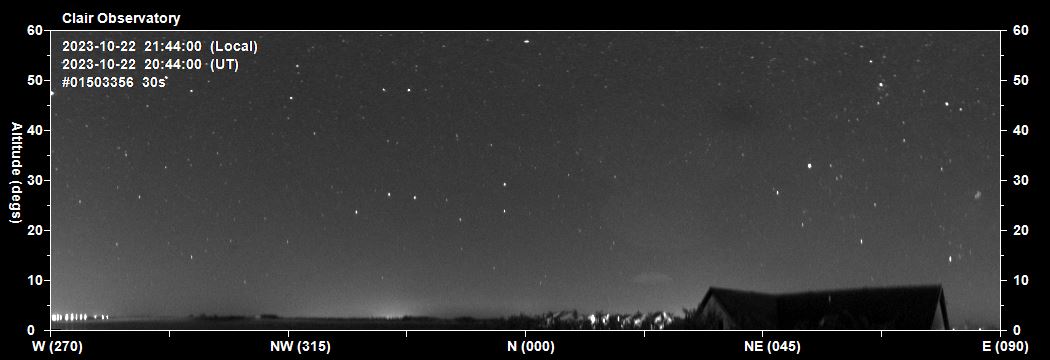

2023-10-22 20:44 UT (21:44 LT)
Auroral arc barely visible.  This rougly marks the end of aurora activity for the night .


30s exposures taken with Oculus All Sky Camera



Back to Top


 Videos

Video: North panoramic view, 2 hr period
2023-10-22 19:30  to 21:30  UT  (20:30 to 22:30 LT)
 Frames #1503214 to 1503445
Link to .mp4 video file (2.3 MB)
0.0s / 0.0s

Back to Top

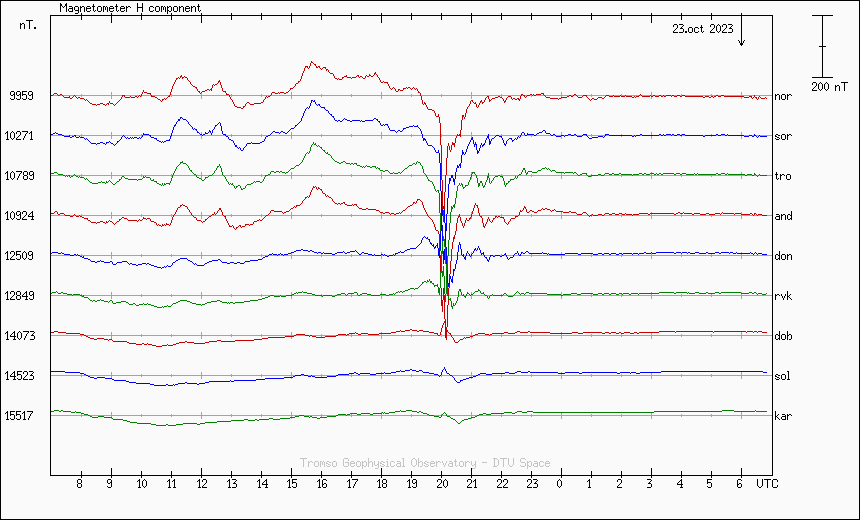

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2023-10-22 / 2023-10-23

Very short but sharp spike in magnetometers readings at 20:00 to 20:10 UT

Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
planetary-k-index_2023-10-22 / 2023-10-23

Not captured

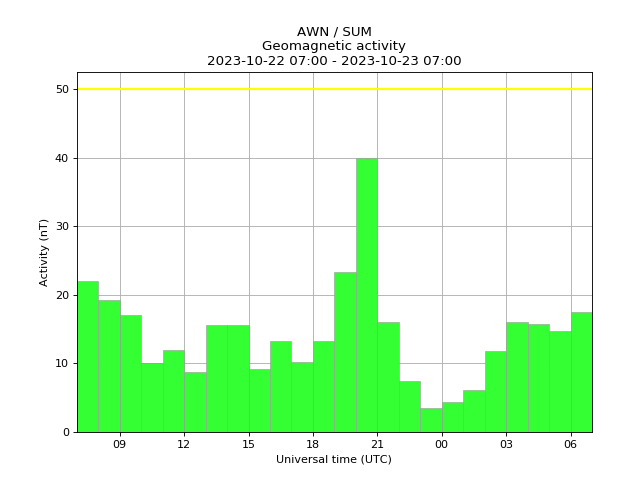

SAMNET's magnetometer at Crooktree, Near Torphins  (Chart Explanation)

-
Shows a moderate spike in activity at 20:00 UT

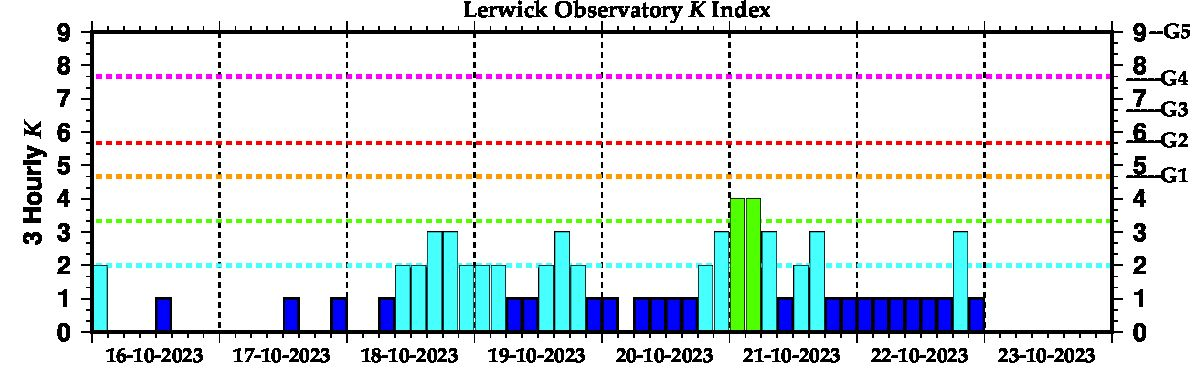

8-day Lerwick Observatory K Index
Showing a KP 3 spike in the evening of 2023-10-22

(skies in NE Scotland were cloudy during early hours of 2023-10-23 when a KP 4 activity was recorded at Lerwick)

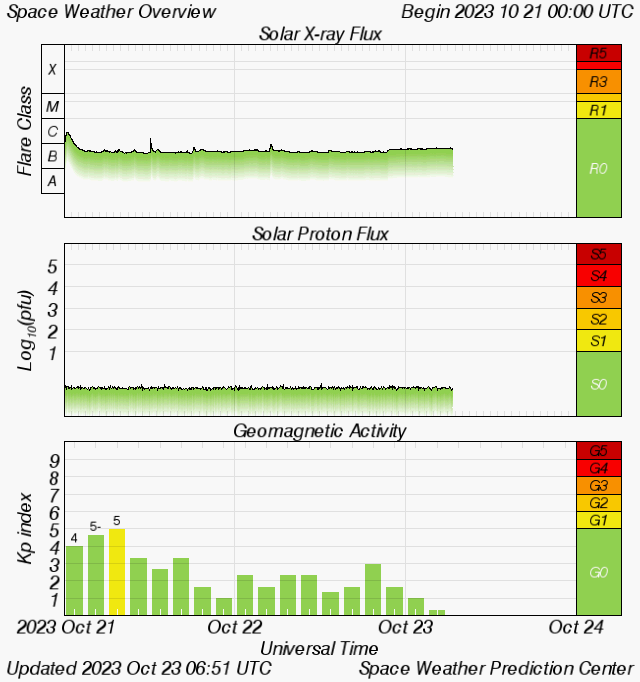

Planetary K-Index and other information (Space Weather Prediction Centre)
shows KP Index reaching KP3 at 2023-10-22 20:00 UT.


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

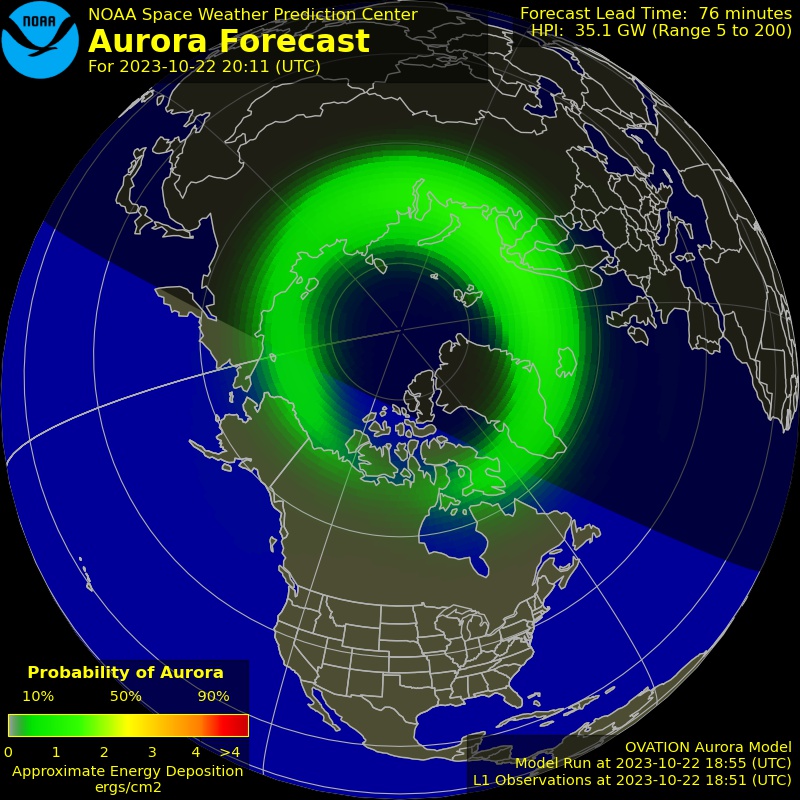

Aurora Forecast for 2023-10-22 20:11 UT (21:11 LT)
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
