David's Astronomy Pages (Solar System)
Comets - 2006

Comet Images (2006) This page summarises observations and images of comets in 2006



Bullet 29P/Schwassmann-Wachmann (Feb)
Bullet 73/P Schwassmann-Wachmann 3-C (Apr-May)
Bullet C/2004 B1 (Linear) (May)
Bullet C/2006 M4 (Swan) (Sep-Dec)
Bullet 4/P Faye (Sep-r)
Bullet P/2006 HR30 (Siding Spring) (Oct-Dec)
Bullet C/2006 L1 (Garradd) (Dec)




29P/Schwassmann-Wachmann

29P/Schwassmann-Wachmann - 2006-02-10
(passing through Aries)

 CCD Image
3 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-02-10 21:17h UT (#114122-24)

Back to Top


73/P Schwassmann-Wachmann 3 - Comet

Comet 73/P Schwassmann-Wachmann 3-B

Animated CCD frame sequence showing motion of
Fragment B over a 26 minute period hrough Star Field on
border between Hercules & Lyra.
  CCD Image (75% size)
8 frames, 30s exposures, 1x1 binning, C Filter
Linear Scale
2006-05-09 00:55h UT (#123203-37)





Fragment B Fragment C
Fragment B - 2005-04-26 Fragment C - 2005-04-26
Image Image

Fragment B - 2005-04-27 Fragment C - 2005-04-27

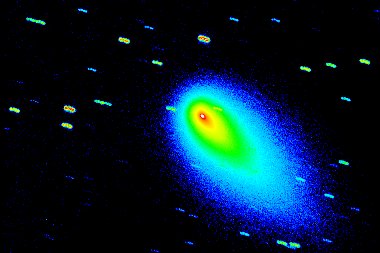

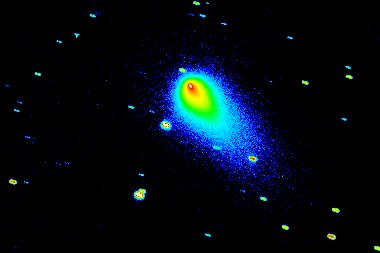

Fragment B - 2005-04-28 Fragment C - 2005-04-28
Image Image

Fragment B - 2005-04-29 Fragment C - 2005-04-29
Image Image

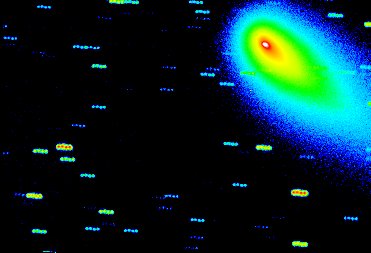

Fragment B - 2005-05-03 Fragment C - 2005-05-03
Image Image

Fragment B - 2005-05-05 Fragment C - 2005-05-05
Image Image

Fragment B - 2005-05-08 Fragment C - 2005-05-08
Image Image

Fragment B - 2005-05-09 Fragment C - 2005-05-09
Image  Image

Fragment B - 2005-05-10 Fragment C - 2005-05-10
Image Image

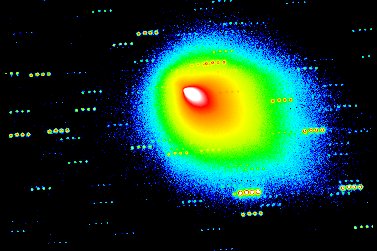

Fragment B - 2005-05-12 Fragment C - 2005-05-12
Image Image

Back to Top


C/2004 B1 (Linear) - Comet

Comet C/2004 B1 (Linear) - 2006-05-09
passing through star field in Aquila

Annotated CCD Image
2 min exposure
2x2 binning, C Filter
2006-05-09 00:07h UT (#123179)

Animation showing movement over 4 minutes
Animated CCD Image
3 x 2 min exposure
2x2 binning, C Filter
2006-05-09 00:07 to 00:11h UT (#123179-81)

Back to Top


C/2006 M4 (Swan) - Comet

Comet C/2006 M4 (Swan) - 2006-09-30
(passing through starfield on border between Ursa Major and Coma Berenices)


CCD Image
2 x 60s exposure, 2x2 binning (average combine), C Filter
2006-09-30 19:19h UT (#144015-16)



Comet C/2006 M4 (Swan) - 2006-10-09
(passing through starfield in Canes Venatici)


CCD Image Mosaic (75% size)
2 min exposure, 2x2 binning, C Filter
2006-10-09 19:31h UT (#146028-35)

C/2006 M4 (Swan) - 2006-10-22
(passing through starfield on border between Bootes & Corona Borealis)


Approximate Colour CCD Image
Red : av 3x 30s (R), Green : av 3x30s (V),  Blue : av 3x 60s (B)
2006-10-22 18:46h UT (#148004-12)




Image as above (150% size)
(details as above)





Comet C/2006 M4 (Swan)
Sequence of Images from 2006-09-30 to 2006-12-25

All 5 x 60 sec exposures
Average combine, Aligned on comet
2x2 binning, C Filter
Log Scale (3000 ADU range)


2006-09-30
19:19h UT
(#144015-16)


2006-10-09
19:11h UT
(#146021-25)


2006-10-23
20:21h UT
(#149058)


2006-10-28
20:23h UT
(#150012-16


2006-11-06
17:56h UT
(#151425-29)


2006-11-16
18:39h UT
(#152011-15)


2006-11-18
17:29h UT
(#154023-27)


2006-11-26
18:54h UT
(#155034-38)


2006-12-02
17:47h UT
(#157034-38)


2006-12-05
18:57h UT
(#158012-16)


2006-12-06
17:42h UT
(#159035-39)


2006-12-08
18:12h UT
(#160039-43)

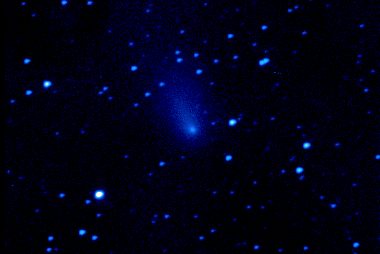

2006-12-15
18:54h UT
(#163012-16)


2006-12-16
18:03h UT
(#164010-14)

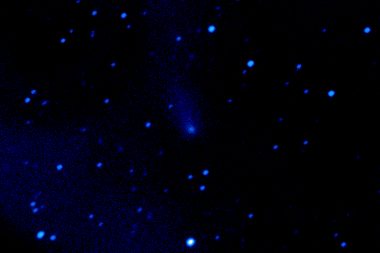

2006-12-23
17:39h UT
(#169014-18)

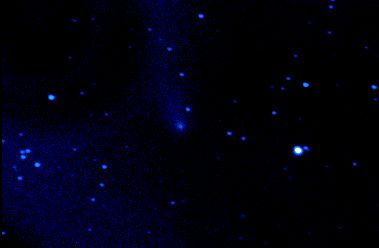

2006-12-25
18:12h UT
(#170012-16)





Back to Top


4P/Faye - Comet

Comet 4P/Faye - 2006-09-01
(passing through starfield in Pisces)


CCD Image
5 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-09-01 22:22 h UT (#136045-49)



CCD sequence showing motion of Comet 4P/Faye
over 5 hour period


Animated CCD Image
3 frames, each 3 x 2 min exposure,
2x2 binning (average combine), C Filter
2006-09-01 22:20 h UT (#136045-047)
2006-09-02 01:09 h UT (#136299-301)
2006-09-02 03:18 h UT (#136469-471)



Comet 4P/Faye - 2006-09-08
(passing through starfield in Pisces)


CCD Image
3 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-09-08 22:31 h UT (#141176-78)

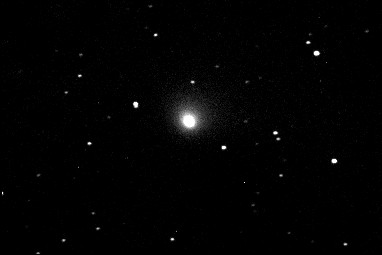

4P/Faye - 2006-11-18
(passing through starfield in Cetus)


CCD Image
3 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-11-18 01:52 h UT (#153203-05)

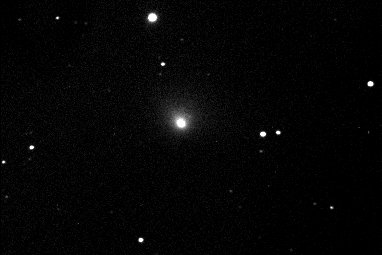

4P/Faye - 2006-11-26
(passing through starfield in Cetus)


CCD Image
3 x 2 min exposure, 2x2 binning (average combine), C Filter
2006-11-26 20:33 h UT (#155122-24)


Back to Top


P/2006 HR30 (Siding Spring) - Comet

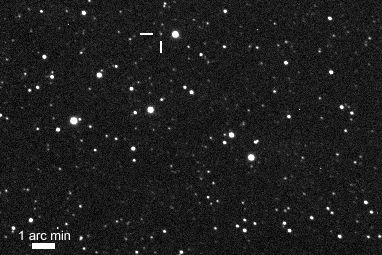

 P/2006 HR30 (Siding Spring) - 2006-10-12
(passing through starfield in Cygnus)


CCD Image
2 min exposure, 2x2 binning, C Filter
2006-10-12 21:45h UT (#147063)


Comet P/2006 HR30 (Siding Spring) - 2006-12-02
(passing through starfield in Cygnus)
Estimated magnitude +14.7
(significantly dimmer than +11.9 reported for the comet in TheSky)


CCD Image
3 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-12-02  18:14h UT (#157062-64)

Image on 2006-12-02 18:14h UT.
Note presence of object at
position of white indicator
Image taken 3 days later.
Note absence of object at
position of white indicator
Image Image

Back to Top


C/2006 L1 (Garradd) - Comet

 C/2006 L1 (Garradd) - 2006-12-15
(passing through starfield in Auriga)
The comet appears trailed in this 180 sec exposure due to its
motion relative to background stars


CCD Image
180s exposure, 2x2 binning, C filter,  Linear scale
2006-12-15 21:51h UT (#163173)


Comet C/2006 L1 (Garradd) - 2006-12-18
(passing through starfield in Auriga)


CCD Image
12 x 60s exposure (average combine, aligned on comet),
  2x2 binning, C filter,  Linear scale
2006-12-18 00:30h UT (#165216-27)




CCD Image
60s exposure, 2x2 binning, C filter
2006-12-18 00:30h UT (#165221)



C/2006 L1 (Garradd) - 2006-12-19
(passing through starfield in Auriga)


CCD Image
5 x 60s exposure (average combine, aligned on comet),
  2x2 binning, C filter,  Linear scale
2006-12-19 20:40h UT (#167044-48)


C/2006 L1 (Garradd) - 2006-12-25
(passing through starfield in Perseus)


CCD Image
5 x 60s exposure (average combine, aligned on comet),
2x2 binning, C filter,  Linear scale
2006-12-25 21:20h UT (#170205-09)
