HD 149026 - Parent Star to Exosolar Planet

HD 149026 (Hercules)

Annotated CCD Image  3 x 30s (average combine), C filter) 2006-07-23 22:50h UT (#131053-55)

Monitoring HD 149026 for small magnitude changes during exosolar  planet transits will be difficult due to the lack of a suitable  reference star of similar brightness within the same field of view. Less accurate method of monitoring will be to alternate frames of  HD 149026 with frames from offset reference star.

Possible offset stars :

HIP 80885  (Hercules) HIP 80885 is actually a double star (Struve 2059)  with 1 arc sec separation (too small to be  seen at resolution of image)

CCD Image  3 x 15s (average combine), C filter) 2006-07-23 23:14h UT (#131092-94)

Back to Top

HD 189733 - Parent Star to Exosolar Planet

HD 189733 (Vulpecula) This star has an extra-solar planet (HD 189733b), whose transit should just be  detectable as a slight dimming of the sol star. This will be a future observing challenge. In preparation some baseline frames were acquired in V and B bands.

Approximate Colour CCD Image Luminance : 3 x 30s  (median combine, C Filter),  Red : 3 x 30s (medium combine, R filter), Green : 3 x 30s (medium combine, V filter), Blue : 3 x 60s (medium combine, B filter) 2006-04-27 02:46h UT (#117200-11)

HD 189733 - B Band

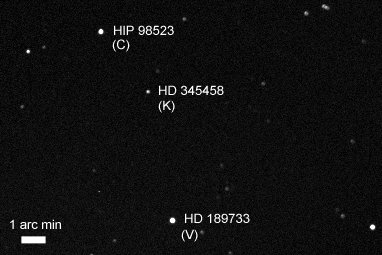

Annotated CCD Image 20 sec exposure, 2x2 binning, B Filter  2006-04-28 00:22 h UT (#118196)

HD 189733 - V Band

CCD Image 10 sec exposure, 2x2 binning, V Filter  2006-04-28 00:22 h UT (#118197)

Tests suggest imaging at 60s (B) and 30s (V) to improve S/N  HIP 98523 catalog mag : 9.46 (B),  8.19 (V),   (B-V  1.27) HD 189733 catalog mag : 8.87 (B), 7.79 (V),  (B-V  1.08) HD 345458 catalog mag : 11.39 (B), 10.73 (V),    (B-V  0.66)

Back to Top

HD 209458 (Osiris) - Star with Extra-Solar Planet

HD 209458 (Pegasus) Alt Names : Osiris, GCVS V0376 Peg, SAO 107623, HIP 108859

CCD Image  60s (C filter) 2006-07-18 01:09 hUT (#130108)

Example V Filter image of HD 209458 HD 209458 (V), HD 209346 (C), GSC 1688:1766 (K)

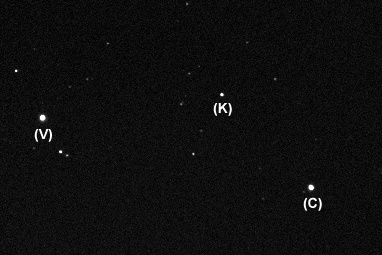

Annotated CCD Image 15 sec exposure (V filter) 2005-08-05  22:30h UT(#91090)

Other Images : 2002-10-02 /  2004-08-20 / 2005-08-05

HD 209458, Attempted Transit Observations

HD 209458b Transit (2006-08-08) - Attempt

Dry Run Analysis 2004-08-20 | Transit Analysis 2005-08-08

Back to Top

HAT-P-1 (ADS 16402 AB) -  Parent Star to Exosolar Planet  HAT-P-1b

ADS 16402  (Lacerta)

Using small automated telescopes in Arizona and Hawaii, the HATNet project has detected an  object transiting one member of the double star system ADS 16402 AB. This system is a pair  of G0 main-sequence stars with age about 3 Gyr at a distance of ~139 pc and projected separation  of ~1550 AU. The transit signal has a period of 4.46529 days and depth of 0.015 mag.

ADS 16402 (Lacerta) Alt Name : B+37 4734 / HAT-P-1

CCD Image  5 x 30s exposure (average combine), 2x2 binning, C Filter 2006-10-22 19:26h UT (#148054-58)

BBC Report   Science Paper

Back to Top

HAT-P-2 (HD 147506), Parent Star to Exosolar Planet

HAT-P-2 / HD 147506 (Hercules)

Annotated CCD Image  3 x 60s (average combine), 2x2 binning, C Filter 2007-05-07 23:23 hUT (#196053-61)

HAT-P-2, Reference Stars

Annotated CCD Image  20s, 2x2 binning, R Filter 2007-05-07 23:31 hUT (#196065)

Back to Top

HAT-P-3 (GSC 3466:819) - Parent Star to Exosolar Planet

Baseline images of HAT-P-3 parent star (GSC 3466:819) were acquired as part of a a future project to attempt to detect the transit of an exosolar planet using my 8" LX200 scope. HAT-P-3 was only recently discovered (Torres et al, 2007, http://exoplanet.eu/papers/torres_2007.pdf ). It rotates around its host star in ~ 2.9 days, and has a reported transit time of 2.06 hours.

HAT-P-3 (Ursa Major) HAT-P-3 (Alias GSC 3466:819) is host star to exoplanet HAT-P-3b

Annotated CCD Image (70% size, linear scale) 5 x 30s exposure (average combine), 3x3 binning, Xo Filter 2023-01-09 20:26 UT (#1084066-70) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Reference Stars (2023) Variable Star (V) - HAT-P-3 (GSC 3466:819, catalog mag 11.4) Calibration Star (C) - GSC 3466:1158 (catalog mag 10.88) Check Star (K) - GSC 3466:1145 (catalog mag 11.8) (Details loaded to Analysis/Reference/ProjectStars.txt)

Annotated CCD Image (70% size, linear scale) 5 x 30s exposure (average combine), 3x3 binning, Xo Filter 2023-01-09 20:26 UT (#1084066-70) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

HAT-P-3 Parent Star / GSC 3466:819  (Ursa Major)

Annotated CCD Image  3 x 30 sec exposure (median combine), 2x2 binning, C Filter 2007-08-13 22:25h UT (#204079-87) 8" LX200 Classic + ST-7E

Reference Stars (2007)

Annotated CCD Image  60 sec exposure, 2x2 binning, R Filter 2007-08-08 13 22:32h UT (#204091) 8" LX200 Classic + ST-7E

Back to Top

HAT-P-5 (GSC 2634:1087) - Parent Star to Exosolar Planet

Baseline images of HAT-P-5 parent star (GSC 2634:1087) were acquired as part of a a future project to attempt to detect the transit of an exosolar planet using my 8" LX200 scope. HAT-P-5 was only recently discovered (reference) . It rotates around its host star in ~ x,x days, and has a reported transit time of x.xx hours.

HAT-P-5 Parent Star / GSC GSC 2634:1087 (Lyra)

Annotated CCD Image  3 x 60 sec exposure (average combine), 2x2 binning, C Filter 2008-06-08 23:36h UT (#290040-44)

HAT-P-5  - Reference Stars

Annotated CCD Image  2 x 60 sec exposure (average combine), 2x2 binning, R Filter 2008-06-08 23:42h UT (#290040-44)

Back to Top

HAT-P-12 (GSC 3033:706)- Exoplanet Host Star

HAT-P-12 (Canes Venatici) Through Astrodon Exoplanet Blue Blocking (BB) Filter HAT-P-12 (GSC 3033:706) :  V Mag +12.84 C1 (GSC 3033:996): V Mag +13.130 (0.025) , 000-BLT-550 C2 (GSC 3033:872): V Mag +13.314 (0.031), 000-BLT-551 C3 (GSC 3033:978): V Mag +12.924 (0.039), 000-BLT-549 C4 (GSC 3033:754): Mag +13.939 (0.035),  000-BLT-552 K (GSC 3033:865): Mag +14.1

Annotated CCD Image (70% size) Taken through Astrodon Exoplanet Blue Blocking (BB) Filter 25 x 30s exposure (average combine), 3x3 binning, BB / Xo Filter 2019-02-26 23:48 UT (#669271-95) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Faint Galaxies in same star field as HAT-P-12  PGC 2223954 (catalog mag +17.8) PGC 2222734 (catalog mag +18.4)

Annotated CCD Image (70% size) Image details as above

HAT-P-12 - Earlier Image (2019-02-13) Alias GSC 3033:706

Annotated CCD Image (50% size) 3 x 30s exposure (average combine), 3x3 binning, C Filter 2019-02-13 23:06 UT (#663253-55) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

HAT-P-12 through Astrodon Exoplanet Blue Blocking (BB) Filter  Cloud unfortunately prevented acquisition of planned images through BB (Xo) filter

Back to Top

Kepler-17 - Exoplanet Host Star

Kepler-17 (Canes Venatici) MagV 14.31, MagR 13.60 Kepler-17b Exoplanet Period 1.4857d, Transit 2.18h, Depth 22.48 mmag (2023-01-19)

Kepler-17 and adjacent stars

Annotated CCD Image (70% size, linear scale) 4 x 60s exposure (average combine), 3x3 binning, Xo Filter 2023-01-18 20:45 UT (#1088070-73) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Kepler-17

Annotated CCD Image (70% size, linear scale, cropped) Image details as above

Back to Top

K2-18 - Exoplanet Host Star

K2-18 (Leo) Parent Star to exoplanet K2-18 ,  located 111 ly from Earth The new planet is just over twice the size of Earth - in a planet category known as a "super Earth" - and has a temperature cool enough to have liquid water, between zero and 40C K2-18b was in news in Sept 2019 with the story "Astronomers have for the first time discovered water in the atmosphere of a planet orbiting within the habitable zone of a distant star" https://www.bbc.co.uk/news/science-environment-49648746

Annotated CCD Image (50% size) 5 x 30s exposure (average combine), 3x3 binning, C Filter 2020-01-12 04:08 UT (#740243-47) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

K2-18 - Detail Magnitude dips associated with K2-18b transits are too small to be seen with my equipment/my skies

Annotated CCD Image (100% size, cropped) Image details as above

Back to Top

TrES-1 / GSC 2652:1324 - Parent Star to Exosolar Planet

TrES-1 Parent Star / GSC 2652:1324 (Lyra) ~ 500 light years, distance Planet orbit 3.03 days

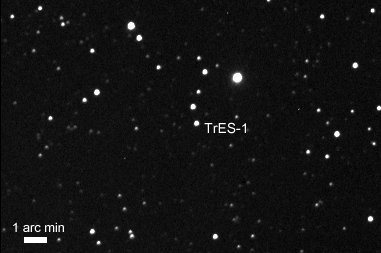

Annotated CCD Image  3 x 20s (average combine), C filter) 2006-07-23 23:32h UT (#131124-26)

Note : Discrepancy seen with GSC 2652:1291 (V Band) mag. Catalog +11.2,  Measured Estimate +10.3.  Recommend monitoring for variability

Back to Top

TrES-2 (GSC 3549:2811) - Parent Star to Exosolar Planet

TrES-2 Parent Star / GSC 3549:2811 (Draco) < 750 light years, distance Planet orbit 2.47063 days  V Magnitude: +11.4 , Spectral Type: G0V ]

CCD Image  3 x 60 sec exposure (average combine), 2x2 binning, C Filter 2006-11-26 19:30h UT (#155074-82) 8" LX200 Classic + ST-7E

Colour Images

Approximate Colour CCD Image  BVR, 2x2 binning Red 3x60s (R Filter),  Green 3x60s (V Filter), Blue 3x120s (B Filter) 2006-11-26 19:30h UT (#155075-85) 8" LX200 Classic + ST-7E

Approximate Colour CCD Image  CBVR, 2x2 binning Luminance : 3 x 60s (C Filter), Red 3x60s (R Filter),  Green 3x60s (V Filter), Blue 3x120s (B Filter) 2006-11-26 19:30h UT (#155075-85) 8" LX200 Classic + ST-7E

Reference Stars

CCD Image  3 x 60 sec exposure (average combine), 2x2 binning, C Filter 2006-11-26 19:30h UT (#155074-82) 8" LX200 Classic + ST-7E

Back to Top

TrES-3 (GSC 3089:929) - Parent Star to Exosolar Planet

Baseline images of TrES-3 parent star (GSC 3089:929 ) were acquired as part of a project to attempt to detect the transit of an exosolar planet using my 8" LX200 scope. TrES-3b was recently discussed to orbit this star. (TrES team,  2007, http://xxx.lanl.gov/PS_cache/arxiv/pdf/0705/0705.2004v1.pdf )

TrES-3 Parent Star / GSC 3089:929 (Hercules)

Annotated CCD Image  3 x 60 sec exposure (average combine), 2x2 binning, C Filter 2007-08-13 23:02h UT (#203194-98)

Reference Stars

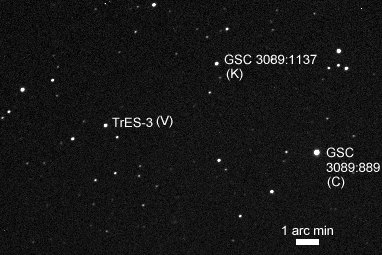

Annotated CCD Image  60 sec exposure, 2x2 binning, R Filter 2007-08-13 23:07h UT (#204124)

Back to Top

TrES-4 (GSC 2620:648) - Parent Star to Exosolar Planet

Baseline images of TrES-4 parent star (GSC 2620:648) were acquired as part of a project to detect the transit of the exosolar planet, that has recently been discussed to orbit this star .  [ BBC news article]

TrES-4 Parent Star / GSC 2620:648 (Hercules)

Annotated CCD Image  3 x 60 sec exposure (average combine), 2x2 binning, C Filter 2007-08-08 01:09h UT (#203194-98)

Reference Stars

Annotated CCD Image  30 sec exposure, 2x2 binning, R Filter 2007-08-08 01:09h UT (#203195)

Back to Top

WASP-1 (GSC 2265:107) - Parent Star to Exosolar Planet

Baseline images of WASP-1 parent star (GSC 2265:107) as part of a project to attempt to detect the transit of an exosolar planet using my 8" LX200 scope.  [WASP-1 paper : http://www.blackwell-synergy.com/doi/abs/10.1111/j.1365-2966.2007.11976.x ]

WASP-1  (GSC 2265:107) (Andromeda)

Annotated CCD Image  3 x 30 sec exposure (median combine), 2x2 binning, C Filter 2007-08-14 00:24h UT (#204224-28)

WASP-1  (GSC 2265:107) (Andromeda)

Annotated CCD Image  3 x 45 sec exposure (median combine), 2x2 binning, C Filter 2007-08-18 00:20h UT (#205011-15)

Reference Stars

Annotated CCD Image  60 sec exposure, 2x2 binning, R Filter 2007-08-18 00:24h UT (#205017)

Back to Top

WASP-2 (GSC 522:1199)  - Parent Star to Exosolar Planet

Baseline images of WASP-2 parent star (GSC 522:1199) were acquired as part of a project to attempt to detect the transit of an exosolar planet using my 8" LX200 scope. WASP-2b was recently discussed to orbit this star.

WASP-2 (GSC 522:1199)  (Delphinus)

Annotated CCD Image  3 x 60 sec exposure (median combine), 2x2 binning, C Filter 2007-08-14 00:32h UT (#203232-36)

Reference Stars

Annotated CCD Image  45 sec exposure, 2x2 binning, R Filter 2007-08-14 00:30h UT (#204233)

Back to Top

WASP-12 - Exoplanet Host Star

WASP-12  (Auriga) WASP 12 (GSC 1891:1178):  V mag 11.7, B-V 0.42, WASP-12 b: Depth 15 mmag, period 1.09d Astrodon Exoplanet Blue Blocking (BB) Filter Conditions too windy for any good images but it demonstrates use of revised centering offset and reveals a potential 6th Reference Star in the FOV hat could also be used for relative photometry (C6,  GSC 1891:188, mag +10.3)

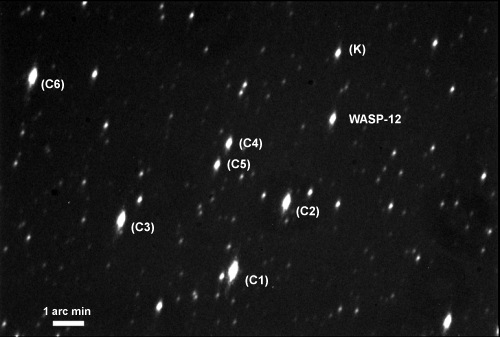

Annotated CCD Image (50% size) 5 x 30s exposure (average combine), 3x3 binning, Xo Filter 2019-02-17 22:41 UT (#664275-79) 12" LX200R (at f/10.4) + ST-10XME

WASP-12 through Astrodon Exoplanet Blue Blocking (BB) Filter - Earlier Image (2019-02-13) Photometric options for measuring a future transit of WASP-12 b are : a) use a single reference star C1 (HD 258379, V mag +9.51, B-V 0.51) with one check star K (GSC 1891:731, mag +12.1)  or b) use an essemble of reference stars C1 to C5 C1 (as above), C2 (GSC 1891:326, mag +10.3), C3 (GSC 1891:741, mag +10.3), C4 (GSC 1891:324, mag +11.3), C5 (GSC 1891:38, mag +12.1) WASP-12:  (catalog V mag 11.7, B-V 0.42, (Image offset should be increased by 1.3' E, 1.6' S to reliably secure all 5 reference stars)

Annotated CCD Image (70% size) 2 x 30s exposure (average combine), 3x3 binning, Xo Filter 2019-02-13 21:54 UT (#663190-91) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Frames have been examined  to check whether the exposure time used (30s) is ok or not. 30s exposure in Xo (BB) filter, 3x3 binning, max pixel 59000 (C1 Star),  42668 (C2 Star),  16280 (WASP-12) Proposal is to change keep exposure time at 30s (3x3 binning) , but drop the C1 star as being too bright

WASP-12  - Earlier Image (2019-02-13)

Annotated CCD Image (50% size) 2 x 30s exposure (average combine), 3x3 binning, C Filter 2019-02-13 21:51 UT (#663184-86) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top

XO-1 (GSC 2041:1657)

Web Info : XO-1 -  McCollough et al. paper

XO-1 (Corona Borealis) This star has an extra-solar planet (XO-1b), whose transit can be  detectable as a slight dimming of the sol star.  This will be a future observing challenge XO-1 : GSC 2041:1657 1 : GSC 2041:186,   2 : GSC 2041:976

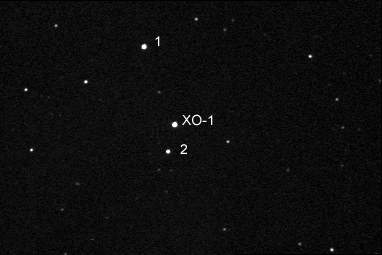

Annotated CCD Image 3 x 30s exposure (average combine), 2x2 binning, C Filter  2006-05-24 23:18 hUT (#127028-30)

Back to Top

XO-2, Parent Star to Exosolar Planet

XO-2 / GSC 3413:5 (Lynx)

Annotated CCD Image  3 x 60s (average combine), 2x2 binning, C Filter 2007-05-07 22:56 hUT (#196028-30)

XO-2, Reference Stars

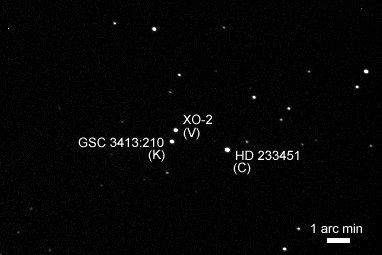

Annotated CCD Image  30s, 2x2 binning, R Filter 2007-05-07 23:07 hUT (#196040)

XO-2, Attempted Transit Observations

XO-2b Transit (2009-11-08)

Back to Top

CoRoT-1 - Exoplanet Host Star

CoRoT-1  (Monoceros) CoRoT-1: V mag 13.6,  alias GSC 4804:2268 CoRoT-1b:  Depth 21 mmag, period ~1.51d

CoRoT-1 through Astrodon Exoplanet Blue Blocking (BB) Filter Image taken with revised centering offsets to more reliably secure all 7 reference stars) Exposure had been changed to 60s following earlier attempt at 30s, however 60s image produces max pixel value of 62700  for C1 & 61000 for C5 Whilst dropping to 45s is an option, the 60s image produces a max pixel of only 13700 for CoRoT-1, therefore dropping C1 and C5 , and adding C8 (GSC 4804:2216, mag 11.6) might be an alternative option

Annotated CCD Image (70% size) 60s exposure (single frame), 3x3 binning, Xo Filter 2019-02-17 22:10 UT (#664246) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

CoRoT-1 through Astrodon Exoplanet Blue Blocking (BB) Filter - Earlier Image (2019-02-13) Photometric options for measuring a future transit of CoRoT-1 b are : a) use a single reference star C1 (GSC 4804:1326 (C1, V mag +10.55, B-V 0.87) with one check star GSC 4804:1592 (mag +13.4)  or b) use an essemble of reference stars C1 to C7 C1 (as above), C2 (GSC 4804:1354, mag +11.8), C3 (GSC 4804:2194, mag +11.4), C4 (HIP 32600,mag +10.92), C5 (GSC 4804:1766, mag +11.8), C6 (GSC 4804:1756,  mag+12.8), C7 (GSC 4804:1170, mag 12.6) CoRoT-1: (catalog V mag 13.6, B-V 0.16) (Image offset should be increased by 1.4' W, 0.5' S to reliably secure all 7 reference stars)

Annotated CCD Image (70% size) 2 x 30s exposure (average combine), 3x3 binning, Xo Filter 2019-02-13 21:31 UT (#663162-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

30s exposure in Xo (BB) filter, 3x3 binning, max pixel 22950 (C1 Star),  3300 (CoRoT-1)

CoRoT-1 - Earlier Image (2019-02-13)

Annotated CCD Image (50% size) 2 x 30s exposure (average combine), 3x3 binning, C Filter 2019-02-13 21:29 UT (#663159-60) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top

Ross 128 - Exoplanet Host Star (FI Virginis, HIP 57548)

Ross 128 (Virgo) Alias:  HIP 57548, FI Virginis Ross 128 : mag +11.12, 11.03 ly distance Ross 128b :  orbit period 9.9 days

Annotated CCD Image (70% size) 4 x 20s exposure (average combine), 3x3 binning, C Filter 2020-03-27 22:59 UT (#764099-103) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top

Future Project Stars

Potential Future Project Stars

CoRoT-Exo-1
  (Host Star    . http://exoplanet.eu/papers/PR-CoRoT-1.pdf
- http://exoplanets.org/detail/CoRoT-1_b

TrES-5
- http://exoplanets.org/detail/TrES-5_b

HAT-P-36

GJ 436, Leo

HAT-P-5 (2634:1087)  -  http://www.perseus.gr/Astro-Photometry-HAT-P-5-20080528.htm



Monitor TransitSearch.org for new or potential transiting planets.
