Bullet Uranus
Bullet Neptune
Bullet NGC 7009 Planetary Nebula (Saturn Nebula)
Bullet 433 Eros Minor Planet

> Notes from CCD Session 27

Uranus

Uranus + the moons Oberon and Titania
2002-09-23  21:26h UT
CCD Image, 5 x 5 sec exposure (2x2 binning)
11.4 x 7.6 arc min  (#27012-16)

Uranus + the moons Oberon and Titania
2002-09-23  21:23 to 21:25h UT
CCD Image, 5 x 15 sec exposure (1x1 binning)
.. x ..  arc min  (#27007-11)

Back to Top


Neptune

Neptune + the moon Triton
2002-09-23  21:32 to 21:34h UT
CCD Image, 5 x 15 sec exposure (2x2 binning)
11.4 x 7.6 arc min  (#27018-22)


Neptune + the moon Triton
(Neptune mag +7.9, Triton est. mag +13.0)
2002-09-23  21:34 to 21:36h UT
CCD Image, 5 x 15 sec exposure (1x1 binning)
3.3 x 2.3 arc min  (#27023-27)

Back to Top


NGC 7009 Planetary Nebula (Saturn Nebula)

NGC 7009 - The Saturn Nebula (Aquarius)
CCD Image - 11.4 x 7.6 arc min
 5 x 30 sec exposure, 2x2 binning, unfiltered
  2002-09-23  21:49h UT (#27035-39)

NGC 7009 - detail
CCD Image (log scale)
Image details as above

NGC 7009 - The Saturn Nebula
CCD Image (50% size)
3 x 2 min exposure (average combine), 1x1 binning, unfiltered
2002-09-23  21:56h UT (#27040-44)
NGC 7009 - The Saturn Nebula (detail)
CCD Image (cropped)
Image details as above
CCD Image (logscale, cropped)
Image details as above
NGC 7009 - The Saturn Nebula (detail)
CCD Image (cropped)
5 min exposure, 1x1 binning, unfiltered
2002-09-23  21:47 to 21:50h UT  (#27045)


Back to Top


433 Eros minor planet)

433 Eros,
track showing 77 arc sec movement of minor planet over a 69 minute period
2002-09-23  22:53h UT to 2002-09-24 00:02h UT
CCD Image, 104 x 30 sec exposure (2x2 binning)
11.4 x 7.6 arc min  (#27057-27161)


433 Eros,
Stacked images aligned on Eros,
showing motion of minor planet against background of stars
2002-09-23  22:53h UT to 2002-09-24 00:02h UT
CCD Image, 104 x 30 sec exposure (2x2 binning)
10.0 x 7.1 arc min  (#27057-27161)

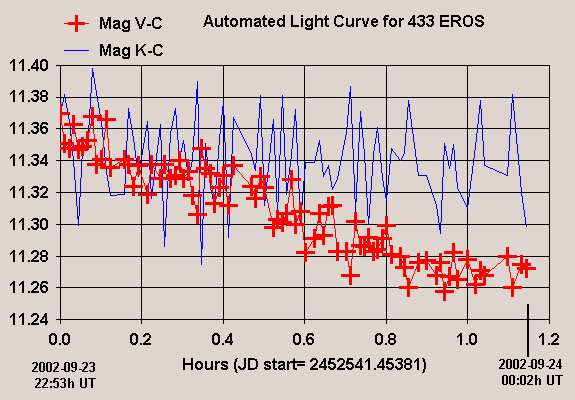

A Light Curve for 433 Eros was later analysed using CCDSoft & VB Script
