Bullet Notes from CCD Session

Bullet IC 5146 (Cocoon Nebula) - Cluster with nebulosity
Bullet NGC 7331 - (Deer Lick Group) - Spiral Galaxy / Galaxy cluster
Bullet NGC 7479 - Spiral Galaxy
Bullet Illapa (37655) - Minor Planet
Bullet Linear Satellite / Meteor Tracks

Notes (S00050)

Sky transparency was fairly poor, with despite the conditions a number of deep sky objects were imaged. 188 CCD frames were taken over a period of 5.2 hours, including a sequence of 103 images (60 sec exposures) of the minor planet Illapa (37655).

Back to Top

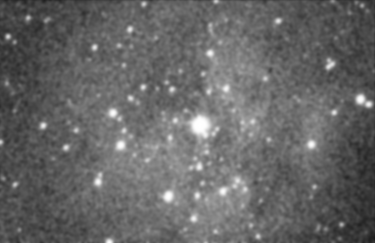

IC 5146 (Cocoon Nebula) - Cluster with nebulosity

IC 5146 (in Cygnus)
CCD image,  4 x 60 sec exposures (summed & smoothed)
2003-08-08  23:12 to 23:18 h UT (#50014-17)
11.1 x 7.2 arc mins

Back to Top


NGC 7331 (Deer Lick Group) - Spiral Galaxy / Galaxy cluster

Deer Lick Group  (in Pegasus)
comprising NGC 7331 (catalog mag +10.3 ),
NGC 7335 (+14.3), NGC 7337 (+15.2)
CCD image,  7 x 300 sec exposures (average combine)
2003-08-08  23:41 to 2003-08-09  00:25 h UT (#50026-35)
11.4 x 7.6 arc mins

Back to Top

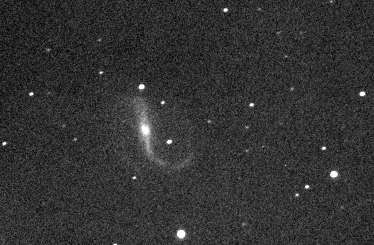

NGC 7479 - Spiral Galaxy

NGC 7479  (in Pegasus)
CCD image,  5 x 60 sec exposures (summed)
2003-08-09  03:31 to 03:27 h UT (#50154-58)
11.4 x 7.6 arc mins

Back to Top


Illapa (37655) - Minor Planet

Illapa  (moving into Aquarius)
Composite image recorded over 2 hours
showing Illapa's rapid movement of 3.87 arc min per hour
due to its close distance to Earth, 0.117 AU from Earth
CCD image,  108 x 60 sec exposures (summed)
2003-08-09  01:12 to 03:19h UT (#50049-152)
11.4 x 7.6 arc mins

Animated sequence of CCD Images showing movement of Illapa (37655)
 click on image below to run animation
60 sec exposures
2003-08-09  01:08 to 03:16h UT (#50048-150)

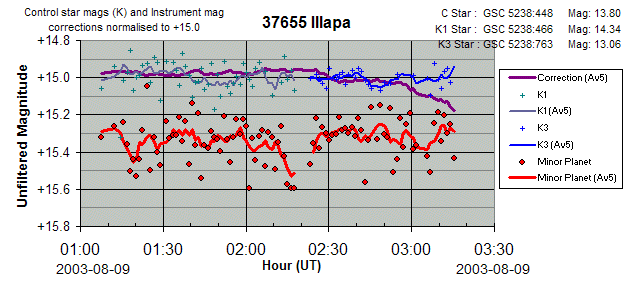

Light curve for 37655 Illapa
Light Curve for 37655 Illapa, generated from 101 CCD Images (60 sec exposures)
 taken over a period of 2 hours.
The light curve records an apparent 0.3 mag variation
(unfiltered mag range of c. +15.25  to +15.5).
Possible trough at 02:15 to 02:20h UT, but unconfirmed due to time gap in images.
Data quality isn't sufficient to be confident in
assessing a rotational period for the minor planet.
2003-08-09  01:08 to 03:16h UT (#50048-152)

See images of Illapa on 2003-08-03 when movement was recorded as 1.25 arc min per hour.

Back to Top


Linear Satellite / Meteor Tracks

During the course of 2 hours observation of Illapa(37655), 3 satellite or meteors crossed the CCD FOV (only 11.4 x 7.6 arc mins). This was quite unusual

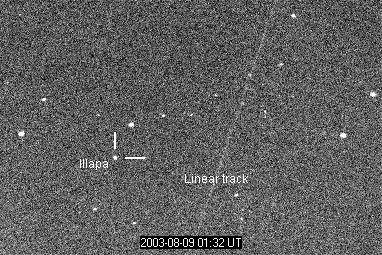

Linear track (1) (#50066)

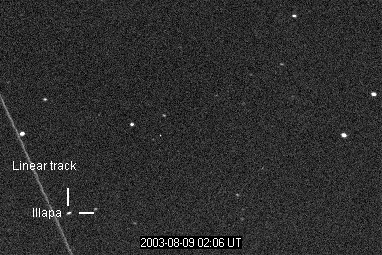

Linear track 2 (#50095)

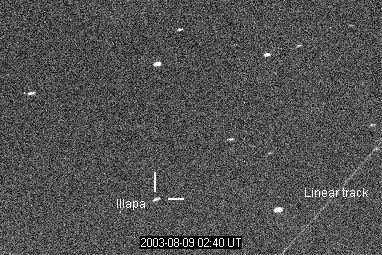

Linear track 3 (#50121)
CCD images,  60 sec exposures
11.4 x 7.6 arc mins

Back to Top
