David's Astronomy Pages
CCD Images - Session 58 (2004-02-19)

Previous Imaging Session
Images
(S57)
  Home
Images
(Main)
  Home
Home
Page
  Next Imaging Session
Images
(S59)

Bullet Notes from CCD Session

Bullet Venus
Bullet C/2002 T7 (Linear) Comet
Bullet NGC 2392 Planetary Nebula (Clown's Face or Eskimo Nebula)
Bullet IC 434 (Horsehead Nebula)
Bullet Abell 744 Galaxy Cluster
Bullet NGC 2903 Spiral Galaxy
Bullet M67 Open Cluster
Bullet NGC 2158 Open Cluster
Bullet M95 Spiral Galaxy
Bullet M105 Elliptical Galaxy
Bullet M65 Spiral Galaxy

Notes (S00058)

Imaging session was at Full Moon , with ST7 CCD camera / Colour Filter Wheel

Back to Top


Venus

Venus (69% phase Mag -4.1)
CCD Image, 0.11 sec exposure, lunar filter
2004-02-19  19:27 h UT (#58044)
8" LX200 operating at f/7)

Simulated View of Venus for 2004-02-19
 (69% phase, Mag -4.1,
16.7 arc sec diameter
(from TheSky)

Back to Top


Comet C/2002 T7 (Linear)

C/2002 T7 (Linear)
(passing through star field in Pegasus)
CCD Image, 14 x 20 sec exposure (summed)
2004-02-19  19:27 h UT (#58079-93)

Colour CCD Image
Red 5x20s (av), Green 5x20s (av),
Blue 5x30s (av), Luminance 12x10s (av)
2004-02-19  19:32 to 19:49h UT (#58048-76)

CCD Image, 12 x 10 sec exposure (average)
Contrast adjusted
2004-02-19  19:32 to 19:38 h UT (#58048-59)

Back to Top


NGC 2392 Planetary Nebula (Clown Face or Eskimo Nebula)

NGC 2392 (Gemini)
Colour CCD Image
Red 3x20s (av), Green 3x20s (av), Blue 3x30s (av)
2004-02-19  20:25 to 20:31 h UT (#58117-25)

Back to Top


Abell 744 Galaxy Cluster

Abell 744 Galaxy Cluster
CCD Image, 13 x 60 sec exposure (summed)
2004-02-19  21:16 to 21:35 h UT (#58158-70)
Brightness to righthand side is caused by a neigbour's security lighting
Despite this, the image records objects down to Mag +18

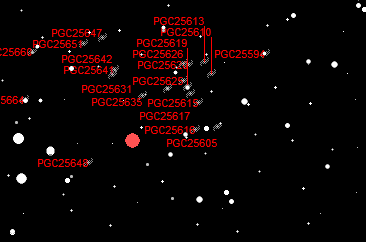

Abell 744 objects within CCD field of view
created using TheSky displaying USNO-A2 stars
The bright star in the image is SAO 98373 (Mag +9.1)

Back to Top


NGC 2903 Spiral Galaxy

NGC 2903 Spiral Galaxy (Leo)
CCD Image,  12x10s (av)
2004-02-19  21:45 to 22:27h UT (#58171-202)

False Colour CCD Image
Log brightness scaling
(image details as above)

Colour CCD Image
Red 6x20s (av. smoothed), Green 6x20s (av, smoothed,
Blue 6x30s (av, smoothed), Luminance 12x10s (av)
2004-02-19  21:45 to 22:27 h UT (#58171-202)

Back to Top


IC 434 (Horsehead Nebula)

IC 434, Horsehead Nebula (Orion)
CCD Image,  16 x 1 min (summed)
Contrast Adjusted
2004-02-19, 22:42 to 22:44 h UT (#58224-37)

Back to Top


M67 Open Cluster

M67
Colour CCD Image,
Red 20s, Green 20s, Blue 30s
2004-02-19, 22:42 to 22:44 h UT (#58208-10)

Back to Top


NGC 2158 Open Cluster

NGC 2158
Colour CCD Image,
Red 2x60s (av), Green 2x60s, Blue 2x90s
2004-02-19, 22:53 to 23:04 h UT (#58216-23)

Back to Top


M95 Spiral Galaxy

M95 (Leo)
CCD Image,  5 x 2 minute exposure (median combine)
2004-02-19, 23:44 to 23:54 h UT (#58249-53)

Back to Top


M105 Elliptical Galaxy

M105 (catalog mag +10.1) , NGC 3384 (catalog mag +10.7),
NGC 3389 (catalog mag +12.4) , (Leo)
CCD Image,  4 x 2 minute exposure (median combine)
2004-02-20, 00:04 to 00:12 h UT (#58256-59)
CCD Image as above, Negative

Back to Top


M65 Spiral Galaxy

M65 (Leo)
CCD Image,  4 x 2 minute exposure (average)
2004-02-20, 00:13 to 00:23 h UT (#58260-63)

Back to Top

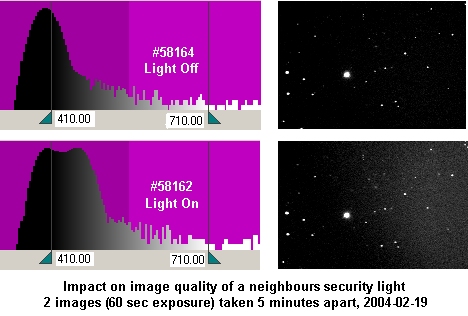

Impact of Neighbour's Security Light

Security Light Impacts on Imaging Abell 744.
CCD Images, 60 sec exposure (0.5 resize)
2004-02-19

Back to Top


This Web Page: CCD Images - Session 58 (2004-02-19)
Last Updated : 2015-05-16
Site Owner : David Richards
Home Page : David's Astronomy Web Site
