Notes (S00061)

Imaging session was with focal reducer bringing 8" f/10 LX200 to f/7. Images were recorded with ST7 CCD camera & CFW8 Colour Filter Wheel.

Main target of interest was the 'new' Kuiper Belt object 2004 DW (diameter 840-1800 km).  With a magnitude of around +19 this was always going to be an ambitious attempt to image, and in part due to less than ideal seeing and comparatively low altitude, the object wasn't imaged

[ Note : 2004 DW is not the same object as the recently announced new Kuiper Belt object called Sedna (2003 VB12), which is even fainter - at around +20.5 in R and has gained recent publicity as being controversially announced as the 10th planet ]

Back to Top

Attempt at imaging 2004 DW (Kuiper Belt Object)

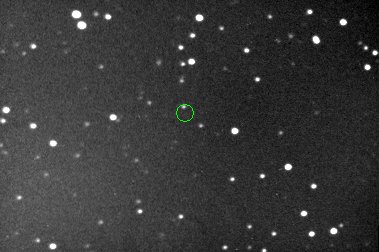

Star Field in Hydra with the predicted position of  2004 DW marked by green circle.  The object in circle is a +16.3 mag star

CCD Image, 10 x 5 min exposure (summed)  clear filter 2004-03-17 21:48 to 22:50 h UT (#61038-50)

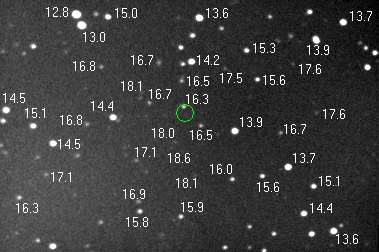

Calculated magnitudes of stars adjacent to the predicted  position of 2004 DW (green circle).  The dimmest star in the image is around +18.  The 'new' Kuiper Belt object is around +19 and therefore  just too faint to see

CCD Image as above

A second attempt to image 2004 DW was made 48 hours later on 2004-03-19, but this also failed.
