CCD Images - Session 112 (2006-01-31)

Previous Imaging Session
Images
(S111)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S113)

Objects Session Notes
Bullet Minor planets 16 Psyche & 11 Parthenope
Bullet Delta Cepheid - Variable Star (Cepheid)
Bullet Almach - Double Star (WDS STF 205)
Bullet UGC 3634 - Spiral Galaxy with Supernova 2005na
Bullet NGC 4565 - Spiral Galaxy
Bullet NGC 4676 - Interacting Galaxy Pair ("The Mice")
Bullet M37 - Open Cluster
Bullet M36 - Open Cluster
Bullet M38 - Open Cluster
Bullet M67 - Open Cluster
Bullet NGC 1499 - (California Nebula)
- 4 hour session, cold (-2 deg C)
- main aim was to continue testing recent imaging control software enhancements and to record follow-up images of 16 Psyche/19 Parthenope and SN 2005na
-
-
- More Notes

Minor planets 16 Psyche & 11 Parthenope

Minor Planets 16 Psyche & 11 Parthenope
(moving through star field in Taurus)

 CCD Image
3 x 1 min exposure (median combine), 2x2 binning, C Filter
2006-01-31 20:39h UT (#112015-17)

CCD Image Animation showing motion of 16 Pysche
& 11 Parthenope over 21 hour period
 2 CCD Image
3 x 1 min exposure (median combine), 2x2 binning, C Filter
i) 2006-01-30 23:46h UT (#111138-40)
ii) 2006-01-31 20:39h UT (#112015-17)
(see earlier animation from 2006-01-30)

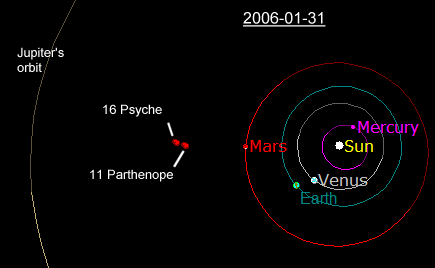

Figure showing location of 16 Psyche
& 11 Parthenope within asteroid belt
(figure prepared using TheSky)

Back to Top


Delta Cepheid - Variable Star (Cepheid)

As part of an ongoing project examining the variability in Delta Cepheid, further image sets of the variable star Delta Cepheid & the reference star SAO 34542 were recorded at around 20:45h UT.  Image sets comprised  7 sequences of  images (3 x 0.2s V & 3 x 0.6s B) alternated between Delta Cepheid & reference star.  These were analyzed using the methodology described under 2005-10-05 Notes, and combined with previous estimates from Oct 2005 and Jan 2006 .
{See also 2006-01-31 notes}

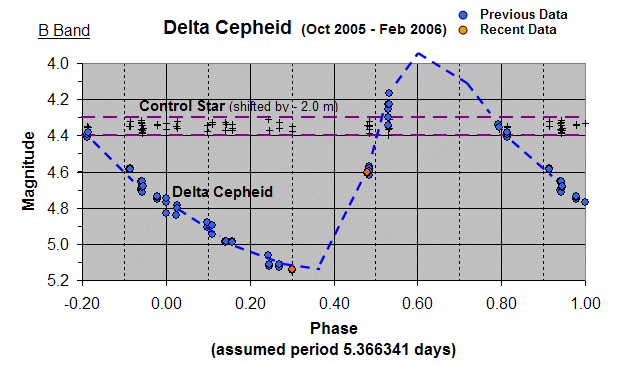

B Band Magnitude estimates for Delta Cepheid based on observations
on 13 observing sessions between 2005-10-02 and 2006-01-31.

(Reference Star SAO 34542)


Back to Top


Almach - Double Star (WDS STF 205)

Almach, Gamma Andromedae (Andromeda)

Double Star (separation 10 arc secs),  Magnitude +2.2 & +5
(catalogs indicate that the dimmer star is itself a pair, but at only
0.5 arc sec separation it can not be separately resolved
 CCD Image (Insert at 250% scaling)
0.11s, 2x2 binning, clear filter
2006-01-31 21:35h UT (#112112)

Back to Top


UGC 3634 - Spiral Galaxy with Supernova 2005na

UGC 3634 (Gemini) with supernova 2005na, one month after discovery

250% enlarged Image of UGC 3634
(dark smudges are frost slugs)
 CCD Image (250% scaling)
5 x 2 min (average combine), clear filter
2006-01-31 21:35h UT (#112133-37)
(Rochester Supernova site | 2005na Discovery Image | Reference Image)
(see earlier image for UGC 3534 / SN 2005na from 2006-01-03)

Back to Top


NGC 4565 - Spiral Galaxy

NGC 4565 (Coma Berenices)

 CCD Image
3 x 60 sec exposure, 2x2 binning, C Filter
2006-01-31 22:20h UT (#112156-58)

Back to Top


NGC 4676 - Interacting Galaxy Pair ("The Mice")

NGC 4676 (Coma Berenices)

Image Image
 CCD Image
3 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-01-31 22:29h UT (#112162-64)

Back to Top


M37 - Open Cluster

M37 (Auriga)

 CCD Image Mosaic (half scale)
60 sec exposure (2x3 frames), 2x2 binning, C Filter
2006-01-31 22:38h UT (#112165-71)
(Full Size Mosaic)

Back to Top


M36 - Open Cluster

M36 (Auriga)

 CCD Image Mosaic (half scale)
60 sec exposure (2x3 frames), 2x2 binning, C Filter
2006-01-31 22:47h UT (#112172-77)
(Full Size Mosaic)



M36 (Auriga)

CCD Image Mosaic (central portion)
detail as above
(Full Size Mosaic)

Back to Top




M38 - Open Cluster

M38 (Auriga)

 CCD Image Mosaic (half scale)
60 sec exposure (3x3 frames), 2x2 binning, C Filter
2006-01-31 23:00h UT (#112179-87)
(Full Size Mosaic)

Back to Top


M67 - Open Cluster

M67 (Cancer)

 CCD Image Mosaic (half scale)
60 sec exposure (3x3 frames), 2x2 binning, C Filter
2006-01-31 23:35h UT (#112189-97)
(Full Size Mosaic)

Back to Top


NGC 1499 (California Nebula)

NGC 1499 - transect (Perseus)
(no sign of nebulosity at 1 min exposure)


 CCD Image Transect  (1x10 frames)
60 sec exposure, 2x2 binning, C Filter
2006-01-31 23:49h UT (#112198-207)
(may require Internet Explorer to display correctly)

Back to Top
