David's Astronomy Pages
CCD Images - Session 157 (2006-12-02)

Previous Imaging Session
Images
(S156)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S158)

Objects Session Notes
Bullet C/2006 M4 (Swan) - Comet
Bullet BL Lac - Active Extragalactic Object (Blazer)
Bullet P/2006 HR30 (Siding Spring) - Comet
Bullet Astrometric & Photometric Monitoring
- HD 5501/5513 (eclipsing variables)
- SS Cyg (dwarf novae)
- Z And (variable)
- BL Lac (BL Lac blazer)
- U And, W And, U Her (Mira variables)
- 2.6 hr session, largely operated under automated control
- CCD operation of -20 degC (at 70% average cooling). Ambient temperature 7 deg.
- session terminated early due to developing cloud
- main objectives were to acquire BVRI images of Mira stars (U Her, U And, W And) as part of ongoing photometric studies, together with follow-up images on C/2006 M4,  BL Lac and M31 Nova (2006 14)
- attempts made to image M31 Nova (2006 14), Palmor 13, and comet 4P/Faye were spoiled by cloud
-
- More Notes
-

C/2006 M4 (Swan) - Comet

Comet C/2006 M4 (Swan)
(passing through starfield in Aquila)


CCD Image
5 x 60s exposure (average combine, aligned on comet),
2x2 binning, C filter,  Linear scale
2006-12-02 17:47h UT (#157034-38)




False Colour CCD Image
Log brightness scaling (3000 ADU range)
(details as above)

Back to Top


BL Lac - Active Extragalactic Object (Blazer)

Set of images (3 x 180s, R Filter) acquired for photometric monitoring.   BL Lac centered.

BL Lac (Lacerta)


CCD Image
120 sec exposure, 2x2 binning, R Filter
2006-12-02 18:06h UT (#157058)

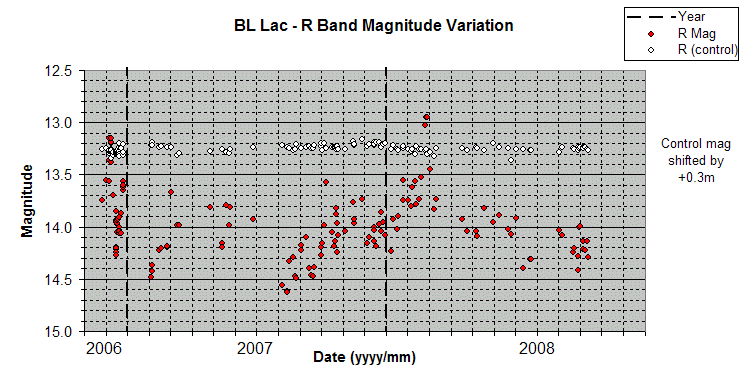

BL Lac monitoring

Back to Top


P/2006 HR30 (Siding Spring) - Comet

Comet P/2006 HR30 (Siding Spring)
(passing through starfield in Cygnus)
Estimated magnitude +14.7
(significantly dimmer than +11.9 reported for the comet in TheSky)


CCD Image
3 x 2 min exposure (average combine), 2x2 binning, C Filter
2006-12-02  18:14h UT (#157062-64)

Image on 2006-12-02 18:14h UT.
Note presence of object at
position of white indicator
Image taken 3 days later.
Note absence of object at
position of white indicator
Image Image
CCD Image
3 x 2 min exposure (average combine),
2x2 binning, C Filter
2006-12-02  18:14h UT
(#157062-64)
CCD Image
3 x 2 min exposure (average combine),
2x2 binning, C Filter
2006-12-05  20:55h UT
(#158124-26)

Back to Top


Astrometric and Photometric Monitoring

Back to Top
