Bullet MPL 2003 EL61 - Kuiper Belt Object / Dwarf Planet
  (now known as 136108 Haumea)
Bullet Orion
- 1.0 hr session.  Snow showers. Sky conditions deteriorating after 45 mins
- CCD operation of -25 degC (at 64% average cooling). .
- main objective was to acquire follow up images of KBO 2003 EL61 and confirm movement of the Kuiper Belt Object against background star
- secondary objective of acquire images for ongoing photometric and astrometric monitoring of the selected stars was not achieved due to developing cloud
- More Notes
-

MPL 2003 EL61 - Kuiper Belt Object / Dwarf Planet (now known as 136108 Haumea)

Kuiper Belt Object - MPL 2003 EL61
(passing through starfield in Coma Berenices)
Estimated Mag 17.0


Annotated CCD Image
10 x 180s exposure (average combine), 2x2 binning, C filter,
2007-03-20  20:58h UT (#184013-23)





MPL 2003 EL61 - Animation of images taken 5 days apart


Animated CCD Image
10 x 180s exposure (average combine), 2x2 binning, C filter,
2007-03-15  22:38h UT (#183238-47)
and
2007-03-20  20:58h UT (#184013-23)

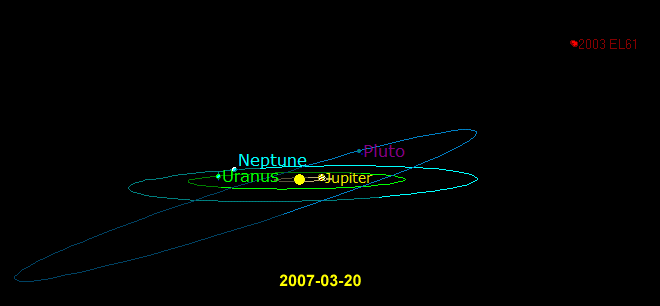

MPL 2003 EL61 Position relative to outer planets
2003 EL61 is third largest known object in the Kuiper Belt,
with a diameter of ~1500 km


Plot constructed using TheSky software (Software Bisque)

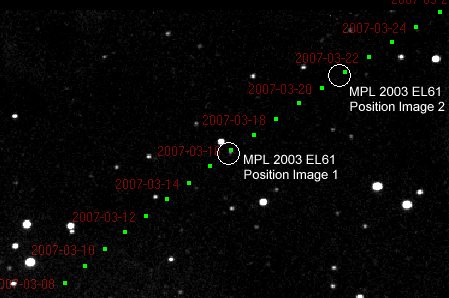

MPL 2003 EL61 'Catalog Positions'


CCD Image / with overlay of MPL 2003 EL61 positions
 from MPCORB.DAT.
Plot constructed using TheSky software (Software Bisque)

Back to Top


Orion

Orion - Constellation


Digital Photo (EOS 400D)
30s, f/5.6, ISO 800, 22mm (cropped)
2007-03-20 20:58 hUT
[ Larger Image | Annotated Image



Orion sitting above Light Pollution
 (Light Pollution from Aberdeen reflected off low cloud,
Lights from Road Traffic /Street Lights in Foreground)


Digital Photo (EOS 400D)
2007-03-20 21:00 hUT
30s, f/5.6, ISO 800, 24mm
