CCD Images - Session 229 (2007-10-30)

Previous Imaging Session
Images
(S228)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S230)

Objects Session Notes
Bullet Comet 17P/Holmes
Bullet Astrometric & Photometric Monitoring
- RX And, TT Ari, Z And, U Mon (variables)
- W And  (Mira Variable)
-
(unsuccessful attempts at U Gem due to dawn light)
- Morning session (2.5hr), cold, frosty
CCD operation of -25 degC (at 71% average cooling).
- main objective of the session was to acquire an follow up images of recently erupted comet 17P/Holmes

Comet 17P/Holmes

Comet 17P/Holmes  - passing through starfield in Perseus

CCD Image Mosaic (5 x 6), 35% size
20s exposure, 2x2 binning, C Filter, Log Scale
2007-10-30 04:57h UT (#229040-69)
[ 70% Size ]



Comet 17P/Holmes - motion
Animation showing 10 arc min motion over 24 hour period

Animated CCD Images
5 x 10s exposure (average combine), 2x2 binning, C Filter,
Log Scale
Frame 1 : 2007-10-29 04:43h UT (#228038-42)
Frame 2 : 2007-10-30 04:47h UT (#229035-39)


Comet 17P/Holmes - detail

CCD Image
5 x 10s (average combine), 2x2 Binning, C Filter, Log Scale
2007-10-29 04:47h UT (#229035-39)



CCD Image
30s, 2x2 Binning, C Filter, Log Scale
2007-10-30 04:37h UT (#229011)



CCD Image , Linear Scale
(Image details as above)



False Colour CCD Image
Square root scale, False Colour (Inverse Spectrum)
(Image details as above)

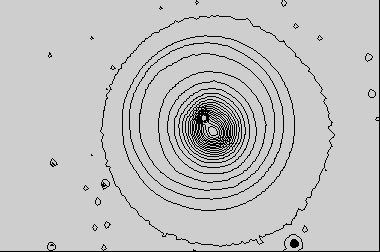

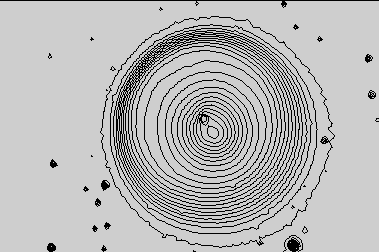

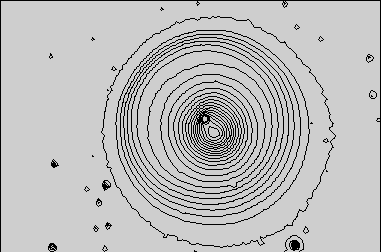

Comet 17P/Holmes - Isophoto Contouring

Image Linear
Scale
Image Square
Root
Scale
Image Log
Scale

CCD Image (50% size), Linear Scale
20s exposure, 1x1 binning, C Filter,
2007-10-30 04:44h UT (#229028)
False Colour CCD  Image (50% size)
Square Root brightness scaling & Isophote Contoured,
False Colour (Inverse Spectrum).
Image details as above.


Comet 17P/Holmes - Rotational Gradient Processing

Original CCD Image
5 x 10s (average combine), 2x2 Binning, C Filter, linear Scale
2007-10-30 04:47h UT (#229035-39)
Processed CCD Image
Rotational Gradient Processing, 20 deg
Cropped
(Image details as above)
Processed CCD Image
Rotational Gradient Processing, 15 deg
(Image details as above)


Comet 17P/Holmes - explosive eruption
Frames taking on Oct 25th, 29th 30th showing expanding coma
that relates to the 2007-10-23 eruption event

 2007-10-25 (2.1 arc min diam)
2007-10-29 (7.0 arc min diam)
2007-10-30 (9.3 arc min diam)

Animated CCD Images
5 x 10s exposure (average combine), 2x2 binning, C Filter,
Log Scale
Frame 1 : 2007-10-25 20:45h UT (#227055-59)
Frame 2 : 2007-10-29 04:43h UT (#228038-42)
Frame 3 : 2007-10-30 04:47h UT (#229035-39)



Back to Top


Astrometric and Photometric Monitoring

Back to Top
