CCD Images - Session 286 (2008-05-07)

Previous Imaging Session
Images
(S285)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S287)

Objects Session Notes
Bullet Star Spectra
Bullet P Cyg - LBV Star
Bullet Vega - A0 Star
Bullet 10 Lac - O9 star
Bullet Zeta Oph - O9 star
Bullet 108 Vir - B9 star
Bullet Yed Prior (Delta Oph) - M1 star
Bullet V0973 Cyg - M3 star
Bullet XY Lyr - M4 star
Bullet R Lyr - M5 star
Bullet U Her - M6-M9 star / Mira variable
Bullet V460 Cyg - C6 star
Bullet HK Lyr - C6 star
Bullet NGC 7026 - Planetary Nebula ("Cheeseburger Nebula")
Bullet Astrometric & Photometric Monitoring
- SS Cyg, U Gem (dwarf nova)
- SS Her, U Her (mira variable)
- BL Lac (blazar)
- KR Aur, SY Cnc, AM CVn, AM Her, SZ Her, RZ LMi, ER UMa (variables)
- V2491 Cyg (nova)
- Barnard's Star, 61 Cyg, Gliese 412, Groombridge 34, Ross 248 (HH And)  (Nearby Stars)



- Late evening/night session (4.3hr) - operated & monitored under remote control
- CCD operation of -20 degC
(at 76% average cooling).
-  main objective was to acquire images of certain selected stars for ongoing photometric and astrometric analysis

Star Spectra

Star Name
(designation)
Spectra Type
(catalog)

Spectra Lines  ( Star Analyser 100)


Image Date/No. & Notes

10 Lac 09 Image 2008-05-08  (#286167-69)
Zeta (13) Oph
HIP 81377
09 Image 2008-05-08  (#286142-44)
P Cyg B1Iapeq Image 2008-05-08 (#286177-79)
108 Vir B9 Image 2008-05-07 (#286026-30)
Vega
Alpha Lyr
A0 Image 2008-05-07 (#286046-48)
Groombridge 34
And
 M1 Image  2008-05-08 (#286242-44)
Yed Prior
Delta Oph
 M1 Image  2008-05-08 (#286147-49)
V0973 Cyg
HIP 97151
 M3 Image  2008-05-08 (#286212-14)
 XY Lyr   M4 Image  2008-05-08  (#286153-55)
 R Lyr   M5 Image  2008-05-08  (#286189-91)
 V0460 Cyg C6,4(N1)  Image  2008-05-08 (#286217-19)
HK Lyr C6,4(N4) Image 2008-05-08  (#286200-02)
 U Her   M6-M9 Image  2008-05-07  (#286083-85)

 NGC 7026 Pl.Neb Image  2008-05-07  (#286182-84)



Back to Top


P Cyg - LBV Star

P Cyg is a hypergiant luminous blue variable (LBV) star of spectral type B2 Ia that is one of the most luminous stars in the Milky Way galaxy and is located about 5000 to 6000 light years from Earth.  Luminous Blue Variable stars like P Cygni are very rare and short lived, and only form in regions of galaxies where intense star formation is happening. LBV stars are so massive and energetic (typically 50 times the mass of our sun and tens of thousands of times more luminous) that they exhaust their nuclear fuel very quickly. After shining for only a few million years (compared to several billion years for our sun) P Cyg will end its life by erupting as a supernova.

The spectra of P Cyg shows strong emission lines, particularly H alpha, associated with clouds of Hydrogen surrounding the star.

P Cyg (Cygnus)
3 x 10s
2008-05-08 01:16hUT
(#286177-79)
Spectral Emission Lines in P Cyg (Cygnus)
CCD Spectral Profile (200%)
3 x 10s, 1x1 binning,  Original Dispersion 33.6 A/px
2008-05-08 01:16hUT (#286177-79)


Later Image of P Cyg (2008-05-09)

CCD Image
3 x 5s exposure (average combine), 2x2 binning, C Filter
2008-05-09 01:50h UT (#287186-88)

Back to Top


Vega - A0 Star

Vega (Alpha Lyr)
CCD Spectral Profile
3 x 0.5s, 1x1 binning, Star Analyser 100
2008-05-07 23:01hUT
(#286046-48)
Spectral Absorption Lines in Vega (Lyra)
O2 and H2O lines are due to absorption in the Earth's atmosphere)
H-epsilon and H-zeta lines are not visible due to decreasing
sensitivity of CCD chip in violet region and overall low resolution.
CCD Spectral Profile (200%)
3 x 0.5s, 1x1 binning,  Original Dispersion 33.6 A/px
2008-05-07 23:01hUT (#286046-48)

Back to Top


10 Lac - O9 star

10 Lac (Lacerta)
Annoated CCD Image
3s, 2x2 binning, C Filter
2008-05-08 01:09hUT (#286166)

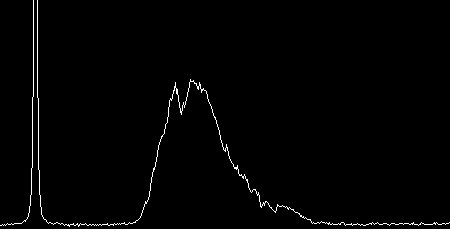

CCD Spectral Profile
3 x 5s, 1x1 binning, Star Analyser 100
2008-05-08 01:10hUT (#286167-69)

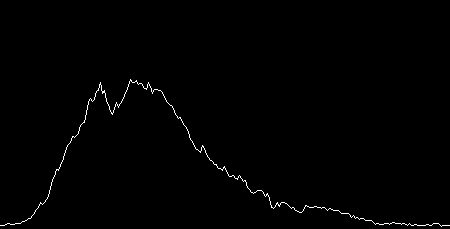

CCD Spectral Profile (200%)
3 x 5s, 1x1 binning, Star Analyser 100
2008-05-08 01:10hUT (#286167-69)

Back to Top


Zeta Oph - O9 star

Zeta Oph / HIP 81377 (Ophiuchus)

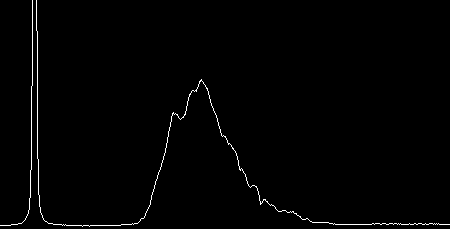

CCD Spectral Profile
3 x 3s, 1x1 binning, Star Analyser 100
2008-05-08 00:47hUT (#286142-44)

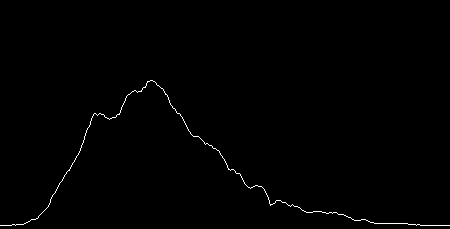

CCD Spectral Profile (200%)
3 x 3s, 1x1 binning, Star Analyser 100
2008-05-08 00:47hUT (#286142-44)

Back to Top


108 Vir - B9 star

108 Vir (Virgo)

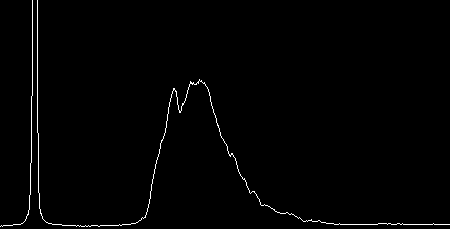

CCD Spectral Profile
5 x 30s, 1x1 binning, Star Analyser 100
2008-05-07 22:36hUT (#286026-30)

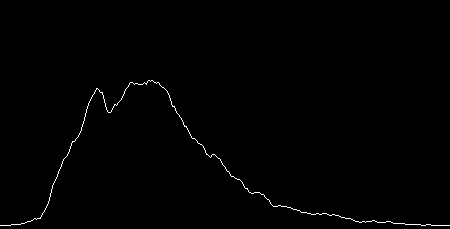

CCD Spectral Profile (200%)
5 x 30s, 1x1 binning, Star Analyser 100
2008-05-07 22:36hUT (#286026-30)

Back to Top


Yed Prior (Delta Oph) - M1 star

Yed Prior / Delta Oph (Ophiuchus)

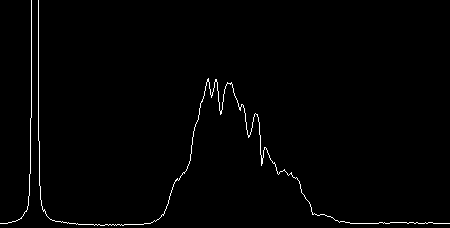

CCD Spectral Profile
3 x 3s, 1x1 binning, Star Analyser 100
2008-05-08 00:50hUT (#286147-49)

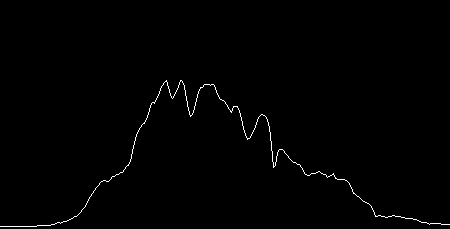

CCD Spectral Profile (200%)
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-08 00:50hUT (#286147-49)

Back to Top


V0973 Cyg - M3 star

V0973 Cyg / HIP 97151 (Cygnus)
Annotated CCD Image
10s, 2x2 binning, C Filter
2008-05-08 01:44hUT (#286211)

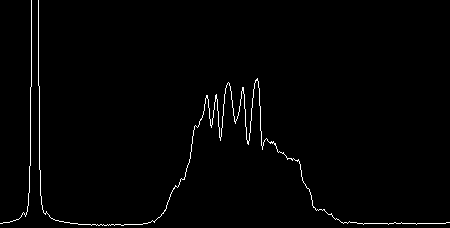

CCD Spectral Profile
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-08 01:46hUT (#286212-14)

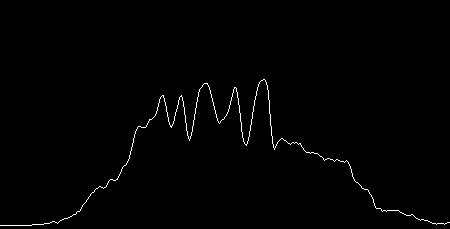

CCD Spectral Profile (200%)
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-08 01:46hUT (#286212-14)

Back to Top


XY Lyr - M4 star

XY Lyr (Lyra)

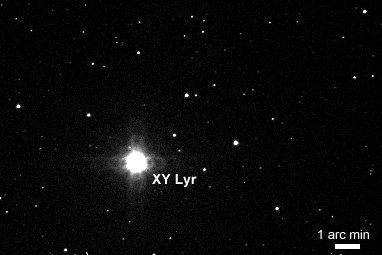

Annotated CCD Image
20s, 2x2 binning, C Filter
2008-05-08 00:53hUT (#286152)

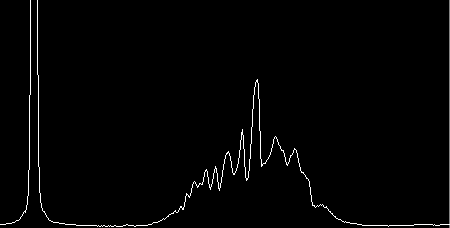

CCD Spectral Profile
3 x 20s, 1x1 binning, Star Analyser 100
2008-05-08 00:55hUT (#286153-55)

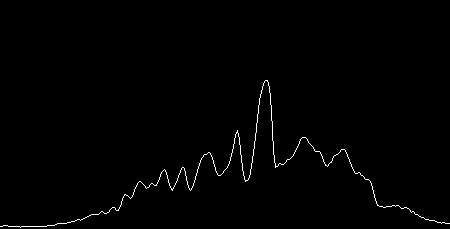

CCD Spectral Profile (200%)
3 x 20s, 1x1 binning, Star Analyser 100
2008-05-08 00:55hUT (#286153-55)

Back to Top


R Lyr - M5 star

R Lyr (Lyra)

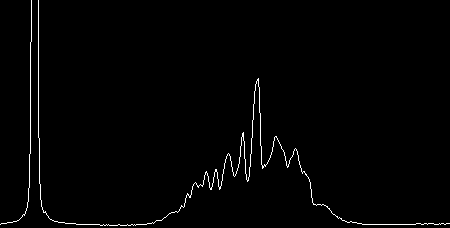

CCD Spectral Profile
3 x 5s, 1x1 binning, Star Analyser 100
2008-05-08 01:26hUT (#286189-91)

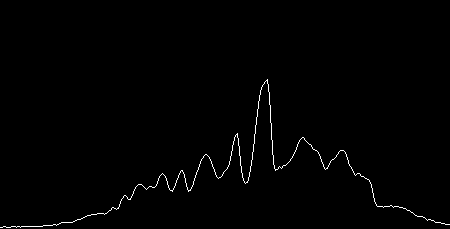

CCD Spectral Profile (200%)
3 x 5s, 1x1 binning, Star Analyser 100
2008-05-08 01:26hUT (#286189-91)

Back to Top


U Her - M6-M9 star / Mira variable

U Her (Hercules)

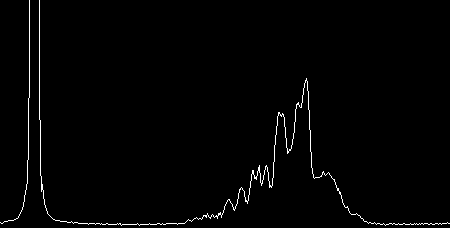

CCD Spectral Profile
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-07 23:41hUT (#286083-85)

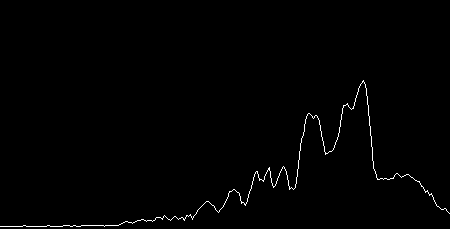

CCD Spectral Profile (200%)
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-07 23:41hUT (#286083-85)

Impact of improved focusing :

 S286 (2008-05-07)
better focused

 S283 (2008-04-17)
poorer focused

Back to Top


V460 Cyg - C6 star

V460 Cyg (Cygnus)

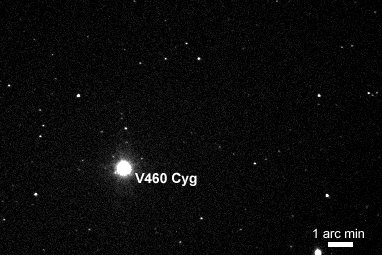

Annotated CCD Image
10s, 2x2 binning, C Filter
2008-05-08 01:50hUT (#286216)

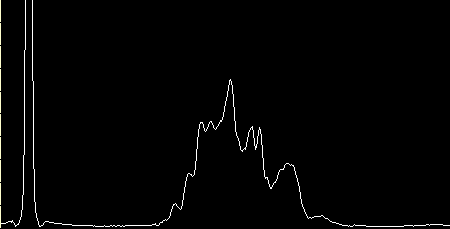

CCD Spectral Profile
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-08 01:52hUT (#286217-19)

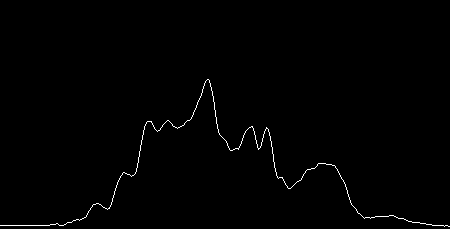

CCD Spectral Profile (200%)
3 x 60s, 1x1 binning, Star Analyser 100
2008-05-08 01:52hUT (#286217-19)

Back to Top


HK Lyr - C6 star

HK Lyr (Lyra)
Annotated CCD Image
15s, 2x2 binning, C Filter
2008-05-08 01:34hUT (#286199)

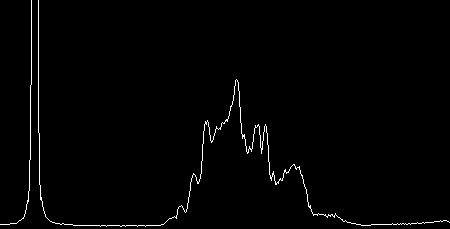

CCD Spectral Profile
3 x 45s, 1x1 binning, Star Analyser 100
2008-05-08 01:37hUT (#286200-02)

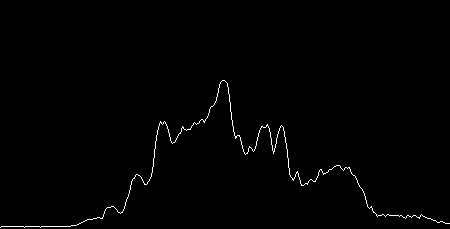

CCD Spectral Profile (200%)
3 x 45s, 1x1 binning, Star Analyser 100
2008-05-08 01:37hUT (#286200-02)

Back to Top


NGC 7026 - Planetary Nebula ("Cheeseburger Nebula")

NGC 7026 (Cygnus)
Annotated CCD Image
(200% size,cropped)
10s, 2x2 binning, C Filter
2008-05-08 01:34hUT (#286181)

CCD Spectra
3 x 45s, 1x1 binning, Star Analyser 100
2008-05-08 01:22hUT (#286182-84)


Back to Top


Astrometric and Photometric Monitoring
