Objects Session Notes
Bullet XO-2b Exoplanet Transit
Bullet M79 - Globular Cluster
Bullet NGC 6246 - Spiral Galaxy & SN 2009kp
Bullet Photometric Monitoring - Variables
- U And, W And, Z And, TT Ari, HR Aur, KR Aur, CI Cyg, SS Cyg, BL Lac, FU Ori, NV Ori, RR Tau
- TimeSeries XO-2
Bullet Astrometric Monitoring - Nearby Stars

- Evening/night session (8.4 hr).
- Operated under semi-automated control with remote monitoring
- Ambient Temperature:  Initially 4.0 degC falling to 0.5 degC minimum
- CCD operation -25 degC (at 55% average cooling).
- main objective of the session was to record a time-series of XO-2 with the hope of detecting transit of exoplanet XO-2b.  Sky conditions were jnear perfect and realtime monitoring confirmed that the expected dip in XO-2 magnitude occurred through the predicted transit window
- opportunity taken at beginning of session to acquire images of key selected stars for ongoing photometric and astrometric analysis.
-
- Notes from 2009-11-08 (XO-2b Exoplanet Transit Notes)

XO-2b Exoplanet Transit

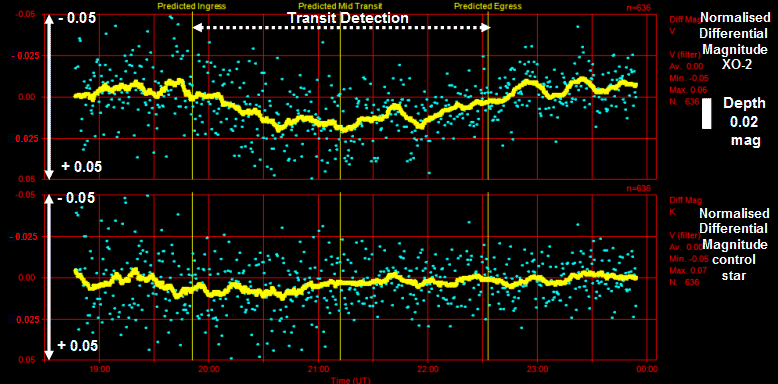

XO-2b Transit,  2009-11-08
 Normal Differential Magnitudes
Time Series graphs showing normalised differential magnitudes  (exaggerated scales)
Blue dots at datavalues  associated with individual frames whilst yellow dots are a moving average
Whilst data scatter (+/-0.032m to +/-0.018m) is larger than the expected  transit depth (0.015 mag),
the overall dip in XO-2 brightness through the transit window is still noticeable.

Notes describing the preparation, recording and analysis of the XO-2b Exoplanet Transit
XO-2 / GSC 3413:0005   (Lynx)
with comparison/check stars
 Annotated CCD Image (full frame)
25 x 15 sec exposure (average combine), 3x3 binning, V Filter
2009-11-08 18:53 h UT  (#397043-67)
12" LX200R  (at f/5.7) + ST-10XME

Back to Top


M79 - Globular Cluster

M79 (Lepus)
Dec -24d 31m taken at altitude 7 deg (airmass 7.6)

CCD Image (linear scale, 50% size scaling)
7 x 15 sec exposure (average combine), 3x3 binning, R Filter
2009-11-09 01:20 h UT  (#397790-96)
12" LX200R  (at f/5.7) + ST-10XME



M79 - detail

CCD Image (logscale, cropped)
Image details as above

Back to Top


NGC 6246 - Spiral Galaxy &  SN 2009kp

NGC 6246 with SN 2009kp (Draco)
2009kp (Type Ia) was discovered 2009/11/03.819 by Tom Boles
Magnitude at discovery ??
(Rochester Supernova site | Reference Image | Discovery Image |

Image below (2009-11-09:00) was taken 5.2 days after discovery.
SN 2009kp - Estimated Magnitude +xx (C)

CCD Image (cropped to central area)
5 x 60s exposure (average combine), 3x3 binning, C Filter
2009-11-09 00:02h UT (#397684-87)

NGC 6246 - detail
Annotated CCD Image (200% size, cropped)
Image details as above

Back to Top
