Images - Session 482 (2011-11-01)

Objects Session Notes
Bullet C/2009 P1 (Garradd) - Comet

Bullet Abell 4 - Planetary Nebula

Bullet M101 - Spiral Galaxy with Supernova 2011fe

Bullet NGC 6742 - Planetary Nebula (Abell 50)

Bullet PNG 75.5+1.7- Planetary Nebula ("Soap Bubble Nebula")

Bullet Photometric Monitoring - Variables
- RX And, U And, TT Ari, CI Cyg, S Cyg, SS Cyg, BL Lac, CY Lyr, DY Per, GK Per

- W And, Z And attempts (failed due to cloud)

Bullet Astrometric Monitoring - Nearby Stars
- 61 Cyg, Ross 248 (HH And), Groombridge 34
- Evening session (4.6 hrs), cut short due to wind
- Session operated under semi-automated control, with remote monitoring from indoors computer.   Observatory laptop froze on one occasion requiring a restart - reason unknown.
- Ambient Temperature: Falling to 4.5°C (minimum)  before climbing to 6.5°C
- CCD operation -20°C (at 60% average cooling).
- main objective of the session to obtain follow-up images of bright supernovae in nearby galaxy M101

secondary objective was to image project stars for ongoing photometric analysis and image certain challenge & gallery objects

-

C/2009 P1 (Garradd) - Comet

C/2009 P1 (Garradd)
(moving through starfield in Hercules)

CCD Image (50% size)
4 x 30 sec exposure (average combine), 3x3 binning, C Filter
2011-11-01 20:00 h UT  (#482042-47)
12" LX200R  (at f/9.7) + ST-10XME



C/2009 P1 (Garradd) - detail

False Colour CCD Image (50% size)
Square root scaling, Inverse Spectrum colour bar
Image details as above

Back to Top


Abell 4 - Planetary Nebula

Abell 4 / PLN 144-15.1 (Perseus)
Abell 4 is the faint planetary nebula at centre of image (catalog mag +16.7)
Near it is an edge-on spiral galaxy PGC 2201333  (catalog mag +17.1)
Bright star is SAO 38305/HD 17052 (catalog mag +8.69)


CCD Image (cropped)
6 x 60 sec exposure (average combine), 3x3 binning, C Filter
2011-11-01 21:51 h UT  (#482158-67)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


M101 - Spiral Galaxy with Supernova 2011fe

M101 with supernova 2011fe  (Ursa Major)
SN 2011fe (= PTF11kly) (Type Ia) was discovered
2011/08/24.00 by Palomar Transient Factory
Discovery Magnitude 17.2
( Rochester Supernova site | Discovery Image | TNS 2011fe )

SN 2011fe is reported as being the
nearest Type Ia supernova
seen in decades
M101 with SN 2011fe (fading slowly)
Image New Image (T+70d)
2011-11-01.85
70 days after SN discovery
SN Est. Mag
+11.9

Annotated CCD Image
(58% size, cropped)
12 x 60 sec exposure (average combine),
3x3 binning, C Filter
2011-11-01 19:13 h UT  (#482011-22)
12" LX200R  (at f/9.7) + ST-10XME



M101 with SN 2011fe - Earlier Image (2011-10-03)
Image Earlier Image (T+41d)
2011-10-03.85
41 days after SN discovery
SN Est. Mag
+10.5

Annotated CCD Image
(58% size, cropped)
11 x 60 sec exposure (average combine),
3x3 binning, C Filter
2011-10-03 20:28 h UT  (#479003-14)
12" LX200R  (at f/9.7) + ST-10XME
Normal Image of M101 with supernova 2011fe Spectral Image of M101 with supernova 2011fe
Image Image
Annotated CCD Image (50% size)
12 x 60 sec exposure (average combine),
3x3 binning, C Filter
2011-11-01 19:13 h UT  (#482011-22)
12" LX200R  (at f/9.7) + ST-10XME
Annotated Spectral CCD Image (17% size)
4 x 90 sec exposure (average combine),
3x3 binning, S Filter (Star Analyser 100)
2011-11-01 19:26 h UT  (#482024-27)
12" LX200R  (at f/9.7) + ST-10XME



Spectral CCD Image (100% size, rotated, cropped)
Images details as above right

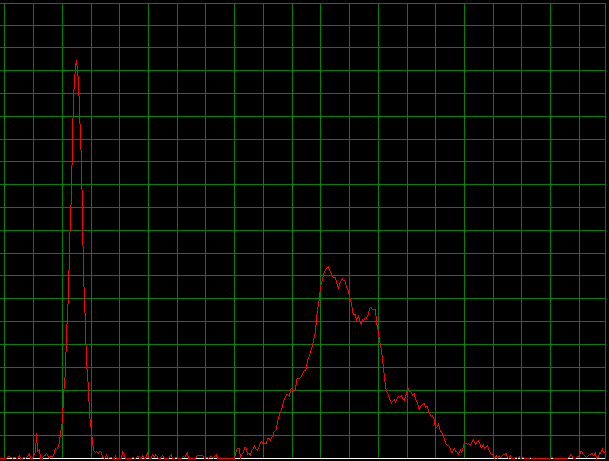

Spectral Profile - uncalibrated
(produced using RSpec Software

Images of SN 2011fe (in M101) on Supernova 2011 Page >>

Back to Top



NGC 6742 - Planetary Nebula (Abell 50)

NGC 6742 / Abell 50 / PLN 78+18.1  (Draco)


CCD Image (cropped)
3 x 20 sec exposure (average combine), 3x3 binning, C Filter
2011-11-01 20:28 h UT  (#482084-88)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


PNG 75.5+1.7 - Planetary Nebula (" Soap Bubble Nebula")

PN G75.5+1.7  (Cygnus)
Faint indications of near-spherical shell of gas are just visible in this Ha image
The shell defines the planetary nebula PN G75.5+1.7 that was discovered
by D. M. Jurasevich in 2007.


CCD Image (cropped)
4 x 120 sec exposure (average combine), 3x3 binning, C Filter
2011-11-01 20:45 h UT  (#482101-07)
12" LX200R  (at f/9.7) + ST-10XME



PN G75.5+1.7  in normal light
no indication of nebula through C Filter


CCD Image (cropped)
5 x 120 sec exposure (average combine), 3x3 binning, C Filter
2011-11-01 20:45 h UT  (#482100-08)
12" LX200R  (at f/9.7) + ST-10XME
