Images - Session 534 (2012-12-18)

Objects Session Notes
Bullet Jupiter
Bullet (1107) Lictoria - Minor Planet

Bullet Photometric Monitoring - Variables
- Z And, TT Ari, CI Cyg, S Cyg, SS Cyg, SZ Lyr, DY Per

- RX And & BL Lac attempts failed (stars too dim)
- GK Per attempt failed (due to wind)


Bullet Astrometric Monitoring - Nearby Stars
- None
- Late Evening session (3.2 hrs duration).
Session terminated when stars became to significantly dim / or loose clarity in CCD Images. Upon investigation it was found that there was dew on the primary mirror (from internal condensation in LX200 tube)
- Session operated under semi-automated control, with remote monitoring from indoors computer.
- Ambient Temperature: Initially dropping from +2.0°C down to -0.5°C, before rapidly rising to 5°C as a warm front came through
- CCD operation -30°C (at 81% average cooling).
- main objectives of the session were to acquire images of selected project stars for ongoing photometric and astrometric analysis. Opportunity was taken to acquire further images of Lictoria as it moves towards it forthcoming occultation of HIP 20885 on Dec 27th, and Jupiter.
-

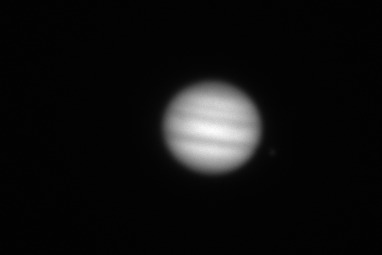

Jupiter

Jupiter


CCD Image (cropped)
0.5s exposure (single frame), 1x31 binning, V Filter
2012-12-18 22:17 hUT (#534178)
12" LX200R  (at f/9.7) + ST-10XME

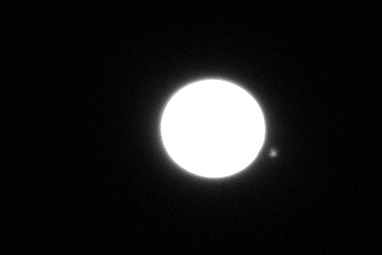

Jupiter & Io


Annotated CCD Image (cropped)
Image details as above

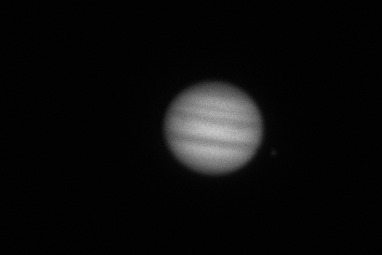

Jupiter detail


Enhanced CCD Image (cropped)
Unsharp Masked
Image details as above

Back to Top


(1107) Lictoria - Minor Planet

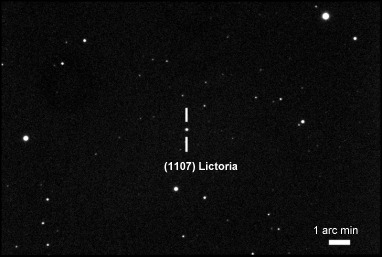

(1107) Lictoria - moving through starfield in Taurus

Lictoria is highlighted in images below by the white cross hairs.


Annotated CCD Image (50% size)
3x30s exposure (average combine), 3x3 binning, C Filter
2012-12-18 19:31 hUT (#534032-36)
12" LX200R  (at f/9.7) + ST-10XME

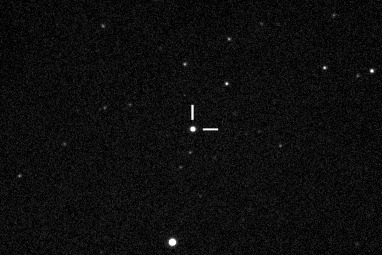

Annotated CCD Image (cropped)
Image details as above

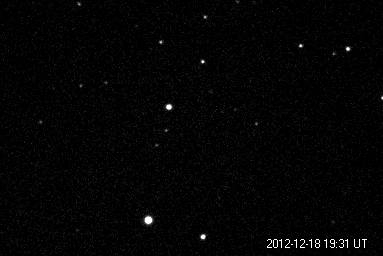

CCD Image Animation showing movement of (1107) Lictoria
over a nearly 2 hour period
Movement is 44 arc secs in 117min, ie a rate of movement of 0.38 arc min/hour


CCD Image Animation
3 x 30s exposure (average combine), 3x3 binning, C Filter
Frame 1 : 2012-12-18 19:31 hUT (#534032-36)
Frame 2 : 2012-12-18 21:28 hUT (#534133-45)
12" LX200R  (at f/9.7) + ST-10XME
