CCD Images - Session 742 (2020-01-18)

Objects Session Notes
Bullet C/2017 T2 (PanStarrs) - Comet

Bullet 3C 58 - Supernova Remnant (attempt)

Bullet Hickson 59 - Galaxy Group (IC 737 et al)

Bullet IC 4182 - Irregular Galaxy

Bullet NGC 185 (Local Group) - Elliptical Galaxy (Caldwell 18)
Bullet NGC 718 - Spiral Galaxy, with LBV AT2019udc
Bullet NGC 1964 - Spiral Galaxy (Herschel IV-21)
Bullet NGC 4222 - Spiral Galaxy

Bullet Variable Stars (photometric monitoring)
  - RX And, Z And, AM CVn, SY Cnc, R CrB, S Cyg, U Gem, AM Her, U Her, RZ LMi, FO Ori, DY Per, GK Per, RR Tau, SU Tau, ER UMa

Bullet Nearby Stars (astrometric monitoring)
 - None



- All night session (8 hours total).
Shutter closed at 04:34 after Job Queue hung.

- Main aims of the session was to acquire a selection of targets, including variable stars, nearby stars and a few specially selected deep sky objects.

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature:  -2°C (min)
(Dew heaters on auto)
- CCD Temperature:  -20°C  (57% av. power)
- Notes from 2020-01-18 >>



C/2017 T2 (PanStarrs) - Comet

C/2017 T2 (PanStarrs) - 2020-01-19
 (passing through Perseus)
Sun Distance 2.14 AU
Earth Distance 1.57 AU (234.8 million km)
   C/2017 T2 (PanStarrs) - 2020-01-19, Detail
Autoguided on an offset star using Lock Shift set at
the comet's rate of motion
(Ra -78.90, Dec 10.44 arcsec/hr)
Image   Image
CCD Image (50% size, square root scale)
2 x 45s exposure (average combine), 3x3 binning, C Filter
2020-01-19 00:06 UT (#742098-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, log scale, cropped)
9 x 45s exposure (average combine), 3x3 binning, C Filter
2020-01-19 00:09 UT (#742098-106)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2017 T2 (PanStarrs) on Comets 2019 Page


C/2017 T2 (PanStarrs)
False Colour CCD Image (70% size, log scale)
9 x 45s exposure (average combine), 3x3 binning, C Filter
2020-01-19 00:09 UT (#742098-106)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


3C 58 - Supernova Remnant (attempt)

3C 58 (Cassiopeia)
Attempted image of supernova remnant 3C 58 (not visible)

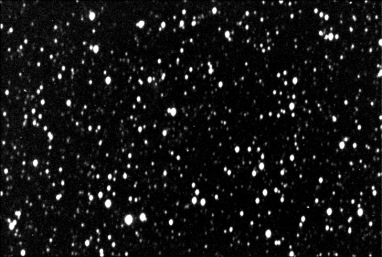

 CCD Image (50% size)
5 x 180s exposure (average combine), 3x3 binning, DB Filter
2020-01-18 23:14 UT (#742063-69)
12" LX200R (at f/10.4) + ST-10XME
Attempted auto-guiding using TS 80mm APO, ZWO ASI178MC & PHD2

3C 58 Location
White rectangle shows position of reference image
White ellipse shows approximate position of 3C 58
 Annotated CCD Image (50% size)
Image details as above

 3C 58 Region
Image affected by wind / surface & jet stream, uneven guiding

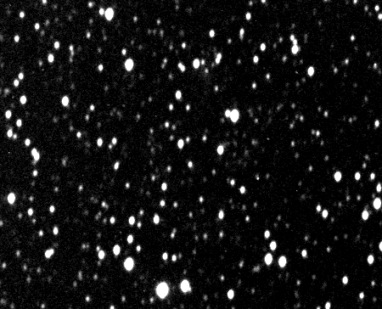

CCD Image (85% size, cropped)
Image details as above

3C 58 - Reference Image  (Credit: NASA/CXC/SAO)
https://www.nasa.gov/chandra/multimedia/chandra-15th-anniversary-3c58.html
Reference Image rescaled to same scale as above image

Back to Top


Hickson 59 - Galaxy Group (IC 737 et al)

Hickson 59 (Leo)

CCD Image (50% size, linear scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-01-19 02:20 UT (#742177-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



CCD Image (70% size, square root scale, cropped)
Image details as above



Hickson 59 - Detail
IC 737 (catalog mag +13.7), IC 736 / PGC 36853 (catalog mag +15.7),
 PGC 36871 (catalog mag +15.9), PGC 36867  (catalog mag +16.3),
PGC 36851 (catalog mag +17.2), PGC 1415034 (catalog mag +18.8)

Annotated CCD Image (100% size, square root scale, cropped)
Image details as above



Negative CCD Image (100% size, square root scale, cropped)
Image details as above



Hickson 59 - Earlier Image (2019-12-25)

Annotated CCD Image (100% size, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2019-12-25 02:10 UT (#732249-53)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

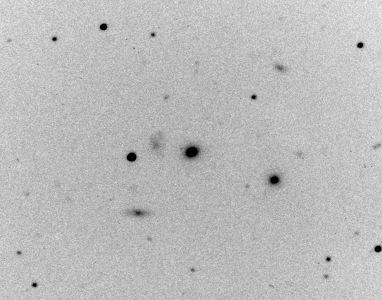

Negative CCD Image (100% size, cropped)
Image details as above



Hickson 59 - Earlier Image (2011)

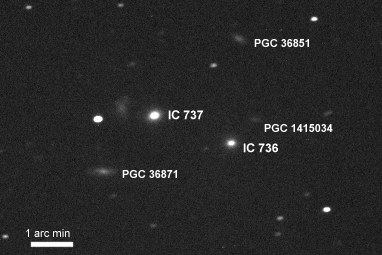

Annotated CCD Image (cropped)
2 x 120 sec exposure (average combine), 3x3 binning, C Filter
2011-05-03 22:31 h UT  (#475064-65)
12" LX200R  (at f/9.7) + ST-10XME



Back to Top


IC 4182 - Irregular Galaxy

IC 4182 (Canes Venatici)
Member of M94 Galaxy Group
CCD Image (50% size, linear scale)
7 x 90s exposure (average combine), 3x3 binning, C Filter
2020-01-19 02:37 UT (#742185-91)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

IC 4182 - Detail
CCD Image (100% size, linear scale, cropped)
Image details as above

Negative CCD Image (100% size, linear scale, cropped)
Image details as above

IC 4182 - Earlier Image (2015)
CCD Image (50% size)
7 x 90s exposure (average combine), 3x3 binning, C Filter
2015-04-21 00:40 h UT (#585110-16)
12" LX200R  (at f/10.4) + ST-10XME

IC 4182 - Earlier Detail (2015)
Negative CCD Image (50% size)
Image details as above

Back to Top


NGC 185 (Local Group) - Elliptical Galaxy (Caldwell 18) - 2.3 mly

NGC 185 / Caldwell 18 (Cassiopeia)
All frames badly affected by wind / poor seeing / jet stream

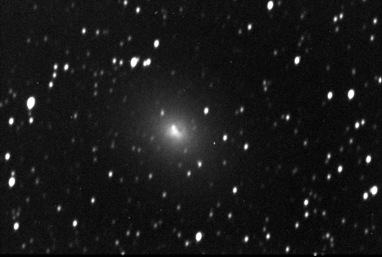

 CCD Image (50% size)
6 x 180s exposure (average combine), 3x3 binning, DB Filter
2020-01-18 22:46 UT (#742053-58)
12" LX200R (at f/10.4) + ST-10XME
Attempted auto-guide using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 185 - Earlier Image (2011)
 CCD Image (50% size)
3 x 120s sec exposure (average combine), 3x3 binning, C Filter
2011-01-29 19:41 h UT (#451045-47)
12" LX200R  (at f/9.7) + ST-10XME

NGC 185 - Earlier Detail (2011)
 CCD Image (100% size, cropped)Image details as above

Back to Top


NGC 718 - Spiral Galaxy with LBV AT2019udc

NGC 718 (Pisces)
No definate sign of LBV AT2019udc in new image below but it is affected by airmass effects & bright sky

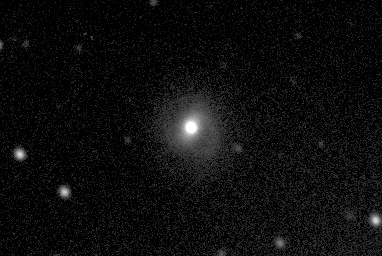

CCD Image (100% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, C Filter
2020-01-18 23:32 UT (#742073-74)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 718 - Earlier Image (2019-11-18)
NGC 718 with LBV AT2019udc discovered 2919/11/04.135 by DLT 40
Annotated CCD Image (100% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2019-11-18 20:24 UT (#723171-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


NGC 4222 - Spiral Galaxy

NGC 4222 (Coma Berenices)
Flat Galaxy Atlas

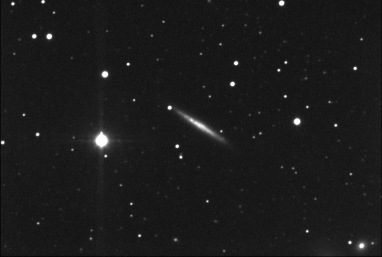

CCD Image (50% size, linear scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-01-19 01:59 UT (#742168-72)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 4222 - Detail

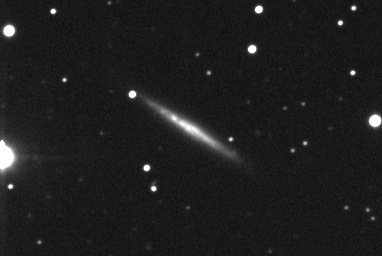

CCD Image (100% size, linear scale, cropped
Image details as above

CCD Image (100% size, square root scale, cropped
Image details as above

NGC 4222 - Earlier Image (2020-01-18 am)
CCD Image (100% size, linear scale, cropped
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-01-18 01:12 UT (#741206-10)
12" LX200R (at f/10.4) + ST-10XME (unguided)

NGC 4222 - Earlier Image (2019-11-19)
(poor sky conditions, galaxy barely visible)
CCD Image (100% size, linear scale, cropped
5 x 180s exposure (average combine), 3x3 binning, C Filter
2019-11-19 05:30 UT (#723572-76)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


NGC 1964 - Spiral Galaxy (Herschel IV-21)

NGC 1964 / H IV-21 (Lepus)
Dec -21° 56'. Altitude 10.8°, Airmass 5.3
Poor seeing / Poor Focus
CCD Image (50% size, linear scale)
6 x 120s exposure (average combine), 3x3 binning, C Filter
2020-01-18 22:09 UT (#742042-48)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 1964 / H IV-21 - Detail
 CCD Image (100% size, log scale, cropped)
Image details as above
