CCD Images - Session 839 (2020-12-17)

Objects Session Notes
Bullet UGC 10909 - Spiral Galaxy (PGC 60514)

Bullet Variable Stars (photometric monitoring)
- None


Bullet Nearby Stars (astrometric monitoring)
- None


- Short evening session (0.5 hours)
- Main aims of the session were the acquisition of a selection of variable star, nearby star and comet targets and deep sky targets before expected cloud arrived.
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 6°C (min)
- CCD Temperature:  -15°C
- Notes from 2020-12-17 >>

-


UGC 10909 - Spiral Galaxy (PGC 60514)

UGC 10909 (Hercules)
Alias: PGC 60514 (catalog mag +15.6)
Poor quality image due to poor sky conditions / developing cloud.  Target to be re-scheduled for a future session.

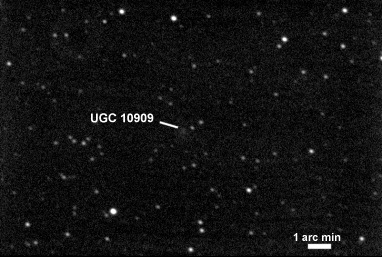

Annotated CCD Image (50% size, linear scale)
2 x 180s exposure (average combine), 3x3 binning, C Filter
2020-12-17 18:46 UT (#839003-04)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 10909 - Detail, 2020-12-17
Attempted image of AT2020abkz (Type: unknown) a candidate SN discovered 2020/12/01.625 UT by Gaia
( Rochester Supernova site )
No indication of any transient object in seen in image below (as compared to DSS2 image in Aladin)
but image is poor due to poor skies conditions with poor transparency & developing cloud
 (only 2 frames out of 5 frames taken were usable)
CCD Image (150% size, linear scale, cropped)
Image details as above
