Objects Session Notes
2P/Encke - Comet (Attempt) 12P/Pons-Brooks - Comet 237P/LINEAR - Comet C/2019 T4 (ATLAS) - Comet C/2020 R7 (ATLAS) - Comet C/2023 E1 (ATLAS) - Comet IC 1797 - Spiral Galaxy with Type Ia Supernova 2023nnz M33 - Spiral Galaxy with Transient AT 2023nou NGC 2326 - Spiral Galaxy with Type II Supernova 2023pgb - LEDA 1488100 with SN 2023olz attempt failed (due to cloud / bad guiding) Variable Stars (photometric monitoring) - RX And, BL Lac Nearby Stars (astrometric monitoring) - HH And, Barnards Star, Teegardens Star -
- Attempted all night session (xx hrs), ended early due to cloud. - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: x°C (min) - CCD Temperature: -10° C - Notes from 2023-08-20 >> -
2P/Encke - 2023-08-21 (passing through Auriga) Sun Distance 1.33 AU Earth Distance 1.30 AU (195.1 million km) Expected position of comet (not visible) is shown by white circle |
2P/Encke - 2023-08-21, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 187.55 arcsec/hr, Dec 25.62 arcsec/hr) |
|

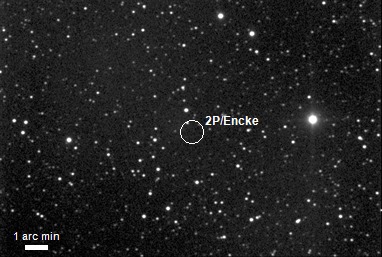

Annotated CCD Image (50% size, square root scale) 7 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 02:43 UT (#1132150-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

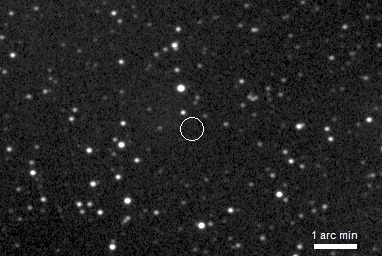

Annotated CCD Image (100% size, square root scale, cropped) 7 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 02:43 UT (#1132150-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of
2P/Encke on Comets 2023 Page >> See also Earlier Image(s) of 2P/Encke from 2013 >> |
Back to Top
12P/Pons-Brooks - 2023-08-20 (passing through Draco) Sun Distance 3.56 AU (approqching) Earth Distance 3.35 AU (500.7 million km) |
12P/Pons-Brooks - 2023-08-20 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -38.11 arcsec/hr, Dec -19.68 arcsec/hr) |
|
Annotated CCD Image (50% size, square root scale) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 23:40 UT (#1132054-57) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 23:40 UT (#1132054-57) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of 12P/Pons-Brooks on Comets 2023 Page >> |
Back to Top
237P/LINEAR - 2023-08-21 (passing through Aquila) Sun Distance 2.13 AU Earth Distance 1.25 AU (187.5 million km) |
237P/LINEAR) - 2023-08-21 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -1.18 arcsec/hr, Dec -8.59 arcsec/hr) |
|
Annotated CCD Image (50% size, square root scale) 9 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 00:05 UT (#1132081-89) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 9 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 00:05 UT (#1132081-89) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of 237P/LINEAR on Comets 2023 Page >> |
Back to Top
C/2019 T4 (ATLAS) - 2023-08-20 (passing through Serpens) Sun Distance 5.54 AU (receeding) Earth Distance 5.67 AU (848.0 million km) |
C/2019 T4 (ATLAS) - 2023-08-20 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 16.16 arcsec/hr, Dec -9.37 arcsec/hr) |
|
Annotated CCD Image (50% size, square root scale) 3 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 22:25 UT (#1132022-24) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 22:25 UT (#1132022-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of C/2019 T4 (ATLAS) on Comets 2023 Page >> |
Back to Top
C/2020 R7 (ATLAS) - 2023-08-20 (passing through Corona Borealis) Sun Distance 4.39 AU Earth Distance 4.54 AU (678.9 million km) |
C/2020 R7 (ATLAS) - 2023-08-20 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -4.36 arcsec/hr, Dec -10.33 arcsec/hr) |
|
Annotated CCD Image (50% size, square root scale) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 22:42 UT (#1132031-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2023-08-20 22:42 UT (#1132031-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of C/2020 R7 (ATLAS) on Comets 2023 Page >> |
Back to Top
C/2023 E1 (ATLAS) - 2023-08-21 am (passing through Cygnus) Sun Distance 1.31 AU (receeding) Earth Distance 0.38 AU (56.4 million km) |
C/2023 E1 (ATLAS) 2023-08-21 am, Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 53.77 arcsec/hr, Dec -320.17 arcsec/hr) |
|
Annotated CCD Image (50% size, square root scale) 45s exposure (single frame), 3x3 binning, Clear Filter 2023-08-21 00:16 UT (#1132091) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 15 x 45s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 00:23 UT (#1132091-105) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
Images of C/2023 E1 (ATLAS) on Comets 2023 Page >> |
Back to Top
IC 1797 with SN 2023nnz (Aries) SN 2023nnz (Type: Ia) discovered 2023-07-20.592 UT by ATLAS Alias: ATLAS23pes Discovery Magnitude 18.07 ( cyan ATLAS) ( TNS 2023nnz ) |
IC 1797 with SN 2023nnz - 2023-08-21 (T+31.5d) Image below (2023-08-21.042) was taken 31.5 days after discovery of 2023nnz Position of reported transient (not distinguishable) is indicated by white cross-hairs. Measured Magnitude +14.90 (nucleus + ? SN) |
Annotated CCD Image (175% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 01:10 UT (#1132115-19) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2023nnz (in IC 1797) on Supernova 2023 Page >> |
Back to Top
M33 with AT 2023nou (Triangulum) |
M33 with AT 2023nou - 2023-08-21 (T+31.6d) Image below (2023-08-21.024) was taken 31.6 days after discovery of 2023nou Position of reported transient (faint but distinct) is shown by whiIte cross-hairs Measured Magnitude +16.62 |
|
Annotated CCD Image (125% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-08-21 00:48 UT (#1132108-12) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023nou (in M33) on Transients 2023 Page >> |
Back to Top
NGC 2326 with SN 2023pgb (Lynx) SN 2023pgb (Type: II) discovered 2023-08-12.496 UT by ZTF Alias: ZTF23aaxdfya Discovery Magnitude 17.44 ( r-ZTF) ( TNS 2023pgb ) |
NGC 2326 with SN 2023pgb - 2023-08-20 (T+8.5d) Image below (2023-08-20.958) was taken 8.5 days after discovery of 2023pgb Position of reported SN (distinct) is indicated by white cross-hairs. Measured Magnitude ? Poor quakity image due to poor sky transparency/cloud / single image |
Annotated CCD Image (150% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2023-08-20 22:59 UT (#1132041) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2023nnz (in NGC 2326) on Supernova 2023 Page >> |
Back to Top
