Images - Session 1181 (2024-01-12)

Objects Session Notes
Bullet Satellite Flash (18:29)

Bullet 12P/Pons-Brooks - Comet
Bullet 62P/Tsuchinshan - Comet

Bullet Capella - Star (spectra)

Bullet AT 2023rcj - Type QSO Transient
Bullet AT 2023abtv - CV Type Transient
Bullet AT 2024vf - CV Type Transient

Bullet CGCG 150-024 - Galaxy with Type II Supernova 2023bvh
Bullet IC 1125 - Spiral Galaxy with Type Ia Supernova 2024jz
Bullet IC 1501 - Spiral Galaxy with Transient AT 2023by
Bullet LEDA 2073213 - Galaxy with Type Ia Supernova 2023tqo

Bullet M98 - Spiral Galaxy
Bullet MCG +9-27-70 - Galaxy with Type Ia Supernova 2023acha

Bullet NGC 682 - Elliptical Galaxy with Type Ia Supernova 2023xtg
Bullet NGC 3021 - Spiral Galaxy with Type II Supernova 2023bvj
Bullet NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy
Bullet NGC 6745 - Spiral Galaxy with Transient AT 2023ucy
Bullet NGC 7625 - Spiral Galaxy (ARP 212) with Type Ia Supernova 2023vyl

Bullet UGC 5276 - Spiral Galaxy with Type Ia Supernova 2023cxk
Bullet UGC 5886 - Spiral Galaxy with Type IIn Supernova 2024hw
Bullet UGC 6608 - Spiral Galaxy with Type Ia Supernova 2022zvr
Bullet UGC 8927 - Spiral Galaxy with Transient AT 2023qzg
Bullet UGC 12604 - Spiral Galaxy with Transient AT 2024bv

  - IC 564 w/SN2023abqf attempt failed (due to bad guiding)

Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- None


- All-Night Session (12.8 hrs) with several interruptions due to cloud and some minor rain

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: -1.5°C (min) , climbing later to 5°C
- CCD Temperature:   -20°/-25° C
- Notes from 2024-01-12 >>

-

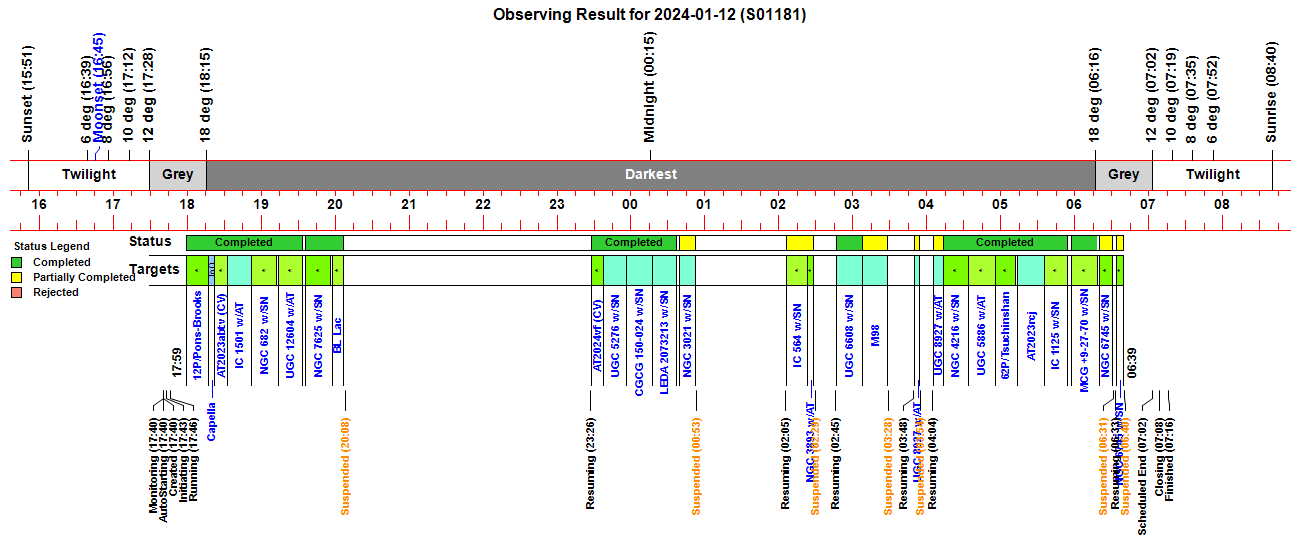

Observing Result


Back to Top


Satellite Flash (18:29)

Satellite Flash
Satellite Track / Flash recorded whilst acquiring a 60s exposure
of transient target AT2023abtv (blue circle)
Satellite evidentally rotating, and a flash of sunlight
is reflected towards the Observatory Site
Flash is relatively is relatively minor and is barely recorded, if at all,
by the AllSky Camera. The event is not in the same league as an Iriduim Flash ,
but is notable as it has been captured in the Telescope CCD Images
Realtime CCD Image (70% size, linear scale)
60s exposure (single frame), 3x3 binning, Clear Filter
2024-01-12 18:29 UT (#1181034)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


12P/Pons-Brooks - Comet (Outburst)

12P/Pons-Brooks - 2024-01-12
(passing through Cygnus)

Sun Distance 1.85 AU (approaching)
Earth Distance 2.12 AU (317.9 million km)
   12P/Pons-Brooks -  2024-01-12 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 121.33 arcsec/hr, Dec 3.25 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-01-12 18:09 UT (#1181007)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log root scale, cropped)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:12 UT (#1181005-11)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

12P/Pons-Brooks - 2024-01-12 Detail    12P/Pons-Brooks - 2024-01-12 Detail
Image   Image
Annotated false-colour CCD Image (50% size, log scale)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:12 UT (#1181005-11)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(100% size, log scale, cropped)
Image details as left

Images of 12P/Pons-Brooks on Comets 2023 Page >>
Images of 12P/Pons-Brooks on Comets 2024 Page >>

Back to Top


62P/Tsuchinshan - Comet

62P/Tsuchinshan - 2024-01-13
(passing through Virgo)

Sun Distance 1.29 AU (approaching)
Earth Distance 0.51 AU (75.8 million km)
   62P/Tsuchinshan - 2024-01-13 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 83.35 arcsec/hr, Dec -17.07 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 04:59 UT (#1181152)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 05:06 UT (#1181152-58)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

62P/Tsuchinshan - 2024-01-13 Detail    62P/Tsuchinshan - 2024-01-13 Detail
Image   Image
Annotated CCD Image (50% size, log scale)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 05:06 UT (#1181152-58)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(50% size, log scale)
Inverse Spectrum
Image details as left

Images of 62P/Tsuchinshan on Comets 2023 Page >>
Images of 62P/Tsuchinshan on Comets 2024 Page >>

Back to Top


Capella - Star

Capella (Auriga)
Spectral G3iii


Starfield with Capella
Annotated CMOS Image (16% size)
(10s exposure, 1x1 binning)
2023-01-12 18:20 UT
TS 80mm APO, ZWO ASI178MC

Capella - Spectra Image (realtime picture)
(taken with sub-optimum 26.4 mm grating distance)
Annotated CCD Image (35% size, Linear Scale)
0.11s exposure (single frame), 2x2 binning, S Filter (SA200)
2024-01-12 18:30 UT (#1181014)
12" LX200R (at f/10.4) + ST-10XME

Capella -  Realtime Spectra - Corrected.
Spectra produced in AstroMain using Image taken with Star Analyser 200
45s exposure (single frame), 2x2 binning, S Filter
2021-11-09 22:08 UT (#932091)
12" LX200R (at f/10.4) + ST-10XME

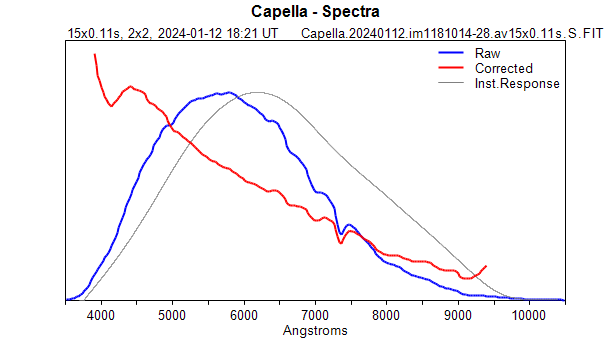

Capella  Spectra - Corrected.
(Note: taken with sub-optimum 26.4 mm grating distance)

Spectra produced in AstroMain using Image taken with Star Analyser 200
15 x 0.11s exposure (average combine), 2x2 binning, S Filter
2024-01-12 18:21 UT (#1181014-28)
12" LX200R (at f/10.4) + ST-10XME



Back to Top


AT 2023rcj - Type QSO Transient

AT 2023rcj (Virgo)
AT 2023rcj (Type: QSO) discovered 2023-08-19.096 UT by Gaia
Alias: Gaia23bzg
Discovery Magnitude 16.76 (G-Gaia Filter) vs Historic Magnitude 17.29 +/- 0.14 (SD)
Brightening in known QSO  ( [VV96] J130119.8-142456 )
 ( TNS 2023rcj | Gaia23bzg )

Star field with QSO Transient  AT 2023rcj (T+147.1d)
Galaxies in FOV include NGC 4902 (catalog mag +10.9)
& PGC 44854 (catalog mag +15.0)

NGC 4902 at bottom of this image is to be scheduled
for future dedicated imaging
Annotated CCD Image (100% size, linear scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 05:19 UT (#1181161)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2023rcj - 2024-01-13 (T+147.1d)
Image below (2024-01-13.222) was taken 147.1 days after discovery of 2023rcj
Position of QSO object  (faint) is shown by white cross-hairs
Measured Magnitude +16.25 (Clear Filter)
Poor quality image (developing cloud, single frame)
Annotated CCD Image (125% size, linear scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 05:19 UT (#1181161)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023rcj on Transients 2023 Page >>

Back to Top


AT 2023abtv - CV Type Transient

AT 2023abtv (Pegasus)
AT 2023abtv (Type: CV) discovered 2023-12-26.986 UT by Gaia
Alias: Gaia23duv
Discovery magnitude 12.07 (G-Gaia Filter)
vs Historic Magnitude 13.38 +/- 0.57 (SD)
Gaia and WISE source brightens by 2 mag
 ( TNS 2023abtv | Gaia23duv )

AT 2023abtv - 2024-01-12 (T+16.8d)
Image below (2024-01-12.768) was taken 16.8 days after discovery of 2023abtv
Position of reported transient (bright) is shown by white cross-hairs
Measured Magnitude +12.06 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:29 UT (#1181032-36)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023abtv on Transients 2023 Page >>

Back to Top


AT 2024vf - CV Type Transient

AT 2024vf (Cancer)
AT 2024vf (Type: CV) discovered 2024-01-09.678 UT by Tadashi Kojima
Alias: TCP J09174122+0736487
Discovery magnitude 14.0 (Clear Filter)
Corresponds to SDSS J091741.29+073647.4,
Cataclysmic Binary Candidate with normal magnitude 21.5
 ( TNS 2024vf )

Starfield with AT 2024vf (T+3.3d) and multiple faint galaxies.
brightest galaxies in FOV are PGC 1327780 (catalog mag +16.9),
PGC 1324005 (catalog mag +17.0) & PGC 1328138 (catalog mag +17.2)
Other galaxies with magnitude +17.0 to +18.5
Annotated CCD Image (70% size, square root scale)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 23:35 UT (#1181074-77)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2024vf - 2024-01-12 (T+3.3d)
Image below (2024-01-12.981) was taken 3.3 days after discovery of 2024vf
Position of reported transient (distinct) is shown by white cross-hairs
Measured Magnitude +14.64 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 23:35 UT (#1181074-77)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024vf on Transients 2024 Page >>

Back to Top


CGCG 150-024 - Galaxy with Type II Supernova 2023bvh

CGCG 150-024 with SN 2023bvh (Cancer)
SN 2023bvh (Type: II) discovered 2023-02-18.186 UT by ATLAS
Alias: ATLAS23cgo, ZTF23aaclqtq, Gaia23beb
Discovery magnitude 17.62 (cyan-ATLAS Filter)
vs Previous Non-Detection, Limiting Mag 18.92
Gaia, 2023-03-18 20:53  16.68
Gaia, 2023-04-04 10:42  16.91
Gaia, 2023-05-08 02:22  17.46
 ( TNS 2023bvh | Gaia23beb )

CGCG 150-024 - Galaxy
Alias:  PGC 24643 (catalog mag +16.6)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 00:10 UT (#1181087-91)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

CGCG 150-024 with SN 2023bvh - 2024-01-13 (T+328.8d)
Image below (2024-01-13.001) was taken 328.8 days after discovery of 2023bvh
Position of earlier SN (faded & no longer visible) is shown by white cross-hairs
Non Detection,  Limiting Magnitude +19.2 (Clear Filter)
Annotated CCD Image (175% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 00:10 UT (#1181087-91)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023bvh (in CGCG 150-024 ) on Supernova 2023 Page >>

Back to Top


IC 1125 - Spiral Galaxy with Type Ia Supernova 2024jz

IC 1125 with SN 2024jz (Serpens)
SN 2024jz (Type: Ia) discovered 2024-01-05.641 UT by ATLAS
Alias: ATLAS24ahj
Discovery Magnitude 17.73  (orange-ATLAS Filter)
 ( TNS 2024jz )

IC 1125 with SN 2024jz - 2024-01-13 (T+7.6d)
Image below (2024-01-13.235) was taken 7.6 days after discovery of 2024jz
Position of reported supernova (distinct, brightening) is indicated by white cross-hairs.
Measured Magnitude +15.11 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 05:43 UT (#1181168-70)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024jz (in IC 1125) on Supernova 2024 Page >>

Back to Top


IC 1501 - Spiral Galaxy with Transient AT 2023by

IC 1501 with AT 2023by (Pisces)
AT 2023by (Type: unk) discovered 2023-01-07.158 UT by ZTF
Alias: ZTF23aaaakig
Discovery magnitude 18.28 (r-ZTF Filter)
( Previous Non-Detection, Limiting Mag 19.2 )
 ( TNS 2023by )

IC 1501 - Spiral Galaxy
IC 1501 (catalog mag +14.5)
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:43 UT (#1181039-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

IC 1501 with AT 2023by - 2024-01-12 (T+370.6d)
Image below (2024-01-12.775) was taken 370.6 days after discovery of 2023by
Position of earlier SN (faded & no longer visible) is shown by white cross-hairs
Non Detection,  Limiting Magnitude +19.2 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:43 UT (#1181039-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023by (in IC 1501) on Transients 2023 Page >>

Back to Top


LEDA 2073213 - Galaxy with Type Ia Supernova 2023tqo

LEDA 2073213 with SN 2023tqo (Leo Minor)
SN 2023tqo (Type: Ia) discovered 2023-09-25.436 UT by XOSS
Alias: XM109MZ, Gaia23cpy
Discovery magnitude 16.5 (Clear Filter)
Candidate SN near galaxy LEDA 2073213
Gaia 2023-09-25 10:27   17.81
Gaia 2023-10-03 02:48   17.74
Gaia 2023-11-12 04:10   19.61
Gaia 2023-12-18 03:32   20.43
 ( TNS 2023tqo | Gaia23cpy )

LEDA 2073213 - Galaxy
LEDA 2073213 (alias: PGC 2073213, catalog mag +18.0)
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 18:43 UT (#1181039-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

LEDA 2073213 with SN 2023tqo - 2024-01-13 (T+109.6d)
Image below (2024-01-13.015) was taken 109.6 days after discovery of 2023tqo
Position of earlier SN (faded & no longer visible) is shown by white cross-hairs
Non Detection,  Limiting Magnitude +19.2 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 00:29 UT (#1181094-98)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023tqo (in LEDA 2073213) on Supernova 2023 Page >>

Back to Top


M98 - Spiral Galaxy

M98 (Coma Berenices)
[ Messier Objects ]
Annotated CCD Image (70% size, square root scale)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 03:15 UT (#1181123-24)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M98 - Earlier Image (2024-01-07)
Annotated CCD Image (70% size, square root scale)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-07 06:10 UT (#1179245-46)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M98 - Earlier Image (Dec 2022)
Annotated CCD Image (70% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2022-12-20 04:54 UT (#1073112-16)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


M98 - Earlier Image (Mar 2007)
CCD Image
7 x 180s exposure (average combine), 2x2 binning, C filter
2007-03-13  00:25h UT (#182297-303)
8" LX200 Classic + ST-7E



Back to Top


MCG +9-27-70 - Galaxy with Type Ia Supernova 2023acha

MCG +9-27-70 with SN 2023acha (Draco)
SN 2023acha (Type: Ia) discovered 2023-12-31.638 UT by ATLAS
Alias: ATLAS23ych
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2023acha )

MCG +9-27-70 with SN 2023acha - 2024-01-13 (T+12.6d)
Image below (2024-01-13.251) was taken 12.6 days after discovery of 2023acha
Position of reported SN (distinct) is indicated by white cross-hairs.
Measured Magnitude +15.28 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 06:09 UT (#1181175-78)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023acha (in MCG +9-27-70) on Supernova 2023 Page >>


Back to Top


NGC 682 - Elliptical Galaxy with Type Ia Supernova 2023xtg

NGC 682 with SN 2023xtg (Cetus)
SN 2023xtg (Type: Ia) discovered 2023-11-14.527 UT by Koichi Itagaki
Alias: Gaia23dny, PS23kun, ZTF23abqqixn, ATLAS23vth
Discovery Magnitude 18.1 (Clear Filter)
(Gaia, 2023-11-23 11:01:37 :  Alerting Magnitude 15.85 )
Confirmed SN Ia
 ( TNS 2023xtg | Gaia23dny )

NGC 682 with SN 2023xtg - 2024-01-12 (T+59.3d)
Image below (2024-01-12.790) was taken 59.3 days after discovery of 2023xtg
Position of reported SN (not visible) is indicated by white cross-hairs
Annotated CCD Image (125% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 19:06 UT (#1181047-51)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023xtg (in NGC 682) on Supernova 2023 Page >>

Back to Top


NGC 3021 - Spiral Galaxy with Type II Supernova 2023bvj

NGC 3021 with SN 2023bvj (Leo Minor)
SN 2023bvj (Type: II) discovered 2023-02-18.174 UT by ATLAS
Alias: ATLAS23cgq, ZTF23aackjhs
Discovery Magnitude 17.29 (cyan-ATLAS Filter)
 ( TNS 2023bvj )


NGC 3021 with SN 2023bvj - 2024-01-13 (T+328.9d)
Image below (2024-01-13.031) was taken 328.9 days after discovery of 2023bvj
Position of earlier supernova (not visible) is shown by white cross-hairs
Single frame


Annotated CCD Image (150% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 00:44 UT (#1181101)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023bvj (NGC 3021) on Supernova 2023 Page >>

Back to Top


NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy

NGC 4216 with SN 2024gy (Virgo)
SN 2024gy (Type: Ia, z=0.001183) discovered 2024-01-04.678 UT by Koichi Itagaki
Alias: AT2023acjv, AT2024ix, ASASSN-24ac, PSN J12155131+1306561
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2024gy )

NGC 4216 - Spiral Galaxy with SN 2024gy (T+8.5d)
Alias : Herschel I-35,  'Silver Streak Galaxy',
Hidden Treasures catalog object 60
Ast. Now Deep Sky Challenge Object, May 2017
[ Herschel 400 Objects ]  [ Deep Sky Challanges (Ast.Now) ]  [ Hidden Treasures ]

Image showing  NGC 4216,  SN 2024gy (mag +14.7)
 and PGC 39247 (catalog mag +15.6)
Annotated CCD Image (50% size, log scale)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 04:26 UT (#1181136-40)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 4216 with SN 2024gy - 2024-01-13 (T+8.5d)
Image below (2024-01-13.178) was taken 8.5 days after discovery of 2024gy
Position of reported SN (distinct, brightening) is indicated by white cross-hairs.
Measured Magnitude +13.26 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 04:26 UT (#1181136-40)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024gy (in NGC 4216) on Supernova 2024 Page >>

Back to Top


NGC 6745 - Spiral Galaxy with Type II Supernova 2023ucy

NGC 6745 with SN 2023ucy (Lyra)
SN 2023ucy (Type: II) discovered 2023-10-05.151 UT by ZTF
Alias: ZTF23abhzxwm
Discovery Mag +17.9 (r-ZTF filter) vs last non-detection image with 19.91 limiting mag
It is noted that SN 2022prr (19:01:41.897, +40:45:03.67) occurred in Jul 2022
at approximately the same location as this newly
reported transient 2023ucy (19:01:41.992, +40:45:05.89)
(are they possibly related ?)
 ( TNS 2023ucy ) ( TNS 2022prr )

NGC 6745 with SN 2023ucy - 2024-01-13 (T+100.1d)
Image below (2024-01-13.267) was taken 100.1 days after discovery of 2023ucy
Position of SN (fading) is shown by white cross-hairs
Measured magnitude +15.14 (Clear Filter)
Single frame only due to developing cloud
Annotated CCD Image (150% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 06:24 UT (#1181182)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023ucy (NGC 6745) on Supernovae 2023 Page >>

Back to Top


NGC 7625 - Spiral Galaxy (ARP 212) with Type Ia Supernova 2023vyl

NGC 7625 with SN 2023vyl (Pegasus)
SN 2023vyl (Type: Ia) discovered 2023-10-28.393 UT by ATLAS
Alias: ATLAS23urs, ZTF23abnprwj
Discovery Magnitude 17.43 (orange-ATLAS Filter)
 ( TNS 2023vyl )

NGC 7625 with SN 2023vyl - 2024-01-12 (T+76.4d)
Image below (2024-01-12.820) was taken 76.4 days after discovery of 2023vyl
Position of reported SN (faint,  fading) is indicated by white cross-hairs.
Estimated Magnitude +16.4 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 19:46 UT (#1181061-63)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Images of SN 2023vyl (in NGC 7625) on Supernova 2023 Page >>

Back to Top


UGC 5276 - Spiral Galaxy with Type Ia Supernova 2023cxk

UGC 5276 with SN 2023cxk (Leo)
SN 2023cxk (Type:Ia) discovered 2023-03-11.401 UT by ATLAS
Alias: ATLAS23dky
Discovery Magnitude 17.89 (orange-ATLAS Filter)
 ( TNS 2023cxk )


UGC 5276 with SN 2023cxk - 2024-01-12 (T+307.6d)
Image below (2024-01-12.986) was taken 307.6 days after discovery of 2023cxk
Position of earlier SN (faded & no longer visible) is shown by white cross-hairs
Non Detection, limiting magnitude +18.8 (Clear Filter)


Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 23:49 UT (#1181080-84)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 5276 with SN 2023cxk - Earlier Image, 2023-03-28 (T+16.6d)
Image below (2023-03-28.033) was taken 16.6 days after discovery of 2023cxk
Position of reported transient (bright) is shown by white cross-hairs
Measured magnitude +16.50


Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-03-28 00:56 UT (#1108125-29)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023cxk (UGC 5276) on Supernova 2023 Page >>

Back to Top


UGC 5886 - Spiral Galaxy with Type IIn Supernova 2024hw

UGC 5886 with SN 2024hw (Sextans)
AT 2024hw (Type: unk) discovered 2024-01-05.357 UT by ZTF
Alias: ZTF24aaaibep
Discovery Magnitude 17.394 (i-ZTF Filter)
 ( TNS 2024hw )

UGC 5886 with SN 2024hw - 2024-01-13 (T+7.8d)
Image below (2024-01-13.194) was taken 7.8 days after discovery of 2024hw
Position of reported SN (faint) is indicated by white cross-hairs.
Estimated Magnitude +16.7 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 04:44 UT (#1181143-45)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024hw (in UGC 5886) on Supernova 2024 Page >>

Back to Top


UGC 6608 - Spiral Galaxy with Type Ia Supernova 2022zvr

UGC 6608 with SN 2022zvr (Virgo)
SN 2022zvr (Type: Ia, z=0.020715) discovered 2022-11-10.530 UT by ZTF
Alias: ZTF22abtdbnx
Discovery Mag 17.68 (r-ZTF filter)
 ( TNS 2022zvr )

UGC 6608 with SN 2022zvr - 2024-01-13 (T+428.6d)
Image below (2024-01-13.119) was taken 428.6 days after discovery of 2022zvr
Position of SN (faded & no longer visible) is shown by white cross-hairs
Non Detection, limiting magnitude +19.0 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-13 03:00 UT (#1181115-19)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 6608 with SN 2022zvr - Earlier Image, 2022-11-21 (T+10.7d)
Image below (2022-11-21.249) was taken 10.7 days after discovery of 2022zvr
Position of SN (bright) is shown by white cross-hairs
Measured magnitude +16.02 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2022-11-21 06:06 UT (#1059341-45)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2022zvr (UGC 6608) on Supernova 2022 Page >>

Back to Top


UGC 8927 - Spiral Galaxy with Transient AT 2023qzg

UGC 8927 with AT 2023qzg (Bootes)
AT 2023qzg (Type: unk) discovered 2023-08-28.719 UT by ATLAS
Alias: ATLAS23rtj, Gaia23cgg
Discovery Mag 17.50 (ornage-ATLAS filter)
Candidate SN (not confirmed) near galaxy UGC 8927
Gaia: 2023-09-05 02:56  17.67
Gaia: 2023-11-30 03:45  20.32
Gaia: 2023-12-04 09:50  20.32
( TNS 2023qzg | Gaia23cgg )

UGC 8927 - Spiral Galaxy
UGC 8927 (alias  PGC 49913 , catalog mag +15.6)
Annotated CCD Image (50% size, square root scale)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 04:10 UT (#1181133)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 8927 with AT 2023qzg - 2024-01-13 (T+137.5d)
Image below (2024-01-13.174) was taken 137.5 days after discovery of 2023qzg
Position of earlier transient (not visible, faded) is shown by white cross-hairs
Non Detection, limiting magnitude +18.5 (Clear Filter)
(Gaia reports mag +20.32 on 2024-01-04 )
Single frame only
Annotated CCD Image (150% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-01-13 04:10 UT (#1181133)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023qzg (UGC 8927) on Transients 2023 Page >>

Back to Top


UGC 12604 - Spiral Galaxy with Transient AT 2024bv

UGC 12604 with AT 2024bv (Pegasus)
AT 2024bv (Type: unk) discovered 2024-01-02.211 UT by PS1
Alias: PS24ao
Discovery Magnitude 17.40 (orange-ATLAS Filter)
 ( TNS 2024bv

UGC 12604 with AT 2024bv - 2024-01-12 (T+10.6d)
Image below (2024-01-12.803) was taken 10.6 days after discovery of 2024bv
Position of reported transient (not distinguishable) is shown by white cross-hairs


Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-01-12 19:22 UT (#1181054-56)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024bv (in UGC 12604) on Transients 2024 Page >>

Back to Top
