Images - Session 1189 (2024-02-22)

Objects Session Notes
Bullet 12P/Pons-Brooks - Comet
Bullet 13P/Olbers - Comet
Bullet 29P/Schwassmann-Wachmann - Comet
Bullet C/2021 S3 (PANSTARRS) - Comet

Bullet Nova Cas 2021 - Nova (V1405 Cas)
Bullet Nova Per 2020 - Nova (V1112 Per)

Bullet Wolf 359 - Nearby Star (CN Leo)

Bullet AT 2023cts - Type YSO? Transient
Bullet AT 2023eid - CV Type Transient
Bullet AT 2023exh - Transient
Bullet AT 2023rcj - Type QSO Transient
Bullet AT 2023tow - Nova Transient
Bullet AT 2023txn - CV Type Transient
Bullet AT 2023abtv - CV Type Transient
Bullet AT 2024agp - CV Type Transient
Bullet AT 2024crd - Type Nova? Transient

Bullet CGCG 217-021 - Spiral Galaxy with Type MP Transient AT 2023clc  (Attempt)

Bullet M101 - Spiral Galaxy with Type IIL Supernova 2023ixf
Bullet MCG -1-30-11 - Spiral Galaxy (PGC 35934)

Bullet NGC 1086 - Spiral Galaxy with Type II Supernova 2023rix
Bullet NGC 1752 - Spiral Galaxy with Transient AT 2023exk
Bullet NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy
Bullet NGC 5332 - Elliptical Galaxy with Type II Supernova 2023jkq
Bullet NGC 6004 - Spiral Galaxy with Type II Supernova 2024cld
Bullet NGC 7625 - Spiral Galaxy (ARP 212) with Type Ia Supernova 2023vyl

Bullet UGC 8317 - Spiral Galaxy with Transient AT 2022qvu

Bullet Variable Stars (photometric monitoring)
- RR Leo, RR Tau

Bullet Nearby Stars (astrometric monitoring)
- Barnards Star, DX Cnc, CB Leo


- All Night Session (11.2 hrs) with minor interruptions by cloud

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: -1.5°C (min)
- CCD Temperature:   -20°/25°C
- Notes from 2024-02-22 >>

-

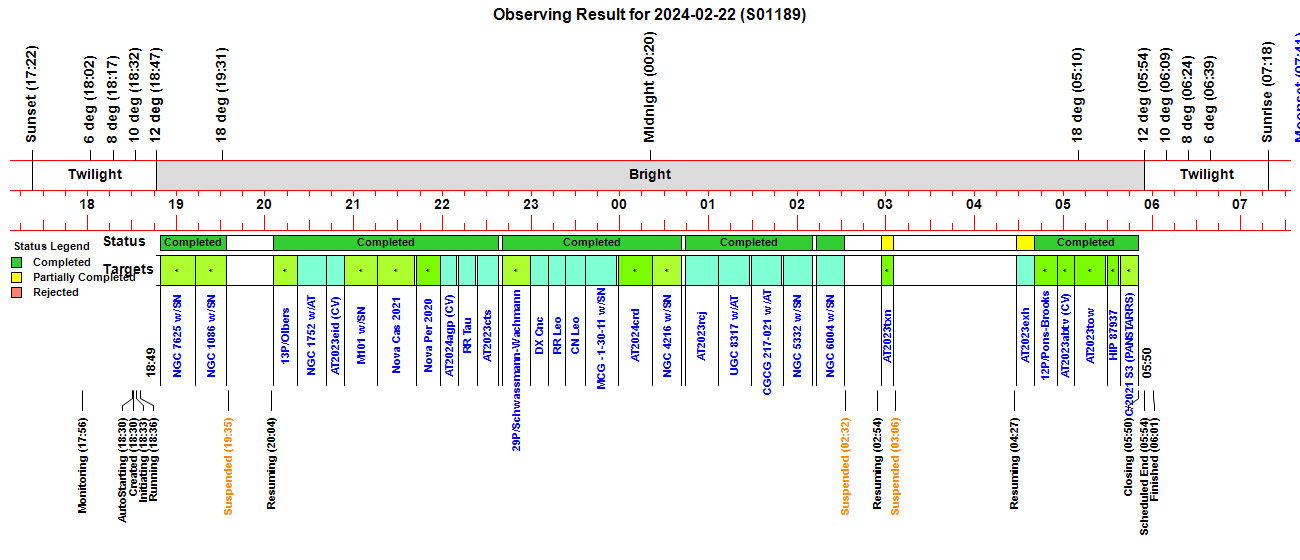

Observing Result


Back to Top


12P/Pons-Brooks - Comet (Outburst)

12P/Pons-Brooks - 2024-02-23
(passing through  Andromeda)

Sun Distance 1.30 AU (approaching)
Earth Distance 1.73 AU (258.9 million km)
   12P/Pons-Brooks -  2024-02-23 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 186.50 arcsec/hr, Dec -21.74 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-02-23 04:44 UT (#1189227)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log root scale, cropped)
5 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 04:49 UT (#1189227-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

12P/Pons-Brooks - 2024-02-23
Annotated CCD Image (50% size, log scale)
5 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 04:49 UT (#1189227-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


12P/Pons-Brooks - 2024-02-23 Detail    12P/Pons-Brooks - 2024-02-23 Detail
Image   Image
Annotated false-colour CCD Image (50% size, log scale)
5 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 04:49 UT (#1189227-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(100% size, log scale, cropped)
Inverse Spectrum
Image details as left

Images of 12P/Pons-Brooks on Comets 2023 Page >>
Images of 12P/Pons-Brooks on Comets 2024 Page >>

Back to Top


13P/Olbers - Comet

13P/Olbers - 2024-02-22
(passing through Cetus)
Sun Distance 2.16 AU (approaching)
Earth Distance 2.29 AU (341.9 million km)
   13P/Olbers - 2024-02-22 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 23.98 arcsec/hr, Dec 52.97 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 20:11 UT (#1189021-23)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
10 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 20:16 UT (#1189021-30)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 13P/Olbers on Comets 2024 Page >>

Back to Top


29P/Schwassmann-Wachmann - Comet

29P/Schwassmann-Wachmann - 2024-02-22
(passing through Cancer)

Sun Distance 6.18 AU (receeding slowly)
Earth Distance 5.33 AU (797.4 million km)
   29P/Schwassmann-Wachmann - 2024-02-22 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -13.84 arcsec/hr, Dec 0.66 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 22:50 UT (#1189098-102)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
11 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 22:53 UT (#1189098-108)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 29P/Schwassmann-Wachmann on Comets 2023 Page >>
Images of 29P/Schwassmann-Wachmann on Comets 2024 Page >>

Back to Top


C/2021 S3 (PANSTARRS) - Comet

C/2021 S3 (PANSTARRS) - 2024-02-23
(passing through Serpens)

Sun Distance 1.33 AU
Earth Distance 1.36 AU (203.3 million km)
   C/2021 S3 (PANSTARRS) - 2024-02-23 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 111.80 arcsec/hr, Dec 120.56 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
60s exposure (single frame), 3x3 binning, Clear Filter
2024-02-23 05:43 UT (#1189269)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
6 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 05:47 UT (#1189269-75)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2021 S3 (PANSTARRS) on Comets 2024 Page >>

Back to Top


Nova Cas 2021 - Nova (V1405 Cas)

Nova Cas 2021 (Cassiopeia)
Nova in Cassiopeia discovered 2021-03-18.4236,  by Yuji Nakamura (Japan)
Magnitude at discovery +9.6 (unfiltered CCD)
AT2021hkn (Type: Nova) reported by 2021/03/30.055 UT by Gaia
Alias: Gaia21bpe, AT2021hkn, V1405 Cas
( TNS 2021hkn | Gaia21bpe )

Nova Cas 2021 - 2024-02-22 (T+1071.5d)
Image below (2024-02-22.891) was taken 1071.5 days after discovery of nova
Nova is shown by white cross hairs.  Measured magnitude +12.05 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
2 x 30s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 21:23 UT (#1189056-57)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova Cas 2021 (V1405 Cas) Spectra - 2024-02-22 (T+1071.5d)

Spectra produced in AstroMain using Image taken with Star Analyser 200
2 x 300s exposure (average combine), 2x2 binning, S Filter
2024-02-22 21:34 UT (#1189061-63)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of Nova Cas 2021 on Novae Page >>

Back to Top


Nova Per 2020 - Nova (V1112 Per, AT 2020abap)

Nova Per 2020 (Perseus)
Nova in Perseus discovered 2020/11/25.807
[ Novae ]
Nova Per 2020 discovered independently by Seiji Ueda and Stanislav Korotkiy et al
AT 2020abap (Type: CV) reported 2020/11/27.230 UT by PGIR
Alias: N Per 2020 , PGIR20fbf, TCP J04291888+4354233, TCP J04291884+4354232, V1112 Per

Nova Per 2020 - 2024-02-22 (T+1184.1d)
Image below (2024-02-22.908) was taken 1184.1 days after discovery of nova
Nova (very faint) is shown by white cross hairs.  Measured magnitude +17.97 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 120s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 21:53 UT (#1189066-70)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of Nova Per 2020 on Novae Page >>

Back to Top


Wolf 359 - Nearby Star (CN Leo) - 7.8 ly

Wolf 359 / CN Leo (Leo)
3rd closest star system to the Sun, 7.8 light years distance
[ Nearby Stars ]
Annotated CCD Image (46% size, linear scale)
15 x 20s exposure (average combine), 2x2 binning, Clear Filter
2024-02-22 23:33 UT (#1189138-52)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Annotated CCD Image (46% size, linear scale)
15 x 20s exposure (average combine), 2x2 binning, Clear Filter
2024-02-22 23:33 UT (#1189138-52)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


AT 2023cts - Type YSO? Transient

AT 2023cts (Orion)
AT 2023cts (Type: YSO?) discovered 2023-03-04.858 UT by Gaia
Alias: Gaia23azh
Discovery Magnitude 13.19 (G-Gaia Filter)
 (vs Historic magnitude 14.58 +/- 0.42 SD)
Brightening in candidate YSO
 ( TNS 2023cts | Gaia23azh)


AT 2023cts - 2024-02-22 (T+355.1d)
Image below (2024-02-22.935) was taken 355.1 days after discovery of 2023cts
Position of reported transient (at around historic level) is shown by white cross-hairs
Measured magnitude +14.64 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
4 x 120s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 22:31 UT (#1189091-94)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023cts on Transients 2023 Page >>

Back to Top


AT 2023eid - CV Type Transient

AT 2023eid (Puppis)
AT 2023eid (Type: CV) discovered 2023-03-28.086 UT by Gaia
Alias: Gaia23bhl
Discovery Magnitude 13.53 (G-Gaia Filter)
vs Historic magnitude 13.83 +/- 0.09 SD
Brightening in Gaia/WISE source
 ( TNS 2023eid | Gaia23bhl)


AT 2023eid - 2024-02-22 (T+331.8d)
Image below (2024-02-22.867) was taken 331.8 days after discovery of 2023eid
Position of reported transient (relatively faint) is shown by white cross-hairs
Measured magnitude +13.33 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
2 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 20:50 UT (#1189041-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023eid on Transients 2023 Page >>

Back to Top


AT 2023exh - Transient

AT 2023exh (Cygnus)
AT 2023exh (Type: unk) discovered 2023-04-02.466 UT by ZTF
Alias: ZTF23aaefkam
Discovery Magnitude 16.44 (r-ZTF Filter)
Prior Non-Detection, Non existent in SDSS/PS1
 ( TNS 2023exh )


AT 2023eid - 2024-02-22 (T+331.8d)
Image below (2024-02-22.867) was taken 331.8 days after discovery of 2023eid
Position of reported transient (not visible) is shown by white cross-hairs


Annotated CCD Image (100% size, linear scale, cropped)
2 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 20:50 UT (#1189041-43)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023exh on Transients 2023 Page >>

Back to Top


AT 2023rcj - Type QSO Transient

AT 2023rcj (Virgo)
AT 2023rcj (Type: QSO) discovered 2023-08-19.096 UT by Gaia
Alias: Gaia23bzg
Discovery Magnitude 16.76 (G-Gaia Filter) vs Historic Magnitude 17.29 +/- 0.14 (SD)
Brightening in known QSO  ( [VV96] J130119.8-142456 )
 ( TNS 2023rcj | Gaia23bzg )

AT 2023rcj - 2024-02-23 (T+187.9d)
Image below (2024-02-23.038) was taken 187.9 days after discovery of 2023rcj
Position of QSO object  (faint, stable) is shown by white cross-hairs
Measured Magnitude +16.25 (Clear Filter)
Annotated CCD Image (125% size, linear scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 01:01 UT (#1189182-85)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023rcj on Transients 2023 Page >>

Back to Top


AT 2023tow - Nova Transient

AT 2023tow (Scutum)
AT 2023tow (Type: Nova) discovered 2023-09-20.778 UT by Gaia
Alias: Gaia23coj, ZTF23abceaws
Discovery Magnitude 12.26 (G-Gaia Filter) vs Historic Magnitude - None
Red bright Galactic plane transient
 ( TNS 2023tow | Gaia23coj )


AT 2023tow - 2024-02-23 (T+155.4d)
Image below (2024-02-23.217) was taken 155.4 days after discovery of 2023tow
Position of earlier transient (no longer visible) is shown by white cross-hairs
Non-Detection, limiting mag  +17.5 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 05:20 UT (#1189243-46)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023tow on Transients 2023 Page >>

Back to Top


AT 2023txn - CV Type Transient

AT 2023txn (Cygnus)
AT 2023txn (Type: CV) discovered 2023-09-29.797 UT by Gaia
Alias: Gaia23cse
Discovery magnitude 11.83 (G-Gaia) vs Historic Mag 13.14
Red Galactic plane source brightens erratically by 2 mag & becomes bluer
 ( TNS 2023txn | Gaia23cse )

AT 2023txn - 2023-11-30 (T+62.0d)
Image below (2023-11-30.791) was taken 62.0 days after discovery of 2023txn
Position of reported transient (distinct) is shown by white cross-hairs
Measured magntitude +12.45 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2023-11-30 19:02 UT (#1169021-25)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023txn on Transients 2023 Page >>

Back to Top


AT 2023abtv - CV Type Transient

AT 2023abtv (Pegasus)
AT 2023abtv (Type: CV) discovered 2023-12-26.986 UT by Gaia
Alias: Gaia23duv
Discovery magnitude 12.07 (G-Gaia Filter)
vs Historic Magnitude 13.38 +/- 0.57 (SD)
Gaia and WISE source brightens by 2 mag
 ( TNS 2023abtv | Gaia23duv )

AT 2023abtv - 2024-02-23 (T+58.2d)
Image below (2024-02-23.209) was taken 58.2 days after discovery of 2023abtv
Position of reported transient (bright) is shown by white cross-hairs
Measured Magnitude +12.07 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 05:04 UT (#1189236-40)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023abtv on Transients 2023 Page >>

Back to Top


AT 2024agp - CV Type Transient

AT 2024agp (Auriga)
AT 2024agp (Type: CV) discovered 2024-01-15.768 UT by XOSS
Alias: KATS24A004, ATLAS24azp, TCP J05363231+4201536
Discovery magnitude 16.76 (Clear Filter)
 ( TNS 2024agp )

AT 2024agp - 2024-02-22 (T+38.2d)
Image below (2024-02-22.921) was taken 38.2 days after discovery of 2024agp
Position of earlier transient (not visible) is shown by white circle
Non-Detection, Limiting Magnitude +17.8 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 05:04 UT (#1189236-40)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024agp on Transients 2024 Page >>

Back to Top


AT 2024crd - Type Nova? Transient

AT 2024crd (Virgo)
AT 2024crd (Type: Nova?) discovered 2024-02-14.750 UT by Tadashi Kojima
Alias: TCP J13530185+0522000, Gaia24apm
Discovery Magnitude 13.2 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 15.2
Transient on faint blue PanSTARRS source
 ( TNS 2024crd | Gaia24apm )

AT 2024crd - 2024-02-23 (T+8.3d)
Image below (2024-02-23.003) was taken 8.3 days after discovery of 2024crd
Position of reported transient (distinct) is shown by white cross-hairs
Measured Magnitude +13.80 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 00:08 UT (#1189162-66)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024crd on Transients 2024 Page >>

Back to Top


CGCG 217-021 - Spiral Galaxy with Type MP Transient AT 2023clc (Attempt)

CGCG 217-021 with AT 2023clc (Canes Venatici)
AT 2023clc (Type: MP) discovered 2023-02-22.276 UT by ATLAS
Alias: ATLAS23cmd
Discovery Magnitude 15.68 (cyan-ATLAS Filter)
vs Prior Non-Detection Limiting Magnitude 19.06
 ( TNS 2023clc )

CGCG 217-021 with AT 2023clc - 2024-02-23 (T+365.8d)
Image below (2024-02-23.065) was taken 365.8 days after discovery of 2023clc
Position of earlier transient (likely faded & no longer visible) is shown by white cross-hairs
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 01:42 UT (#1189195-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023clc (in CGCG 217-021) on Transients 2023 Page >>

Back to Top


M101 - Spiral Galaxy with Type IIL Supernova 2023ixf

M101 with SN 2023ixf (Ursa Major)
SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki
Alias: ZTF23aaklqou, AT2023iyi, AT2023jgd, AT2023jfz, PSN J14033858+5418421, PS23dij
Discoverer Mag 14.9 (Clear filter)
 ( Rochester Supernova site | TNS 2023ixf )

SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki at Mag 14.9 is
located near M101's prominant star-forming region NGC 5461.

The supernova resulted from a exploding red supergiant and lies just 21 million light years away.
 It's the closest core-collapse supernova to us since SN 1993J which lit up M81 (some 12 million ly away) in Spring 1993.
The SN is designated of type II-L (L for 'linear') , which is characterised by a rapid rise to maximum brightness
 followed by a slow and gradual decrease, that is thought to be brought about by ejection of the dead stars' outer hydrogen shell.
(from Article "Summer's Super Supernova", AstNow Magazine, Sep 2023, pp 36-39)
M101 with SN 2023ixf - 2024-02-22 (T+279.1d)
Image below (2024-02-22.875) was taken 279.1 days after discovery of 2023ixf
Position of supernova (faint) is shown by white cross-hairs
Measured Magnitude +15.86 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 21:03 UT (#1189049-50)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023ixf (M101) on Supernova 2023 Page

Back to Top


MCG -1-30-11 - Spiral Galaxy (PGC 35934)

MCG -1-30-11 (Crater)
Alias PGC 35934  (catalog mag +14.0)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 23:51 UT (#1189155-59)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

MCG -1-30-11 / PGC 35934 - Detail
Annotated CCD Image (150% size, square root scale, cropped)
Image details as above


Back to Top


NGC 1086 - Spiral Galaxy with Type II Supernova 2023rix

NGC 1086 with SN 2023rix (Perseus)
SN 2023rix (Type: II) discovered 2023-09-05.365 UT by ALeRCE
Discovery Magnitude 18.21 (g-ZTF Filter)
 ( TNS 2023rix )

NGC 1086 with SN 2023rix - 2024-02-22 (T+170.4d)
Image below (2024-02-22.804) was taken 170.4 days after discovery of 2023rix
Position of reported supernova (faded & no longer visible) is indicated by white cross-hairs.
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 19:25 UT (#1189013-16)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023rix (in NGC 1086) on Supernova 2023 Page >>

Back to Top


NGC 1752 - Spiral Galaxy with Transient AT 2023exk

NGC 1752 with AT 2023exk (Eridanus)
AT 2023exk (Type: unk) discovered 2023-04-10.008 UT by ATLAS
Alias: ATLAS23hjo
Discovery Magnitude 17.77 (orange-ATLAS filter)
( TNS 2023exk )

NGC 1752 with AT 2023exk - 2024-02-22 (T+318.8d)
Image below (2024-02-22.851) was taken 318.8 days after discovery of 2023exk
Position of earlier tranisent (no longer visible) is indicated by white cross-hairs.
Annotated CCD Image (125% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 20:34 UT (#1189033-37)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023exk (in NGC 1752) on Transients 2023 Page >>

Back to Top


NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy

NGC 4216 with SN 2024gy (Virgo)
SN 2024gy (Type: Ia, z=0.001183) discovered 2024-01-04.678 UT by Koichi Itagaki
Alias: AT2023acjv, AT2024ix, ASASSN-24ac, PSN J12155131+1306561
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2024gy )

NGC 4216 with SN 2024gy - 2024-02-23 (T+49.3d)
Image below (2024-02-23.018) was taken 49.3 days after discovery of 2024gy
Position of reported SN (distinct, fading) is indicated by white cross-hairs.
Measured Magnitude +14.30 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 00:35 UT (#1189174-78)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024gy (in NGC 4216) on Supernova 2024 Page >>

Back to Top


NGC 5332 - Elliptical Galaxy with Type II Supernova 2023jkq

NGC 5332 with SN 2023jkq (Bootes)
SN 2023jkq (Type: II) discovered 2023-05-25.351 UT by ATLAS
Alias: ATLAS23ljb
Discovery Magnitude 17.48 (orange-ATLAS Filter)
 ( TNS 2023jkq )

NGC 5332 - Elliptical Galaxy
Other galaxy in FOV is PGC 49216 (catalog mag +16.1)
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 02:01 UT (#1189202-06)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 5332 with SN 2023jkq - 2024-02-23 (T+273.7d)
Image below (2024-02-23.079) was taken 273.7 days after discovery of 2023jkq
Position of earlier supernova (barely visible) is indicated by white cross-hairs.
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 02:01 UT (#1189202-06)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023jkq (in NGC 5332) on Supernova 2023 Page >>

Back to Top


NGC 6004 - Spiral Galaxy with Type II Supernova 2024cld

NGC 6004 with SN 2024cld (Serpens)
SN 2024cld (Type: II) discovered 2024-02-13.228 UT by GOTO
Alias: GOTO24ql, ATLAS24clv
Discovery Magnitude 17.97 ( Clear Filter)
Spectrum contains clear narrow H Balmer and He II 4686A flash
ionisation features typically seen in young type II SNe
 ( TNS 2024cld )

NGC 6004 with SN 2024cld - 2024-02-23 (T+9.9d)
Image below (2024-02-23.094) was taken 9.9 days after discovery of 2024cld
Position of reported SN (distinct, & brightening slightly) is indicated by white cross-hairs.
Measured Magnitude +15.05 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 02:19 UT (#1189209-10)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024cld (in NGC 6004) on Supernova 2024 Page >>

Back to Top


NGC 7625 - Spiral Galaxy (ARP 212) with Type Ia Supernova 2023vyl

NGC 7625 with SN 2023vyl (Pegasus)
SN 2023vyl (Type: Ia) discovered 2023-10-28.393 UT by ATLAS
Alias: ATLAS23urs, ZTF23abnprwj
Discovery Magnitude 17.43 (orange-ATLAS Filter)
 ( TNS 2023vyl )

NGC 7625 with SN 2023vyl - 2024-02-22 (T+117.4d)
Image below (2024-02-22.789) was taken 117.4 days after discovery of 2023vyl
Position of reported SN (faint,  fading ?) is indicated by white cross-hairs.
Estimated Magnitude +16.4 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-22 19:05 UT (#1189006-10)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Images of SN 2023vyl (in NGC 7625) on Supernova 2023 Page >>

Back to Top


UGC 8317 - Spiral Galaxy with Transient AT 2022qvu

UGC 8317 with AT 2022qvu (Coma Berenices)
AT 2022qvu (Type: unk) discovered 2022-08-06.274 UT by ATLAS
Alias: ATLAS22zjv
 ( Rochester Supernova site | TNS 2022qvu )

UGC 8317 with AT 2022qvu - 2024-02-23 (T+565.8d)
Image below (2024-02-23.050) was taken 565.8 days after discovery of 2022qvu
Position of reported transient (not visible) is shown by white cross-hairs
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-23 01:21 UT (#1189188-92)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2022qvu (UGC 8317) on Transients 2022 Page >>

Back to Top
