Images - Session 1214 (2024-05-02)

Objects Session Notes
Bullet C/2023 A3 (Tsuchinshan-ATLAS) - Comet

Bullet NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy
Bullet NGC 6106 - Spiral Galaxy with Type Ib Supernova 2024ahv

Bullet UGC 11067 - Spiral Galaxy with Type II Supernova 2024grw

  - 62P/Tsuchinshan attempt failed (poor quality sky)
- NGC 4192A w/SN2024exw attempt failed (cloud / poor guiding)

Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- None


- Post-Midnight Session (3.0 hrs)

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 8°C (min)
- CCD Temperature:   -15°C
- Notes from 2024-05-02 >>

-

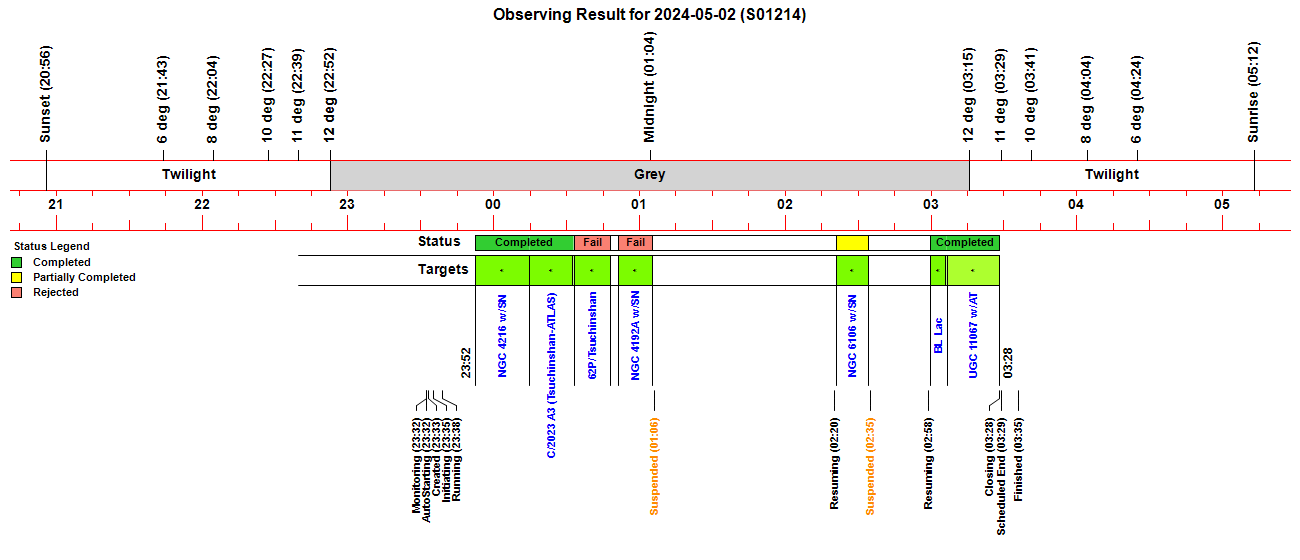

Observing Result


Back to Top


C/2023 A3 (Tsuchinshan-ATLAS) - Comet

C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-02
(passing through Virgo)
Sun Distance 2.74 AU (approaching)
Earth Distance 1.79 AU (268.4 million km)
   C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-02
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -104.04 arcsec/hr, Dec 21.88 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
60s exposure (single frame), 3x3 binning, Clear Filter
2024-05-02 23:20 UT (#1214012)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log scale, cropped)
11 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-02 23:26 UT (#1214012-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-02    C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-02
Image   Image
False Color CCD Image (50% size, log scale)
11 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-02 23:26 UT (#1214012-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  False Color CCD Image (100% size, log scale, cropped)
Image details as left

Images of C/2023 A3 Tsuchinshan-ATLAS on Comets 2024 Page >>

Back to Top


NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy

NGC 4216 with SN 2024gy (Virgo)
SN 2024gy (Type: Ia, z=0.001183) discovered 2024-01-04.678 UT by Koichi Itagaki
Alias: AT2023acjv, AT2024ix, ASASSN-24ac, PSN J12155131+1306561
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2024gy )

NGC 4216 with SN 2024gy - 2024-05-02 (T+119.3d)
Image below (2024-05-02.957) was taken 119.3 days after discovery of 2024gy
Position of reported SN (fading) is indicated by white cross-hairs.
Measured Magnitude +16.29 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-02 23:07 UT (#1214005-09)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024gy (in NGC 4216) on Supernova 2024 Page >>

Back to Top


NGC 6106 - Spiral Galaxy with Type Ib Supernova 2024ahv

NGC 6106 with SN 2024ahv (Hercules)
SN 2024ahv (Type: Ib) discovered 2024-01-16.852 UT by Hidehiko Okoshi
Alias: PS24vc, ATLAS24baw
Discovery magnitude 16.2 (Clear Filter)
 ( TNS 2024ahv)

NGC 6106 with SN 2024ahv - 2024-05-03 (T+107.2d)
Image below (2024-05-03.060) was taken 107.2 days after discovery of 2024ahv
Position of reported transient (faint) is shown by white cross-hairs
Estimated Magnitude +16.4 (Clear Filter)
Annotated CCD Image (125% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-03 01:30 UT (#1214043-44)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024ahv (in NGC 6106) on Supernova 2024 Page >>

Back to Top


UGC 11067 - Spiral Galaxy with Type II Supernova 2024grw

UGC 11067 with SN 2024grw (Ophiuchus)
SN 2024grw (Type: II) discovered 2024-04-16.821 UT by ATLAS
Alias: ATLAS24fvu, Gaia24bit
Discovery Magnitude 18.36 (orange-ATLAS Filter)
vs Prior Non-Detection Limiting Magnitude 20.09 (ATLAS)
vs Historic Magnitude 20.45 +/- 0.05 (Gaia)
Gaia comment : Confirmed SN II
Gaia, 2024-02-01 06:55, mag 20.44
Gaia, 2024-04-16 19:43, mag 18.60
Gaia, 2024-05-03 06:03, mag 17.49
It is likely that the SN's progenitor is not the same as Gaia's
historical object recorded at mag 20.45 +/- 0.05, which is likely a foreground star since
 the brightening in magnitude (only 3 mag or so ) is not consistent with the 10 mag brightening
that would be expected for a SN.  The real progenitor would be expected to lay at mag 27 or so
.
 ( TNS 2024grw | Gaia24bit )

UGC 11067 with SN 2024grw - 2024-05-03 (T+16.0d)
Image below (2024-05-03.092) was taken 16.0 days after discovery of 2024grw
Position of reported transient (not visible) is shown by white cross-hairs
Poor quality image (poor sky transparenct, poor guiding, single frame)
Annotated CCD Image (150% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-05-03 02:12 UT (#1214054)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 11067 with SN 2024grw - Earlier Image, 2024-04-27 (T+10.0d)
Image below (2024-04-27.104) was taken 10.0 days after discovery of 2024grw
Position of reported candidate SN (faint but distinct) is shown by white cross-hairs
Measured Magnitude +16.94 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-04-27 02:38 UT (#1212049-52)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024grw (in UGC 11067) on Supernova 2024 Page >>
