David's Astronomy Pages
Images - Session 1229 (2024-08-16)

Objects Session Notes
Bullet C/2023 V4 (Camarasa-Duszanowicz) - Comet

Bullet Cas A - Supernova Remnant
Bullet CTB1 - Supernova Remnant (Abell 85, LBN 576)  (Attempt)
Bullet IC 2190 - Spiral Galaxy with Type Ia Supernova 2024dhp
Bullet M31 - Spiral Galaxy with Type EGN Transient AT 2023mxi


Bullet Variable Stars (photometric monitoring)
- BL Lac, GK Per


Bullet Nearby Stars (astrometric monitoring)
- None


- Attempted All-night Session (2.8hrs), ended early due to cloud

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 12°C
- CCD Temperature:   -10° C
- Notes from 2024-08-16 >>

-

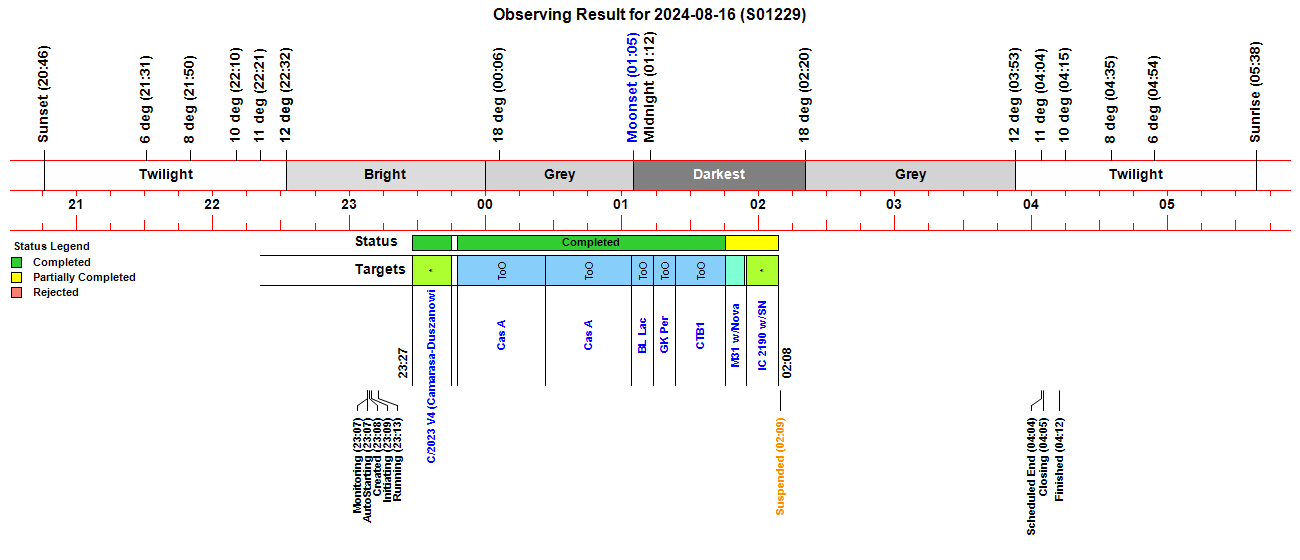

Observing Result


Back to Top


C/2023 V4 (Camarasa-Duszanowicz) - Comet

C/2023 V4 (Camarasa-Duszanowicz) - 2024-08-16
(passing through Canes Venatici)
Sun Distance 1.66 AU (receeding)
Earth Distance 2.13 AU (318.5 million km)
   C/2023 V4 (Camarasa-Duszanowicz) - 2024-08-16 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 112.84 arcsec/hr, Dec -95.18 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
2 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-08-16 22:34 UT (#1229006-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-08-16 22:39 UT (#1229006-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2023 V4 (Camarasa-Duszanowicz) on Comets 2024 Page >>

Back to Top


Cas A - Supernova Remnant

Cas A (Cassiopeia)
[ Supernova Remnants ]
Annotated CCD Image (70% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-16 23:02 UT (#1229018-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Annotated Negative CCD Image (70% size, square root scale)
Image details as above

Cas A - Detail (Clear Filter)


Annotated CCD Image (125% size, square root scale, cropped)
9 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-16 23:19 UT (#1229018-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Annotated Negative CCD Image (70% size, square root scale)
Image details as above

Cas A - Detail (OptoLong L-eNhance Dual Band Filter)


Annotated CCD Image (125% size, square root scale, cropped)
taken through OptoLong L-eNhance dual-band filter
5 x 300s exposure (average combine), 3x3 binning, DB Filter
2024-08-16 23:43 UT (#1229024-36)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Annotated Negative CCD Image (70% size, square root scale)
Image details as above


Back to Top


CTB1 - Supernova Remnant (Abell 85, LBN 576) - Attempt

CTB1 (Cassiopeia)
Alias: Abell 85, LBN 576, SNR G116.9+00.1
[ Supernova Remnants ]
Annotated CCD Image (70% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-17 00:38 UT (#1229052-56)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Negative CCD Image (70% size, square root scale)
Image details as above

CTB1 - Reference Image
FOV of image(s) above are indicated on the reference image by
white rectangle and show that brightest parts of the SNR hav been missed
and demonstrate need for either a future or for selectively located images
Reference Image taken at Curdridge Observatory, Southampton, UK
Mosaic with total exposure time c. 20 hrs acquired over 6 nights
using Astrodon 3nm Ha Filter
Credit: Tom How
http://astro.neutral.org/imagehtml/20130901-ctb1.html



Back to Top


IC 2190 - Spiral Galaxy with Type Ia Supernova 2024dhp

IC 2190 with SN 2024dhp (Auriga)
SN 2024dhp (Type: Ia) discovered 2024-02-28.291 UT by ZTF
Alias: ZTF24aagirej
Discovery Magnitude 18.33 (r-ZTF Filter)
vs Prior Non-Detection Limiting Mag 16.0 (g-ZTF Filter)
 ( TNS 2024dhp )

IC 2190 with SN 2024dhp - 2024-08-17 (T+170.7d)
Image below (2024-08-17.040) was taken 170.7 days after discovery of 2024dhp
Position of reported SN (not distinguishable) is indicated by white cross-hairs.
Poor quality image (lowish altitude 21°, poor sky transparency, poor S/N)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-17 01:03 UT (#1229063-65)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

IC 2190 with SN 2024dhp - Earlier Image, 2024-03-04 (T+5.6d)
Image below (2024-03-04.933) was taken 5.6 days after discovery of 2024dhp
Position of reported SN (faint) is indicated by white cross-hairs.
Measured Magnitude +16.38 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-03-04 22:29 UT (#1196077-79)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024dhp (in IC 2190) on Supernova 2024 Page >>

Back to Top


M31 - Spiral Galaxy with Type EGN Transient AT 2023mxi

M31 with AT 2023mxi (Andromeda)
AT 2023mxi (Type: EGN) discovered 2023-07-12.859 UT by XOSS
Alias: PSP23H, MASTER OT J004341.86+405222.7, PNV J00434177+4052237, ZTF23aarlxdf
Discovery Magnitude 16.1 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 18.0
Spectrum shows strong Barmer emission lines, including Hα, Hβ, and Hγ.
consistent with a Nova.
 ( CBAT Nova M33 2024-08a? )


M31 with AT 2023mxi - Location
Cam2 Reference Image, Position of AT 2023mxi (no longer visible) is shown by blue circle
Limits of M31 Spiral Galaxy is shown by white ellipse


Annotated CMOS Image (16% size)
(10s exposure, 1x1 binning)
2023-08-17 00:47 UT (01:47 LT)
TS 80mm APO, ZWO ASI178MC

M31 with AT 2023mxi (T+401.2d)
Position of earlier transient (faded & no longer visible) is shown by white circle


Annotated CCD Image (50% size, square root scale)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-17 00:51 UT (#1229059-60)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Nova M31 AT 2023mxi - 2024-08-17 (T+401.2d)
Image below (2024-08-17.033) was taken 401.2 days after discovery of 2023mxi
Position of earlier transient (faded & no longer visible) is shown by white cross-hairs
Non-Detection Limiting Magnitude +19.0 (Clear Filter)


Annotated CCD Image (125% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-08-17 00:51 UT (#1229059-60)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023mxi on Transients 2023 Page >>
