Images - Session 1241 (2024-09-11)

Objects Session Notes
Bullet 237P/LINEAR - Comet

Bullet AT 2022aeeo - CV Type Transient
Bullet AT 2023exh - Transient
Bullet AT 2023rbs - Type HPM Transient
Bullet AT 2024xf - Transient
Bullet AT 2024koe - Transient in M31  (non-detection)
Bullet AT 2024ugc - Transient
Bullet AT 2024uvv - CV Type Transient

Bullet PAV78 - H II Region (in M31)
Bullet M31 - Spiral Galaxy with Type EGN Transient AT 2023veq
Bullet M33 - Spiral Galaxy with Nova M33 2024-08a?

Bullet NGC 797 - Spiral Galaxy with Type II Supernova 2024jjc

Bullet SN 2023sfl - Type Ia-91T Supernova in SDSS Galaxy


Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- None

- Attempted All-Night Session (5.4 hr) interrupted by and ended early by rain , threat of rain & cloud

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 6.5°C (min)
- CCD Temperature:   -15°/-20°C
- Notes from 2024-09-11 >>

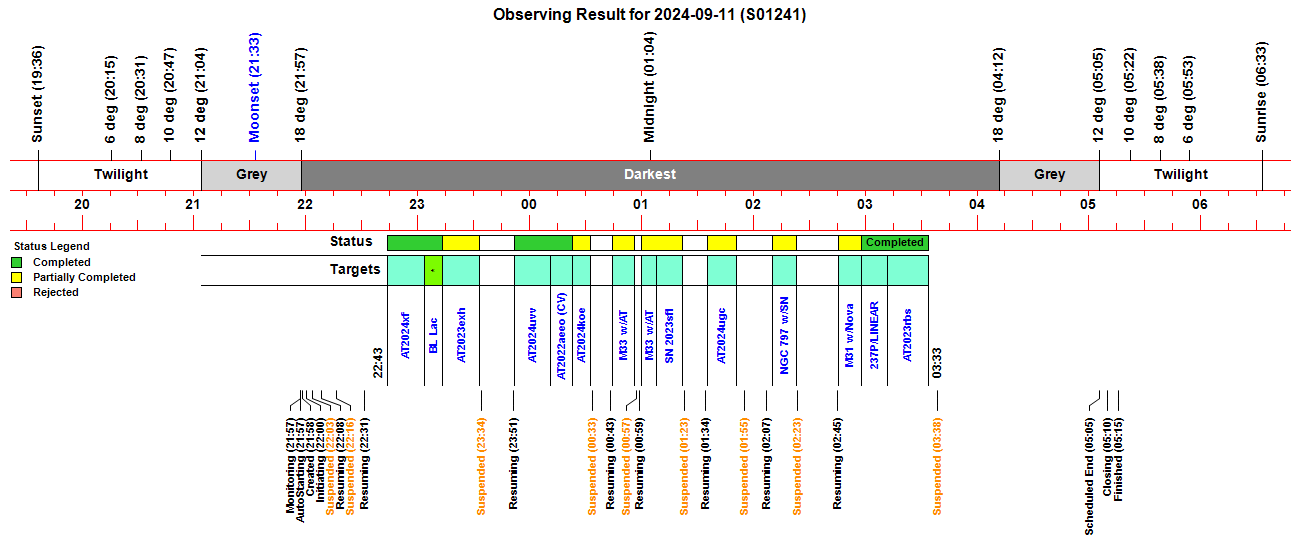

Observing Result


Back to Top


237P/LINEAR - Comet

237P/LINEAR - 2024-09-12
(passing through Aries)
Sun Distance 3.71 AU (receeding)
Earth Distance 3.08 AU (460.5 million km)
Expected position of comet (not visible) is shown by white circle
   237P/LINEAR) - 2024-09-12 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -8.59 arcsec/hr, Dec -1.68 arcsec/hr)
Expected position of comet (not visible) is shown by white circle
Image   Image
Annotated CCD Image (50% size, square root scale)
8 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 02:07 UT (#1241073-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
Image details as left

 Images of 237P/LINEAR on Comets 2024 Page >>

Back to Top


AT 2022aeeo - CV Type Transient

AT 2022aeeo (Pegasus)
AT 2022aeeo (Type: CV) discovered 2022-12-30.681 UT by Gaia
Alias: Gaia22epj
Discovery magnitude 14.35 (G-Gaia filter)
vs Historic Magnitude 14.68 +/- 0.09 SD
Brightening in Gaia and wise source
 ( TNS 2022aeeo | Gaia22epj )

AT 2022aeeo - 2024-09-11 (T+621.3d)
Image below (2024-09-11.970) was taken 621.3 days after discovery of 2022aeeo
Position of earlier transient (distinct) is shown by white cross-hairs
Measured Magnitude +14.57 (Clear Filter)
Star is within its normal magnitude range
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-09-11 23:20 UT (#1241034-38)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2022aeeo on Transients 2022 Page >>

Back to Top


AT 2023exh - Transient

AT 2023exh (Cygnus)
AT 2023exh (Type: unk) discovered 2023-04-02.466 UT by ZTF
Alias: ZTF23aaefkam
Discovery Magnitude 16.44 (r-ZTF Filter)
Prior Non-Detection, Non existent in SDSS/PS1
 ( TNS 2023exh )


AT 2023exh - 2024-09-11 (T+528.5d)
Image below (2024-09-11.930) was taken 528.5 days after discovery of 2023exh
Position of reported transient (not visible) is shown by white cross-hairs


Annotated CCD Image (100% size, linear scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-11 22:26 UT (#1241020-23)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023exh on Transients 2023 Page >>

Back to Top


AT 2023rbs - Type HPM Transient

AT 2023rbs (Perseus)
AT 2023rbs (Type: HPM) discovered 2023-08-31.443 UT by ZTF
Alias: ZTF23abascus, LP 198-542
Discovery Magnitude 14.06 (r-ZTF Filter)
 ( TNS 2023rbs )


AT 2023rbs - 2024-09-12 (T+377.7d)
Image below (2024-09-12.095) was taken 377.7 days after discovery of 2023rbs
Position of reported transient (faint, stable) is shown by white cross-hairs
Measured magnitude +15.37 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 02:26 UT (#1241084-88)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023rbs on Transients 2023 Page >>

Back to Top


AT 2024xf - Transient

AT 2024xf (Pegasus)
AT 2024xf (Type: unk) discovered 2024-01-11.238 UT by ATLAS
Alias: ATLAS24aqu, Gaia24ahw
Discovery Magnitude 14.02 (orange-ATLAS Filter)
vs Prior Non-Detection Limiting Magnitude 19.22
Transient on faint PanSTARRS source
Gaia  2024-01-18 07:30, mag 15.19
 ( TNS 2024xf | Gaia24ahw )


AT 2024xf - 2024-09-11 (T+244.7d)
Image below (2024-09-11.908) was taken 244.7 days after discovery of 2024xf
Position of earlier transient (not visible) is shown by white cross-hairs
Measured magnitude +15.37 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-11 21:56 UT (#1241008-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024xf on Transients 2024 Page >>

Back to Top


AT 2024koe - Transient  in M31 (non-detection)

AT 2024koe (Andromeda)
AT 2024koe (Type: unk) discovered 2024-06-08.412 UT by GEOTS
Alias: GEOTS-Balaji-2024-008
Discovery Magnitude 16.8 (Other Filter)
 ( TNS 2024koe )

AT 2024koe - 2024-09-11 (T+95.6d)
Image below (2024-09-11.978) was taken 95.6 days after discovery of 2024koe
Position of reported transient (not visible) is shown by white cross-hairs
Non-Detection Limiting Magnitude +18.7 (Clear Filter)
Annotated CCD Image (125% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-09-11 23:28 UT (#1241041)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024koe (in M31) on Transients 2024 Page >>

Back to Top


AT 2024ugc - Transient

AT 2024ugc (Perseus)
AT 2024ugc (Type: unk) discovered 2024-08-30.538 UT by ATLAS
Alias: ATLAS24nsj
Discovery Magnitude 16.84 (orange-ATLAS Filter)
vs Prior Non-Detection Limiting Magnitude 19.37
 ( TNS 2024ugc )


AT 2024ugc - 2024-09-12 (T+12.5d)
Image below (2024-09-12.026) was taken 12.5 days after discovery of 2024ugc
Position of earlier transient (faint but distinct) is shown by white cross-hairs
Measured magnitude +16.35 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 00:45 UT (#1241057-60)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024ugc on Transients 2024 Page >>

Back to Top


AT 2024uvv - CV Type Transient

AT 2024uvv (Delphinus)
AT 2024uvv (Type: CV) discovered 2024-09-06.746 UT by XOSS
Alias: KATS24R007, TCP J20544897+1023264
Discovery Magnitude 14.55 (Clear Filter)
 ( TNS 2024uvv )


AT 2024uvv - 2024-09-11 (T+5.2d)
Image below (2024-09-11.954) was taken 5.2 days after discovery of 2024uvv
Position of earlier transient (faint but distinct, fading) is shown by white cross-hairs
Measured magnitude +15.91 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-11 23:03 UT (#1241027-31)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024uvv on Transients 2024 Page >>

Back to Top

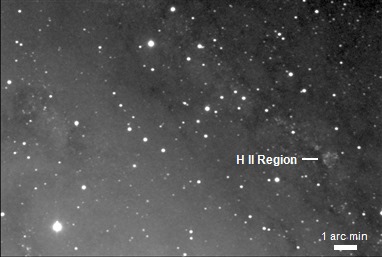

PAV78 - H II Region (in M31)

PAV78 - H II Region (in M31)  (Andromeda)
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-12-02 22:16 UT (#1171117-21)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

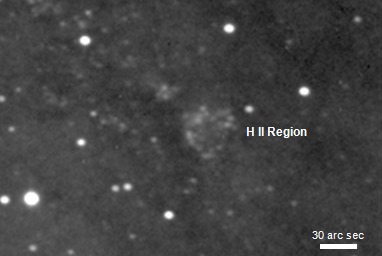

PAV78 - H II Region (in M31) - Detail
Annotated CCD Image (175% size, square root scale, cropped)
Image details as above



Back to Top


M31 - Spiral Galaxy with Type EGN Transient AT 2023veq

Nova M31 AT 2023veq (Andromeda)
AT 2023veq (Type: EGN) discovered 2023-10-16.987 UT by Robert Fidrich
Alias: Vend55, PNV J00433237+4138211, MASTER OT J004332.34+413821.4
Discovery Mag 18.6 (Clear Filter)
( TNS 2023veq )

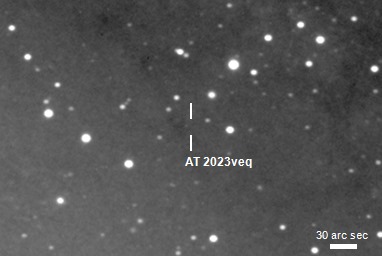

Nova M31 AT 2023veq - 2023-12-02 (T+46.9d)
Image below (2023-12-02.922) was taken 46.9 days after discovery of 2023veq
Position of reported transient (no longer visible) is shown by white cross-hairs
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-12-02 22:16 UT (#1171117-21)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023veq (in M31) on Transients 2023 Page >>

Back to Top


M33 - Spiral Galaxy with EGN Transient Nova M33 2024-08a?

M33 with Nova M33 2024-08a? (Triangulum)
Nova M33 2024-08a? (Type: unk) discovered 2024-08-15.373 UT by GEOTS
Alias: PNV J01340281+3042406
Discovery Magnitude 17.2 (Clear Filter)
Possible Nova in M33
 ( CBAT Nova M33 2024-08a? )

Equivalence of transient position indicates that
AT 2024sgd = Nova M33 2024-08a?


Nova M33 2024-08a? - 2024-09-11 (T+27.6d)
Image below (2024-09-11.993) was taken 27.6 days after discovery of Nova M33 2024-08a?
Position of reported transient (very faint) is shown by white cross-hairs
Measured Magnitude +18.04 (Clear Filter)


Annotated CCD Image (125% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 00:00 UT (#1241046-49)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Images of Nova M33 2024-08a? (in M33) on Transients 2024 Page >>

Back to Top


NGC 797 - Spiral Galaxy with Type II Supernova 2024jjc

NGC 797 with SN 2024jjc (Andromeda)
AT 2024jjc (Type: II) discovered 2024-05-26.481 UT by ZTF
Alias: ZTF24aaoupov
Discovery Magnitude 17.19 (r-ZTF Filter)
 ( TNS 2024epz )

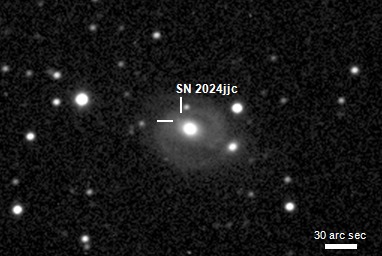

NGC 797 with SN 2024jjc - 2024-09-12 (T+108.6d)
Image below (2024-09-12.052) was taken 108.6 days after discovery of 2024jjc
Position of earlier supernova (very faint/ barely visible) is indicated by white cross-hairs
Estimated Magnitude +19.3 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 01:18 UT (#1241063-64)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024jjc (in NGC 797) on Supernova 2024 Page >>

Back to Top


SN 2023sfl - Type Ia-91T Supernova in SDSS Galaxy

SN 2023sfl (Pisces)
Alias: In SDSS J012038.93+321416.15
SN 2023sfl (Type: Ia-91T) discovered 2023-09-13.450 UT by ZTF
Alias: ZTF23abcvqkd
Discovery Magnitude 19.89 (r-ZTF Filter)
 ( TNS 2023sfl )

SN 2023sfl - 2024-09-12 (T+364.6d)
Image below (2024-09-12.009) was taken 364.6 days after discovery of 2023sfl
Position of earlier SN (no longer visible) is indicated by white cross-hairs.
Non-Detection Limiting Magnitude +19.5 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-09-12 00:16 UT (#1241052-53)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



SN 2023sfl - Earlier Image 2023-11-08 (T+56.4d)
Image below (2023-11-08.833) was taken 56.4 days after discovery of 2023sfl
Position of earlier reported SN (faint SN or nucleus ?) is indicated by white cross-hairs.
Measured Magnitude +18.05  (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-11-08 20:08 UT (#1163043-47)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Images of SN 2023sfl (in SDSS Galaxy) on Supernova 2023 Page >>

Back to Top
