Imaging Notes and Experience, CCD Session S00002
Bullet FWHM Analysis of Double-Double Image
Bullet Deconvolution processing of Double-Double Image

> Images from CCD Session 2

FWHM Analysis of Double-Double Image

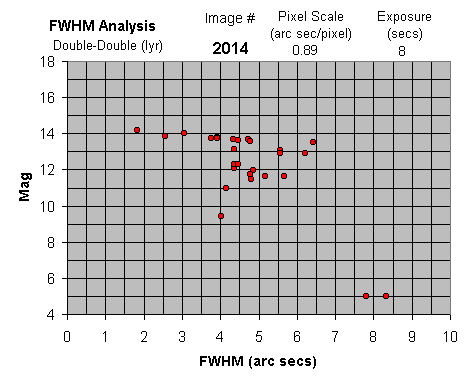

An 8 second exposure of Double-Double in Lyra (#2014) was analysed. It showed a FWHM for the entire image of around 4 arc sec. The binary components of each of the 2 main stars could not be resolved with this seeing, however their presence can be detected from the abnormally large FWHM of around 8 arc secs for both of these stars.

Image Image


Back to Top


Deconvolution Analysis of Double-Double Image

Original image of an 8 second exposure of Double-Double in Lyra (#2014) showed no indication of the binary components of each of the 2 main stars due to poor seeing (FWHM of around 4 arc secs).  Their presence can be detected by abnormally large FWHM values for the 2 main stars of around 8 arc secs (see above) and by deconvolution :

Image  Image Image
2001-09-25
Original Image
(#2014, part)
Richardson-Lucy Processing
Sigma 3.6, Iterations 25,
Kernal Size 11
Background and range adjusted
(extreme)

A series of Richardson-Lucy processing runs were made with different parameters before deciding that the right hand image above gave the most information about the Double-Double.

Richardson-Lucy Processing - various parameters 1 (LOCAL FILE)
Richardson-Lucy Processing - various parameters 2 (LOCAL FILE)



Back to Top
