CCD Session S00071

Bullet Albireo Star Field - Enhanced Image Display & Magnitude Limits

> Images from CCD Session 71

Albireo Star Field - Enhanced Image Display & Magnitude Limits

What is the Magnitude Limit of an Image  ?

Well it depends ...
In the following example a 10 sec image of the Star Field around Albireo is displayed in different ways, with Magnitude Limit that varies between +9 and +15.

Star field around Albireo (Cygnus)

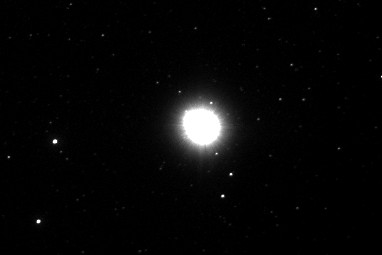

Image - "Normal Display"

(Linear brightness scaling,  High Contrast,  Range 147-1460 ADU)
β2 Cyg  is not visible in the glare from Albireo (β1)
Magnitude Limit  = +12.5
Image Image
CCD Image, 10s exposure, C Filter
2004-09-07 21:31h UT (# 71039)

Same Image - "Adjusted Display"
(Linear brightness scaling, Range 0-8600 ADU)
β2 Cyg visible, Magnitude Limit  = +11.0
Image Image

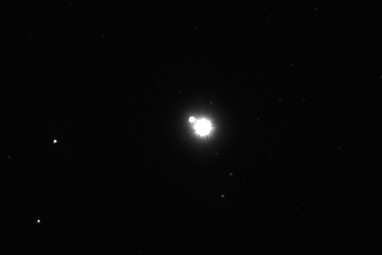

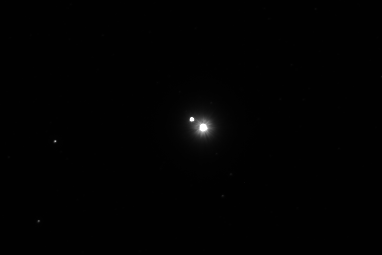

Same Image - "Adjusted Display"
(Linear brightness scaling, Range 0-25000 ADU)
β2 Cyg and β1 Cyg clearly separated, Magnitude Limit  = +9.0
Image Image

Same Image - "Enhanced Display"
(Logarithmic Scaling, Range 105 - 40000 ADU)
β2 Cyg visible, Magnitude Limit  = +12.5

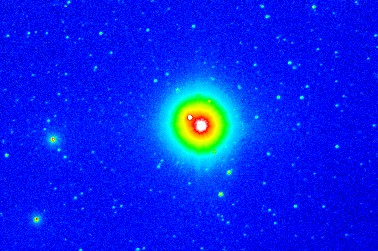

Same Image - Enhanced False Colour Display
(Logarithmic Scaling, Range 105-16900 ADU, Inverse Spectrum, )
β2 Cyg visible,  Magnitude Limit  = +15.0
CCD Image, 10s exposure, C Filter
2004-09-07 21:31h UT (# 71039)
