Sky Conditions Impact of Light Dew/Condensation on Faint Galaxy Use of Log brightness scaling / False Colour by highlighting detail in faint galaxies >

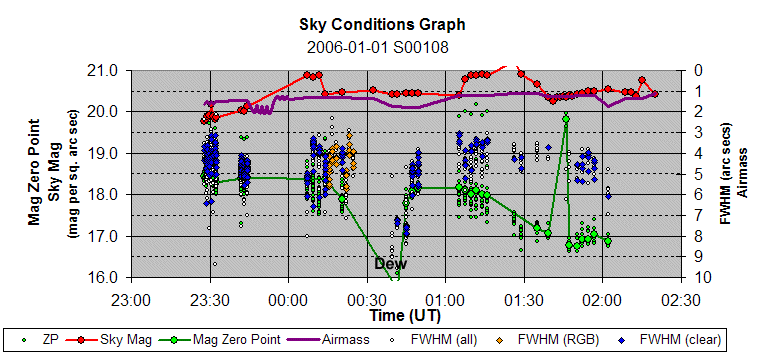

Sky Condition Summary (Session S108) |
Notice
|
|
Airmass of image. Purple Line
1 is zenith, with higher number indicating positions
progressively towards the horizon
Sky Brightness. Red circles/line.
Sky Magnitude in mag per sq. arc sec. Higher numbers
(towards top of chart) indicate darkest skies.

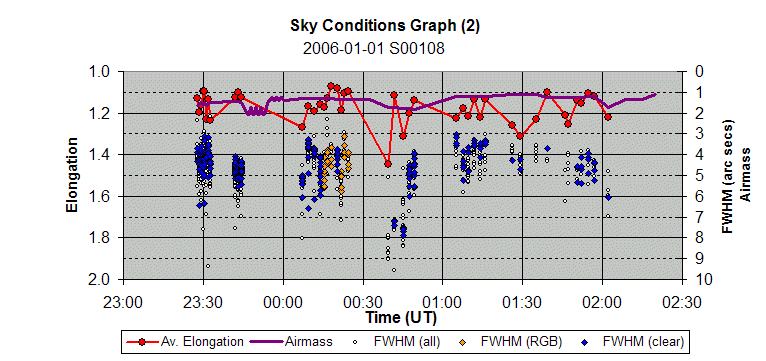

Elongation. Red circles/line.
Elongation (long axis length/short axis length). 1 = circular star image.
Mag Zero Point. Green
circles/line.
For each Clear Filter image this is the average difference
between the catalog magnitude of stars and their instrumental raw
magnitude normalized to a 1 sec exposure. Only sharp star-like
objects are used in this calculation. Larger numbers (towards top of
chart) indicate more transparent skies . Lower numbers
indicate either a less transparent sky or the formation of
condensation/dew on the front lens of the telescope.
ZP. Small green circles
These are magnitude zero points for individual stars in
Clear Filter images. The range is due to a number of factors including
catalog magnitude error, star colour, impact of star brightness on S/N
FWHM (clear). Blue diamonds
There are the Full-Width Half Maximum measurements of
individual stars in Clear Filter images. Only sharpest star-like
objects above a S/N threshold are shown. Lower number (towards top of
chart) indicate best seeing (most stable atmosphere) and best focusing.
Note that seeing & focusing may drift over an observing
session.
FWHM (RGB). Orange diamonds
There are the Full-Width Half Maximum measurements of
individual stars in Colour Filtered (RGB) images. Only sharpest
star-like objects above a S/N threshold are shown. Lower number (towards
top of chart)
FWHM (RGB). Small white circles
These are objects that fail to meet sharpness & S/N
thresholds. They might include galaxies or low S/N stars

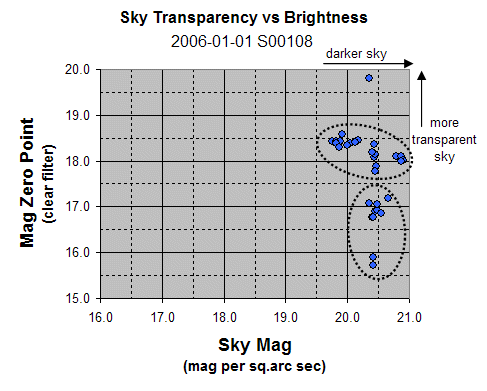

Sky Conditions Chart (S108) |
Back to Top
The impact of just a light dew / condensation on ability to image a faint galaxy is shown by the following frames of irregular galaxy NGC 1156.
NGC 1156 - Light dew on front lens of scope | NGC 1156 - Front lens cleared of dew | |
CCD Image 120s, clear filter 2006-01-02 00:42h UT (#108109) |
CCD Image 120s, clear filter 2006-01-02 00:49h UT (#108112) |
Back to Top
Logarithmic scaling and false colour was used to highlight detail in images of several galaxies recorded during the S00108 session. The following example shows the spiral galaxy M109.
M109 - Normal Image | M109 - Log brightness scaling & False Colour | |
CCD Image 6 x 2 min (average combine), clear filter 2006-01-02 01:12h UT (#108113-18) |
CCD image as
left with log brightness scaling & false colour (inverse spectrum) |
Back to Top
